The difference between ASME U and ASME UM

When customers order custom ASME air storage tanks, manufacturers may quote separate certification fees for the ASME “U” or “UM” stamp—often reflecting a substantial price differential. Customers unfamiliar with ASME certification requirements for air storage tanks may benefit from understanding the key distinctions between these two stamp designations.

The “U” stamp signifies full compliance with ASME Boiler and Pressure Vessel Code, Section VIII, Division 1, applicable to conventional pressure vessels—including large-capacity air storage tanks. In contrast, the “UM” stamp denotes a streamlined certification pathway designed specifically for small- and micro-pressure vessels (e.g., compact air receiver tanks). While the “UM” certification entails reduced entry requirements, lower associated costs, and less rigorous inspection protocols, it is strictly limited to vessels that fall within defined volumetric and pressure thresholds.

Core Definitions and Applications of ASME U and ASME UM

ASME U (U stamp)

l Basis: ASME BPVC Section VIII Division 1 (General Pressure Vessels)

l Applicable to: All pressure vessels that do not meet UM size/pressure limits, including medium and large air tanks,air receivers, heat exchangers, reactors, etc.

l Typical parameters: Volume > 142 L (5 ft³), or pressure > 250 psi, or P×V exceeds the limit.

ASME UM (UM stamp, Miniature)

l Basis: ASME VIII-1 Appendix UM (Small Pressure Vessels Specific Clause)

l Applicable to: Miniature/small air receiver tanks and similar vessels that meet any of the following "Volume-Pressure" limits:

u ≤ 5 ft³ (142 L) and MAWP ≤ 250 psi

u ≤ 3 ft³ (85 L) and MAWP ≤ 350 psi

u ≤ 1.5 ft³ (42 L) and MAWP ≤ 600 psi psi

l Applications: small air receivers for air compressors, air cylinders, buffer tanks, pressure housings for instruments and meters

Key Differences of ASME U and ASME UM

1. Standards and Certification Features

AMSE U: Full compliance with all clauses of VIII-1, independent and formal pressure vessel certification

ASME UM: Appendix UM of VIII-1, a simplified exemption certification within the U system, not an independent system.

2. Size/Pressure Limits (Most critical for air storage tanks)

·ASME U: No upper limit; if exceeding any limit of UM, a U stamp is required.

·ASME UM: Strict volume + pressure limits (see above), cannot be exceeded.

3. Design and Documentation Requirements

ASME U:

l Complete set of design calculations, strength checks, and welding procedures (WPS/PQR)

l Material verification (MTR), non-destructive testing (RT/UT/MT/PT) records

l Complete quality manual, procedure documents, and forms

ASME UM:

l Simplified design, using standard formulas, no need for complex stress analysis

l Concise documentation, focusing on materials, welding, and hydrostatic testing, reducing the proportion of non-destructive testing (NDT)

l Simplified quality system

4. Inspection and AI (Authorized Inspector) Participation

ASME U: AI-powered end-to-end monitoring – Critical processes (welding, hydraulic testing, NDT) must be attended and signed by an ASME authorized inspector; each unit is monitored.

ASME UM: air tank factory self-inspection; no need for AI-assisted end-to-end monitoring; factory-certified inspectors can perform the work.

5. Certification Cycle and Cost

ASME U: 2-3 months, high cost (system certification + drawing review + on-site inspection + certificate)

ASME UM:1 month, cost approximately 40–60% lower, suitable for small batches of air receivers

6. Nameplate and Stamp

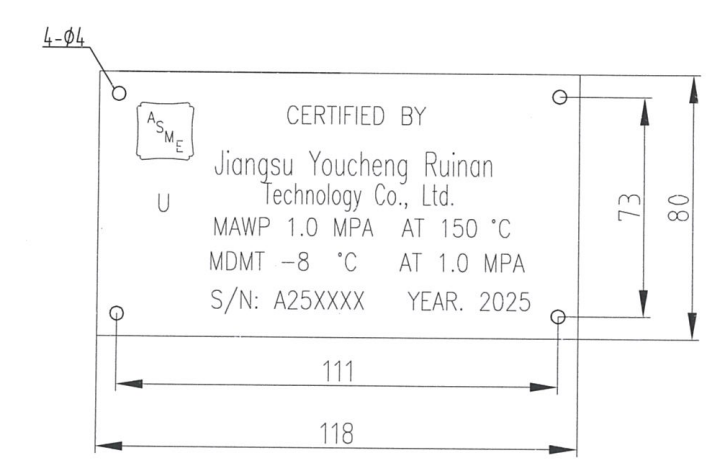

·U: Nameplate stamped with "U" and marked ASME VIII-1

·UM: Nameplate stamped with "UM" and marked ASME VIII-1 Appendix UM

Clarifications of ASME U and ASME UM

 1. "ASME UM air receiers are of lower quality than U" → Wrong: Both have the same safety level, only different applicable scope and control intensity; UM is a simplification of compliance, not a downgrade.

 2. "All small air receiver tanks can be UM" → Wrong: Both volume and pressure limits must be met simultaneously; for example: 50 L / 300 psi → can only do ASME U.

 3. "ASME U can replace ASME UM" → Yes, but not necessary: Making small air receiver tanks ASME U is costly, time-consuming, and has low cost-effectiveness.
