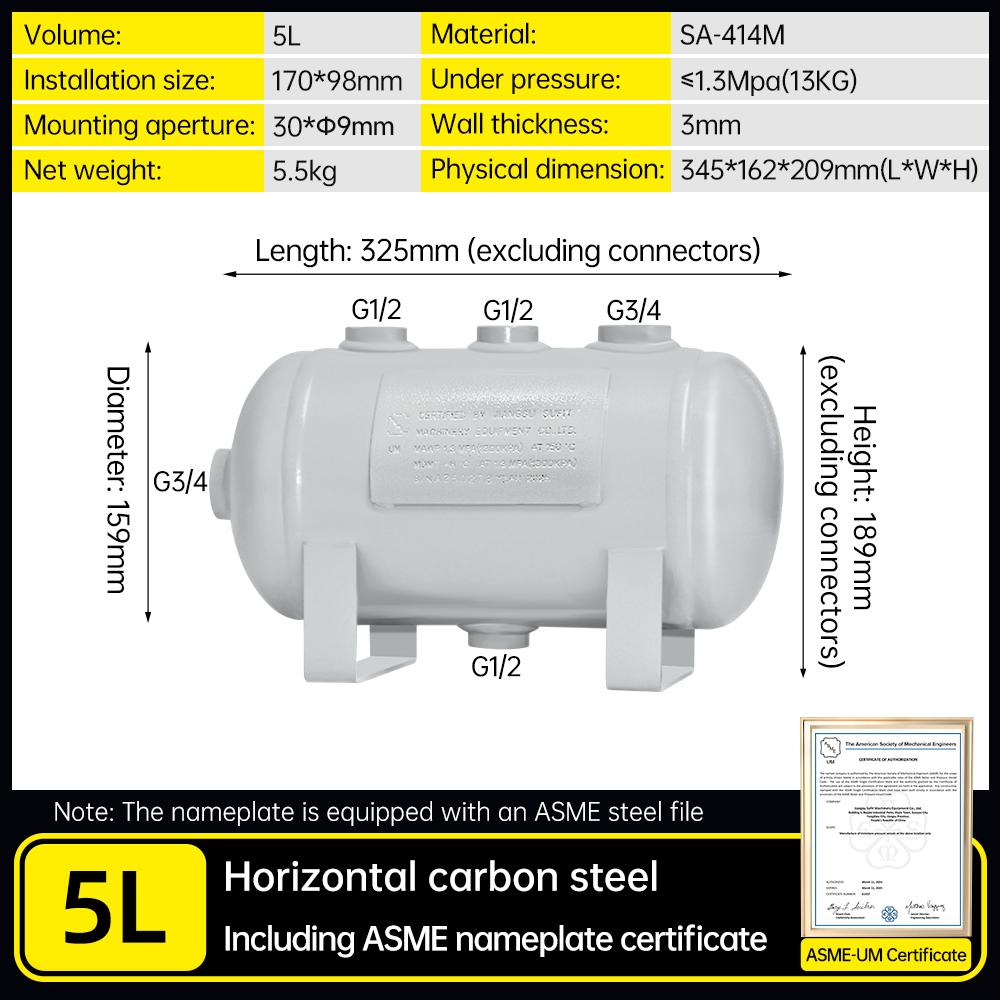

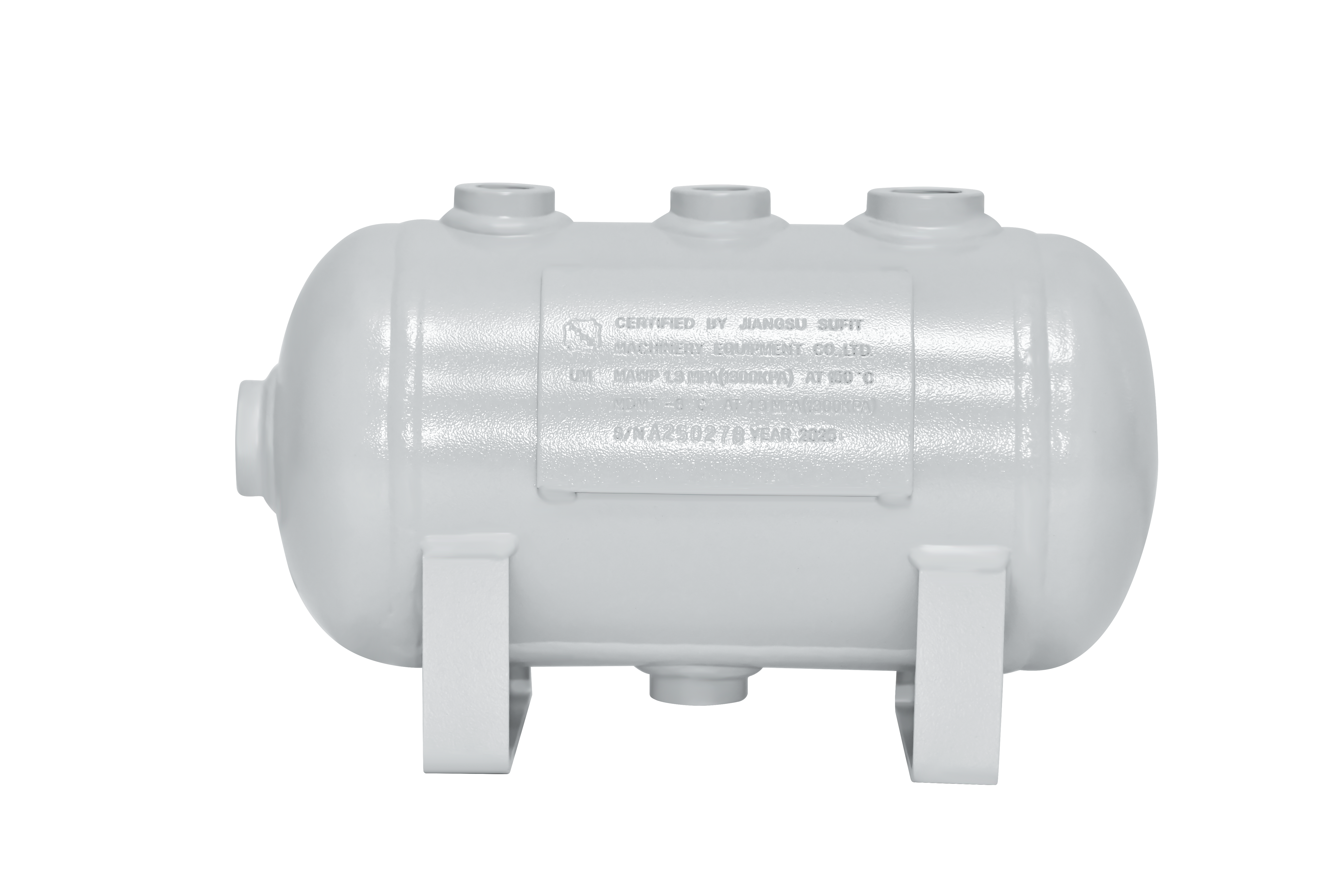

Horizontal 5L ASME-certified air receiver tank, 13 bar working pressure, made of carbon steel with anti-corrosion coating. Stable pressure, safe and reliable, suitable for small air compressors and pneumatic systems.
The 5L capacity and horizontal design make the air tank easy to transport, position, and integrate into small workshops or mobile applications.

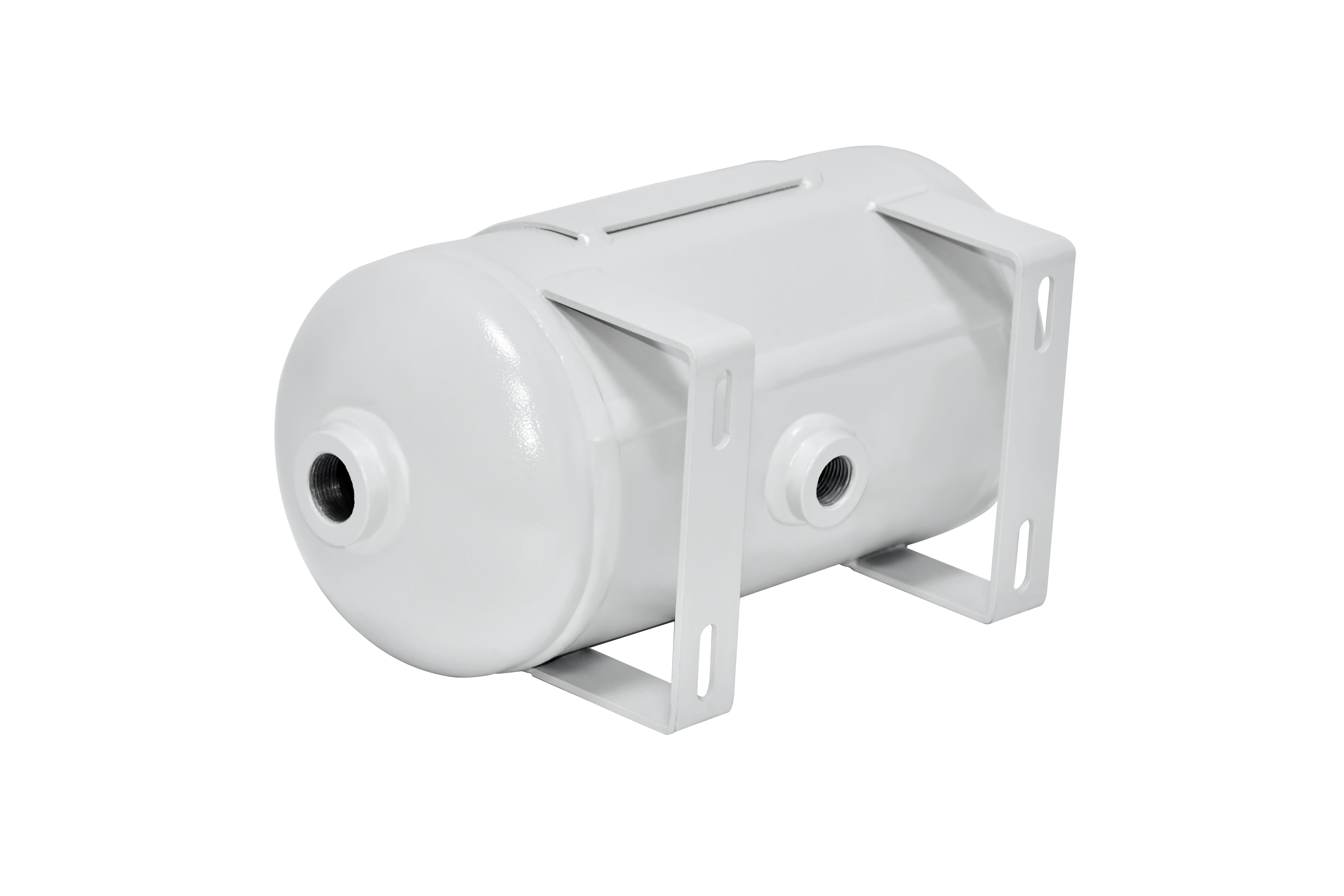

The horizontal structure is stable, easier mounting or installation in confined areas.
Manufactured by experienced air receiver tank manufacturers to ASME Boiler and Pressure Vessel Code standards, ensuring certified safety, reliability, and regulatory acceptance.
Provides a crucial buffer of compressed air at 13 bar, smoothing out pressure fluctuations from the compressor and ensuring stable, immediate air supply for tools and equipment.
| P/N | Pressure (bar) | L*D*H(mm) | Thickness（mm) | Package Size（mm） | Net Weight（KG） | Gross Weight（KG） | Ports |

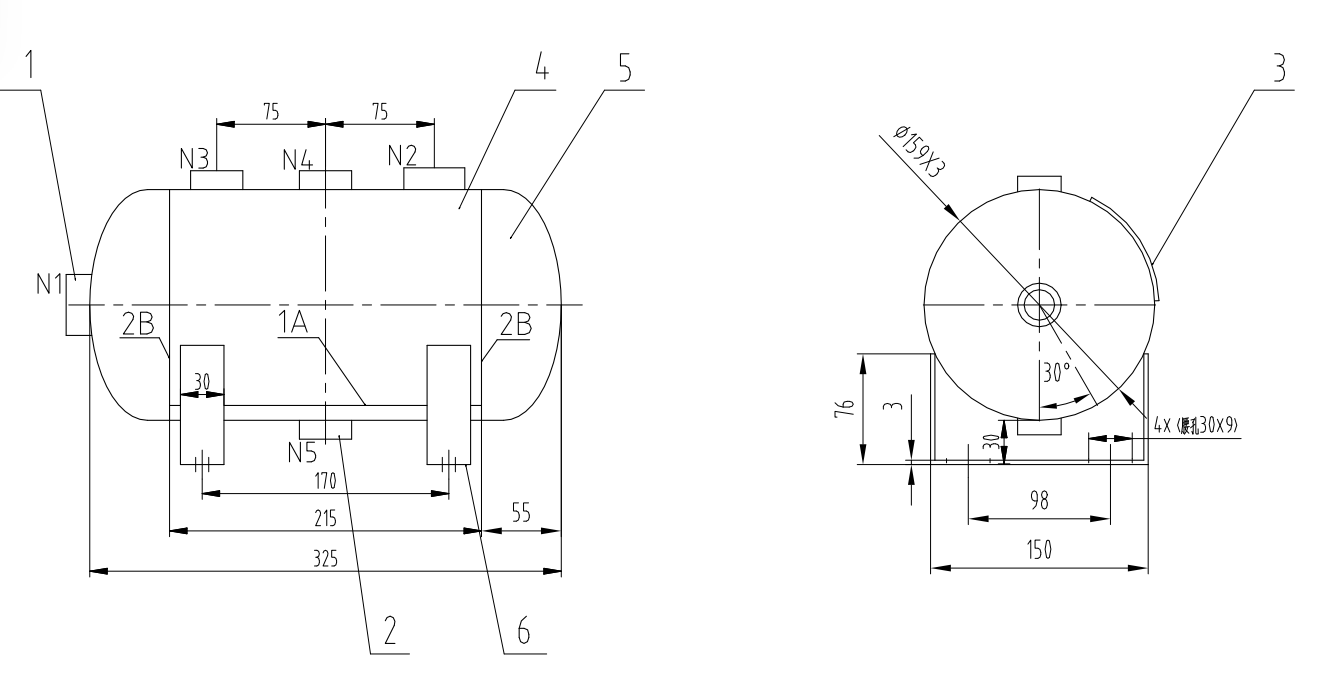

| 5L ASME | 13 | 345*162*209 | 3 | / | 5 | 5.5 | 3:G1/2, 2:G3/4 |
| 10L ASME | 13 | 450*183*235 | 3 | / | 7.9 | 8.4 | 2:G1/2, 1:G1/4,2:G3/4 |
| 20L ASME | 13 | 540*243*315 | 3 | / | 12 | 12.5 | 2:G1/2, 2:G1/4,2:G3/4 |
| 40L ASME | 8 | 686*293*325 | 3 | / | 16 | 17 | 4:G1/2, 1:G1/4, 2: G3/4 |
| 50L ASME | 8 | 736*332*392 | 3 | / | 20 | 21 | 3:G1/2, 1:G1/4, 2: G3/4 |
| 60L Vertical ASME | 8 | 337*850*968 | 3 | / | 24 | 25 | 3:G1/2, 2:G3/4, 1: G1 |
| 80L ASME | 8 | 870*370*412 | 3 | / | 27.5 | 28 | 3:G1/2, 1:G1/4, 2:G1-1/2 |
| 100L ASME | 8 | 1075*370*388.5 | 3 | / | 37.5 | 38 | 4:G1/2, 1:G1/4, 2:G1-1/2 |
| 5L ASME | 12.5 | 330*179*227 | 2 | / | 4.2 | 4.2 | 2: G1/2, 1:G1/4， 2:G3/4 |
| 10L ASME | 12.5 | 616*179*252 | 2 | / | 6.3 | 2: G1/2, 1:G1/4， 2:G3/4 | |
| 20L ASME | 12.5 | 634*239*304 | 2 | / | 7.48 | / | 2: G1/2, 1:G1/4， 2:G3/4 |
