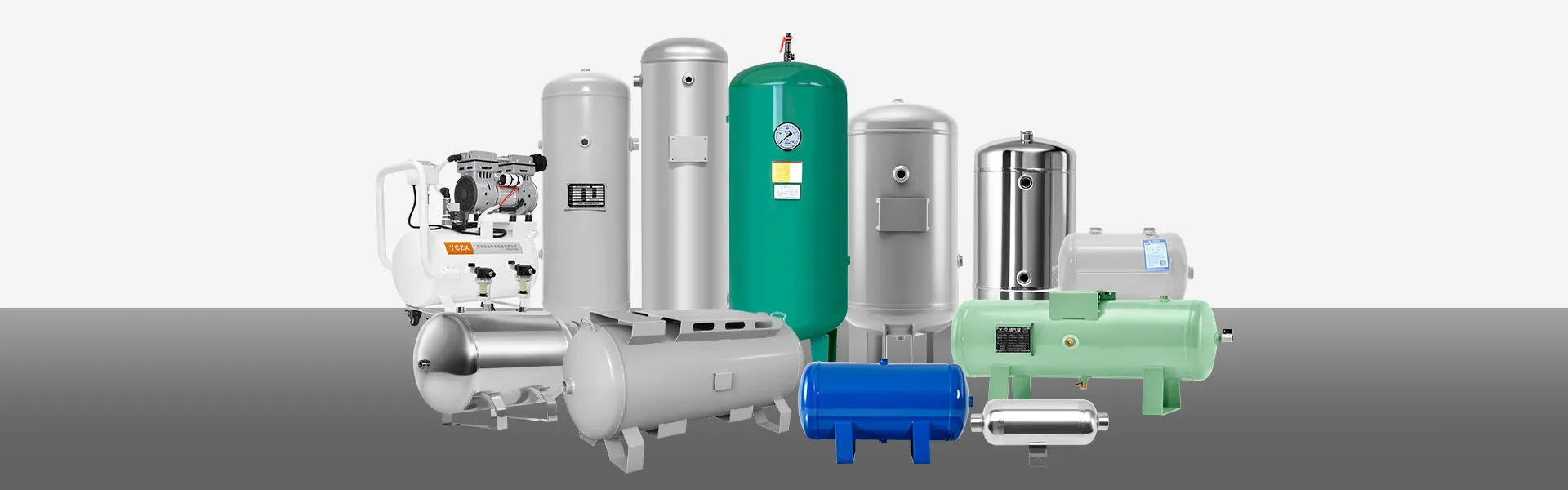

At YCZX, we code-engineer and fabricate reliable, internationally certified air receivers tanks built with premium traceable materials and expert welding craftsmanship, ensuring long-term operational safety and system efficiency.
We serve as your trusted B2B partner by delivering distinct manufacturing advantages:
Certified Global Compliance: Every air pressure vessel we produce is meticulously engineered and rigorously tested to fully comply with international standards, holding prestigious certifications like ASME (U/UM stamps) and CE/PED.
Rapid Order Fulfillment: To accelerate your engineering project timelines, we maintain a comprehensive, large inventory of standard air tanks for compressors ready for immediate worldwide dispatch.
Bespoke Technical Tailoring: We specialize in delivering heavy-duty custom-designed solutions for demanding industrial applications, fully supported by our stringent quality control protocols, expert engineering teams, and dedicated technical sales assistance.
To request a tailored solution from professional air reservoir tank manufacturers, providing precise technical specifications will accelerate your engineering design and quoting process. When partnering with our technical team to customize a high-performance air storage tank, please prepare to provide the following essential information:
Material Grade: Select from premium carbon steel, stainless steel (e.g., SS304 or SS316L), or lightweight aluminum alloy.
Vessel Dimensions: Specify your desired volume requirements, including required outer diameter, shell length, and base wall thickness.
Design Pressure: Provide the maximum working pressure tank air pressure boundary that the vessel must safely withstand during peaked operations.
Surface Treatment & Esthetics: Define your preferred exterior paint color, exterior surface processing (e.g., frosted or polished), and specific internal anti-corrosion coatings.
Connectors & Ports: Outline the required size, layout position, total quantity, and thread/flange type for all inlet, outlet, and drain ports.

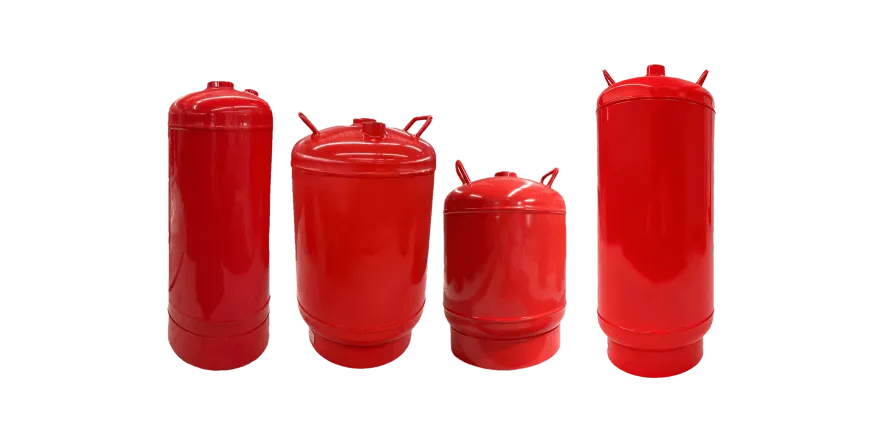

Storage Medium: Specify whether the tank will be utilized to store compressed air, inert gases, water, or other specialized industrial gases.
Global Standards & Compliance: Indicate your required regional certifications, such as ASME (with U/UM stamps), CE/PED, CRN (Canada), DOSH (Malaysia), or UKCA.
Industrial Packaging: Choose your preferred shipping protection, including heavy-duty cardboard wrap, custom wooden boxes, or secure transport trays.
Generally, stainless steel pressure vessel are approximately 2 to 3 times more expensive than standard carbon steel Air tanks. This initial investment variance stems from the significantly higher cost of premium raw alloys and more intricate, high-precision manufacturing processes. For large-capacity industrial systems, this price gap can widen further.
However, stainless steel delivers superior, long-term economic value. Its exceptional corrosion resistance eliminates the need for periodic internal chemical coatings and drastically reduces ongoing maintenance and system downtime.
To match diverse chemical and environment demands, industrial storage vessels are primarily fabricated using two industry-standard stainless steel grades:
Grade 304: The most common and cost-effective selection for general commercial engineering. It provides excellent mechanical properties and highly reliable rust resistance under typical operating conditions.
Grade 316: Formulated with added molybdenum, this premium grade delivers superior defense against severe pitting, chlorides, and acidic exposures. It is the mandatory choice for harsh chemical plants, marine environments, and sanitary pharmaceutical applications.
As a fully qualified global exporter, YCZX designs and manufactures compliant pressure equipment that adheres strictly to regional legal frameworks. We successfully provide the following recognized compliance certifications:
ASME (U & UM Stamps): Complies with the Boiler and Pressure Vessel Code, essential for regulatory approval in the United States and Canada.
CE / PED: Conforms to the European Pressure Equipment Directive, required for all European Union markets.
CRN: Canadian Registration Number, ensuring full cross-province legal compliance across Canada.
DOSH: Approved by the Department of Occupational Safety and Health for industrial operation in Malaysia.
MOM: Certified by the Ministry of Manpower, meeting all safety standards required for Singapore customers.
Selecting the correct compressed air storage tank size is critical to optimizing system efficiency, preventing compressor short-cycling, and reducing energy consumption. As a general industry rule of thumb, your vessel capacity should equal approximately 10% to 15% of your compressor’s free air delivery (FAD) output.

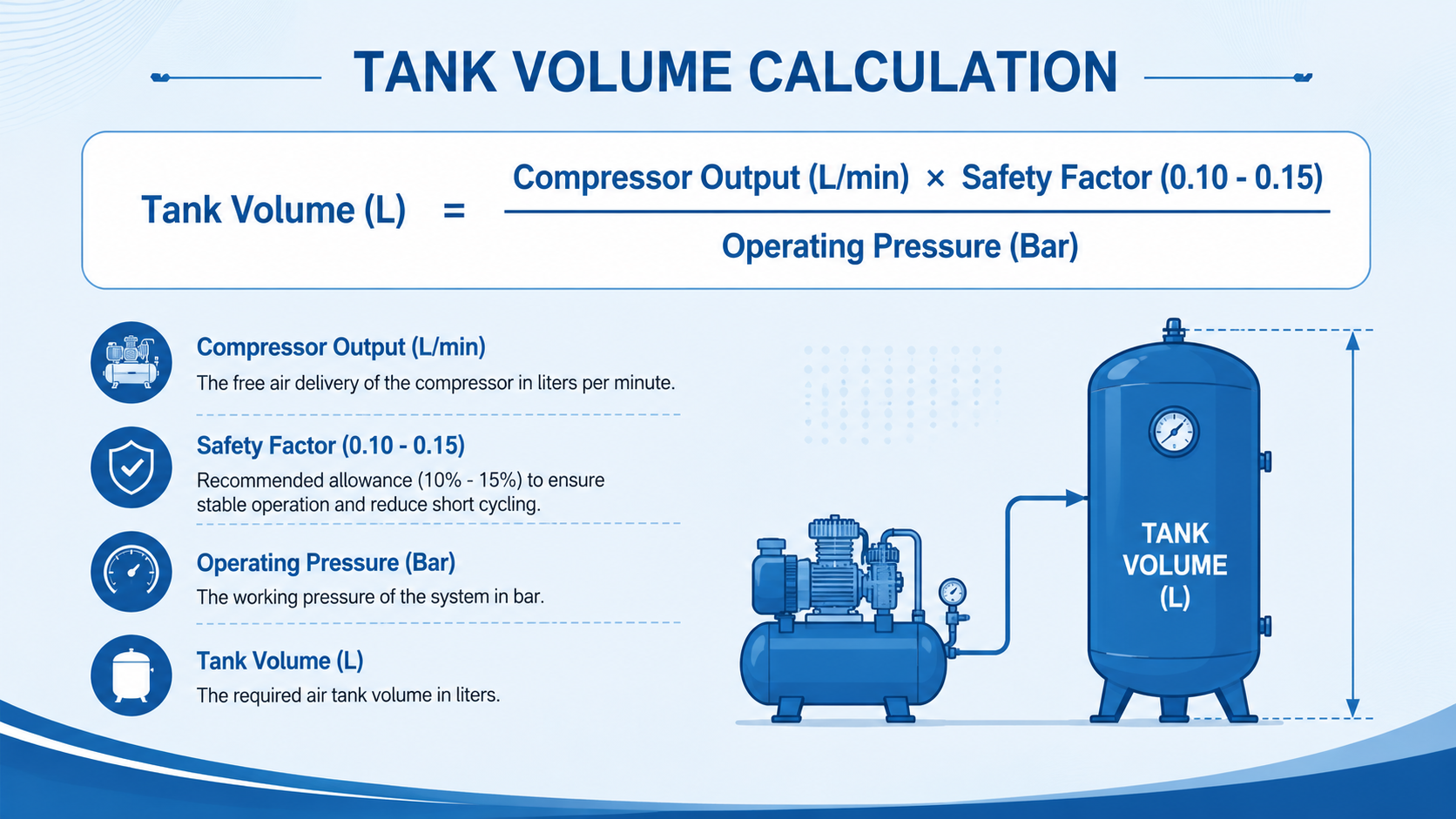

You can utilize the standard engineering formula below to estimate your minimal requirements:
To streamline your procurement planning, refer to our standard engineering selection matrix below:
| Compressor Motor Power (kW / HP) | Suggested FAD Range (L/min / CFM) | Recommended Air Storage Capacity (L / m3) | Ideal Tank Configuration |

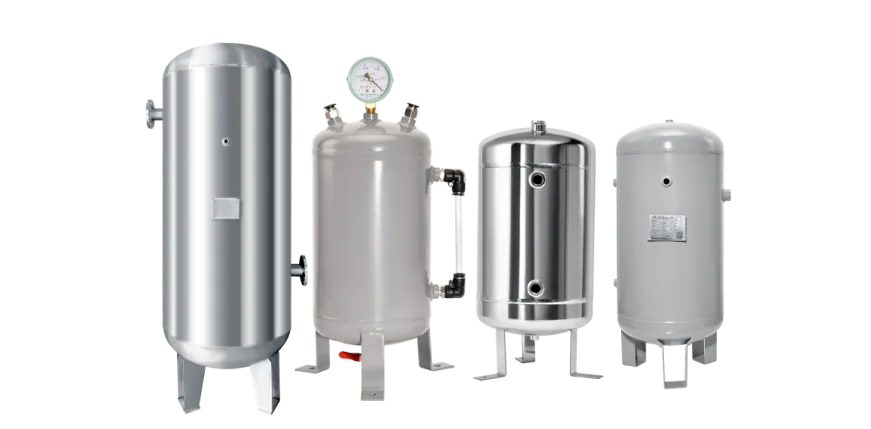

| 7.5 kW / 10 HP | 1,000 / 35 | 300L – 500L | Vertical Carbon Steel |

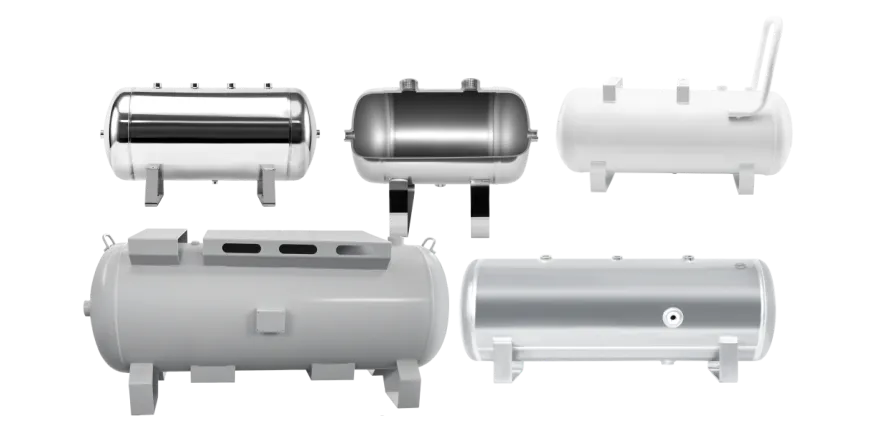

| 15 kW / 20 HP | 2,400 / 85 | 600L – 1,000L (1m³) | Vertical / Horizontal |
| 37 kW / 50 HP | 6,200 / 220 | 2,000L (2m³) | Vertical Heavy-Duty |
| 75 kW / 100 HP | 13,000 / 460 | 3,000L – 5,000L (3m³ - 5m³) | Custom High-Capacity |
Engineering Support Note: System demands vary based on localized peak air consumption and pneumatic automation tools. Contact our engineering team for free custom layout sizing support.

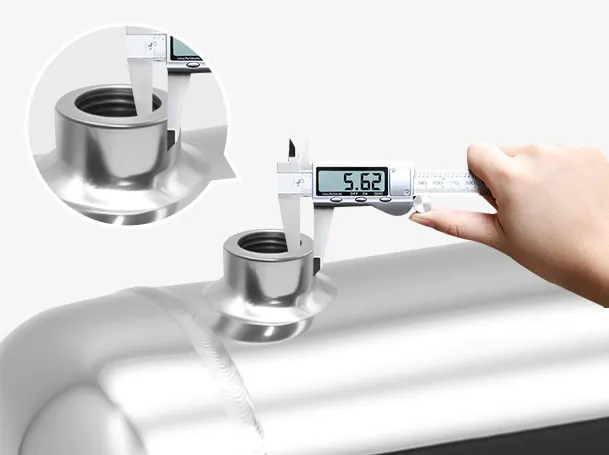

Every certified air receiver pressure vessel fabricated by YCZX is engineered with safety as the absolute priority. Because these units operate under high industrial pressures, our product lines are designed with standardized, precision-machined port configurations to accommodate essential safety instrumentation:
Safety Relief Valve Port: Pre-engineered safety opening designed to automatically vent excess air if the internal system pressure breaches the maximum allowable working pressure (MAWP).
Pressure Gauge Connection: A dedicated, highly visible port enabling operators to easily install monitoring gauges for real-time tracking of internal air receiver tank pressure levels.
Moisture Drain Valve (Manual/Automatic): Located at the absolute lowest point of the shell to regularly purge accumulated oil-water condensate, preventing internal rust and protecting downstream air quality.
Regulatory Inspection Openings: Designed with specialized handholes or heavy-duty manholes (based on total volume) to allow for mandated non-destructive testing (NDT), interior cleaning, and routine structural audits.
YCZX air receiver tanks are cross-industry certified to perform flawlessly in both heavy industrial environments and highly sterile commercial settings. We engineer each vessel to deliver specialized pressure storage advantages tailored to the rigorous demands of your specific sector:

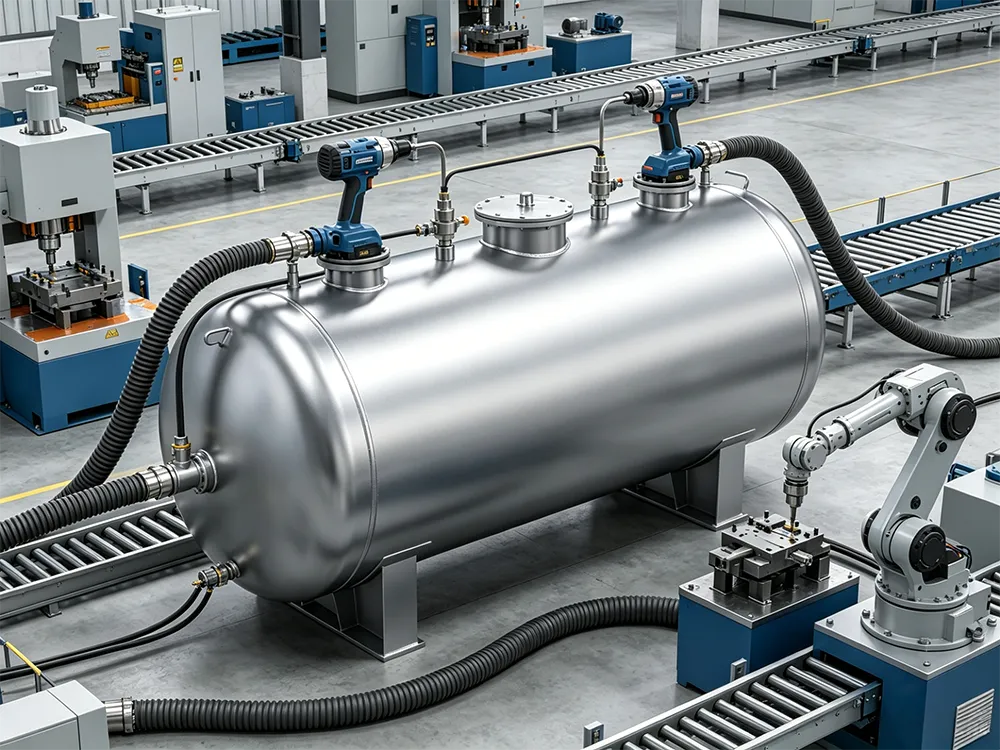

Providing a steady, high-volume compressed air reserve to power heavy-duty pneumatic impact tools, stamping machinery, and automated assembly line robotics without sudden system pressure drops.

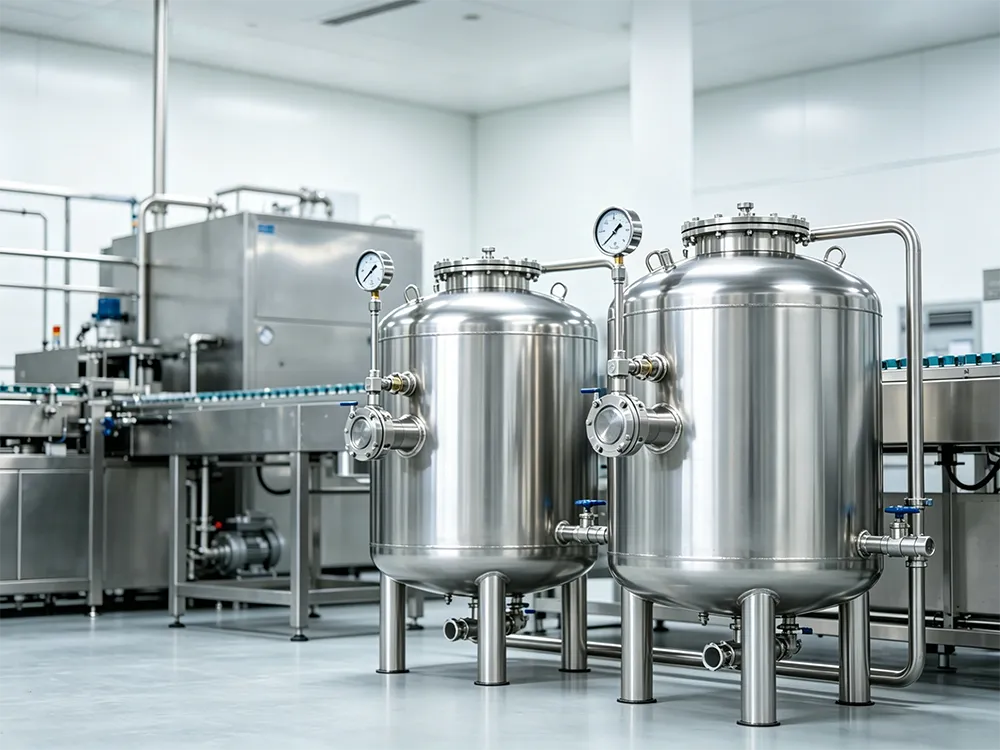

Supplying high-grade stainless steel (SS304/SS316L) vessels that meet strict sanitary standards, ensuring 100% moisture-free, rust-free, and contaminant-free process air for sensitive packaging and mixing lines.

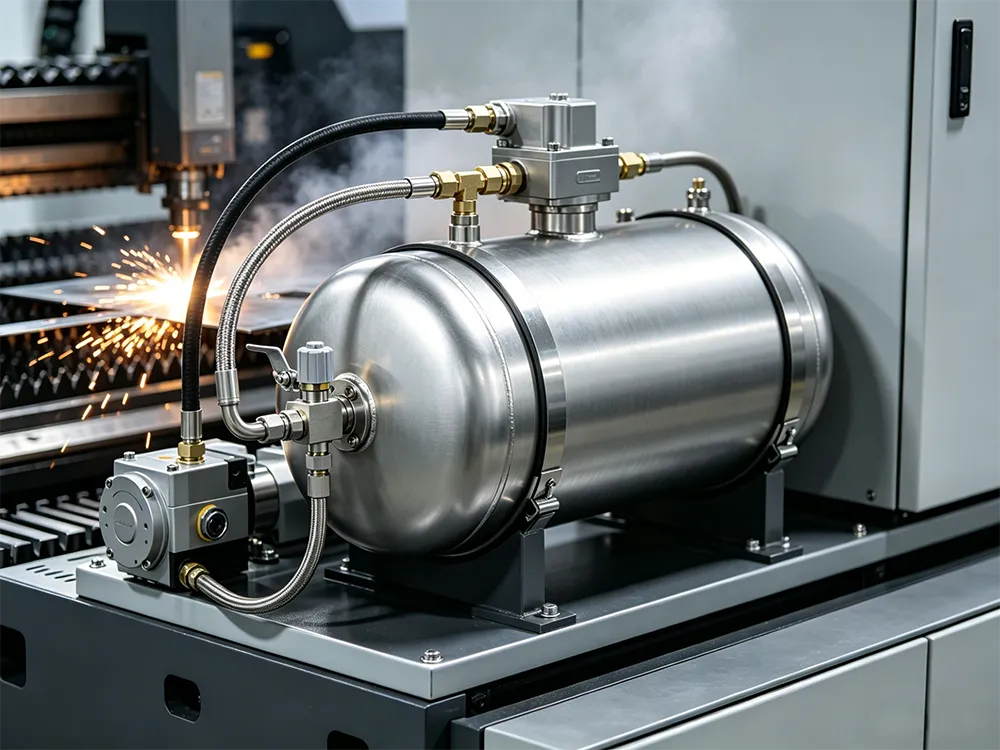

Delivering ultra-stable, high-pressure gas buffering solutions designed to maintain the razor-sharp pressure consistency required for multi-axis fiber laser cutting machinery.
