An air receiver is far more than a simple metal tank for compressed air storage. It serves as the stabilizing heart of the whole pneumatic system, smoothing pressure fluctuations, separating condensate, and safeguarding downstream equipment. Its reliable performance relies on a well-engineered main pressure-bearing structure plus a complete set of certified safety accessories. Every component has a clear, non-negotiable function for long-term, trouble-free and compliant operation. As a professional manufacturer of custom vertical and horizontal air receivers, YCZX strictly designs, fabricates and inspects every structural part and accessory, to deliver pressure vessels that meet global industrial safety standards. This article breaks down the basic structure of air receivers and highlights YCZX’s manufacturing strengths.
The foundation of any air receiver is its pressure-bearing assembly, which consists of the cylinder shell, heads, supports, nozzles and manholes. The cylindrical shell is the primary load-bearing body, engineered to withstand the designated internal working pressure. Elliptical heads are welded to both ends of the shell to form a sealed pressure cavity; this head design optimizes stress distribution and avoids dangerous stress concentration points. Supports, including legs for vertical tanks and saddles for horizontal tanks, anchor the tank securely on site, resisting loads from weight, vibration and piping forces. Nozzles act as connection points for inlet and outlet pipelines. Manholes or handholes provide convenient access for internal inspection, cleaning and maintenance during the vessel’s service life. All welding seams for these pressure parts are completed by certified welders following qualified WPS & PQR, with full non-destructive testing implemented at YCZX’s workshop.

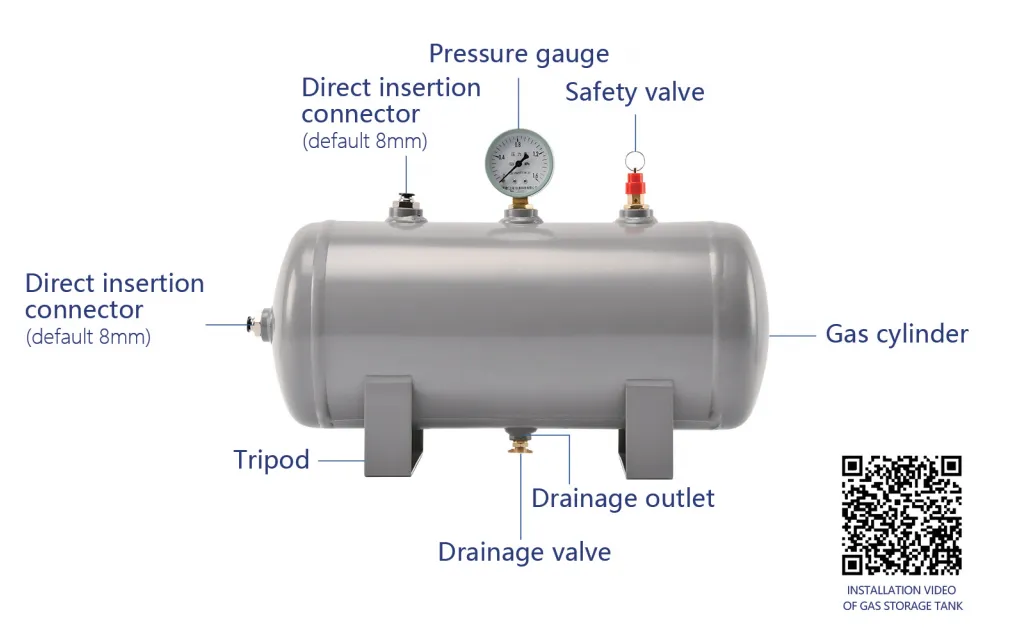

Apart from the main pressure-bearing body, three critical safety accessories form the protection barrier for air receivers: safety valve, pressure gauge and drain valve.
The safety valve is the most vital safety line of defence. It is preset to a calibrated relief pressure. Once the internal pressure exceeds the safe set value, the valve automatically opens to release excess gas, preventing catastrophic overpressure failure. YCZX only matches our vessels with certified safety valves compatible with the design pressure and medium.
The pressure gauge enables real-time visual monitoring of internal tank pressure. Operators can continuously track pressure changes, adjust the air compressor system in time and maintain stable air supply. Correct gauge selection and proper nozzle layout guarantee accurate readings and avoid misleading pressure data.
The drain valve is installed at the lowest point of the tank. Compressed air inevitably carries condensed water and oil mist after cooling. Regular manual opening of the drain valve removes these liquids. Without proper draining, accumulated moisture and contaminants will corrode the inner wall, shorten service life and contaminate downstream pneumatic tools and equipment.
What sets YCZX apart from generic tank suppliers is our integrated capability covering structural design, material selection, accessory matching and full quality control. We offer fully customized air receivers, tailored to customers’ working pressure, volume, medium, site layout and regional certification requirements, such as PED and ASME standards. We supply both carbon steel and stainless steel options; stainless steel models can be polished up to 600 grit for hygienic industries including food, pharmacy and new energy. Every finished tank goes through hydrostatic pressure testing, NDT inspection and final dimensional check before delivery. We also supply complete documentation packages, including material test certificates, welding records and test reports, to support customer acceptance and regulatory audits.
Every part of an air receiver, from the thick-walled cylinder and heads down to the small safety accessories, works together to guarantee stable and safe compressed air operation. Poor design, low-quality welding or mismatched safety fittings can create huge hidden risks for the whole factory air system. When you partner with YCZX, you get more than just an air receiver: you get a fully validated, well-matched pressure vessel solution, built with strict attention to every structural detail and safety requirement. If you need a reliable custom air receiver for your compressed air system, choose YCZX for professional engineering support, precision fabrication and trustworthy long-term quality assurance.
