Made of aluminum alloy, it is significantly lighter than steel tanks while offering excellent resistance to rust and corrosion, ensuring a longer service life.

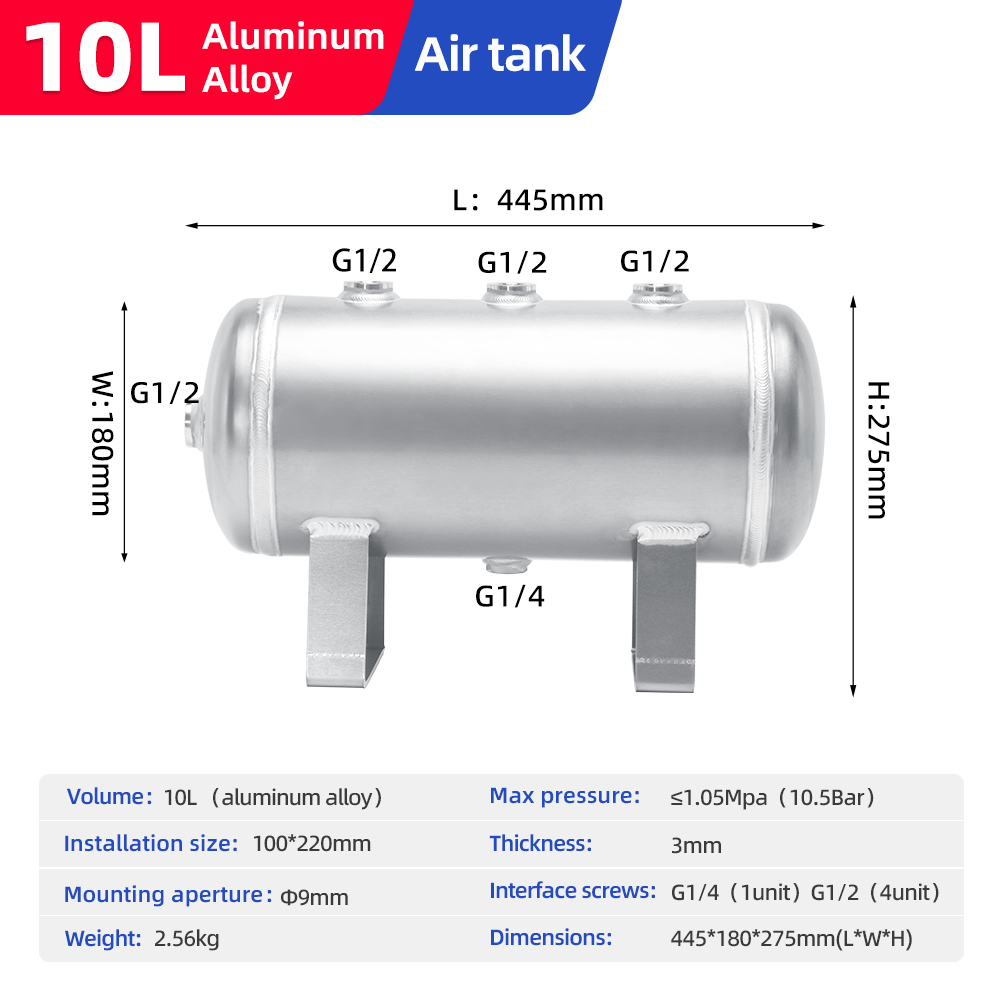

This 10L horizontal air tank is constructed from lightweight yet durable aluminum alloy, designed to store compressed air for pneumatic systems, industrial equipment, and mobile applications. It features multiple G1/2 and G1/4 ports for flexible piping connections, a maximum working pressure of 10 bar, and a compact footprint for easy installation.
Made of aluminum alloy, it is significantly lighter than steel tanks while offering excellent resistance to rust and corrosion, ensuring a longer service life.
Equipped with 4 G1/2 ports and 1 G1/4 port, providing versatile connection options for air compressors, valves, and pneumatic tools to meet diverse system requirements.
With dimensions of 445×180×275mm and a sturdy mounting base, it delivers stable performance in limited installation spaces, ideal for portable or space-constrained setups.
Rated for a maximum working pressure of 10 bar, it complies with standard pressure vessel requirements for secure compressed air storage.
| P/N | Pressure (bar) | L*D*H(mm) | Thickness(mm) | Net Weight(KG) |
| 5L aluminum | 8 | 260*160*190 | 2 | 1.1 |
| 10L aluminum | 10 | 445*180*275 | 3 | 2.6 |
| 12L aluminum | 8 | 320*236*318m | 2.5 | 2.25 |
| 15L aluminum | 10 | 370*236*313 | 3 | 2.9 |
| 18L aluminum | 8 | 390*236*292 | 2.5 | 2.6 |
| 24L aluminum | 8 | 500*240*280 | 2.5 | 3.25 |
| 35L aluminum | 8 | 722*236*275 | 2.5 | 4.2 |
