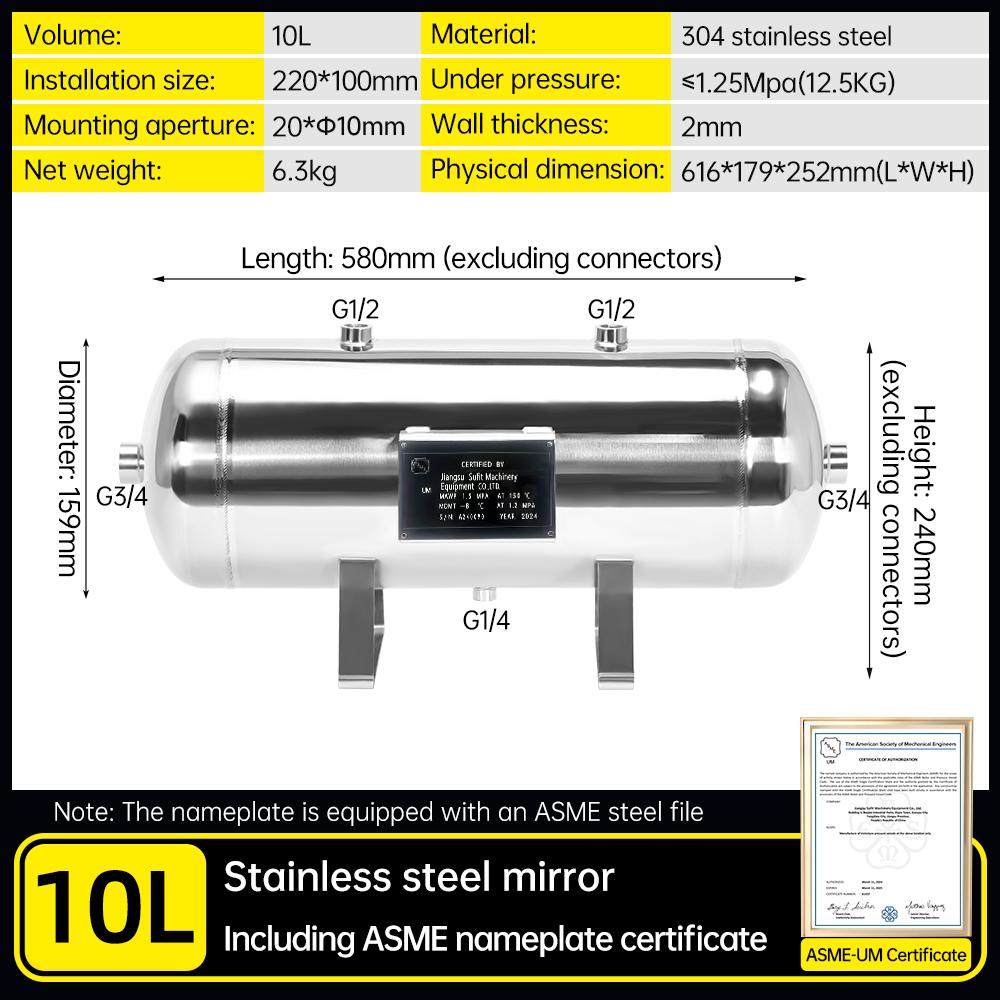

The 10L vertical pressure tank made from 304 stainless steel with a 2mm wall thickness. It is designed for a working pressure ≤1.25 MPa (12.5 bar) and includes a factory-installed ASME UM nameplate for certified compliance. Ideal for water, air, or other compatible fluid storage in industrial and commercial systems.
Factory-fitted with an ASME UM nameplate, ensuring international pressure-vessel standard compliance for safe use in regulated applications.
Made of 304 stainless steel with a 2mm wall, offering long-term reliability and resistance to rust in various fluid and environment conditions.

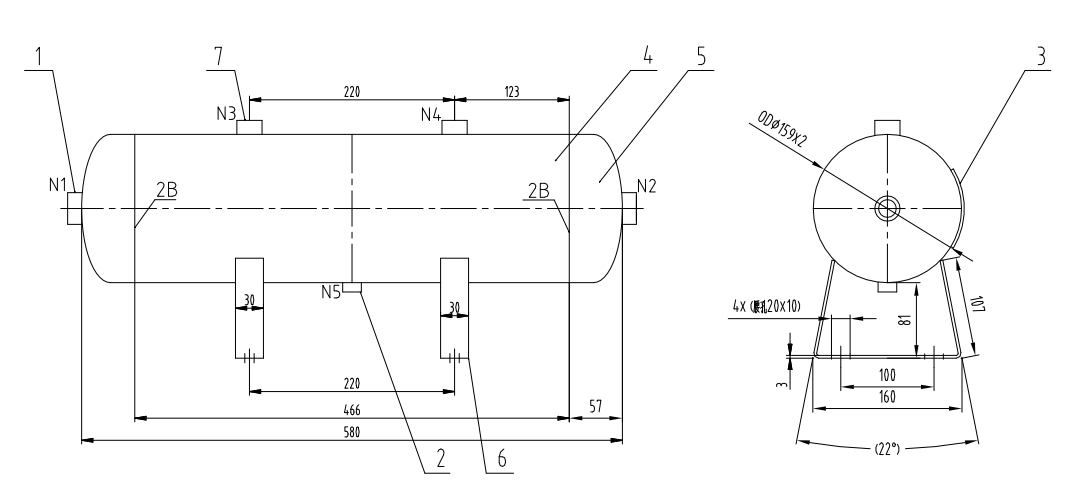

Includes pre-drilled mounting holes (20×Φ10mm) and clear installation dimensions (220×100mm), enabling straightforward, secure mounting with common hardware.
Features G½″ and G¼″ ports on the body plus G¾″ connections, allowing flexible integration of valves, gauges, and piping for custom system setups.
| P/N | Pressure (bar) | L*D*H(mm) | Thickness（mm) | Package Size（mm） | Net Weight（KG） | Gross Weight（KG） | Ports |
| 5L ASME | 13 | 345*162*209 | 3 | / | 5 | 5.5 | 3:G1/2, 2:G3/4 |
| 10L ASME | 13 | 450*183*235 | 3 | / | 7.9 | 8.4 | 2:G1/2, 1:G1/4,2:G3/4 |
| 20L ASME | 13 | 540*243*315 | 3 | / | 12 | 12.5 | 2:G1/2, 2:G1/4,2:G3/4 |
| 40L ASME | 8 | 686*293*325 | 3 | / | 16 | 17 | 4:G1/2, 1:G1/4, 2: G3/4 |
| 50L ASME | 8 | 736*332*392 | 3 | / | 20 | 21 | 3:G1/2, 1:G1/4, 2: G3/4 |
| 60L Vertical ASME | 8 | 337*850*968 | 3 | / | 24 | 25 | 3:G1/2, 2:G3/4, 1: G1 |
| 80L ASME | 8 | 870*370*412 | 3 | / | 27.5 | 28 | 3:G1/2, 1:G1/4, 2:G1-1/2 |
| 100L ASME | 8 | 1075*370*388.5 | 3 | / | 37.5 | 38 | 4:G1/2, 1:G1/4, 2:G1-1/2 |
| 5L ASME | 12.5 | 330*179*227 | 2 | / | 4.2 | 4.2 | 2: G1/2, 1:G1/4， 2:G3/4 |
| 10L ASME | 12.5 | 616*179*252 | 2 | / | 6.3 | 2: G1/2, 1:G1/4， 2:G3/4 | |
| 20L ASME | 12.5 | 634*239*304 | 2 | / | 7.48 | / | 2: G1/2, 1:G1/4， 2:G3/4 |
