VN-0302-7.5KW Rotary Vane Vacuum Pump | 302m³/h Flow | 380V Three-Phase

The VN-0302-7.5KW pump provides 302m³/h airflow and -100kPa vacuum, driven by a 7500W three-phase motor at 1440rpm for continuous heavy-duty industrial operation. Equipped with a G2 port and 8L oil capacity, it has a 101×56×48.5cm footprint, ideal for large-scale vacuum packaging, molding, and industrial automation.

Get a Quote

$\rotary-vane-vacuum-pumps\vn-0302\vn-0302-7-5kw-rotary-vane-vacuum-pump-302m-h-flow-380v-three-phase$

$\rotary-vane-vacuum-pumps\vn-0302\vn-0302-7-5kw-rotary-vane-vacuum-pump-302m-h-flow-380v-three-phase-2$

$\rotary-vane-vacuum-pumps\vn-0302\vn-0302-7-5kw-rotary-vane-vacuum-pump-302m-h-flow-380v-three-phase-3$

$\rotary-vane-vacuum-pumps\vn-0302\vn-0302-7-5kw-rotary-vane-vacuum-pump-302m-h-flow-380v-three-phase$

$\rotary-vane-vacuum-pumps\vn-0302\vn-0302-7-5kw-rotary-vane-vacuum-pump-302m-h-flow-380v-three-phase-2$

$\rotary-vane-vacuum-pumps\vn-0302\vn-0302-7-5kw-rotary-vane-vacuum-pump-302m-h-flow-380v-three-phase-3$

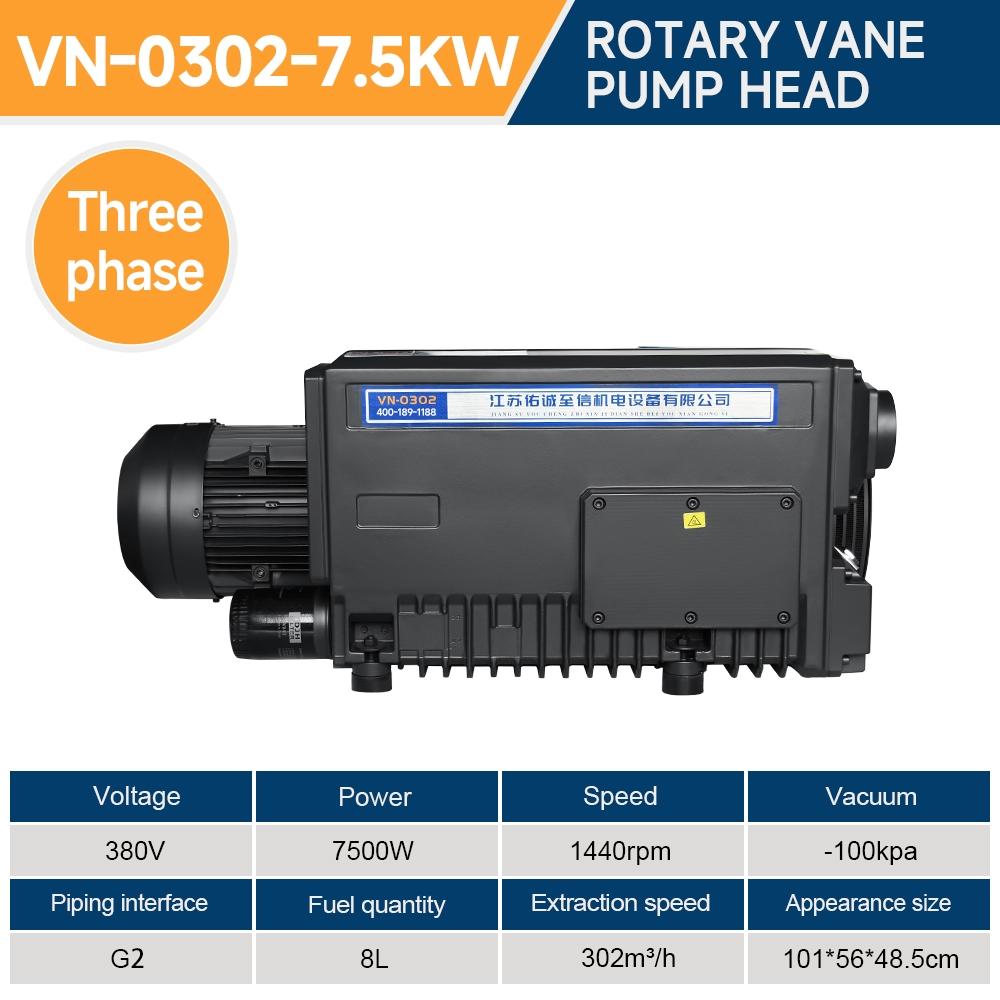

Specification of VN-0302-7.5KW Rotary Vane Vacuum Pump | 302m³/h Flow | 380V Three-Phase

$\rotary-vane-vacuum-pumps\vn-0302\vn-0302-7-5kw-rotary-vane-vacuum-pump-302m-h-flow-380v-three-phase-specification$

YCZX Existing Rotary Vane Vacuum Pumps

P/N	Voltage (V)	Pump Speed (m3/h)	Power (W)	Motor Speed (r/min)	Noise (db)	Interface OD	Refueling (L)	Max Pressure (kpa)	Outline Dimension (mm)	Weight (kg)
VN-0020	220/380	20	900/750	2800		G1/2	0.5	-100	452529
VN-0025	220/380	25	750	2800		G3/4	0.5	-100	312522
VN-0040	380	40	1500	1440		G1-1/4	1.5	-100	642826.5
VN-0063-A	380	63	1500	1440		G1-1/4	1.5	-100	642740
VN-0063-B	380	70	2200	1440		G1-1/4	2.5	-100	644040
VN-0100	380	100	3000	1440		G1-1/4	2.5	-100	714140
VN-0140	380	140	3500	1440		G2-1/2	5	-100	754530
VN-0202	380	202	4500	1440		G2	6	-100	885048.5
VN-0302	380	302	7500	1440		G2	8	-100	1015648.5
VSV-20	220/380	20	750	2800	≤65	G1/2 G3/4	0.45		317249219	19.5
VSV-22	220/380	22	1100	1440	≤61	G3/4	1.2		496268248	30
VSV-28	220/380	28	1100	1440	≤61	G3/4	1.2		496268248	30
VSV-40P	380	40	1300	1440	≤63	G1/4	2.5		555304268	39.2
VSV-65P	380	65	1500	1440	≤65	G1-1/4	2		555311268	42.5
VSV-100	380	100	2200	1440	≤65	G1-1/4	2		703406286	72
VSV-160	380	160	4000	1440	≤74	G2	5/7		915533412	132
VSV-200	380	200	5500	1440	≤74	G2	5/7		915533412	164
VSV-300	380	300	7500	1440	≤77	G2	7/9		1035540434	215
VRD-4	220/380	4	400	1440	≤52	KF16/25	0.6-1		440144217	19
VRD-8	220/380	8	400	1440	≤52	KF16/25	0.6-1		440144217	21
VRD-8C	220/380	8	400/370	1440	≤52	KF16/25	0.6-1		440144217	21
VRD-16	220/380	16	550	1440	≤58	KF25	0.9-1.5		530188272	30
VRD-16C	220/380	16	750/550	1440/1720	≤58	KF25	0.9-1.5		530188272	30
VRD-24	220/380	24	750	1440	≤58	KF25/40	1.3-2.0		567188272	35
VRD-30	220/380	30	1100	1440	≤58	KF25/40	1.3-2.0		567188272	43
VRD-30C	380	30	1100	1440/1720	≤58	KF25/40	1.3-2.0		567188272	43
VRD-48	380	48	1500	1440	≤62	KF40	3.3-4.5		730234358	62
VRD-48C	380	48	1500	1440/1720	≤62	KF40	3.3-4.5		730234358	62
VRD-65	380	65	2200	1440	≤62	KF40	3.3-4.5		730234358	65
VRD-65C	380	65	2200	1440/1720	≤62	KF40	3.3-4.5		730234358	65
VRD-90	380	90	3000	1440	≤65	KF40	3.3-4.5		730234358	65
VRD-300	380	300	7500	1440	≤73	G2	7-9		1135540434	225
