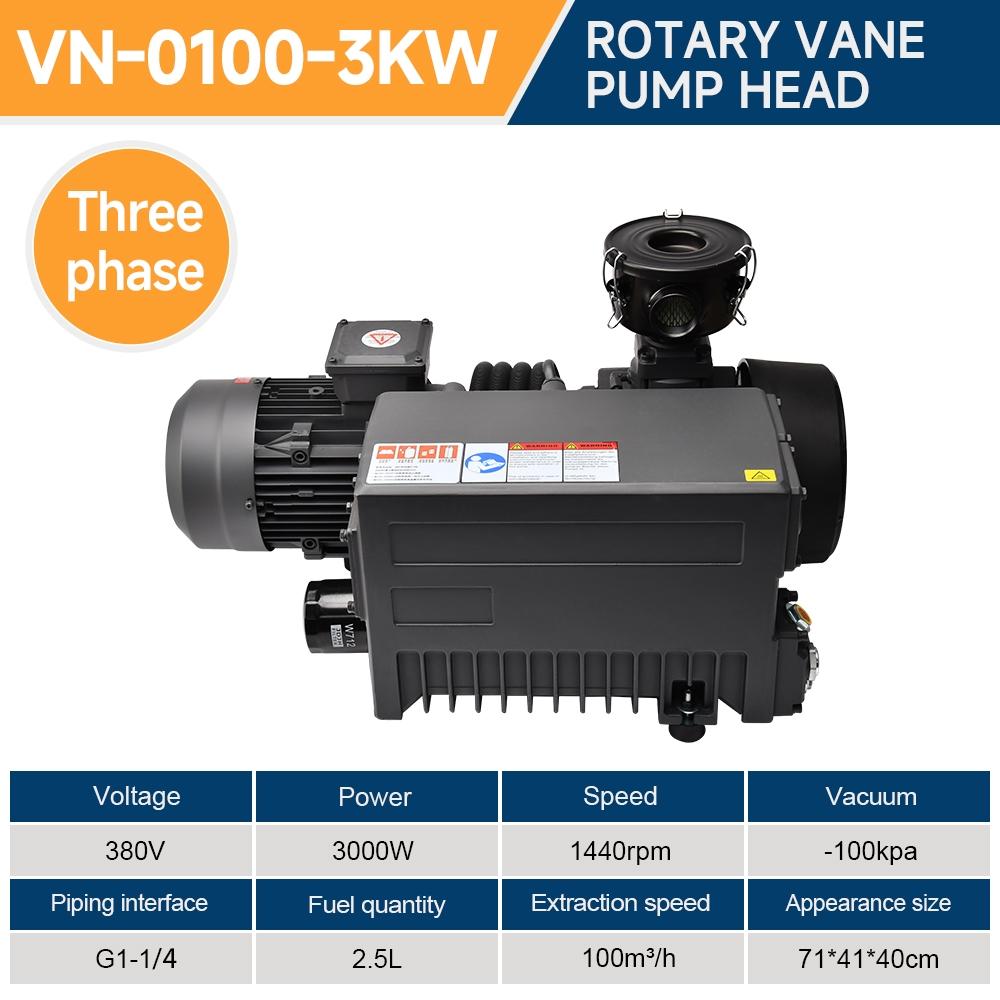

The VN-0100-3KW Rotary Vane vauum pump provides 100m³/h airflow and -100kPa vacuum, driven by a 3000W three-phase motor at 1440rpm for continuous heavy-duty industrial operation. Equipped with a G1-1/4 port and 2.5L oil capacity, it has a 71×41×40cm footprint, ideal for industrial vacuum packaging, molding, and large-scale automation.
| P/N | Voltage (V) | Pump Speed (m3/h) | Power (W) | Motor Speed (r/min) | Noise (db) | Interface OD | Refueling (L) | Max Pressure (kpa) | Outline Dimension (mm) | Weight (kg) |
| VN-0020 | 220/380 | 20 | 900/750 | 2800 | G1/2 | 0.5 | -100 | 45*25*29 | ||
| VN-0025 | 220/380 | 25 | 750 | 2800 | G3/4 | 0.5 | -100 | 31*25*22 | ||
| VN-0040 | 380 | 40 | 1500 | 1440 | G1-1/4 | 1.5 | -100 | 64*28*26.5 | ||
| VN-0063-A | 380 | 63 | 1500 | 1440 | G1-1/4 | 1.5 | -100 | 64*27*40 | ||
| VN-0063-B | 380 | 70 | 2200 | 1440 | G1-1/4 | 2.5 | -100 | 64*40*40 | ||
| VN-0100 | 380 | 100 | 3000 | 1440 | G1-1/4 | 2.5 | -100 | 71*41*40 | ||
| VN-0140 | 380 | 140 | 3500 | 1440 | G2-1/2 | 5 | -100 | 75*45*30 | ||
| VN-0202 | 380 | 202 | 4500 | 1440 | G2 | 6 | -100 | 88*50*48.5 | ||
| VN-0302 | 380 | 302 | 7500 | 1440 | G2 | 8 | -100 | 101*56*48.5 | ||
| VSV-20 | 220/380 | 20 | 750 | 2800 | ≤65 | G1/2 G3/4 | 0.45 | 317*249*219 | 19.5 | |
| VSV-22 | 220/380 | 22 | 1100 | 1440 | ≤61 | G3/4 | 1.2 | 496*268*248 | 30 | |
| VSV-28 | 220/380 | 28 | 1100 | 1440 | ≤61 | G3/4 | 1.2 | 496*268*248 | 30 | |
| VSV-40P | 380 | 40 | 1300 | 1440 | ≤63 | G1/4 | 2.5 | 555*304*268 | 39.2 | |
| VSV-65P | 380 | 65 | 1500 | 1440 | ≤65 | G1-1/4 | 2 | 555*311*268 | 42.5 | |
| VSV-100 | 380 | 100 | 2200 | 1440 | ≤65 | G1-1/4 | 2 | 703*406*286 | 72 | |
| VSV-160 | 380 | 160 | 4000 | 1440 | ≤74 | G2 | 5/7 | 915*533*412 | 132 | |
| VSV-200 | 380 | 200 | 5500 | 1440 | ≤74 | G2 | 5/7 | 915*533*412 | 164 | |
| VSV-300 | 380 | 300 | 7500 | 1440 | ≤77 | G2 | 7/9 | 1035*540*434 | 215 | |
| VRD-4 | 220/380 | 4 | 400 | 1440 | ≤52 | KF16/25 | 0.6-1 | 440*144*217 | 19 | |
| VRD-8 | 220/380 | 8 | 400 | 1440 | ≤52 | KF16/25 | 0.6-1 | 440*144*217 | 21 | |
| VRD-8C | 220/380 | 8 | 400/370 | 1440 | ≤52 | KF16/25 | 0.6-1 | 440*144*217 | 21 | |
| VRD-16 | 220/380 | 16 | 550 | 1440 | ≤58 | KF25 | 0.9-1.5 | 530*188*272 | 30 | |
| VRD-16C | 220/380 | 16 | 750/550 | 1440/1720 | ≤58 | KF25 | 0.9-1.5 | 530*188*272 | 30 | |
| VRD-24 | 220/380 | 24 | 750 | 1440 | ≤58 | KF25/40 | 1.3-2.0 | 567*188*272 | 35 | |
| VRD-30 | 220/380 | 30 | 1100 | 1440 | ≤58 | KF25/40 | 1.3-2.0 | 567*188*272 | 43 | |
| VRD-30C | 380 | 30 | 1100 | 1440/1720 | ≤58 | KF25/40 | 1.3-2.0 | 567*188*272 | 43 | |
| VRD-48 | 380 | 48 | 1500 | 1440 | ≤62 | KF40 | 3.3-4.5 | 730*234*358 | 62 | |
| VRD-48C | 380 | 48 | 1500 | 1440/1720 | ≤62 | KF40 | 3.3-4.5 | 730*234*358 | 62 | |
| VRD-65 | 380 | 65 | 2200 | 1440 | ≤62 | KF40 | 3.3-4.5 | 730*234*358 | 65 | |
| VRD-65C | 380 | 65 | 2200 | 1440/1720 | ≤62 | KF40 | 3.3-4.5 | 730*234*358 | 65 | |
| VRD-90 | 380 | 90 | 3000 | 1440 | ≤65 | KF40 | 3.3-4.5 | 730*234*358 | 65 | |
| VRD-300 | 380 | 300 | 7500 | 1440 | ≤73 | G2 | 7-9 | 1135*540*434 | 225 |
