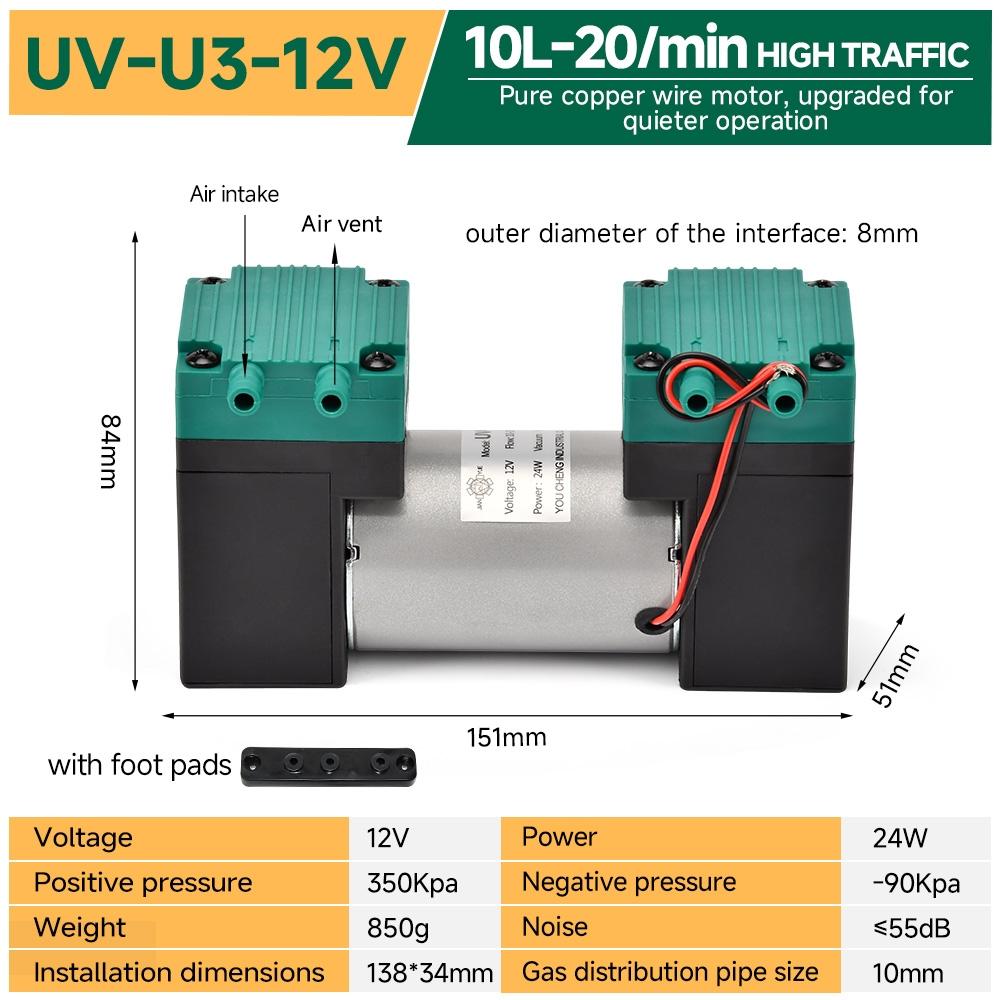

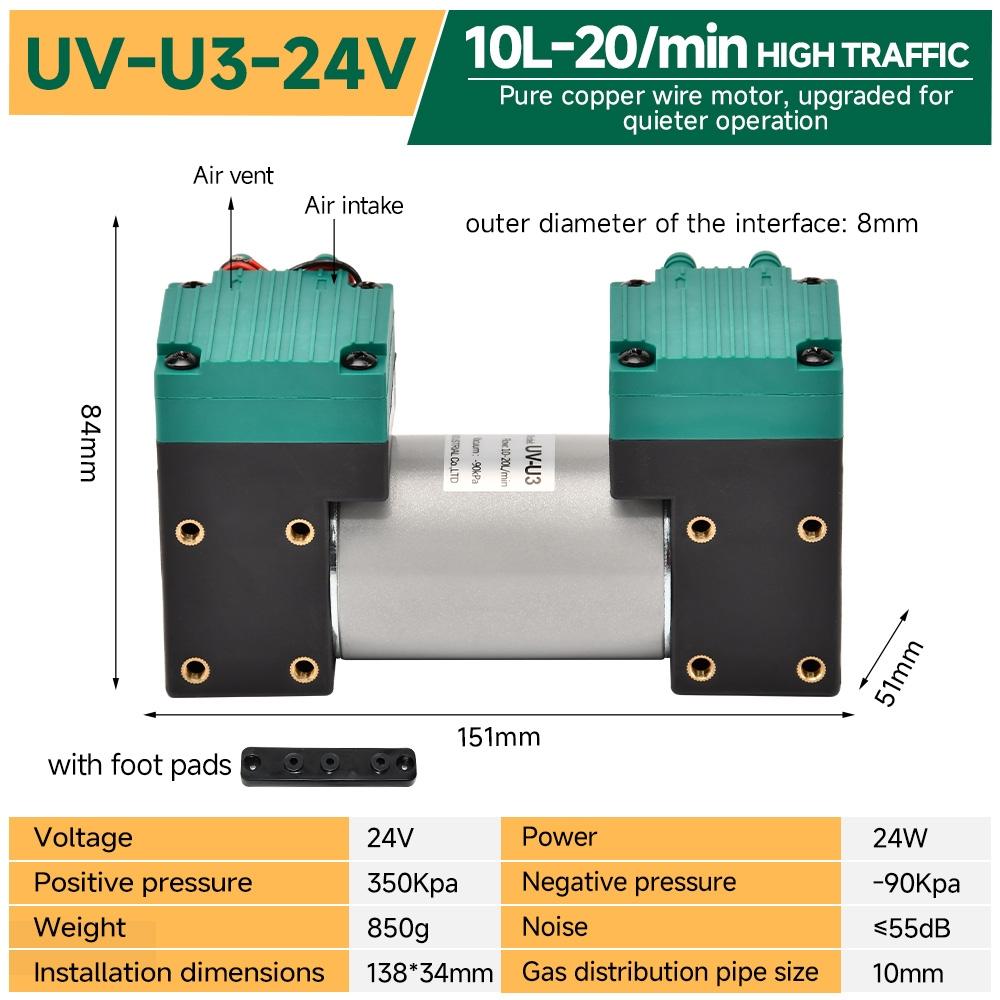

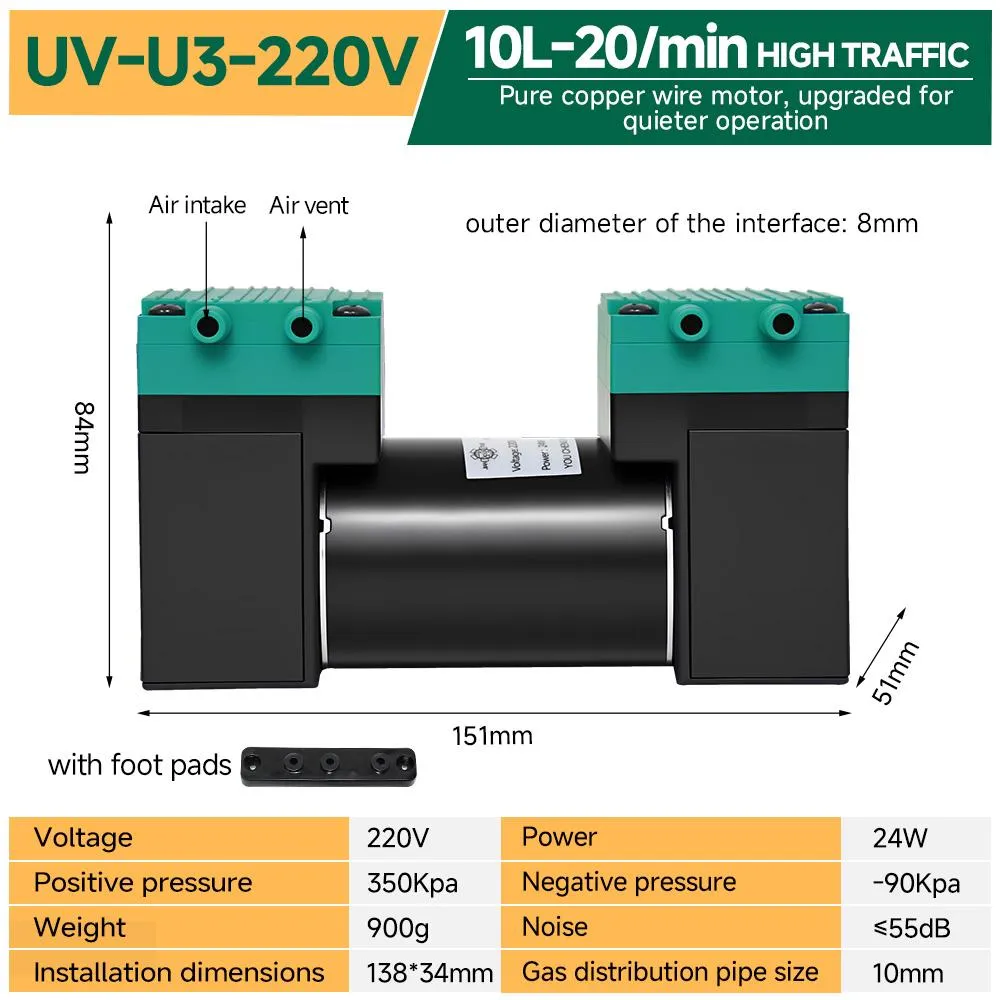

This dual-head high-flow diaphragm pump delivers 10-20L/min flow, 350kPa positive pressure and -90kPa negative pressure, with ultra-quiet operation (≤55dB). Equipped with foot pads for stable installation, it is ideal for industrial gas transmission and high-demand vacuum systems.
| P/N | Voltage (V) | Speed (L/min) | Power (W) | Negative (Kpa) | Positive (Kpa) | Noise (db) | Interface ID (mm) | Mounting size (mm) | Outline Dimension (mm) | Weight (kg) |
| VN-C1 | 12/24 | 15 | 10 | -80 | 8 | 49*28 | 91*69*40 | 0.35 | ||
| VN-C1 brushless | 12/24 | 15 | 10 | -80 | 8 | 49*28 | 91*69*40 | 0.35 | ||
| VN-C2 | 12/24 | 12 | 8 | -72 | ≤65 | 8 | 49*28 | 93*71*40 | 0.3 | |
| VN-C3 | 12/24 | 12 | 12 | -80 | ≤65 | 8 | 43*52 | 103*72*40 | 0.3 | |
| VN-C4 | 12/24 | 40 | 42 | -85 | ≤75 | 10 | 20 | 110*89*44 | 0.45 | |
| VN-C4 brushless | 12/24 | 40 | 42 | -85 | ≤75 | 10 | 22 | 110*89*44 | 0.65 | |
| VN-C6 | 12/24 | 7 | 5 | -70 | ≤65 | 8 | 47*28 | 93*71*40 | 0.3 | |
| VN-T1 | 12/24 | 10 | 10 | -81 | ≤65 | 8 | 43*52 | 103*66*40 | 0.5 | |
| UV-U1 | 12/24/220 | 10 | 12 | -65 | 150 | ≤55 | 8 | 34*24 | 106*84*51 | 0.55 |
| UV-U2 | 12/24/220 | 10-15 | 24 | -85 | 350 | ≤55 | 8 | 112*34 | 138*86*58 | 0.9 |
| UV-U3 | 12/24/220 | 10-20 | 24 | -90 | 350 | ≤55 | 10 | 138*34 | 151*84*51 | 0.85 |
| UV-U4 | 12/110/220 | 17.5 | 34 | -95 | ≤62 | 10 | 65*40 | 148*97*58 | 0.88 |
