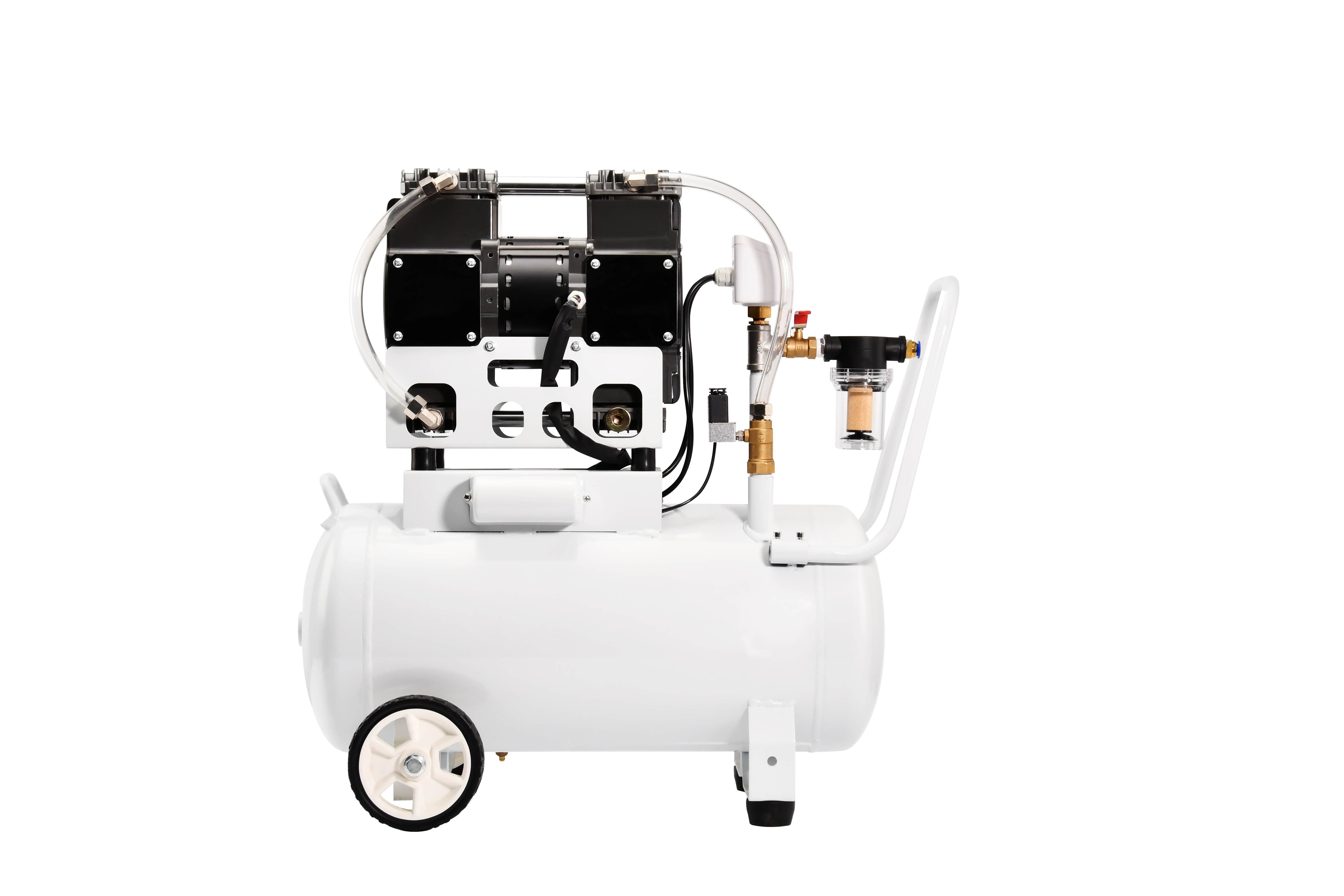

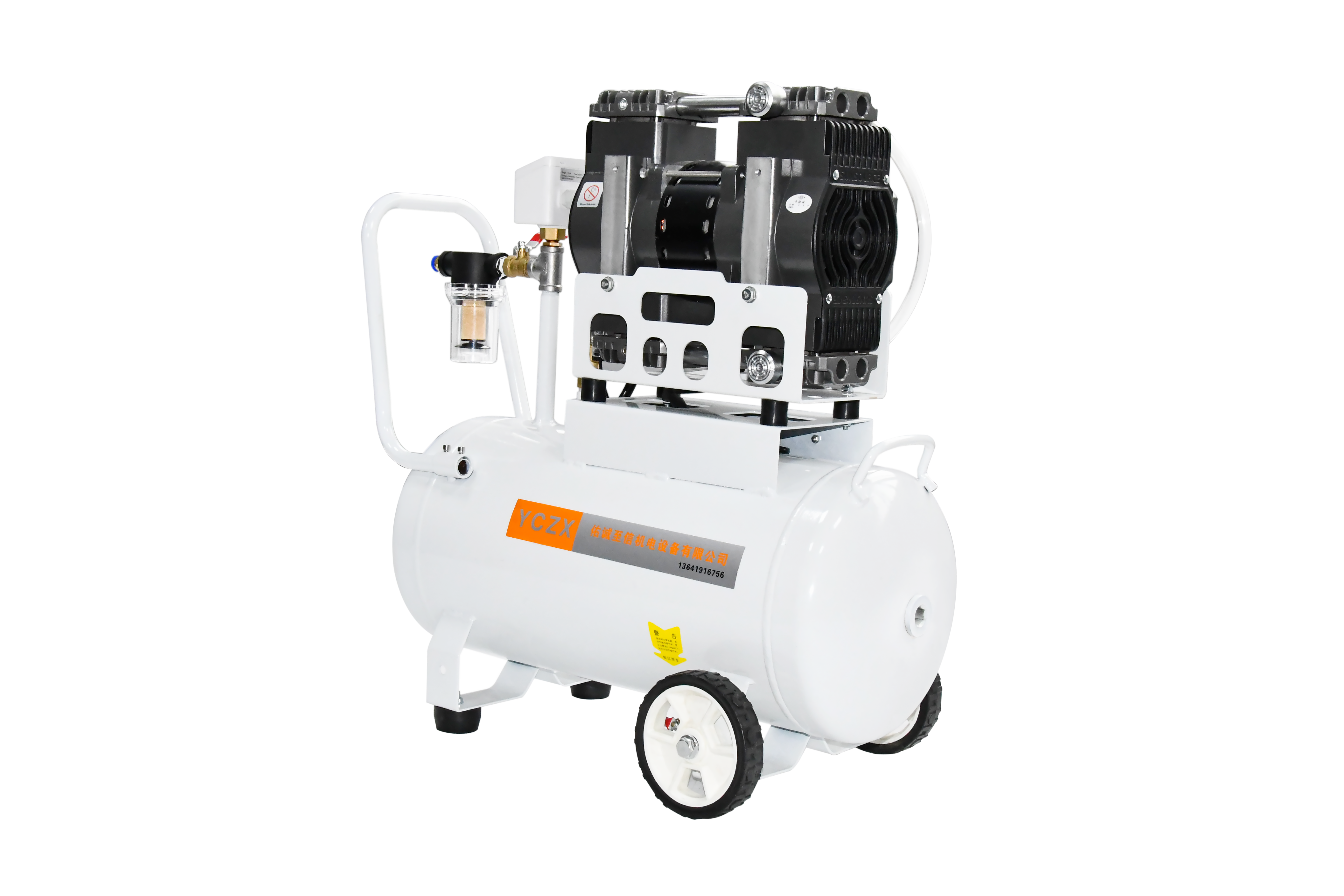

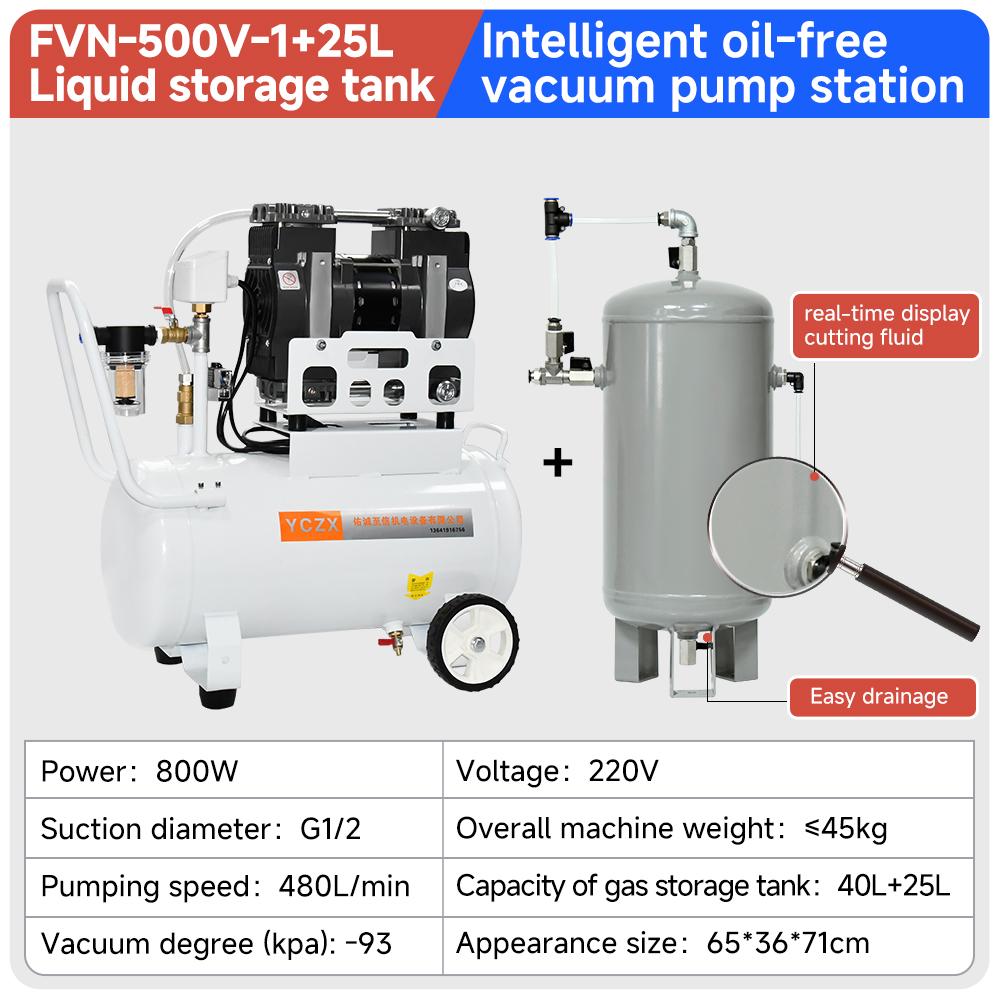

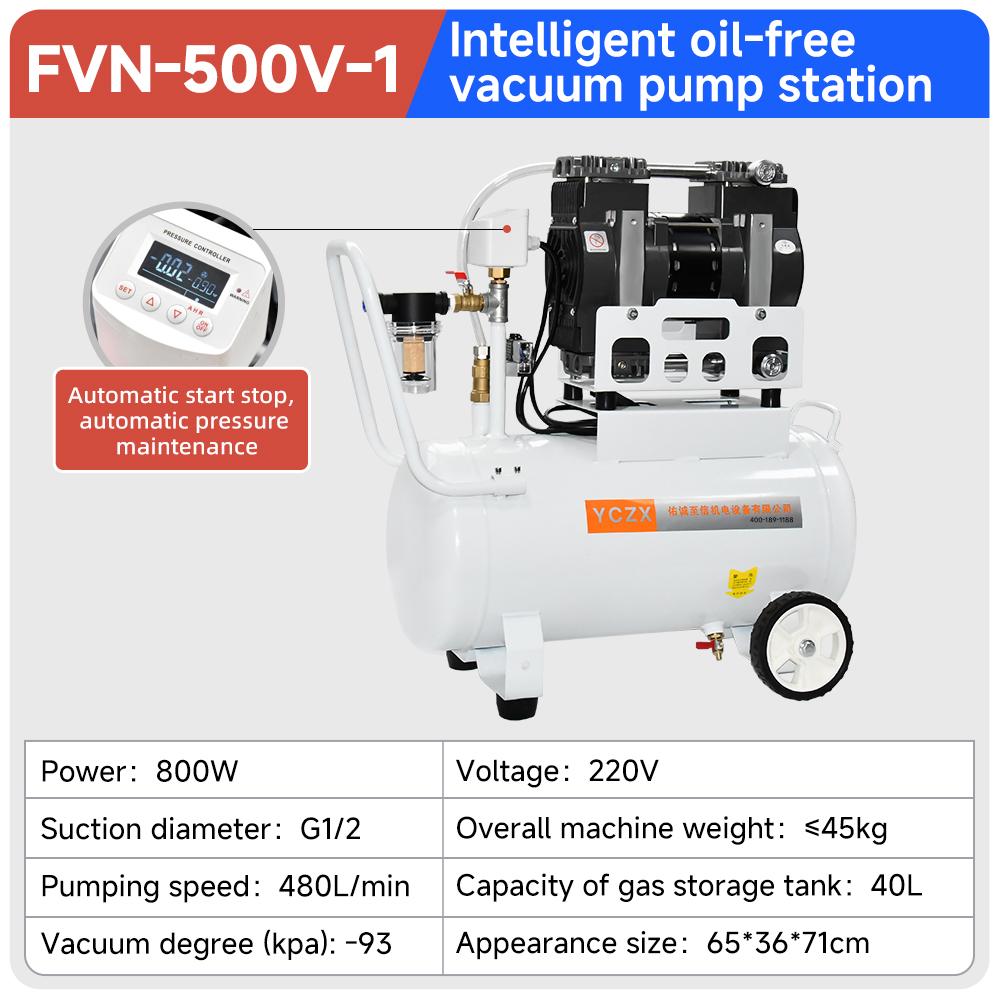

This 800W, 220V oil-free vacuum pump station delivers 480L/min pumping speed and -93kPa vacuum, with automatic start/stop and pressure maintenance, plus optional 25L liquid storage tank for fluid storage, real-time level display, and easy drainage, ideal for clean industrial vacuum applications.
| P/N | Pump Speed (L/min) | Voltage (V) | Power (W) | Tank Volume (L) | Liquid Tank Volume (L) | Interface OD | Max Pressure (kpa) | Outline Dimension (mm) | Weight (kg) |
| FVN-120H | 80 | 220 | 370 | 20 | G1/2 | -99 | 60.5*27*50 | 21 | |
| FVN-120V | 100 | 220 | 370 | 20 | G1/4 | -91 | 55*31*60 | 21 | |
| FVN-180H | 120 | 220 | 600 | 20 | G1/4 | -98 | 54*30*61 | 42 | |
| FVN-180V | 160 | 220 | 600 | 20 | 5 | G1/2 | -91 | 59*31.2*68 | 26 |
| FVN-180V-2 | 320 | 220 | 1200 | 65 | G1/2 | -91 | 69*34*63 | 49 | |
| FVN-200H | 150 | 220 | 1000 | 40 | G1/2 | -98 | 68*35*73 | 42 | |
| FVN-200V | 200 | 220 | 1000 | 40 | 25 | G1/2 | -91 | 73*32*69 | 40 |
| FVN-200V-2 | 400 | 220 | 1000 | 65 | G1/2 | -91 | 100*38*76 | 80 | |
| FVN-300H | 200 | 220 | 1500 | 40 | G1/2 | -98 | 68*35*74 | 42 | |
| FVN-300V | 300 | 220 | 1500 | 40 | 25 | G1/2 | -91 | 73*32*69 | 40 |
| FVN-300-2 | 600 | 220 | 3000 | 65 | 25 | G1/2 | -91 | 100*38*76 | 80 |
| FVN-400V | 400 | 220 | 2000 | 65 | G1/2 | -91 | 100*38*76 | 80 | |
| FVN-500V-1 | 480 | 220 | 800 | 40 | 25 | G1/2 | -93 | 65*36*71 | 45 |
| FVN-500V-2 | 960 | 220 | 1600 | 65 | 25/50 | G1/2 | -93 | 98*43*80 | 70 |
| FVN-500D | 120 | 220 | 550 | 20 | G1/2 | -90 | 55*31*57 | 21 | |
| FVN-600V | 600 | 220 | 3000 | 65 | 50 | G1/2 | -91 | 100*38*76 | 80 |
| FVN-800D | 180 | 220 | 800 | 20 | G1/2 | -94 | 55*31*60 | 21 |
