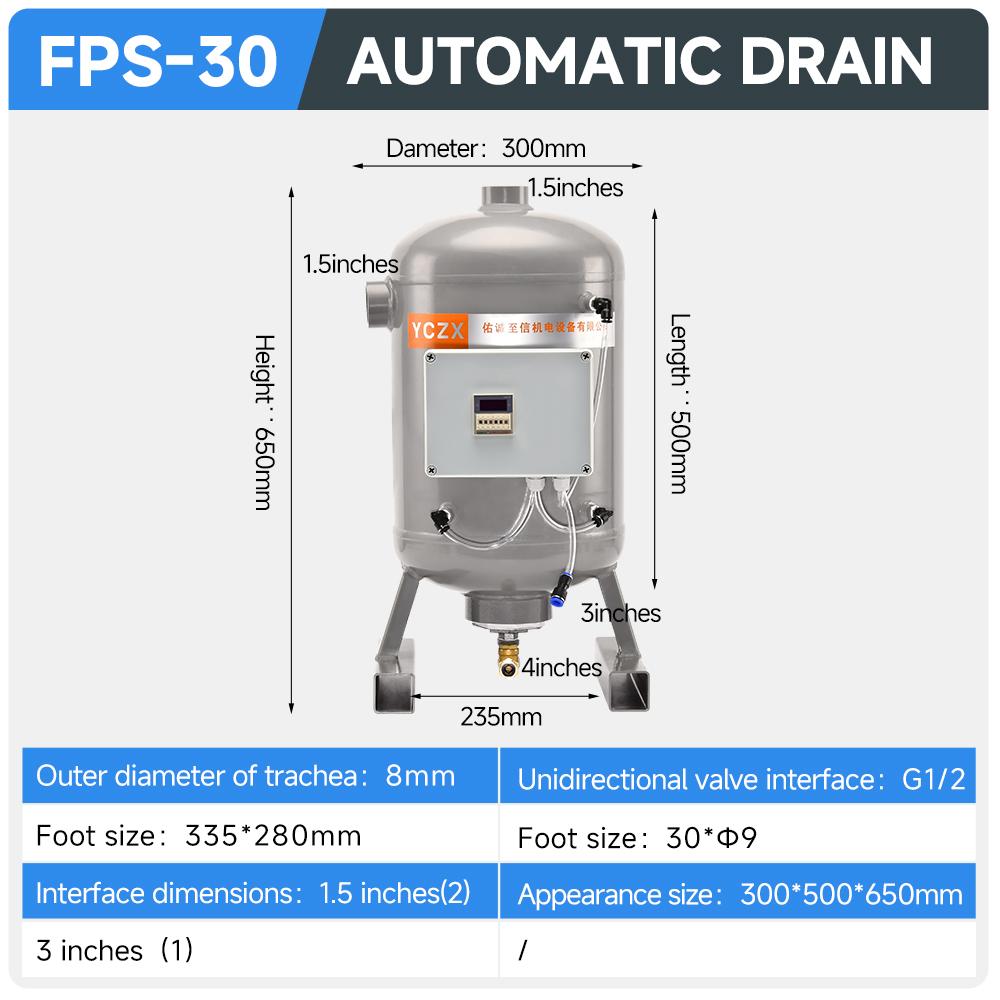

This FPS-30 automatic drain unit features 300×500×650mm size, 1.5-inch/3-inch interfaces, and intelligent control, ideal for vacuum pump stations to enable real-time fluid monitoring and easy drainage.
| P/N | Pump Speed (m3/h) | Voltage (V) | Power (KW) | Motor Speed (r/min) | Tank Volume (L) | Liquid Tank Volume (L) | Interface OD | Refueling (L) | Max Pressure (kpa) | Outline Dimension (mm) |
| FPS-30 | 30 | 300*500*650 | ||||||||
| FPS-80 | 80 | 400*650*800 | ||||||||
| FSH-2.35 | 80 | 380 | 2.35 | 2850 | 100 | 200 | 3300 | |||
| FSH-3.85 | 110 | 380 | 3.85 | 2860 | 100 | 300 | 3300 | |||
| FSH-4.0 | 165 | 380 | 4 | 1450 | 300 | 3300 | ||||
| FSH-5.5 | 230 | 380 | 5.5 | 1450 | 600 | 3300 | ||||
| FSH-7.5 | 280 | 380 | 7.5 | 1450 | 1000 | 3300 | ||||
| FSH-11 | 400 | 380 | 11 | 1450 | 1000 | 3300 | ||||
| FSH-15 | 500 | 380 | 15 | 970 | 2000 | 3300 | ||||
| FVN-0025-ZD | 25 | 220/380 | 0.75 | 50 | 5 | G1 | 0.5 | -100 | 37*58.5*75 cm | |
| FVN-0040-ZD | 40 | 380 | 1.5 | 100 | 10 | G1 | 1.5 | -100 | 118*90*40cm | |
| FVN-0063A-ZD | 63 | 380 | 1.5 | 100 | 10 | G1 | 1.5 | -100 | 150*120*40cm | |
| FVN-0063B-ZD | 70 | 380 | 2.2 | 100 | 10 | G1 | 4 | -100 | 160*155*50cm | |
| FVN-0100-ZD | 100 | 380 | 3 | 100 | 10 | G1.5 | 4 | -100 | 160*155*50cm | |
| FVN-300V-ZD | 18 | 220 | 1.5 | 50 | 5 | G1/2 | -91 | 105*40*113cm |
