Certified to the Pressure Equipment Directive (PED), ensuring legal, safe sale and operation within the European Union with all required documentation and markings.
Certified to the Pressure Equipment Directive (PED), ensuring legal, safe sale and operation within the European Union with all required documentation and markings.

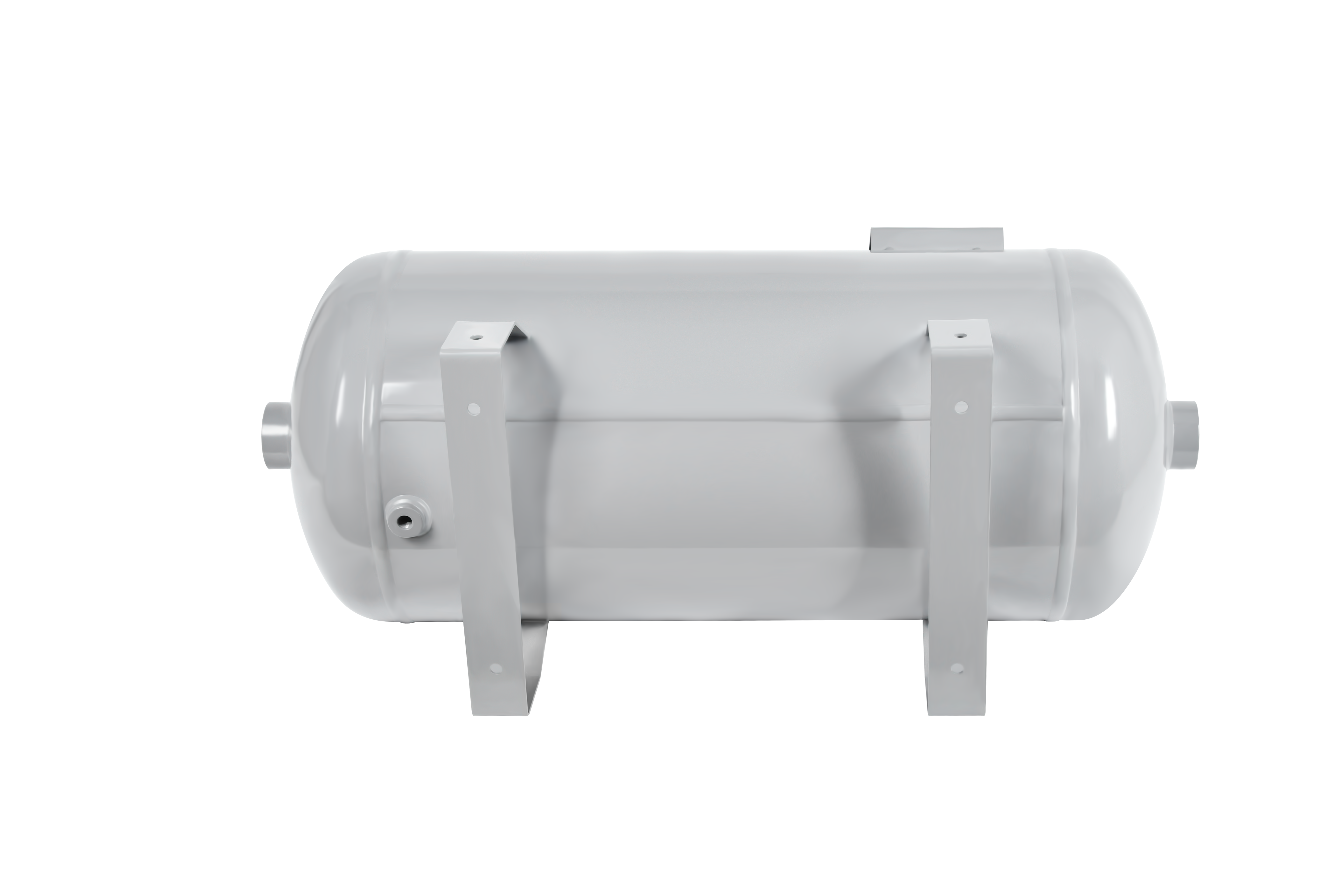

The horizontal orientation provides a low center of gravity for secure placement and an optimized footprint that conserves valuable floor space in any workshop.
The 80L volume offers a substantial air reservoir to effectively minimize compressor cycling, stabilize system pressure, and support extended operation of tools or equipment.
The "ready for shipment" status guarantees fast dispatch and delivery, ensuring quick integration into your system to minimize project downtime and delays.
| P/N | Pressure (bar) | L*D*H(mm) | Thickness(mm) | Package Size(mm) | Net Weight(KG) | Gross Weight(KG) | Ports |
| 10L CE | 12 | 562*188*269 | 3 | / | 9 | 9.5 | 3:G1/2, 1:G1/4,2:G1 |
| 20L CE | 12.5 | 714*223*296.5 | 3 | 13.5 | 14 | 3:G1/2, 1:G1/4,2:G1 | |
| 40L CE | 8 | 686*293*325 | 4 | / | 16 | 17 | 4:G1/2, 1:G1/4, 2: G3/4 |
| 50L CE | 8 | 736*332*392 | 3 | / | 20 | 21 | 3:G1/2, 1:G1/4, 2: G3/4 |
| 60L Vertical CE | 8 | 337*850*968 | 3 | / | 24 | 25 | 3:G1/2, 2:G3/4, 1: G1 |
| 60L CE | 12 | 940*325*362 | 3 | / | 24.5 | 25 | 3:G1/2, 1:G1/4, 2: G1 |

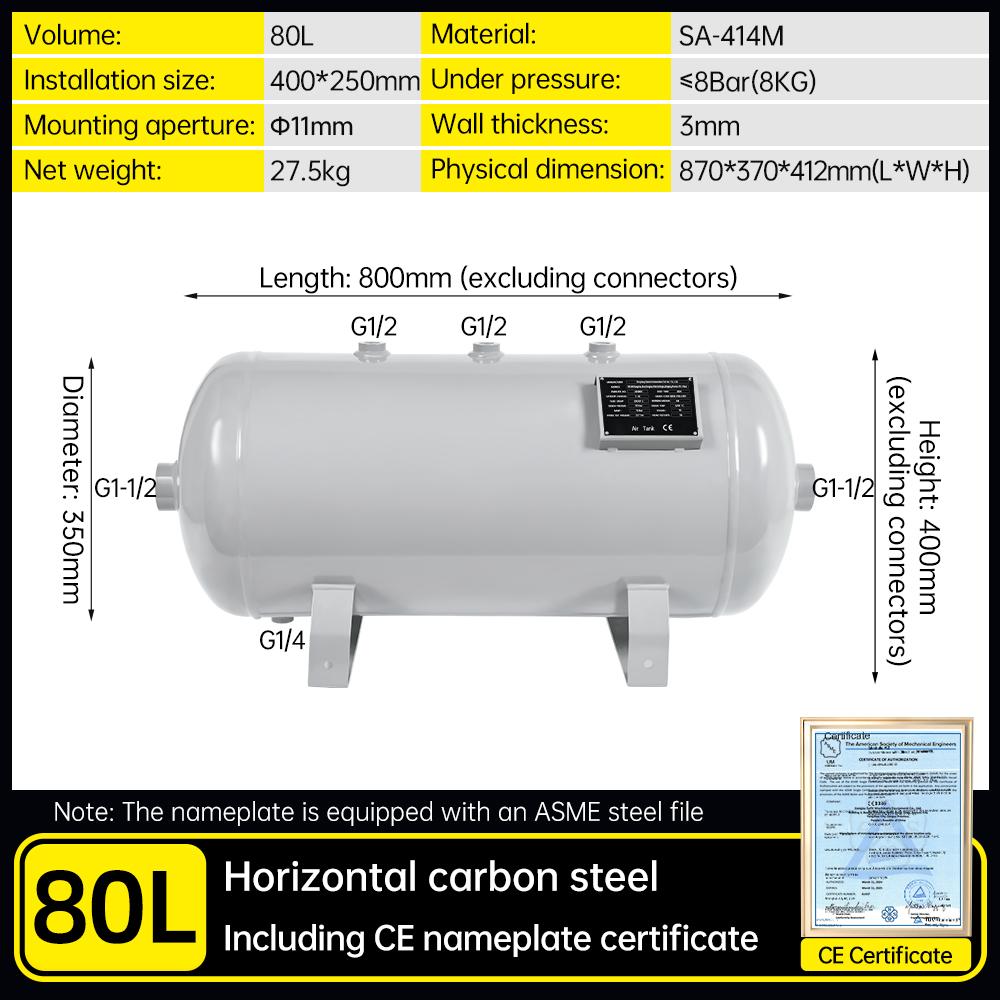

| 80L CE | 8 | 870*370*412 | 3 | / | 27.5 | 28 | 3:G1/2, 1:G1/4, 2:G1-1/2 |
| 100L CE | 8 | 1075*370*388.5 | 3 | / | 37.5 | 38 | 4:G1/2, 1:G1/4, 2:G1-1/2 |
