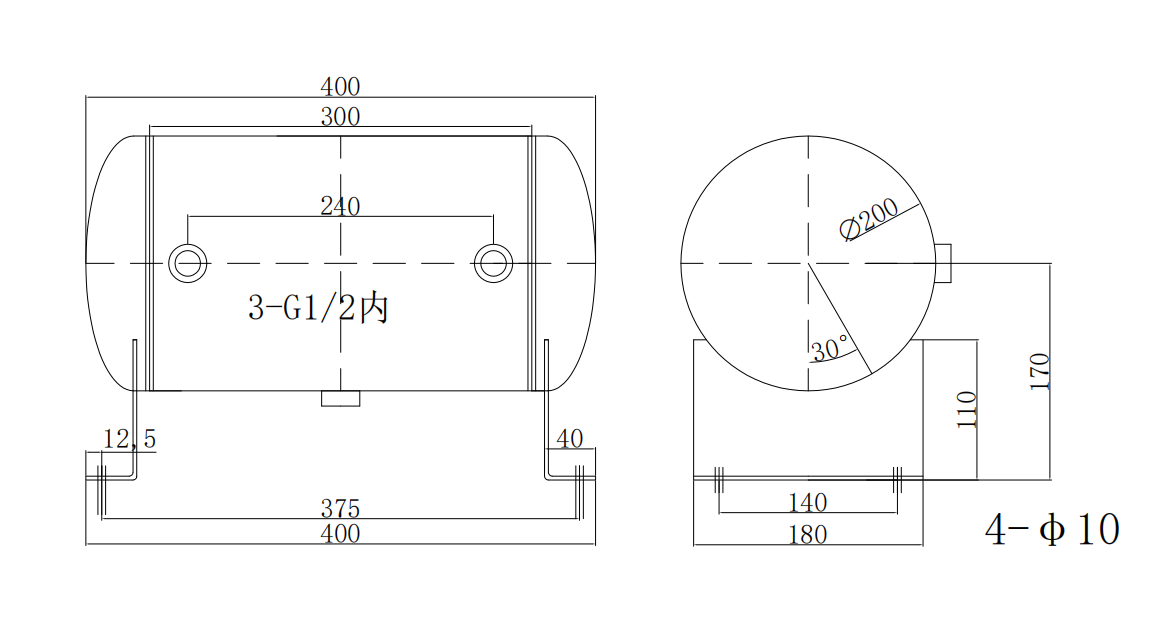

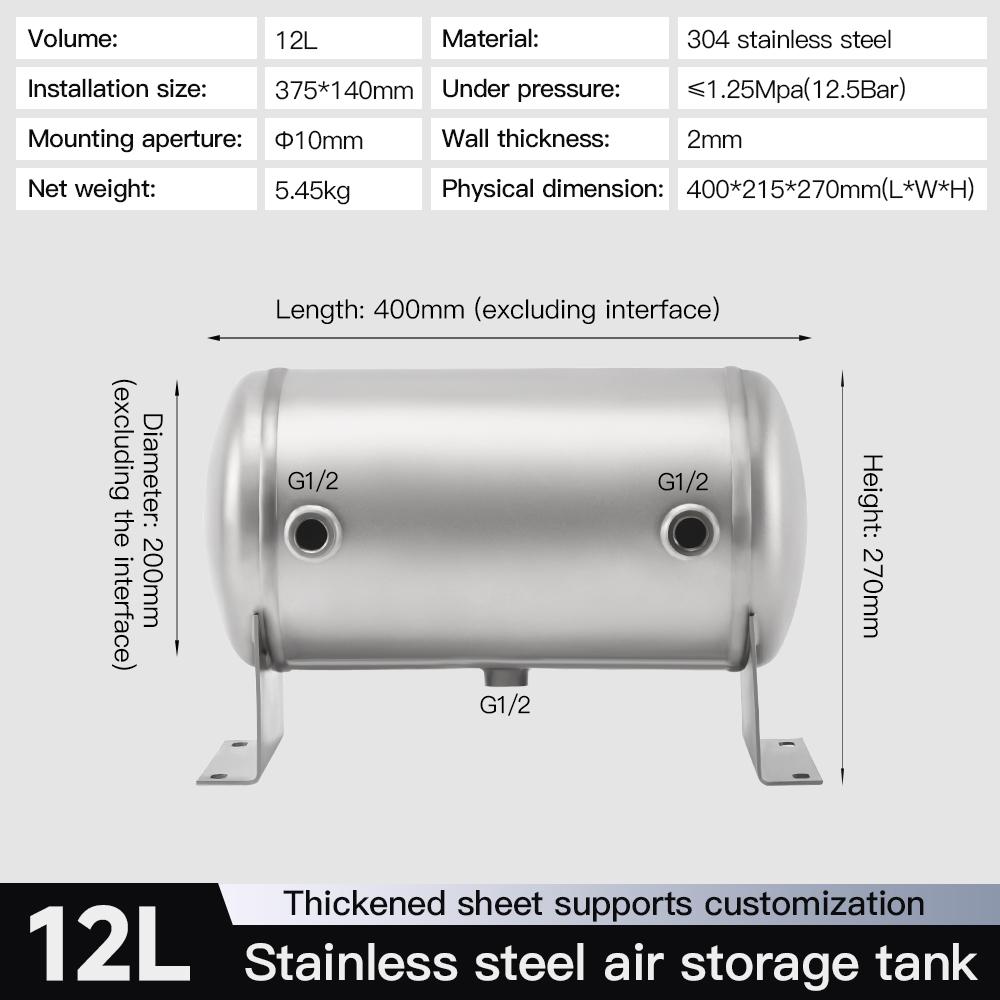

This 12L horizontal air storage tank is made of 304 stainless steel with a matte finish, rated for 12.5Bar working pressure. It features three G1/2 ports and stable mounting brackets, ideal for industrial and clean compressed air systems, and supports customization.
Made of 304 stainless steel with a matte finish, it ensures clean gas storage and excellent rust resistance, suitable for food and medical industries.
2mm thickened sheet and robust welded construction deliver reliable performance under 12.5Bar pressure, minimizing system fluctuations.
Three G1/2 ports enable flexible air inlet/outlet and gauge installation, simplifying pipeline integration for various applications.

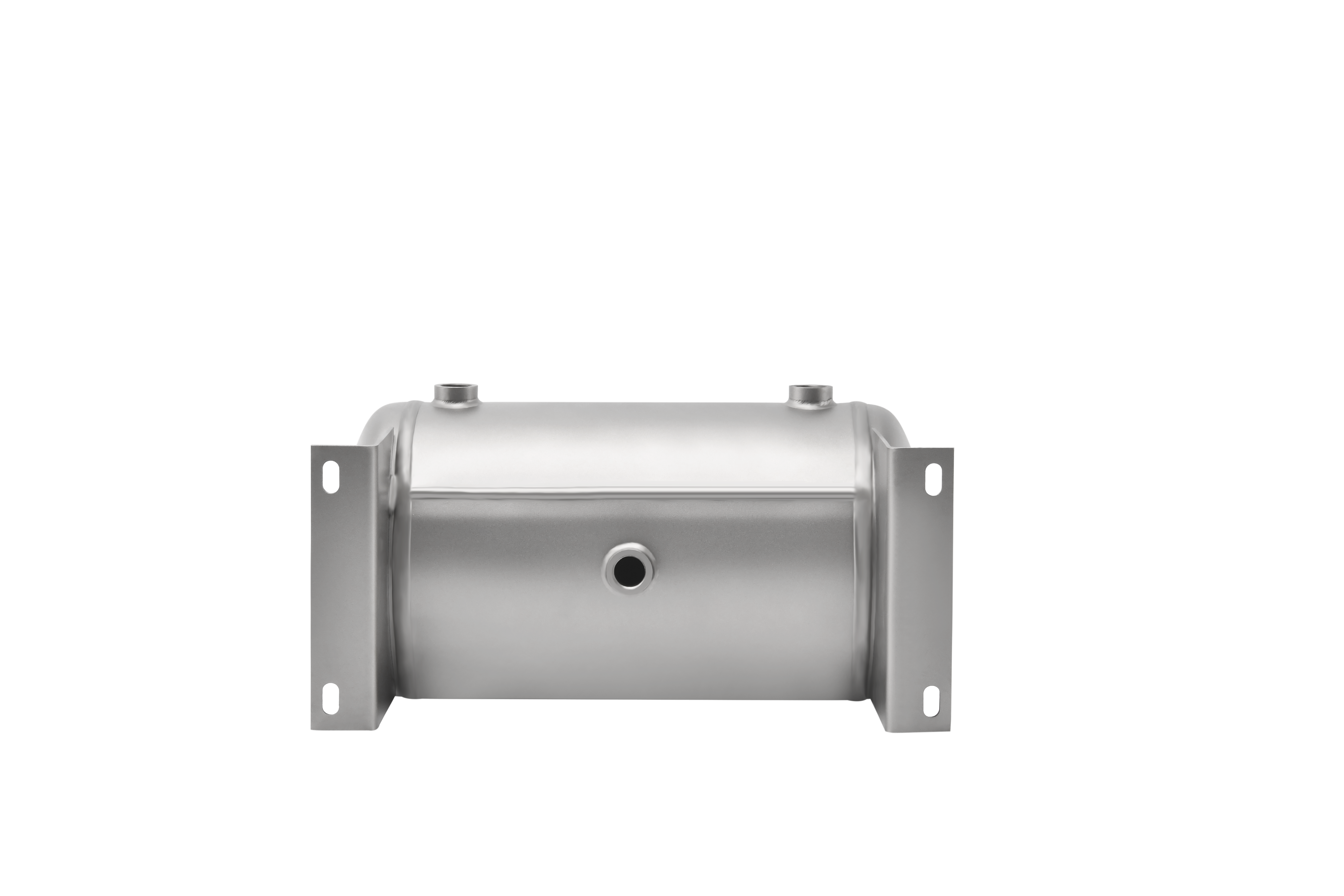

Pre-drilled mounting brackets and stable structure simplify setup; custom sizes, port types, and pressure ratings are available upon request.
| P/N | Pressure (bar) | L*D*H(mm) | Thickness（mm) | Package Size（mm） | Net Weight（KG） | Gross Weight（KG） | Ports |
| 0.1L | 12.5 | 140*38*38 | 2 | 150*50*50 | 0.22 | 0.5 | 2: G1/4 |
| 0.2L | 12.5 | 150*83*54 | 2 | 200*60*60 | 0.35 | 0.6 | 2: G1/4 |
| 0.3L | 12.5 | 160*57*70 | 2 | 180*90*110 | 0.46 | 0.72 | 2: G1/4 |
| 0.4L | 12.5 | 135*76 | 2 | 160*92*90 | 0.5 | 0.75 | 2: G1/4 |
| 0.5L G1/4 | 12.5 | 168*88*79 | 2 | 180*90*110 | 0.64 | 0.72 | 2: G1/4 |
| 0.5L G1/8 | 12.5 | 170*80*93 | 2 | 160*160*110 | 0.72 | 1.1 | 2: G1/8 |
| 0.8L G1/8 | 12.5 | 224*76*91 | 2 | 240*110*110 | 1.2 | 1.45 | 2: G1/8 |
| 1L | 12.5 | 174*102*105 | 2 | 190*122*126 | 0.9 | 1.6 | 2: G1/4 |
| 2L | 12.5 | 254*108*126 | 2 | 250*128*150 | 1.48 | 3 | 4: G1/4 |
| 2L -G1/2 | 12.5 | 260*108*126 | 2 | 280*110*130 | 1.48 | 3 | 4: G1/2 |
| 3L | 12.5 | 254*133*148 | 2 | 260*153*156 | 2.5 | 3 | 4: G1/4 |
| 3LA frosted | 12.5 | 234*140*155 | 2 | 250*180*180 | 1.75 | 2 | 4: G1/4 |
| 3LB frosted | 12.5 | 240*140*192 | 2 | 260*250*250 | 2 | 2.5 | 2: G1/2, 3:G1/4 |
| 4L | 12.5 | 240*159*235 | 2 | 250*170*245 | 2.35 | 2.5 | 3: G1/2, 1:G1/4 |
| 5L | 12.5 | 318*159*230 | 2 | 370*210*205 | 3.4 | 3.8 | 2: G1/2, 3:G1/4 |
| 5LA frosted | 12.5 | 310*160*215 | 2 | 320*170*240 | 3.05 | 3.35 | 2: G1/2, 1:G1/4 |
| 5LB frosted | 12.5 | 310*160*230 | 2 | 320*170*240 | 3.1 | 3.4 | 2: G1/2, 3:G1/4 |
| 5L high pressure | 30 | 290*159*249 | 3 | 320*180*260 | 4.8 | 5.5 | 2: G1/2, 3:G1/4 |
| 5L vertical | 12.5 | 300*174*375 | 2 | 380*205*200 | 2.85 | 3.2 | 3: G1/2, 1:G1/4 |
| 5L vertical frosted | 12.5 | 290*175*355 | 2 | 380*205*200 | 2.85 | 3.2 | 2: G1/2, 1:G1/4 |
| 5L ASME | 12.5 | 330*179*227 | 2 | / | 4.2 | 4.2 | 2: G1/2, 1:G1/4， 2:G3/4 |
| 10L | 12.5 | 510*159*255 | 2 | 500*185*260 | 5.5 | 5.8 | 4: G1/2, 1:G1/4 |
| 10LA frosted | 12.5 | 454*180*235 | 2 | 190*240*460 | 4.7 | 5.15 | 2: G1/2, 1:G1/4 |
| 10LB frosted | 12.5 | 460*180*250 | 2 | 460*260*200 | 4.95 | 5.4 | 4: G1/2, 1:G1/4 |
| 10L high pressure | 30 | 530*159*249 | 3 | 570*170*280 | 8.1 | 10 | 2: G1/2, 3:G1/4 |
| 10L vertical | 12.5 | 345*234*420 | 3 | 430*239*365 | 6 | 6.5 | 4: G1/2, 1:G1/4 |
| 10L ASME | 12.5 | 616*179*252 | 2 | / | 6.3 | 2: G1/2, 1:G1/4， 2:G3/4 | |
| 12L frosted | 12.5 | 215*270*400 | 2 | 420*290*220 | 5.45 | 5.95 | 3: G1/2 |
| 15L | 12.5 | 450*219*293 | 2 | 460*230*320 | 6.5 | 7.2 | 5: G1/2,1:G1/4 |
| 20L | 12.5 | 500*290*219 | 2.5 | 530*300*250 | 7.25 | 7.85 | 4: G1/2,1:G1/4 |
| 20LA frosted | 12.5 | 500*296*236 | 2.5 | 510*250*315 | 7.2 | 7.9 | 3: G4/2 |
| 20LB frosted | 12.5 | 500*306*236 | 2.5 | 510*250*315 | 7.2 | 7.9 | 4: G1/2, 1:G1/4 |
| 20L high pressure | 30 | 626*219*289 | 5 | 660*260*310 | 14.7 | 15.2 | 4: G1/2, 1:G1/4 |
| 20L vertical | 12.5 | 430*260*545 | 3 | 450*280*565 | 9.4 | 10.6 | 5: G1/2, 1:G1/4 |
| 20L ASME | 12.5 | 634*239*304 | 2 | / | 7.48 | / | 2: G1/2, 1:G1/4， 2:G3/4 |
| 25L frosted | 12.5 | 580*306*236 | 2.5 | 590*250*315 | 7.9 | 8.6 | 4: G1/2, 1:G1/4 |
| 30L | 12.5 | 530*273*350 | 2.5 | 550*293*370 | 13.15 | 13.5 | 5: G1/2, 1:G1/4 |
| 30L frosted | 12.5 | 460*365*320 | 2.5 | 490*375*330 | 12.2 | 13.55 | 4: G1/2, 1:G1/4 |
| 40L | 12.5 | 690*273*350 | 3 | 720*300*370 | 15.2 | 15.5 | 5: G1/2, 1:G1/4 |
| 50L | 12.5 | 760*325*400 | 2 | 780*345*420 | 19.7 | 16.8 | 4: G1/2, 1:G1/4 |
| 60L | 12.5 | 760*325*400 | 3 | 780*345*420 | 16.4 | 20.5 | 6: G1/2, 1:G1/4 |
| 300L-8 bar Vertical | 8 | φ550*1612 | |||||
| 300L-10 bar Vertical | 10 | φ550*1612 | / | ||||
| 300L-13 bar Vertical | 13 | φ550*1614 | |||||
| 300L-16 bar Vertical | 16 | φ550*1614 | |||||
| 600L-8 bar Vertical | 8 | φ650*2134 | / | ||||
| 600L-10 bar Vertical | 10 | φ650*2135 | / | ||||
| 600L-13 bar Vertical | 13 | φ650*2136 | |||||
| 600L-16 bar Vertical | 16 | φ650*2136 | |||||
| 1m³-8 bar Vertical | 8 | φ800*2258 | / | ||||
| 1m³-10 bar Vertical | 10 | φ800*2260 | / | ||||
| 1m³-13 bar Vertical | 13 | φ800*2260 | / | ||||
| 1m³-16 bar Vertical | 16 | φ800*2260 | / | ||||
| 1.5m³-13 bar Vertical | 13 | φ1000*2291 | |||||
| 1.5m³-16 bar Vertical | 16 | φ1000*2291 | |||||
| 2m³-8 bar Vertical | 8 | φ1000*2838 | / | ||||
| 2m³-10 bar Vertical | 10 | φ1000*2838 | / | ||||
| 2m³-13 bar Vertical | 13 | φ1000*2810 | |||||
| 2m³-16 bar Vertical | 16 | φ1000*2810 | / | ||||
| 3m³-8 bar Vertical | 8 | φ1200*2952 | |||||
| 3m³-10 bar Vertical | 10 | φ1200*2954 | |||||
| 3m³-13 bar Vertical | 13 | φ1200*2958 | |||||
| 3m³-16 bar Vertical | 16 | φ1200*2958 | / | ||||
| 4m³-8 bar Vertical | 8 | φ1400*3074 | |||||
| 4m³-10 bar Vertical | 10 | φ1400*3078 | |||||
| 4m³-13 bar Vertical | 13 | φ1400*3078 | |||||
| 4m³-16 bar Vertical | 16 | φ1400*3078 | |||||
| 5m³-8 bar Vertical | 8 | φ1400*3752 | |||||
| 5m³-10 bar Vertical | 10 | φ1400*3754 | / | ||||
| 5m³-13 bar Vertical | 13 | φ1400*3754 | |||||
| 5m³-16 bar Vertical | 16 | φ1400*3754 | |||||
| 6m³-8 bar Vertical | 8 | φ1400*4362 | |||||
| 6m³-10 bar Vertical | 10 | φ1400*4364 | |||||
| 6m³-13 bar Vertical | 13 | φ1400*4364 | |||||
| 6m³-16 bar Vertical | 16 | φ1400*4364 | |||||
| 8m³-13 bar Vertical | 13 | φ1600*4464 | |||||
| 8m³-16 bar Vertical | 16 | φ1600*4466 |
