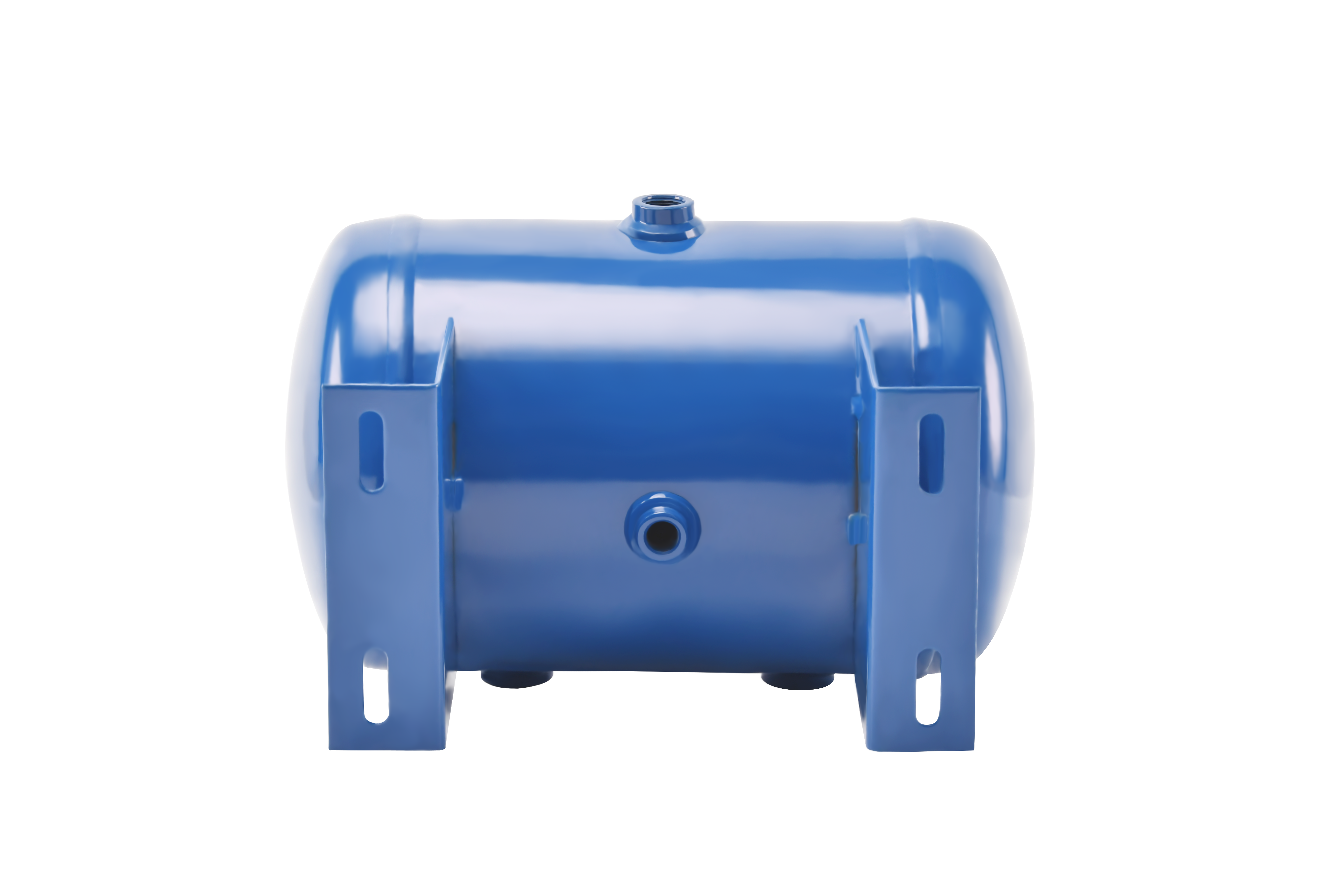

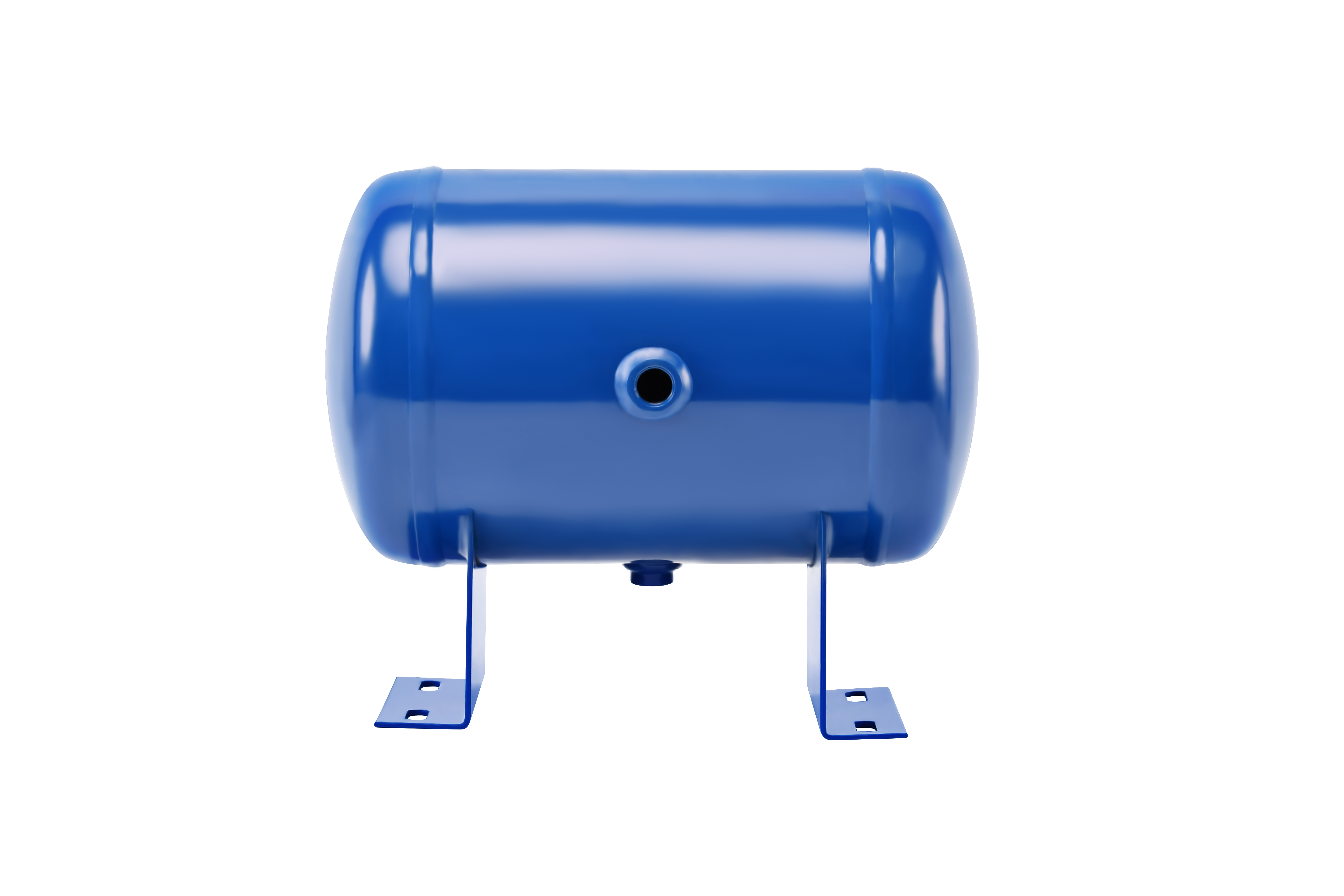

Compact customized 7L air receiver tank, blue-painted carbon steel structure, 12 bar working pressure. Stable performance, reliable sealing, customizable ports and connections. Suitable for small air compressors, pneumatic systems and customized pneumatic equipment.
The blue color allows for easy color-coding, brand alignment, or system identification within a workspace, enhancing organization and professional appearance.
The 7L volume offers a practical balance, providing more air reservoir than smaller tanks for better pressure stabilization while remaining highly portable and space-efficient.
A 12 bar (≈175 psi) working pressure is suitable for a wide range of medium-duty pneumatic tools, paint sprayers, and control systems, offering broad application versatility.
As a designated pressure vessel built to relevant standards (e.g., ASME, PED/CE), it ensures safe and reliable containment of compressed air at the specified pressure for long-term service.
| P/N | Pressure (bar) | L*D*H(mm) | Thickness（mm) | Package Size（mm） | Net Weight（KG） | Gross Weight（KG） | Ports |
| 1L | 12 | 175*125*108 | 3 | 180*180*240 | 1.3 | 1.6 | 3: G1/4 |
| 2L | 12 | 230*110*130 | 2 | 240*140*140 | 1.8 | 1.9 | 4: G1/4 |
| 3L-A | 12 | 160*160*220 | 2 | 180*180*240 | 1.9 | 2.15 | 4: G1/4 |
| 3L-B | 12 | 160*160*170 | 2 | 180*180*240 | 1.75 | 2.3 | 3: G1/4 |
| 3L-C | 12 | 200*140*180 | 2 | 230*170*195 | 1.95 | 2.15 | 3:G1/4, 1:G1/2 |
| 4L | 12 | 260*160*190 | 2 | 280*170*210 | 2.6 | 2.9 | 5: G1/4 |
| 5L-A | 12 | 300*160*190 | 2 | 320*170*125 | 3.15 | 3.45 | 5: G1/2 |
| 5L-B | 12 | 300*160*190 | 2 | 320*170*220 | 3.05 | 3.35 | 5:G1/4 |
| 5L-C | 12 | 355*140*160 | 2 | 370*150*180 | 3 | 3.35 | 5:G1/2 |
| 5L-D | 12 | 300*160*250 | 2 | 310*170*270 | 3.2 | 3.55 | 4:G1/2, 1:G1/4 |
| 5L-E | 12 | 270*160*190 | 2 | 280*180*200 | 2.6 | 2.9 | 3:G1/4, 2:G1/2 |
| 5L-H | 12 | 300*210*160 | 2 | 335*185*235 | 3.6 | 3.85 | 4:G1/4 |
| 5L high pressure | 50 | 290*159*249 | 5 | 300*180*260 | 6.6 | 7.6 | 3:G1/4, 2:G1/2 |
| 5L vertical | 12 | 300*200*350 | 2 | 300*200*350 | 3.8 | 4 | 6: G1/4 |
| 5L ASME | 13 | 345*162*209 | 3 | / | 5 | 5.5 | 3:G1/2, 2:G3/4 |

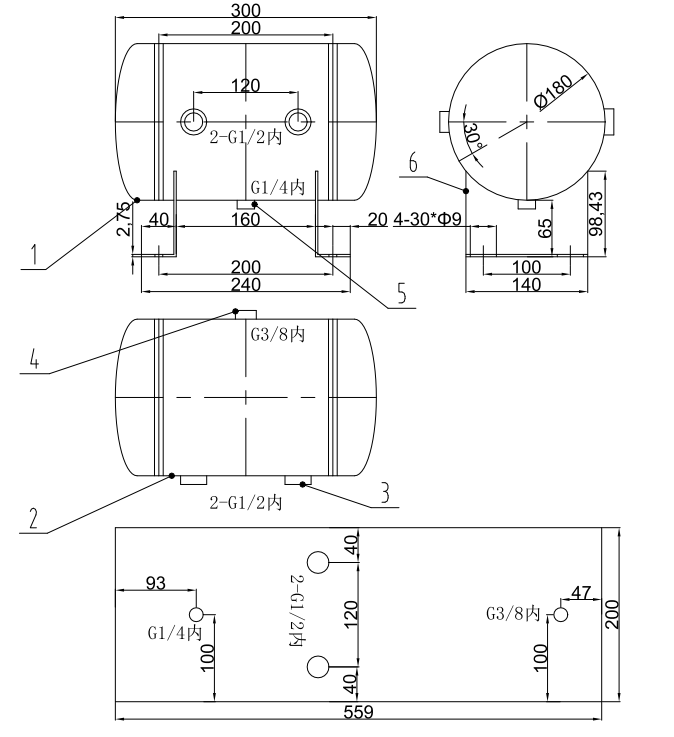

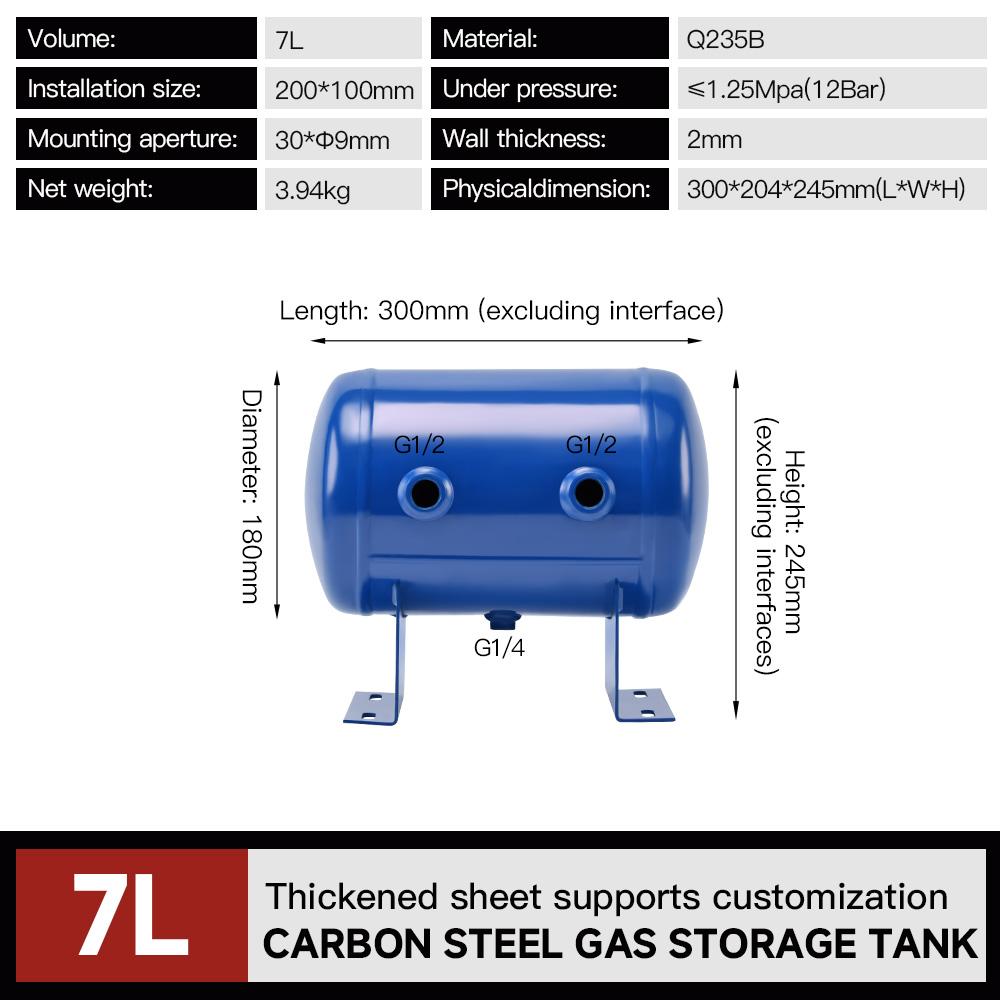

| 7L blue | 12 | 300*180*245 | 2 | 310*200*260 | 3.8 | 4.15 | 2:G1/2, 1: G3/8 |
| 7L grey | 12 | 385*180*225 | 2 | 395*190*240 | 4.15 | 4.55 | 3:G1/2, 2:G1/4 |
| 8L-B | 12 | 430*160*210 | 2 | 450*170*215 | 3.95 | 4.4 | 4:G1/2, 1:G1/4 |
| 10L-A | 12 | 470*180*185 | 2 | 490*200*215 | 4.65 | 5.15 | 2:G1/4, 2: G3/8 |
| 10L-B | 12 | 440*180*215 | 2.5 | 450*190*240 | 4.65 | 5.05 | 4:G1/2, 1:G1/4 |
| 10L-D | 12 | 447*180*260 | 2.5 | 467*200*280 | 5.05 | 5.35 | 4: G3/8, 2:G1/8, 1:G1-1/4 |
| 10L-E | 12 | 440*200*260 | 2.5 | 450*210*270 | 5.35 | 5.95 | 4:G1/2, 2:G1/4 |
| 10L-H | 12 | 465*200*275 | 2.5 | 460*200*280 | 6.65 | 7.15 | 3:G1/2, 3:G1/4 |
| 10L high pressure | 50 | 544*159*221 | 5 | 568*250*180 | 9.7 | 11 | 4:G1/2, 1:G1/4 |
| 10L Vertical | 12 | 460*180*520 | 2 | 530*250*255 | 4.45 | 5.1 | 4:G1/2, 1:G1/4 |
| 10L ASME | 13 | 450*183*235 | 3 | / | 7.9 | 8.4 | 2:G1/2, 1:G1/4,2:G3/4 |
| 10L CE | 12 | 562*188*269 | 3 | / | 9 | 9.5 | 3:G1/2, 1:G1/4,2:G1 |
| 12L-A | 12 | 320*236*318 | 2.5 | 330*250*330 | 4.75 | 5.35 | 3:G1/2, 1:G1/4 |
| 15L | 12 | 390*236*290 | 2.5 | 400*250*320 | 5.75 | 6.3 | 4:G1/2, 1:G1/4 |
| 20L-A | 12 | 360*280*335 | 2.5 | 390*300*350 | 8.7 | 9.4 | 4:G1/2, 1:G1/4 |
| 20L-B | 12 | 280*350*400 | 2.5 | 400*370*300 | 9.1 | 9.3 | 2:G1/2, 1:G1/4 |
| 20L-C | 12 | 240*315*440 | 2.5 | 450*315*250 | 8.25 | 8.55 | 2:G1/2, 2:G1/4 |
| 20L high pressure | 50 | 626*289*219 | 5 | 650*230*300 | 21.7 | 24 | 4:G1/2, 1:G1/4 |
| 20L Vertical | 12 | 350*280*462 | 2.5 | 480*330*300 | 9.4 | 10 | 4:G1/2, 1:G1/4 |
| 20L ASME | 13 | 540*243*315 | 3 | / | 12 | 12.5 | 2:G1/2, 2:G1/4,2:G3/4 |
| 20L CE | 12.5 | 714*223*296.5 | 3 | 13.5 | 14 | 3:G1/2, 1:G1/4,2:G1 | |
| 24L-A | 12 | 500*236*305 | 2.5 | 510*250*325 | 7.15 | 7.85 | 3:G1/2, 1:G1/4 |
| 24L-B | 12 | 500*236*261 | 2.5 | 520*250*275 | 7.1 | 7.75 | 7:G1/2, 1:G1/4 |
| 24L-C | 12 | 500*236*261 | 2.5 | 510*250*285 | 7 | 7.65 | 4:G1/2, 1:G1/4 |
| 24L-D | 12 | 500*236*261 | 2.5 | 535*246*310 | 7.15 | 8 | 3:G1/2, 1:G1/4, 1: G1 |
| 30L-A | 12 | 450*320*355 | 2.5 | 490*330*370 | 13.55 | 14.55 | 7:G1/2, 1:G1/4 |
| 30L-B | 12 | 450*320*350 | 2.5 | 490*330*370 | 13.55 | 14.44 | 4:G1/2, 1:G1/4 |
| 30L-C | 12 | 650*236*300 | 2.5 | 670*250*315 | 8.75 | 9.6 | 4:G1/2, 1:G1/4 |
| 30L Vertical | 10 | 500*280*600 | 2.5 | 620*320*290 | 11.5 | 12.3 | 4:G1/2, 1:G1/4 |
| 35L | 8 | 722*236*275 | 2.5 | 740*250*285 | 9.35 | 10.15 | 4:G1/2, 1:G1/4 |
| 40L | 12 | 650*280*330 | 2.5 | 670*290*355 | 14.25 | 15.2 | 5:G1/2, 1:G1/4 |
| 40L Vertical | 10 | 600*300*700 | 3 | 725*330*315 | 14.15 | 15.35 | 4:G1/2, 1:G1/4 |
| 40L with handle | 12 | 660*280*630 | 2.5 | 670*320*350 | 18.14 | 18.6 | 3:G1/2, 1:G1/4, 1: G3/4 |
| 40L ASME | 8 | 686*293*325 | 3 | / | 16 | 17 | 4:G1/2, 1:G1/4, 2: G3/4 |
| 8 | 686*293*325 | 4 | / | 16 | 17 | 4:G1/2, 1:G1/4, 2: G3/4 | |
| 45L | 12 | 530*320*380 | 3 | 580*340*395 | 14.95 | 16 | 4:G1/2, 1:G1/4 |
| 50L-A | 12 | 550*320*380 | 3 | 580*340*395 | 15.45 | 16.5 | 4:G1/2, 1:G1/4 |
| 50L-B | 12 | 712*300*392 | 3 | 720*310*400 | 16.35 | 17.5 | 6:G1/2, 1:G1/4 |
| 50L Vertical | 8 | 700*300*812 | 3 | 825*310*335 | 16.15 | 17.35 | 4:G1/2, 1:G1/4, 1: G1 |
| 50L ASME | 8 | 736*332*392 | 3 | / | 20 | 21 | 3:G1/2, 1:G1/4, 2: G3/4 |
| 50L CE | 8 | 736*332*392 | 3 | / | 20 | 21 | 3:G1/2, 1:G1/4, 2: G3/4 |
| 60L-A | 12 | 860*300*355 | 3 | 880*300*360 | 19.3 | 20.55 | 4:G1/2, 1:G1/4, 1: G1 |
| 60L Vertical | 10 | 850*300*962 | 3 | 972*320*330 | 18.55 | 19.85 | 5:G1/2, 1: G1 |
| 60L Vertical ASME | 8 | 337*850*968 | 3 | / | 24 | 25 | 3:G1/2, 2:G3/4, 1: G1 |
| 60L Vertical CE | 8 | 337*850*968 | 3 | / | 24 | 25 | 3:G1/2, 2:G3/4, 1: G1 |
| 60L CE | 12 | 940*325*362 | 3 | / | 24.5 | 25 | 3:G1/2, 1:G1/4, 2: G1 |
| 80L | 12 | 850*350*420 | 3 | / | 25.8 | 25.8 | 4:G1/2, 1:G1/4, 2: G1 |
| 80L Vertical | 12 | 650*470*482 | 3.5 | / | 25.2 | 25.2 | 5:G1/2, 1: G1 |
| 80L ASME | 8 | 870*370*412 | 3 | / | 27.5 | 28 | 3:G1/2, 1:G1/4, 2:G1-1/2 |
| 80L CE | 8 | 870*370*412 | 3 | / | 27.5 | 28 | 3:G1/2, 1:G1/4, 2:G1-1/2 |
| 100L-A | 12 | 1040*350*420 | 3 | / | 40.6 | 40.6 | 4:G1/2, 1:G1/4, 2:G1-1/4 |
| 100L-B | 8.4 | 1040*350*355 | 3 | / | 31.8 | 31.8 | 4:G1/2, 1:G1/4, 2: G1 |
| 100L ASME | 8 | 1075*370*388.5 | 3 | / | 37.5 | 38 | 4:G1/2, 1:G1/4, 2:G1-1/2 |
| 100L CE | 8 | 1075*370*388.5 | 3 | / | 37.5 | 38 | 4:G1/2, 1:G1/4, 2:G1-1/2 |
| 125L | 12 | 1000*400*450 | 3 | / | 36.5 | 36.5 | 5:G1/2, 1:G1/4, 2: G1 |
| 130L | 12 | 1050*400*456 | 3 | / | 38.1 | 38.1 | 2:G1-1/2 , 1:G1/4 |
| 150L | 8 | 1340*400*495 | 3.5 | / | 45 | 45 | 4:G1/2, 2:G1/4, 2:G1-1/4 |
| 180L with plate | 12 | 1400*400*485 | 3 | / | 60 | 60 | 2: G1-1/4, 1:G1/4, 6:G1/2 |
| 300L with plate | 12 | 1600*500*600 | 3 | / | 106 | 106 | 2: G2, 1:G1/4, 4:G1/4 |
| 500L with plate | 12 | 1700*600*760 | 3 | 1740*630*745 | 130 | 140 | 2: G2, 6:G1/2 |

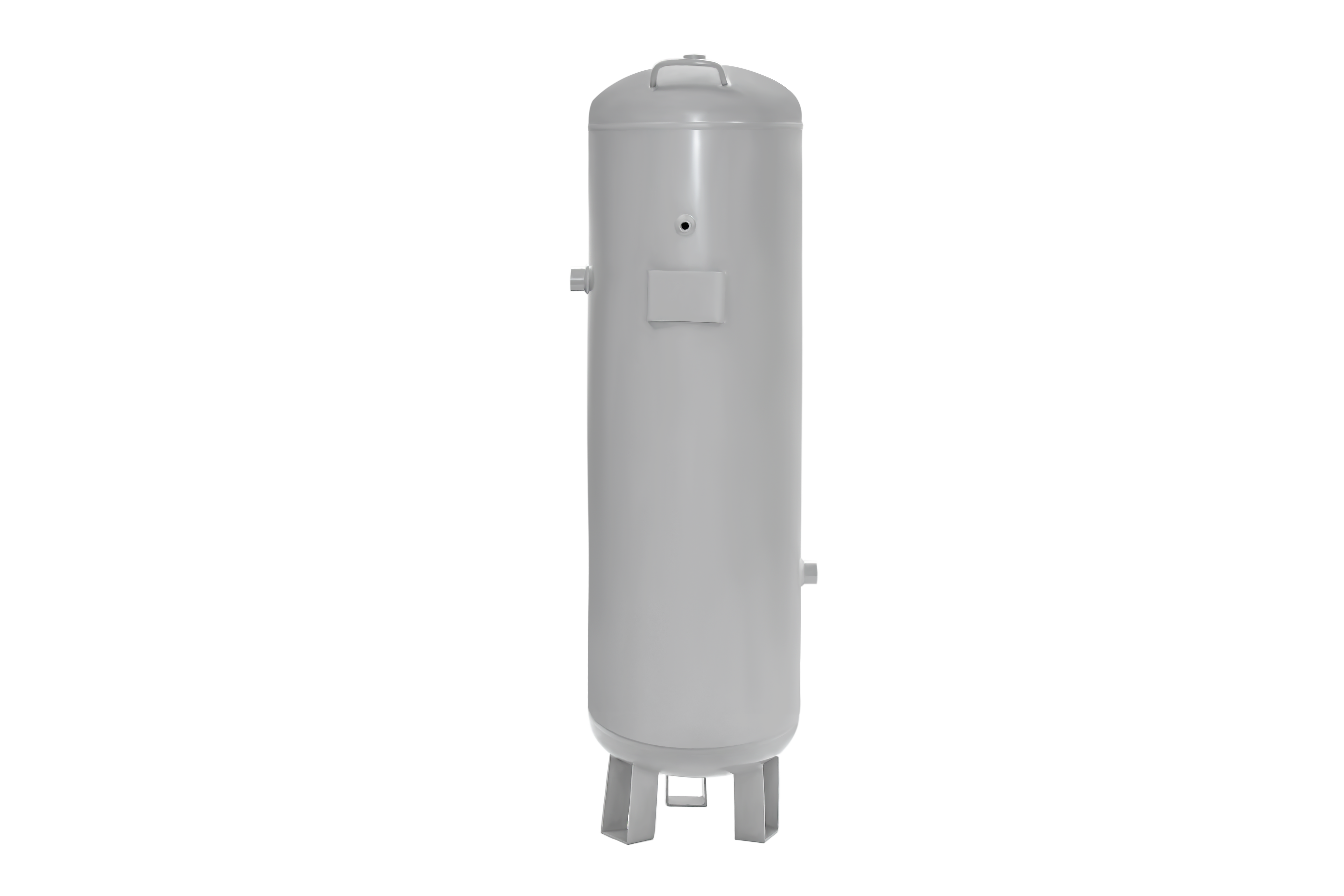

| 100L-A Vertical | 10 | 1240*350*1400 | 3 | / | 38 | 38 | 2:G1/4, 1:G3/4, 2: G1 |
| 100L-B Vertical | 12 | 800*400*932 | 3 | / | 30 | 30 | 5:G1/2, 1:G1/4 |
| 300L-8 bar Vertical | 8 | φ550*1525 | 3 | / | 73 | 73 | DN25 |
| 300L-10bar Vertical | 10 | φ550*1525 | 3 | / | 82 | 82 | DN25 |
| 300L-13bar Vertical | 13 | φ550*1525 | 3.5 | / | 82 | 82 | DN25 |
| 300L-16bar Vertical | 16 | φ550*1525 | 4.5 | / | 105 | 105 | DN25 |
| 300L-30bar Vertical | 30 | φ550*1525 | 8 | / | 201 | 201 | DN40 |
| 300L-40bar Vertical | 40 | φ550*1525 | 10 | / | 230 | 230 | DN40 |
| 600L-8 bar Vertical | 8 | φ650*2050 | 3 | / | 112 | 112 | DN65 |
| 600L-10 bar Vertical | 10 | φ650*2050 | 3 | / | 118 | 118 | DN65 |
| 600L-13 bar Vertical | 13 | φ650*2050 | 3.5 | / | 132 | 132 | DN40 |
| 600L-16 bar Vertical | 16 | φ650*2050 | 4.5 | / | 170 | 170 | DN40 |
| 600L-30 bar Vertical | 30 | φ650*2050 | 8 | / | 310 | 310 | DN40 |
| 600L-40 bar Vertical | 40 | φ650*2050 | 10 | / | 420 | 420 | DN40 |
| 1m³-8 bar Vertical | 8 | φ800*2140 | 3.5 | / | 170 | 170 | DN80 |
| 1m³-10 bar Vertical | 10 | φ780*2080 | 3.5 | / | 156 | 156 | DN40 |
| 1m³-13 bar Vertical | 13 | φ780*2080 | 4.5 | / | 200 | 200 | DN40 |
| 1m³-16 bar Vertical | 16 | φ780*2080 | 5.5 | / | 286 | 286 | DN40 |
| 1m³-20 bar Vertical | 20 | φ800*2140 | 8 | / | 390 | 390 | DN40 |
| 1m³-30 bar Vertical | 30 | φ800*2140 | 10 | / | 472 | 472 | DN40 |
| 1m³-40 bar Vertical | 40 | φ800*2140 | 12 | / | 590 | 590 | DN40 |
| 1m³-60 bar Vertical | 60 | φ800*2322 | 20 | 1000 | 1000 | DN40,DN100 | |
| 1.5m³-8 bar Vertical | 8 | φ980*2180 | 4 | / | 240 | 240 | DN80 |
| 1.5m³-10 bar Vertical | 10 | φ980*2180 | 4.5 | / | 270 | 270 | DN80 |
| 1.5m³-13 bar Vertical | 13 | φ1000*2268 | 5.5 | / | 365 | 365 | DN50 |
| 1.5m³-30 bar Vertical | 30 | φ1000*2268 | 12 | / | 750 | 750 | DN80 |
| 2m³-8 bar Vertical | 8 | φ980*2680 | 4 | / | 295 | 295 | DN80 |
| 2m³-10 bar Vertical | 10 | φ980*2680 | 4.5 | / | 325 | 325 | DN50 |
| 2m³-13 bar Vertical | 13 | φ1000*2750 | 5.5 | / | 432 | 432 | DN80 |
| 2m³-16 bar Vertical | 16 | φ1000*2750 | 7 | / | 552 | 552 | DN80 |
| 2m³-20 bar Vertical | 20 | φ1000*2750 | 8 | / | 615 | 615 | DN50 |
| 2m³-25 bar Vertical | 25 | φ1000*2750 | 10 | 765 | 765 | DN50 | |
| 2m³-30 bar Vertical | 30 | φ1000*2750 | 12 | / | 905 | 905 | DN50 |
| 2m³-40 bar Vertical | 40 | φ1000*2750 | 16 | / | 1250 | 1250 | DN50 |
| 3m³-8 bar Vertical | 8 | φ1200*2800 | 4.5 | / | 430 | 430 | DN80 |
| 3m³-10 bar Vertical | 10 | φ1200*2800 | 5.5 | / | 545 | 545 | DN80 |
| 3m³-13 bar Vertical | 13 | φ1200*2870 | 7 | / | 625 | 625 | DN80 |
| 3m³-16 bar Vertical | 16 | φ1200*2870 | 8 | / | 740 | 740 | DN80 |
| 3m³-25 bar Vertical | 25 | φ1200*2870 | 12 | / | 1130 | 1130 | DN80 |
| 3m³-30 bar Vertical | 30 | φ1200*2800 | 14 | / | 1300 | 1300 | DN80 |
| 4m³-8 bar Vertical | 8 | φ1400*2870 | 5 | / | 680 | 680 | DN100 |
| 4m³-10 bar Vertical | 10 | φ1400*2870 | 6 | / | 780 | 780 | DN100 |
| 4m³-13 bar Vertical | 13 | φ1400*2950 | 8 | / | 920 | 920 | DN100 |
| 5m³-8 bar Vertical | 8 | φ1400*3450 | 5 | / | 790 | 790 | DN100 |
| 5m³-10 bar Vertical | 10 | φ1400*3470 | 6 | / | 860 | 860 | DN100 |
| 5m³-13 bar Vertical | 13 | φ1400*3550 | 8 | / | 1065 | 1065 | DN100 |
| 6m³-8 bar Vertical | 8 | φ1400*4100 | 5 | / | 816 | 816 | DN100 |
| 6m³-10 bar Vertical | 10 | φ1400*4100 | 6 | / | 1030 | 1030 | DN100 |
| 8m³-8 bar Vertical | 8 | φ1600*4100 | 5.5 | / | 1140 | 1140 | DN125 |
| 8m³-10 bar Vertical | 10 | φ1600*4100 | 6.5 | / | 1350 | 1350 | DN125 |
| 8m³-16 bar Vertical | 16 | φ1600*4070 | 10 | / | 1820 | 1820 | DN125 |
| 8m³-20 bar Vertical | 20 | φ1600*4070 | 12 | / | 2490 | 2490 | DN125/DN400 |
| 10m³-8 bar Vertical | 8 | φ1800*4162 | 6 | / | 1380 | 1380 | DN150 |
| 10m³-10 bar Vertical | 10 | φ1800*4166 | 7.5 | / | 1640 | 1640 | DN250 |
| 10m³-13bar Vertical | 13 | φ1800*4166 | 10 | / | 2080 | 2080 | DN150 |
| 10m³-16bar Vertical | 16 | φ1800*4166 | 12 | / | 2615 | 2615 | DN150 |
| 15m³-10bar Vertical | 10 | φ2000*5100 | 8 | / | 2280 | 2280 | DN150 |
| 20m³-8 bar Vertical | 8 | φ2100*6150 | 7 | / | 2580 | 2580 | DN200 |
| 20m³-10 bar Vertical | 10 | φ2100*6150 | 8.5 | / | 3090 | 3090 | DN200 |
| 20m³-16 bar Vertical | 16 | φ2100*6150 | 12 | 4570 | 4570 | DN200 | |
| 25m³-8 bar Vertical | 8 | φ2400*6080 | 9 | / | 3810 | 3810 | DN200 |
