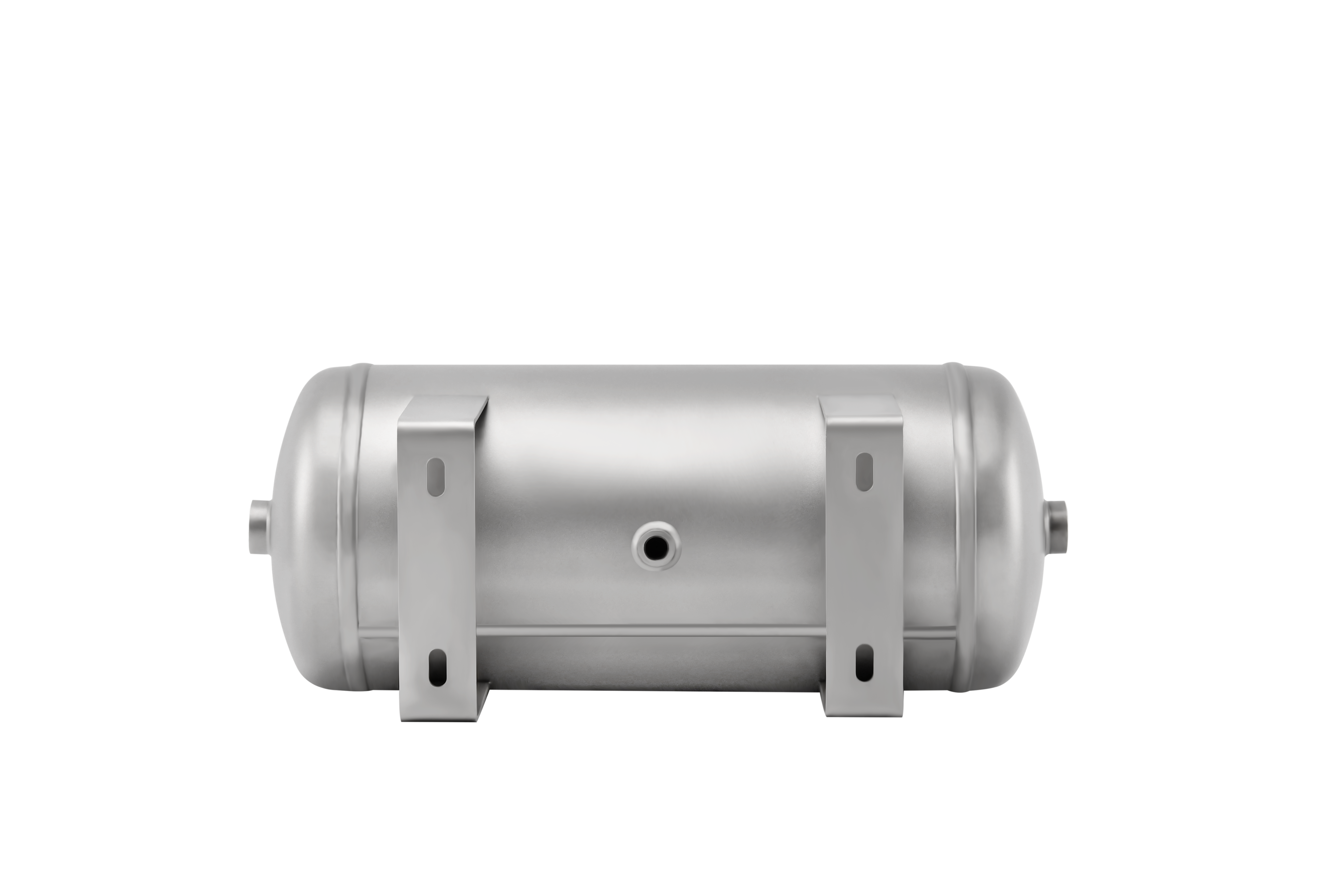

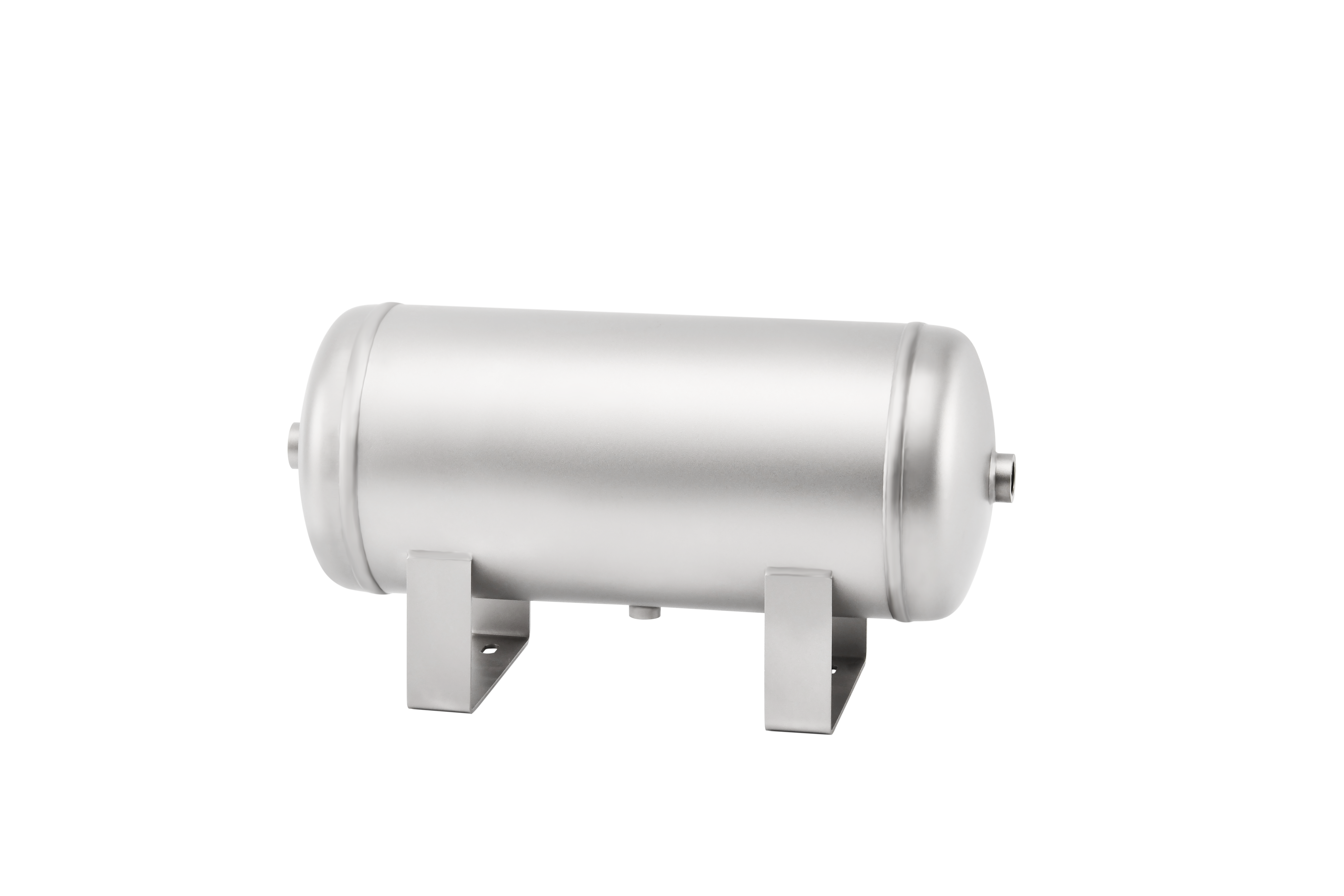

10LA stainless steel air reservoir tank with matt finish

10L stainless steel (304) air reservoir tank with a working pressure ≤1.25MPa. It features a compact design (454 * 180 * 235mm), a 2mm wall thickness, and multiple G1/2 & G1/4 ports. The model 10LA supports customization with thickened sheet material for durable performance.

Get a Quote
10la-stainless-steel-air-reservoir-tank-with-matt-finish
10la-stainless-steel-air-reservoir-tank-with-matt-finish
10la-stainless-steel-air-reservoir-tank-with-matt-finish-2
10la-stainless-steel-air-reservoir-tank-with-matt-finish-2
10la-stainless-steel-air-reservoir-tank-with-matt-finish-3
10la-stainless-steel-air-reservoir-tank-with-matt-finish-3
10la-stainless-steel-air-reservoir-tank-with-matt-finish
10la-stainless-steel-air-reservoir-tank-with-matt-finish-2
10la-stainless-steel-air-reservoir-tank-with-matt-finish-3

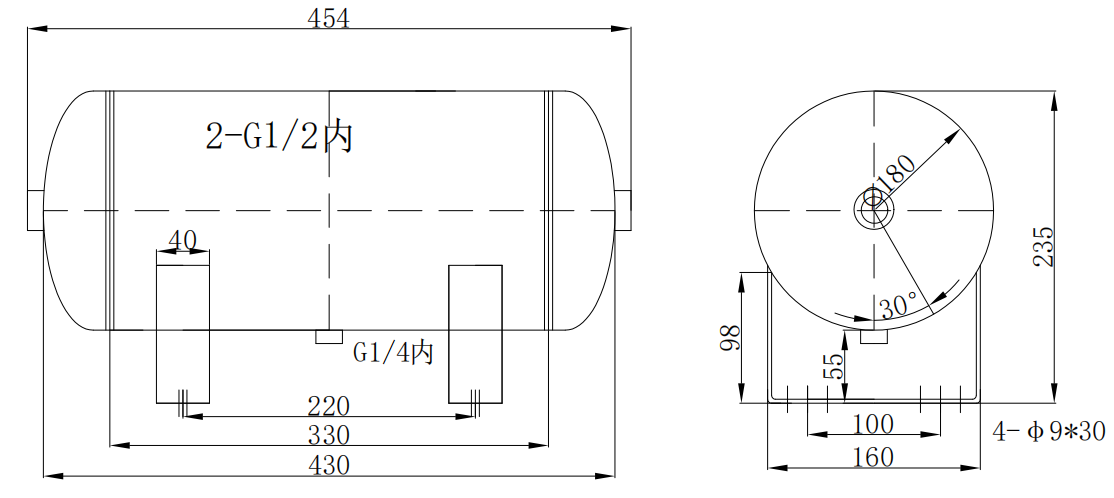

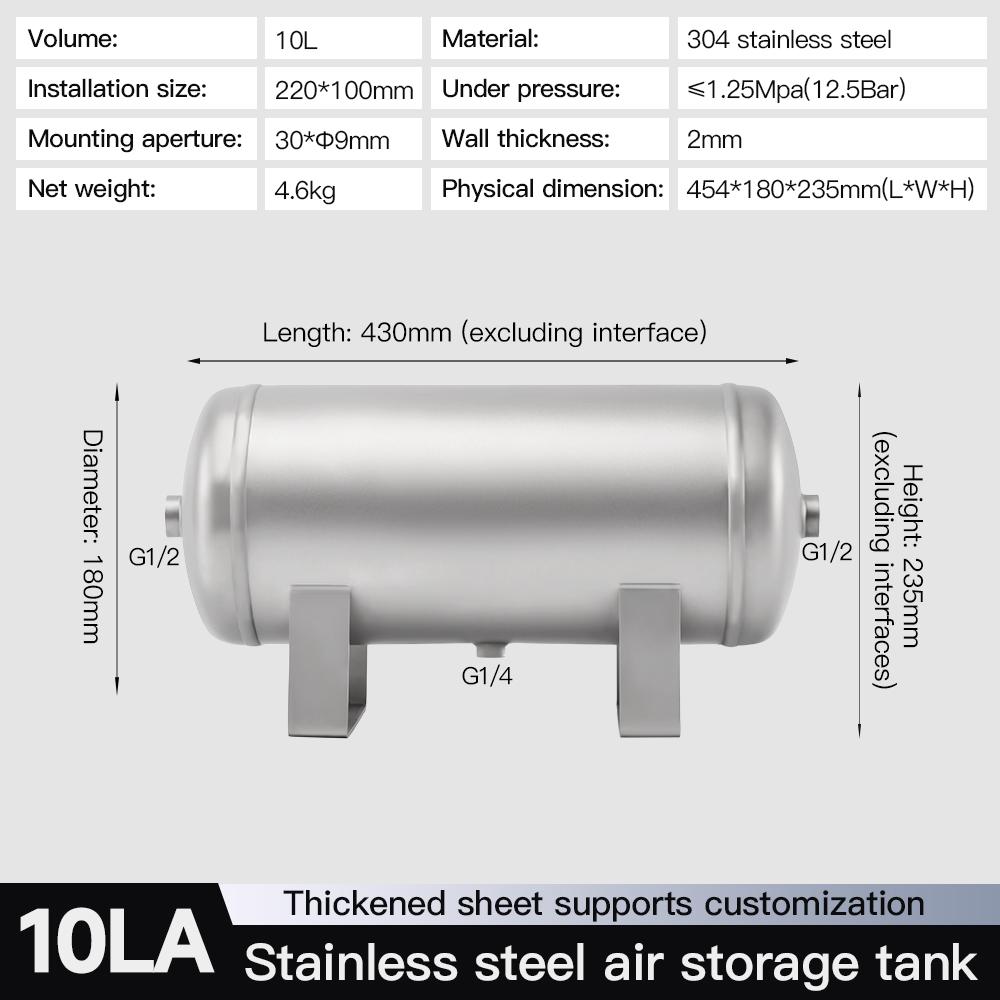

Specification of 10LA stainless steel air reservoir tank with matt finish

10la-stainless-steel-air-reservoir-tank-with-matt-finish-specification-2
10la-stainless-steel-air-reservoir-tank-with-matt-finish-specification-1

Reasons to Buy 10LA stainless steel air reservoir tank with matt finish

01
Hygienic & Corrosion-Resistant

Made of 304 stainless steel with a matte finish, it ensures clean gas storage and excellent resistance to rust and chemicals, suitable for food and medical industries.

02
Sturdy & Pressure-Safe

2mm thickened sheet and robust welded construction deliver reliable performance under 12.5Bar pressure, extending service life and ensuring system stability.

03
Simplified Port Design

Two side G1/2 ports for air flow and one bottom G1/4 drain port enable easy installation and efficient condensate discharge.

04
Easy Installation & Customization

Precisely machined mounting holes and stable support legs simplify setup; custom sizes, port types, and finishes are available to meet specific needs.

YCZX Existing Stainless Steel Air Receiver Tanks

P/NPressure (bar)L*D*H(mm)Thickness（mm)Package Size（mm）Net Weight（KG）Gross Weight（KG）Ports
0.1L12.5140*38*382150*50*500.220.52: G1/4
0.2L12.5150*83*542200*60*600.350.62: G1/4
0.3L12.5160*57*702180*90*1100.460.722: G1/4
0.4L12.5135*762160*92*900.50.752: G1/4
0.5L G1/412.5168*88*792180*90*1100.640.722: G1/4
0.5L G1/812.5170*80*932160*160*1100.721.12: G1/8
0.8L G1/812.5224*76*912240*110*1101.21.452: G1/8
1L12.5174*102*1052190*122*1260.91.62: G1/4
2L12.5254*108*1262250*128*1501.4834: G1/4
2L -G1/212.5260*108*1262280*110*1301.4834: G1/2
3L12.5254*133*1482260*153*1562.534: G1/4
3LA frosted12.5234*140*1552250*180*1801.7524: G1/4
3LB frosted12.5240*140*1922260*250*25022.52: G1/2,  3:G1/4
4L12.5240*159*2352250*170*2452.352.53: G1/2,  1:G1/4
5L12.5318*159*2302370*210*2053.43.82: G1/2,  3:G1/4
5LA frosted12.5310*160*2152320*170*2403.053.352: G1/2,  1:G1/4
5LB frosted12.5310*160*2302320*170*2403.13.42: G1/2,  3:G1/4
5L high pressure30290*159*2493320*180*2604.85.52: G1/2,  3:G1/4
5L vertical12.5300*174*3752380*205*2002.853.23: G1/2,  1:G1/4
5L vertical frosted12.5290*175*3552380*205*2002.853.22: G1/2,  1:G1/4
5L ASME12.5330*179*2272/4.24.22: G1/2,  1:G1/4， 2:G3/4
10L12.5510*159*2552500*185*2605.55.84: G1/2,  1:G1/4
10LA frosted12.5454*180*2352190*240*4604.75.152: G1/2,  1:G1/4
10LB frosted12.5460*180*2502460*260*2004.955.44: G1/2,  1:G1/4
10L high pressure30530*159*2493570*170*2808.1102: G1/2,  3:G1/4
10L vertical12.5345*234*4203430*239*36566.54: G1/2,  1:G1/4
10L ASME12.5616*179*2522/6.3
2: G1/2,  1:G1/4， 2:G3/4
12L frosted12.5215*270*4002420*290*2205.455.953: G1/2
15L12.5450*219*2932460*230*3206.57.25: G1/2,1:G1/4
20L12.5500*290*2192.5530*300*2507.257.854: G1/2,1:G1/4
20LA frosted12.5500*296*2362.5510*250*3157.27.93: G4/2
20LB frosted12.5500*306*2362.5510*250*3157.27.94: G1/2, 1:G1/4
20L high pressure30626*219*2895660*260*31014.715.24: G1/2, 1:G1/4
20L vertical12.5430*260*5453450*280*5659.410.65: G1/2, 1:G1/4
20L ASME12.5634*239*3042/7.48/2: G1/2,  1:G1/4， 2:G3/4
25L frosted12.5580*306*2362.5590*250*3157.98.64: G1/2, 1:G1/4
30L12.5530*273*3502.5550*293*37013.1513.55: G1/2, 1:G1/4
30L frosted12.5460*365*3202.5490*375*33012.213.554: G1/2, 1:G1/4
40L12.5690*273*3503720*300*37015.215.55: G1/2, 1:G1/4
50L12.5760*325*4002780*345*42019.716.84: G1/2, 1:G1/4
60L12.5760*325*4003780*345*42016.420.56: G1/2, 1:G1/4
300L-8 bar Vertical8φ550*1612




300L-10 bar Vertical10φ550*1612
/


300L-13 bar Vertical13φ550*1614




300L-16 bar Vertical16φ550*1614




600L-8 bar Vertical8φ650*2134
/


600L-10 bar Vertical10φ650*2135
/


600L-13 bar Vertical13φ650*2136




600L-16 bar Vertical16φ650*2136




1m³-8 bar Vertical8φ800*2258
/


1m³-10 bar Vertical10φ800*2260
/


1m³-13 bar Vertical13φ800*2260
/


1m³-16 bar Vertical16φ800*2260
/


1.5m³-13 bar Vertical13φ1000*2291




1.5m³-16 bar Vertical16φ1000*2291




2m³-8 bar Vertical8φ1000*2838
/


2m³-10 bar Vertical10φ1000*2838
/


2m³-13 bar Vertical13φ1000*2810




2m³-16 bar Vertical16φ1000*2810
/


3m³-8 bar Vertical8φ1200*2952




3m³-10 bar Vertical10φ1200*2954




3m³-13 bar Vertical13φ1200*2958




3m³-16 bar Vertical16φ1200*2958
/


4m³-8 bar Vertical8φ1400*3074




4m³-10 bar Vertical10φ1400*3078




4m³-13 bar Vertical13φ1400*3078




4m³-16 bar Vertical16φ1400*3078




5m³-8 bar Vertical8φ1400*3752




5m³-10 bar Vertical10φ1400*3754
/


5m³-13 bar Vertical13φ1400*3754




5m³-16 bar Vertical16φ1400*3754




6m³-8 bar Vertical8φ1400*4362




6m³-10 bar Vertical10φ1400*4364




6m³-13 bar Vertical13φ1400*4364




6m³-16 bar Vertical16φ1400*4364




8m³-13 bar Vertical13φ1600*4464




8m³-16 bar Vertical16φ1600*4466
