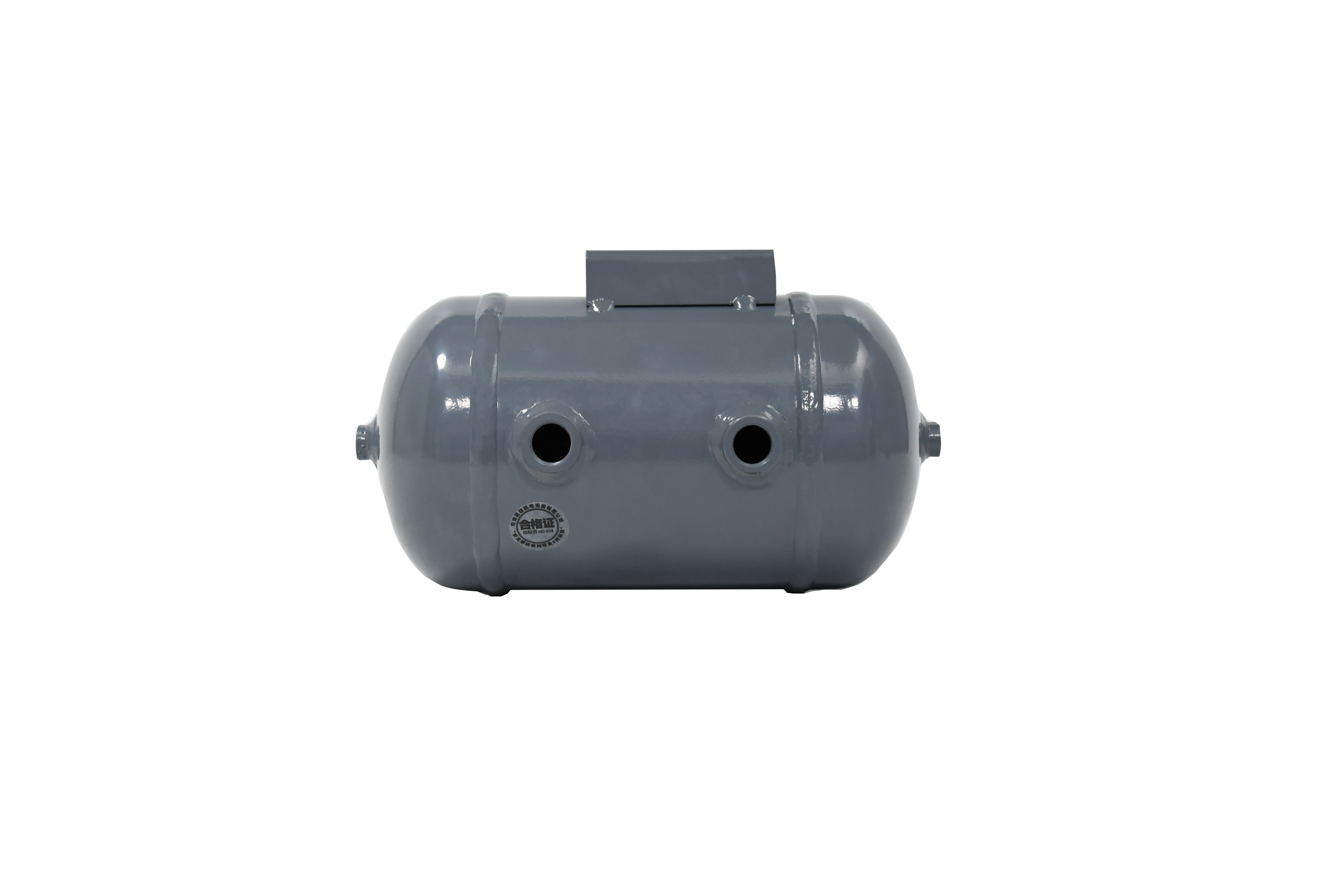

The 5L high pressure air tank with high bracket, rated 30-50 bar working pressure, suitable for high pressure air storage and pressure stabilization. Applications: High pressure small air compressors, pressure test units, industrial pneumatic systems, firefighting air supply, and mobile high-pressure air storage devices.
Built to withstand continuous operation at 30-50 bar, with materials and design exceeding standard safety requirements for reliable, long-term use.

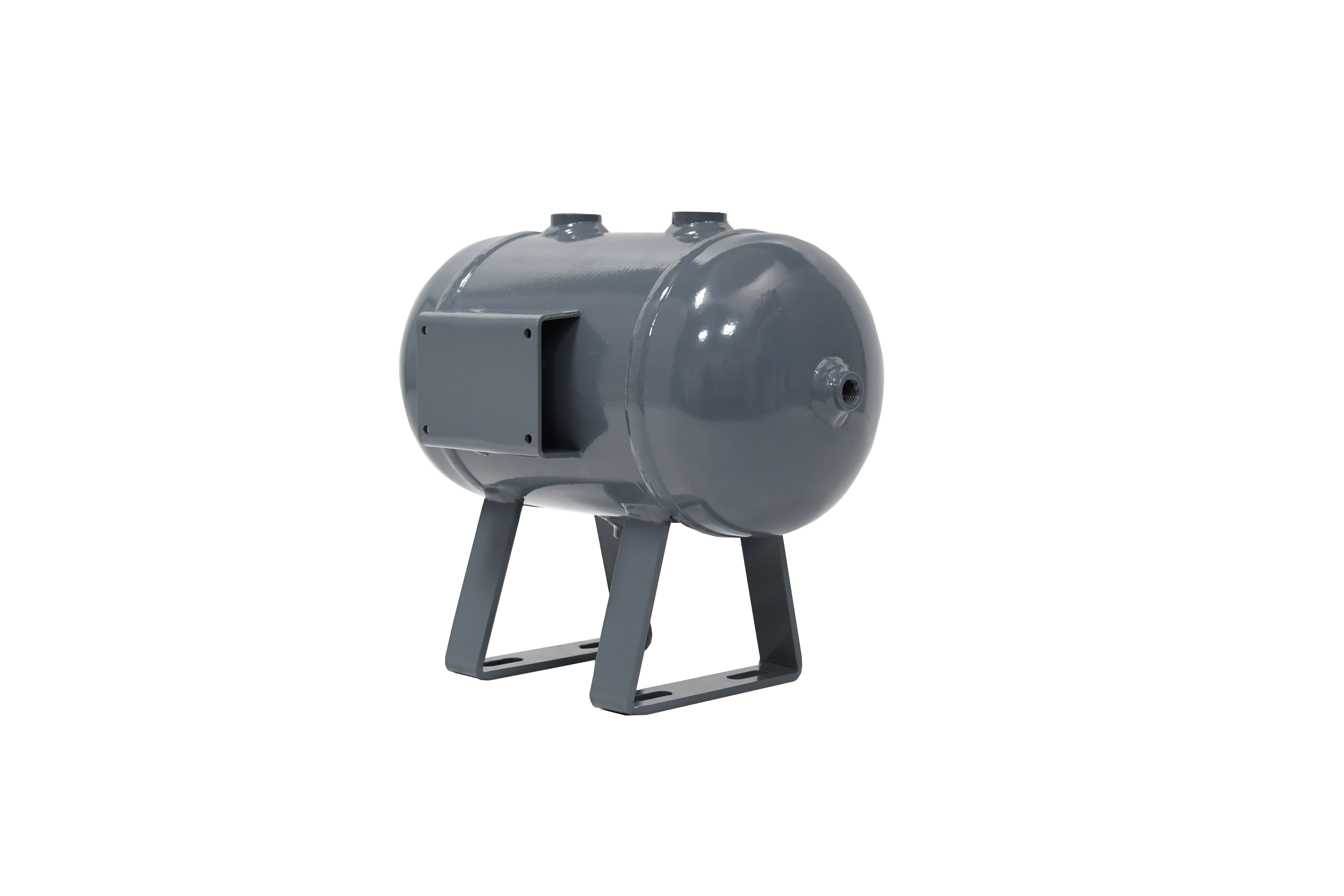

The high bracket allows secure, elevated mounting, saving valuable floor space, improving organization, and protecting the air tank from potential ground-level impacts or moisture.
The 5L volume provides a substantial air reserve while remaining relatively portable
Various uses including powering pneumatic tools (e.g., nailers, impact wrenches), inflation tasks, cleaning, light industrial work, and some painting applications, ideal for workshops, garages, or mobile service scenarios.

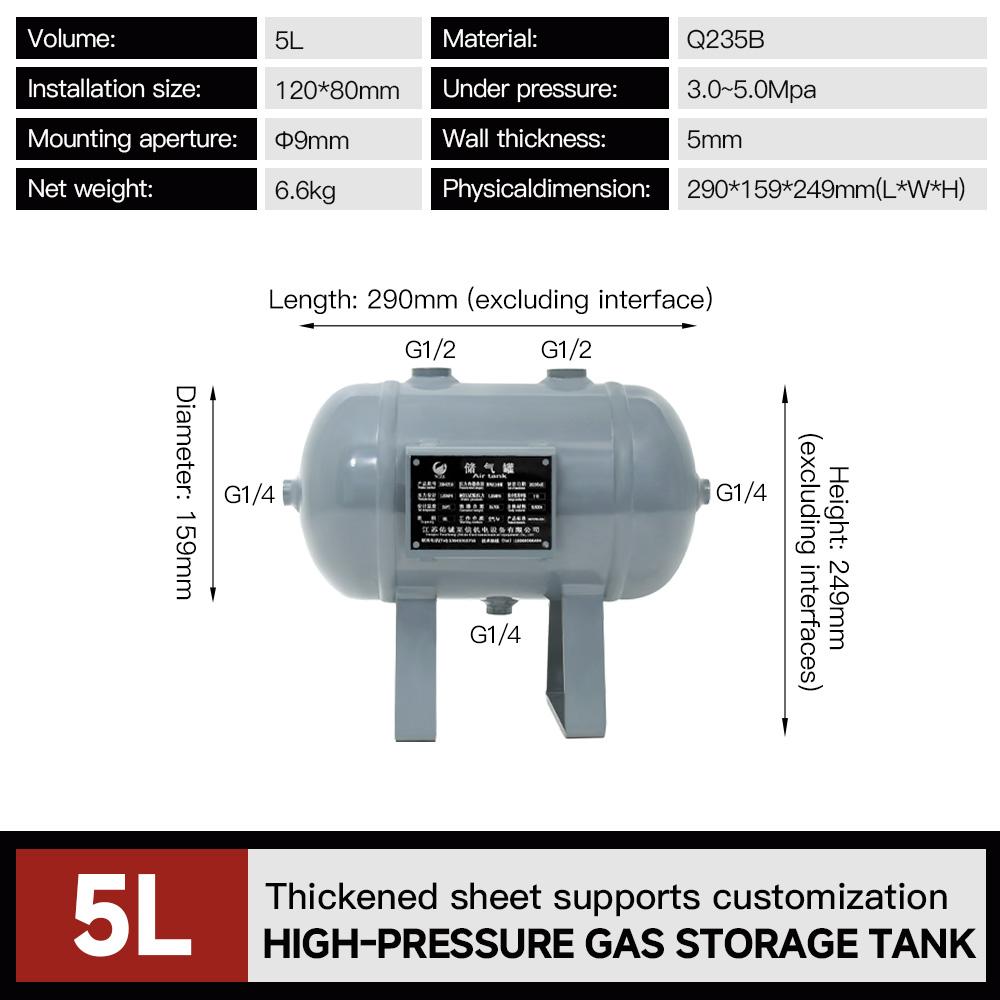

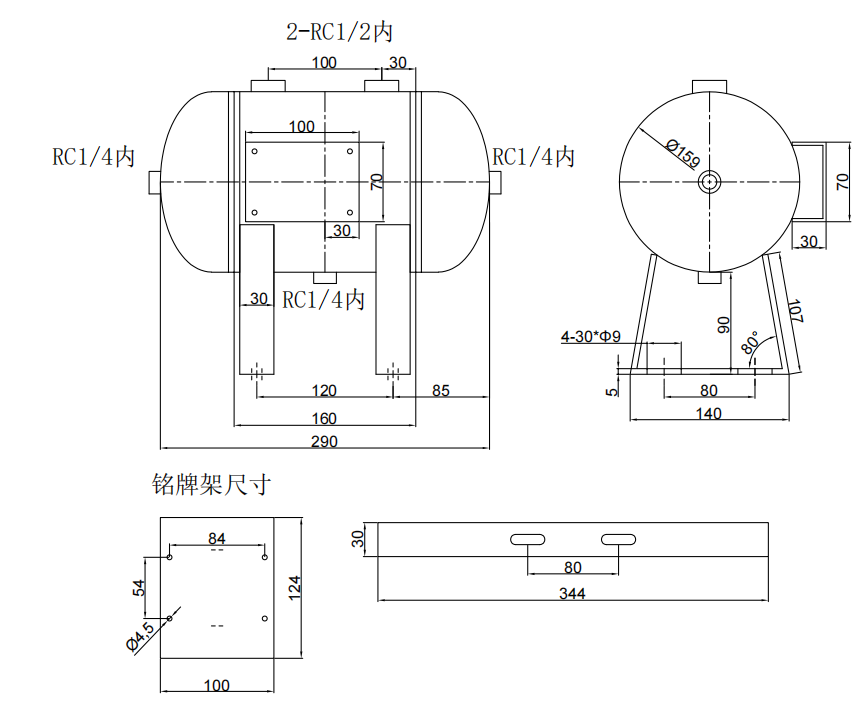

| P/N | Pressure (bar) | L*D*H(mm) | Thickness（mm) | Package Size（mm） | Net Weight（KG） | Gross Weight（KG） | Ports |
| 5L high pressure | 50 | 290*159*249 | 5 | 300*180*260 | 6.6 | 7.6 | 3:G1/4, 2:G1/2 |
| 10L high pressure | 50 | 544*159*221 | 5 | 568*250*180 | 9.7 | 11 | 4:G1/2, 1:G1/4 |
| 20L high pressure | 50 | 626*289*219 | 5 | 650*230*300 | 21.7 | 24 | 4:G1/2, 1:G1/4 |
| 5L high pressure | 30 | 290*159*249 | 3 | 320*180*260 | 4.8 | 5.5 | 2: G1/2, 3:G1/4 |
| 10L high pressure | 30 | 530*159*249 | 3 | 570*170*280 | 8.1 | 10 | 2: G1/2, 3:G1/4 |
| 20L high pressure | 30 | 626*219*289 | 5 | 660*260*310 | 14.7 | 15.2 | 4: G1/2, 1:G1/4 |
