24L Aluminum Alloy Air Tank,8Bar Lightweight Compressed Air Reservoir

This 24L Aluminum Alloy Air Tank offers ample storage capacity for demanding pneumatic applications. Constructed from durable 2.5mm thick aluminum, it safely handles pressures up to 0.8Mpa (8Bar).

Get a Quote

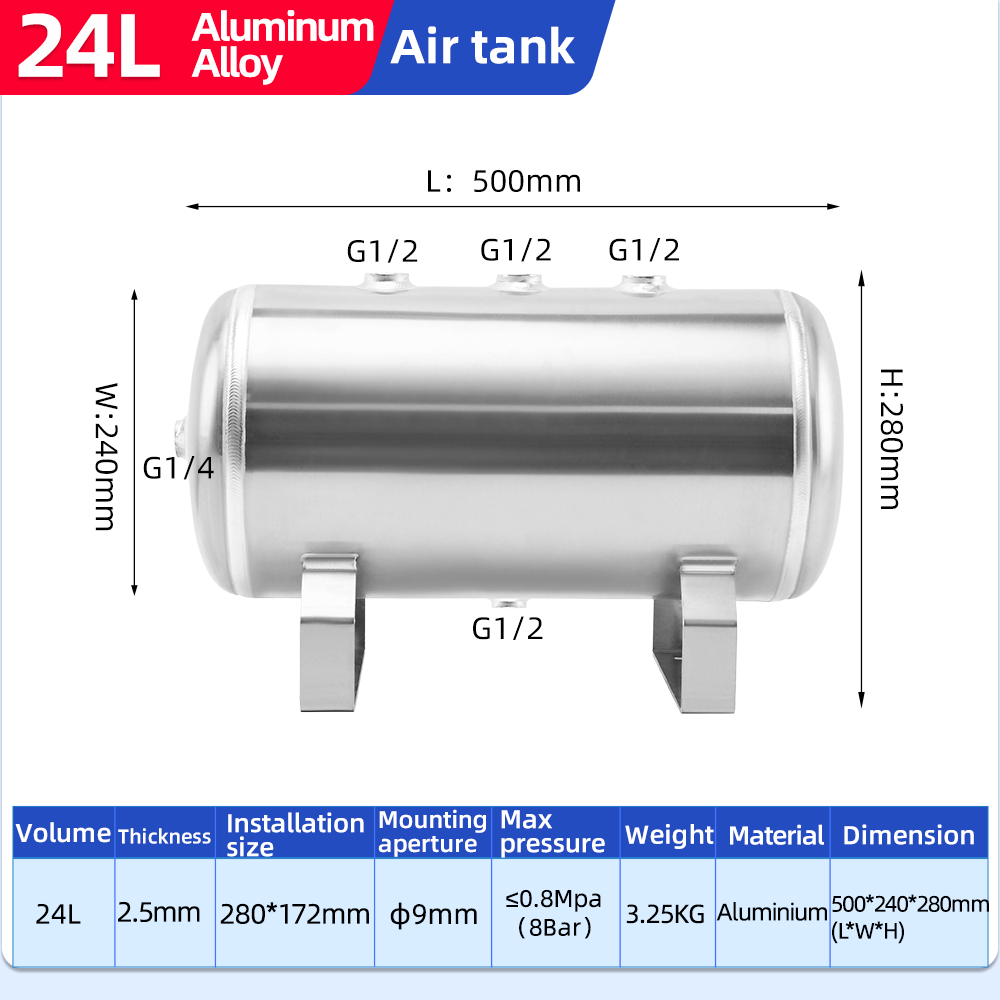

Specification of 24L Aluminum Alloy Air Tank,8Bar Lightweight Compressed Air Reservoir

\aluminum-air-tanks\24l-aluminum\24l-aluminum-alloy-air-tank-8bar-lightweight-compressed-air-reservoir-specification

Reasons to Buy 24L Aluminum Alloy Air Tank,8Bar Lightweight Compressed Air Reservoir

01
High Capacity, Low Weight

With 24L volume but weighing only 3.25KG, this tank maximizes air storage while remaining light enough for easy handling and installation, reducing overall system weight.

02
Rust-Free Durability

Manufactured from premium aluminum alloy, it inherently resists corrosion and rust. This ensures clean air output and a significantly longer operational life compared to standard steel tanks.

03
Enhanced Connectivity

Offers maximum flexibility for complex setups. Connect multiple tools, valves, or distribution lines directly to the tank without the need for additional manifolds.

04
Optimized Footprint

Featuring a length of 500mm and a compact height/width profile, this tank is designed to fit into longer, narrower spaces, providing efficient use of available area in equipment racks or vehicle builds.

YCZX Existing Aluminum Air Receiver Tanks

P/NPressure (bar)L*D*H(mm)Thickness(mm)Net Weight(KG)
5L aluminum8260*160*19021.1
10L aluminum10445*180*27532.6
12L aluminum8320*236*318m2.52.25
15L aluminum10370*236*31332.9
18L aluminum8390*236*2922.52.6
24L aluminum8500*240*2802.53.25
35L aluminum8722*236*2752.54.2
