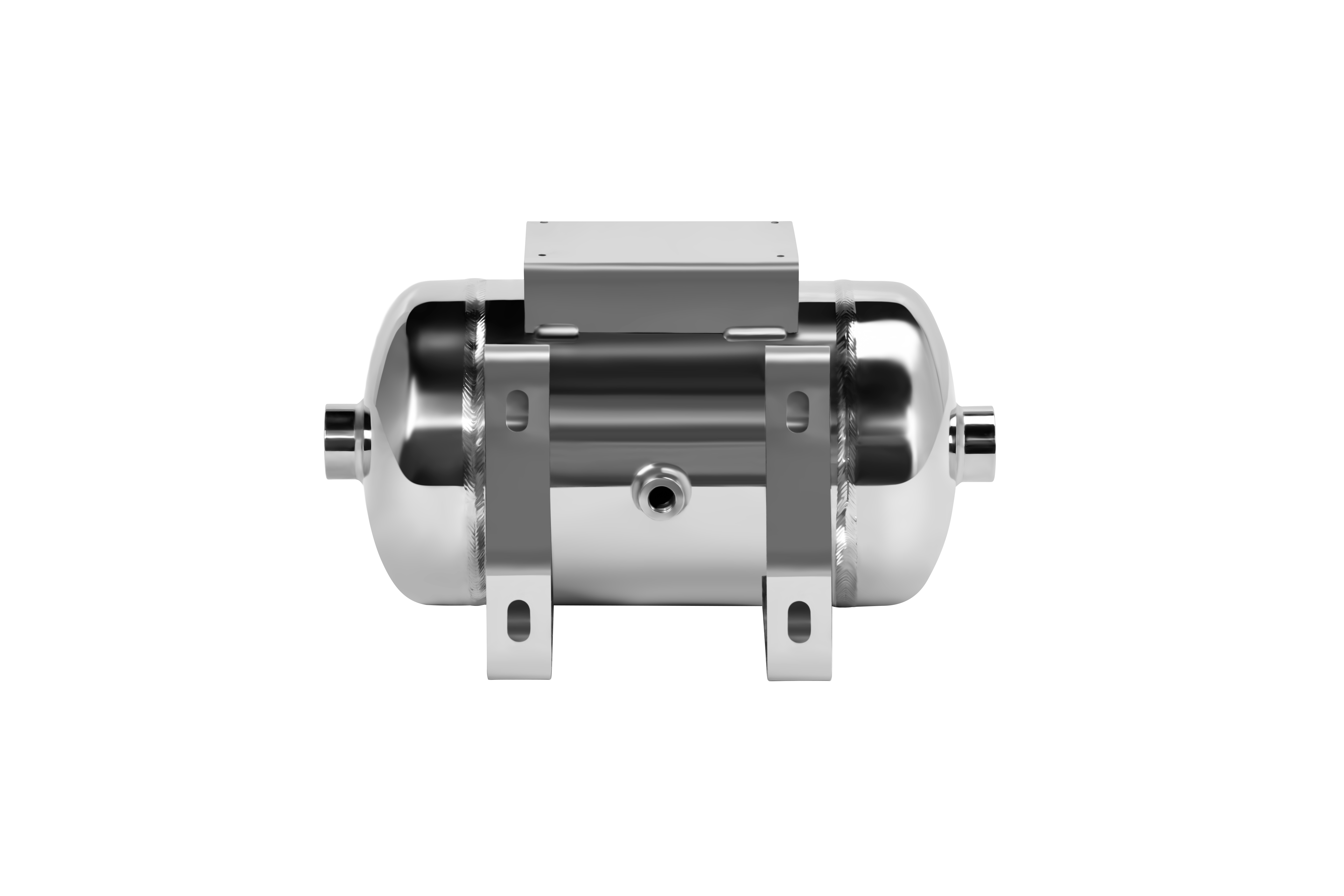

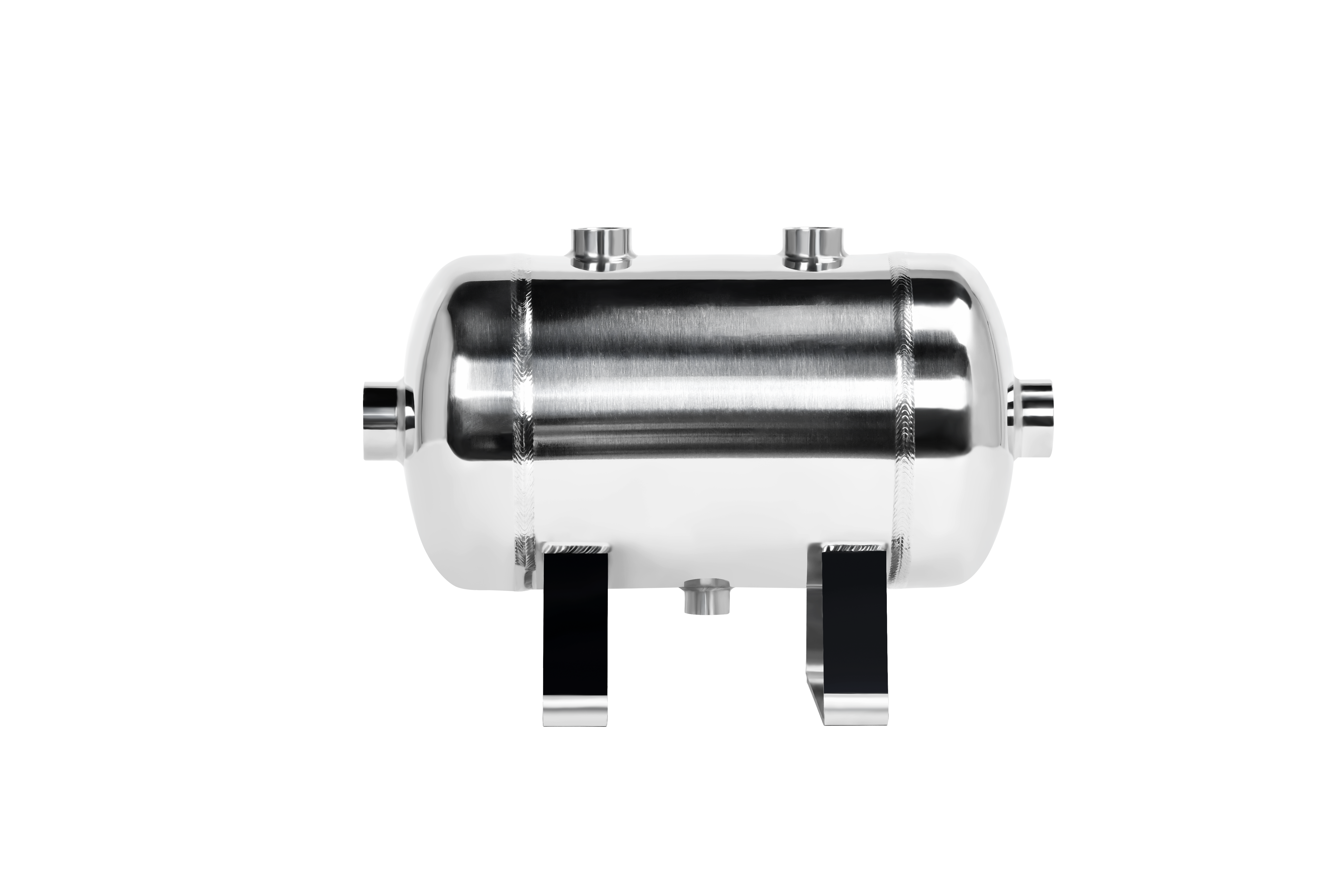

This 5L horizontal air storage tank is made of 304 stainless steel with a mirror finish, rated for 12.5Bar pressure. It features G1/2 and G3/4 ports, an ASME-certified nameplate, and includes the ASME-UM certificate. Ideal for export and clean industrial air systems, and supports customization.
The tank comes with an ASME UM certification mark, ensuring it is manufactured to stringent international pressure vessel standards. This guarantees high safety and global market compliance for its 1.25MPa (12.5 bar) working pressure.
Constructed from 304 stainless steel with a 2mm wall thickness, it offers excellent corrosion resistance and structural integrity. The mirror-polished finish allows for easy cleaning, making it suitable for applications requiring high hygiene standards and long service life.

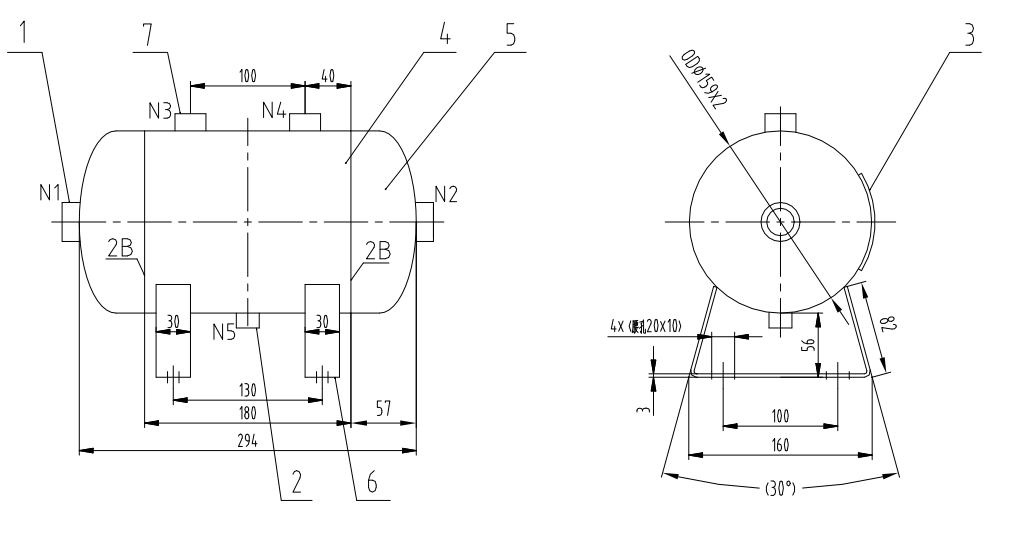

With compact dimensions (330 * 179 * 227mm) and a net weight of only 4.2kg, it is easy to handle and integrate. It features 4x Φ10mm mounting holes with a 130 * 100mm pattern, enabling secure and stable installation in space-constrained equipment or systems.

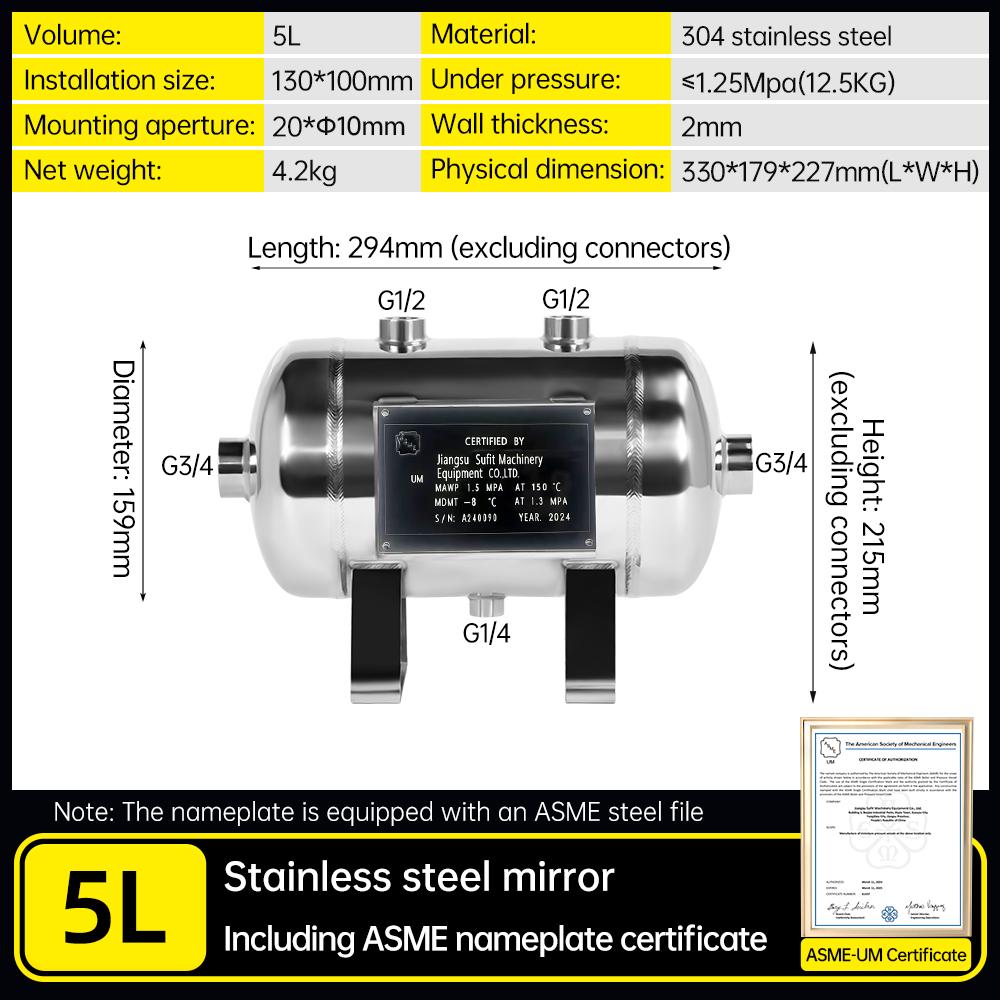

The vessel is equipped with multiple ports for maximum flexibility: G3/4 ports on both ends, two G1/2 ports on the top, and one G1/4 port on the bottom. This setup allows for easy connection of gauges, valves, and piping in complex pneumatic or hydraulic systems.
| P/N | Pressure (bar) | L*D*H(mm) | Thickness（mm) | Package Size（mm） | Net Weight（KG） | Gross Weight（KG） | Ports |
| 5L ASME | 13 | 345*162*209 | 3 | / | 5 | 5.5 | 3:G1/2, 2:G3/4 |
| 10L ASME | 13 | 450*183*235 | 3 | / | 7.9 | 8.4 | 2:G1/2, 1:G1/4,2:G3/4 |
| 20L ASME | 13 | 540*243*315 | 3 | / | 12 | 12.5 | 2:G1/2, 2:G1/4,2:G3/4 |
| 40L ASME | 8 | 686*293*325 | 3 | / | 16 | 17 | 4:G1/2, 1:G1/4, 2: G3/4 |
| 50L ASME | 8 | 736*332*392 | 3 | / | 20 | 21 | 3:G1/2, 1:G1/4, 2: G3/4 |
| 60L Vertical ASME | 8 | 337*850*968 | 3 | / | 24 | 25 | 3:G1/2, 2:G3/4, 1: G1 |
| 80L ASME | 8 | 870*370*412 | 3 | / | 27.5 | 28 | 3:G1/2, 1:G1/4, 2:G1-1/2 |
| 100L ASME | 8 | 1075*370*388.5 | 3 | / | 37.5 | 38 | 4:G1/2, 1:G1/4, 2:G1-1/2 |
| 5L ASME | 12.5 | 330*179*227 | 2 | / | 4.2 | 4.2 | 2: G1/2, 1:G1/4， 2:G3/4 |
| 10L ASME | 12.5 | 616*179*252 | 2 | / | 6.3 | 2: G1/2, 1:G1/4， 2:G3/4 | |
| 20L ASME | 12.5 | 634*239*304 | 2 | / | 7.48 | / | 2: G1/2, 1:G1/4， 2:G3/4 |
