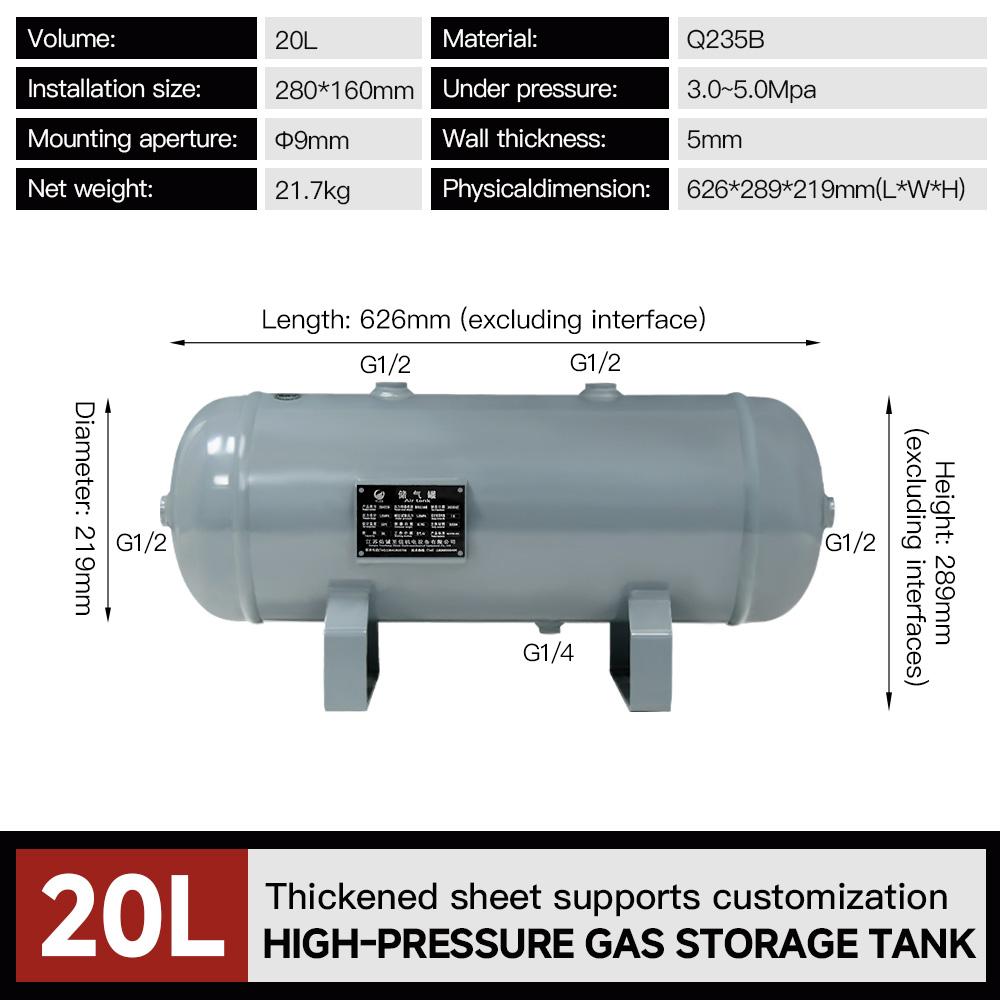

20L horizontal high-pressure air receiver tank, carbon steel, diameter 219mm, designed for max pressure 30–50 bar. Strong structure, safe and reliable, ideal for high-pressure pneumatic systems, testing equipment and industrial compressors.
Engineered for a maximum working pressure of 30-50 bar (≈435-725 psi), this tank is suited for specialized industrial, diving, or high-demand pneumatic applications requiring dense air energy storage.
The 219mm diameter allows for a relatively compact cylindrical form factor capable of safely withstanding very high internal pressures, optimizing strength-to-size ratio.
Constructed from high-grade materials with rigorous manufacturing and testing to ensure absolute safety and reliability under extreme pressure cycles.
The 20L volume at such high pressure stores a substantial amount of compressed air, enabling extended operation of tools or systems between compressor cycles or for use as a portable high-pressure source.
| P/N | Pressure (bar) | L*D*H(mm) | Thickness（mm) | Package Size（mm） | Net Weight（KG） | Gross Weight（KG） | Ports |
| 5L high pressure | 50 | 290*159*249 | 5 | 300*180*260 | 6.6 | 7.6 | 3:G1/4, 2:G1/2 |
| 10L high pressure | 50 | 544*159*221 | 5 | 568*250*180 | 9.7 | 11 | 4:G1/2, 1:G1/4 |
| 20L high pressure | 50 | 626*289*219 | 5 | 650*230*300 | 21.7 | 24 | 4:G1/2, 1:G1/4 |
| 5L high pressure | 30 | 290*159*249 | 3 | 320*180*260 | 4.8 | 5.5 | 2: G1/2, 3:G1/4 |
| 10L high pressure | 30 | 530*159*249 | 3 | 570*170*280 | 8.1 | 10 | 2: G1/2, 3:G1/4 |
| 20L high pressure | 30 | 626*219*289 | 5 | 660*260*310 | 14.7 | 15.2 | 4: G1/2, 1:G1/4 |
