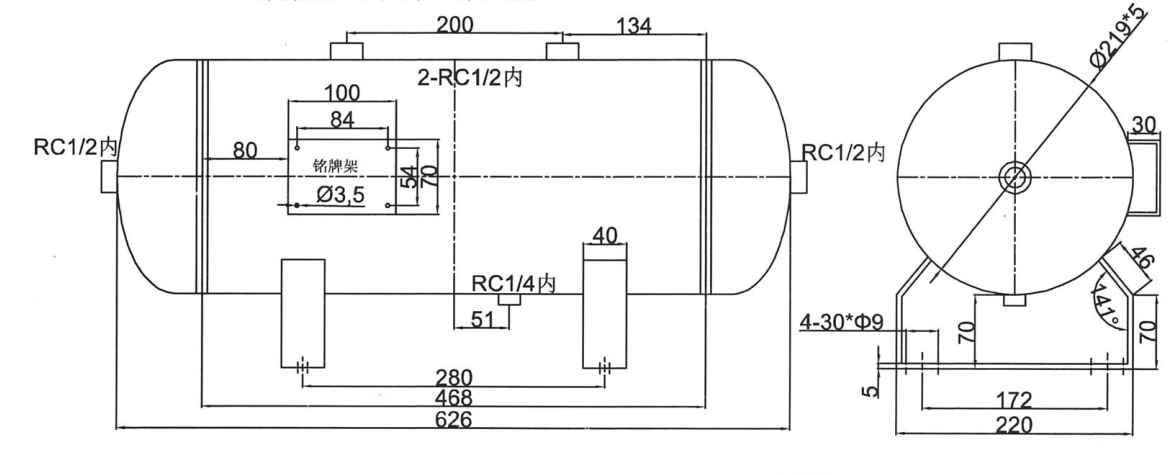

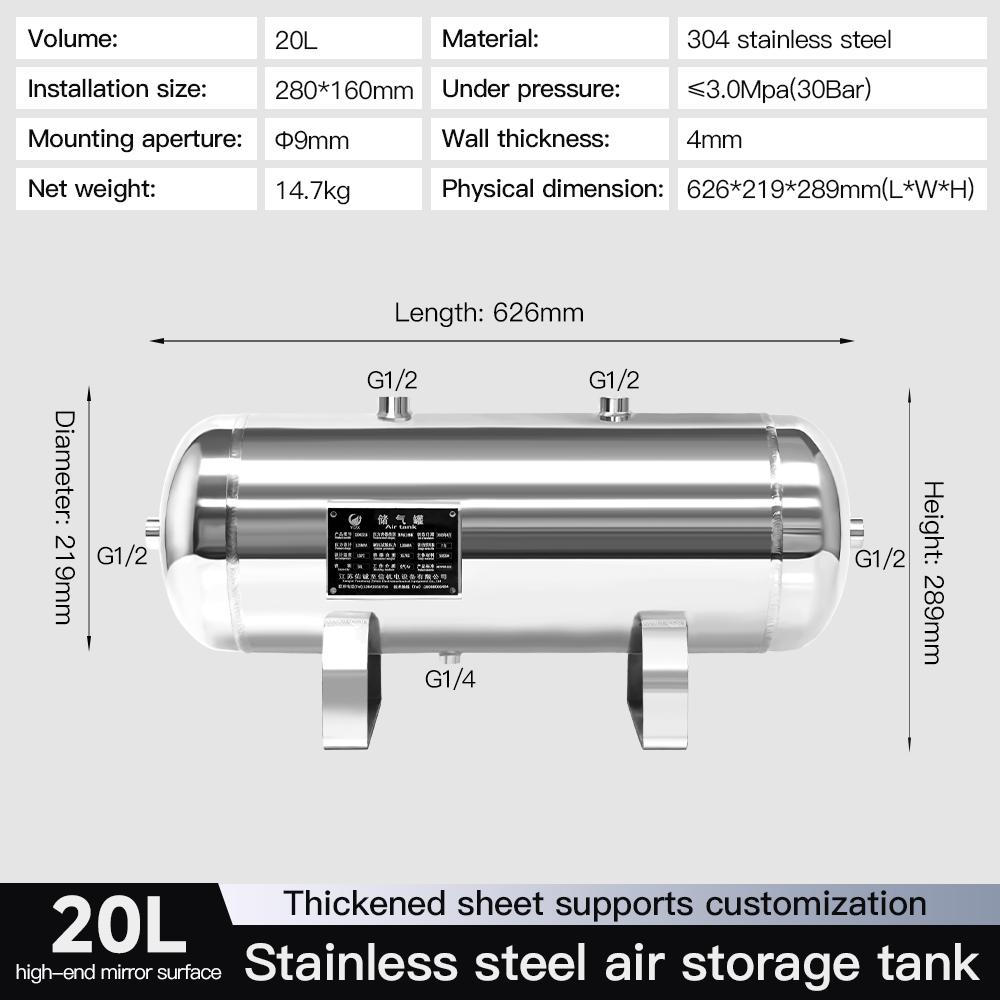

This 20L horizontal air receiver tank is constructed from 304 stainless steel with a high‑end mirror‑polished surface. It is designed for a maximum working pressure of ≤3.0 MPa (30 Bar) and features a thickened 4 mm wall, multiple G½″ and G¼″ ports, and pre‑drilled mounting holes. Suitable for demanding industrial air‑storage applications, it supports customization and is built for long‑term durability.
4mm thickened wall and robust welding ensure reliable performance under 30Bar pressure, meeting high-pressure industrial application requirements.
Mirror-polished 304 stainless steel provides excellent rust and chemical resistance, suitable for clean gas storage in food and medical industries.
4 G1/2 ports and 1 G1/4 drain port enable flexible piping, easy gauge installation, and efficient condensate removal for diverse applications.
Sturdy mounting legs and long service life; custom sizes, port configurations, and pressure ratings are available to meet specific project needs.
| P/N | Pressure (bar) | L*D*H(mm) | Thickness（mm) | Package Size（mm） | Net Weight（KG） | Gross Weight（KG） | Ports |
| 5L high pressure | 50 | 290*159*249 | 5 | 300*180*260 | 6.6 | 7.6 | 3:G1/4, 2:G1/2 |
| 10L high pressure | 50 | 544*159*221 | 5 | 568*250*180 | 9.7 | 11 | 4:G1/2, 1:G1/4 |
| 20L high pressure | 50 | 626*289*219 | 5 | 650*230*300 | 21.7 | 24 | 4:G1/2, 1:G1/4 |
| 5L high pressure | 30 | 290*159*249 | 3 | 320*180*260 | 4.8 | 5.5 | 2: G1/2, 3:G1/4 |
| 10L high pressure | 30 | 530*159*249 | 3 | 570*170*280 | 8.1 | 10 | 2: G1/2, 3:G1/4 |
| 20L high pressure | 30 | 626*219*289 | 5 | 660*260*310 | 14.7 | 15.2 | 4: G1/2, 1:G1/4 |
