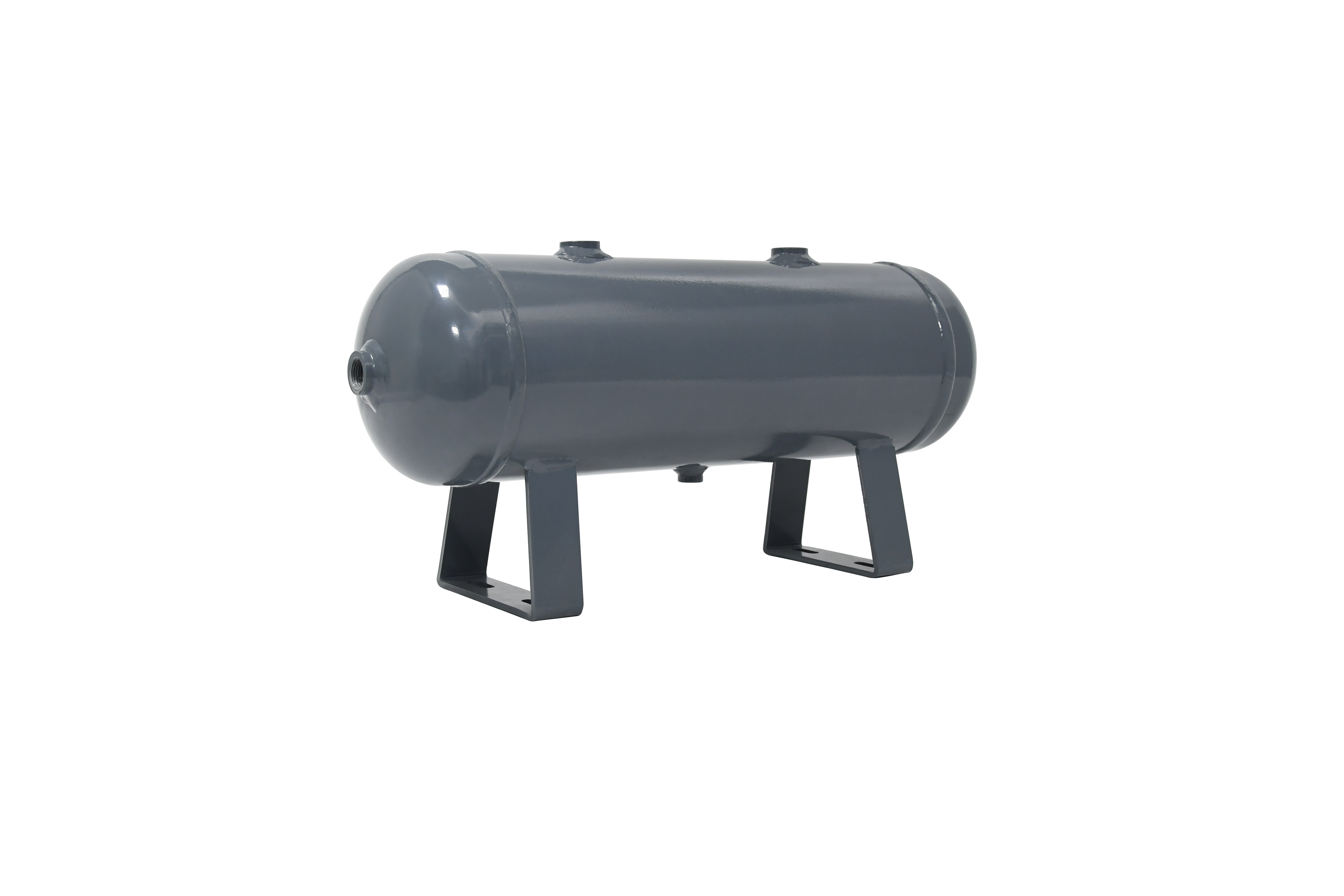

10L horizontal high-pressure air receiver tank, carbon steel, max 3MPa. Stable air storage, condensate separation. For high-pressure compressors, testing & industrial pneumatic systems.
With a maximum working pressure of 3MPa (≈435 psi), this tank is suitable for high-pressure pneumatic tools, industrial automation, and specialized applications requiring substantial air energy storage.
Made from carbon steel by experienced air receiver tank manufacturers, it offers robust strength to safely contain high pressures, along with excellent resistance to wear and tear, providing a cost-effective and long-lasting solution.
The horizontal design ensures a low center of gravity for secure placement, minimizes footprint for easier installation in tight spaces, and often facilitates better moisture drainage.
The 10L capacity offers a practical reserve of compressed air for various uses—from powering tools to acting as a system buffer—while remaining relatively portable and easy to integrate compared to larger stationary receivers.

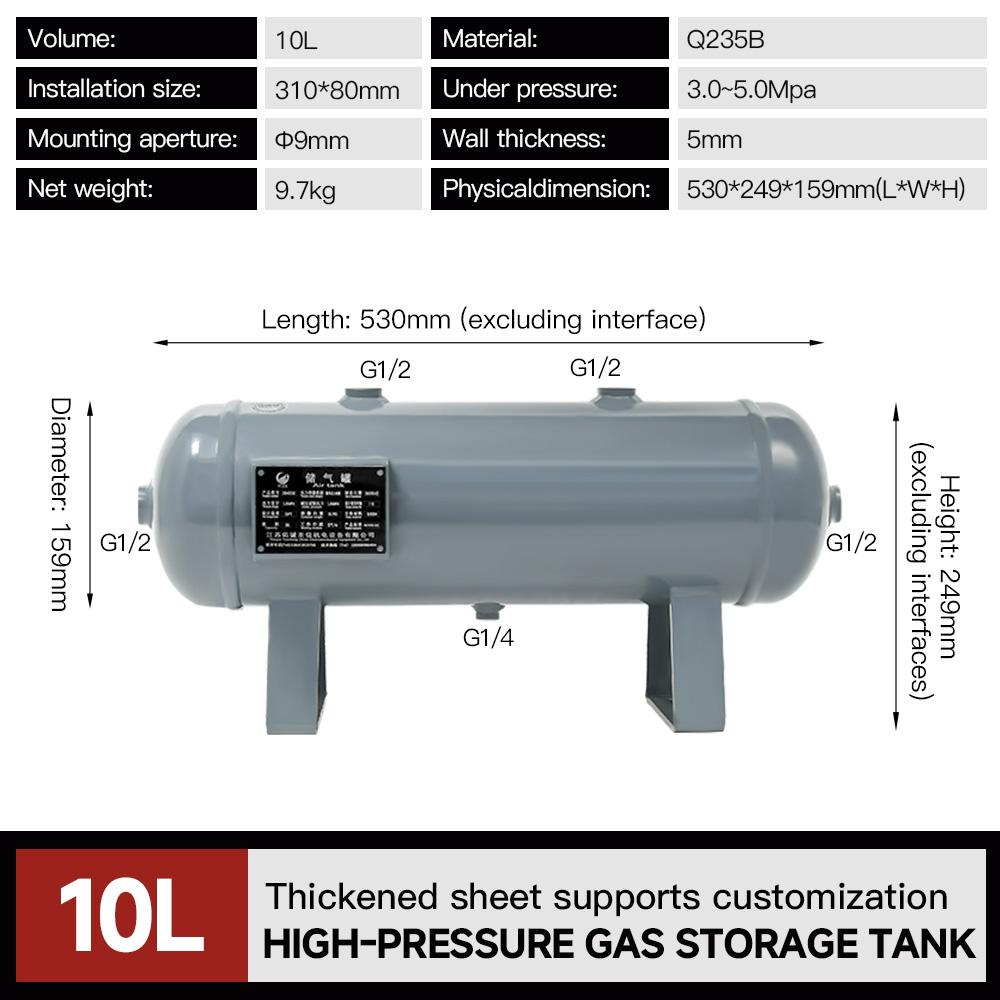

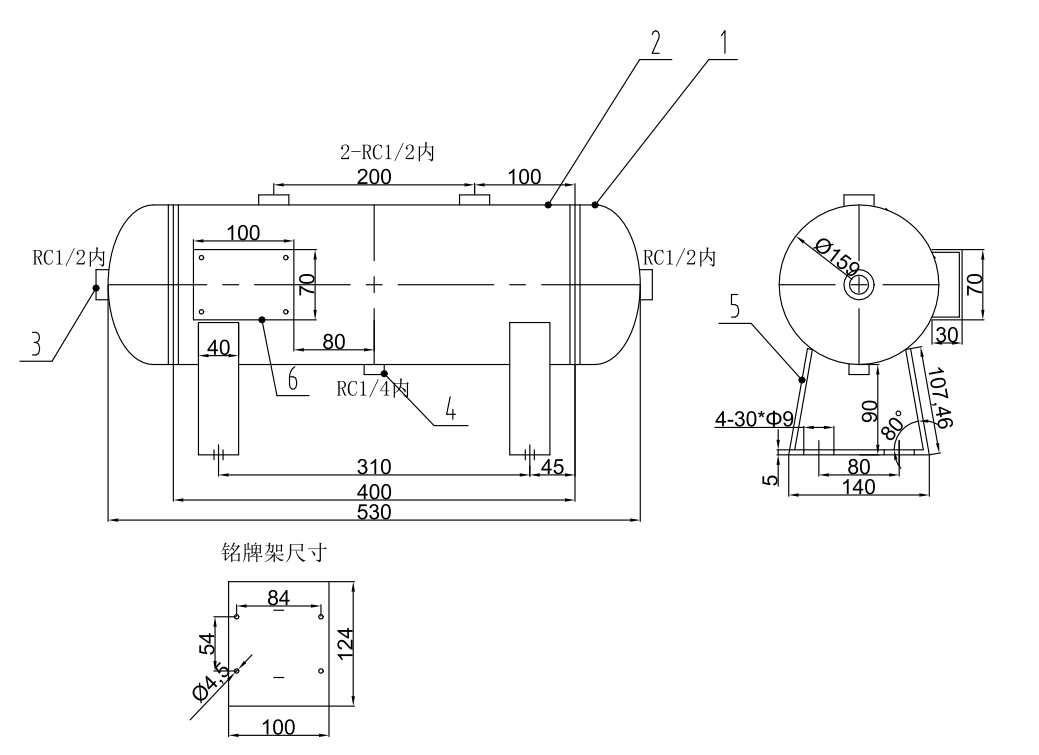

| P/N | Pressure (bar) | L*D*H(mm) | Thickness（mm) | Package Size（mm） | Net Weight（KG） | Gross Weight（KG） | Ports |
| 5L high pressure | 50 | 290*159*249 | 5 | 300*180*260 | 6.6 | 7.6 | 3:G1/4, 2:G1/2 |
| 10L high pressure | 50 | 544*159*221 | 5 | 568*250*180 | 9.7 | 11 | 4:G1/2, 1:G1/4 |
| 20L high pressure | 50 | 626*289*219 | 5 | 650*230*300 | 21.7 | 24 | 4:G1/2, 1:G1/4 |
| 5L high pressure | 30 | 290*159*249 | 3 | 320*180*260 | 4.8 | 5.5 | 2: G1/2, 3:G1/4 |
| 10L high pressure | 30 | 530*159*249 | 3 | 570*170*280 | 8.1 | 10 | 2: G1/2, 3:G1/4 |
| 20L high pressure | 30 | 626*219*289 | 5 | 660*260*310 | 14.7 | 15.2 | 4: G1/2, 1:G1/4 |
