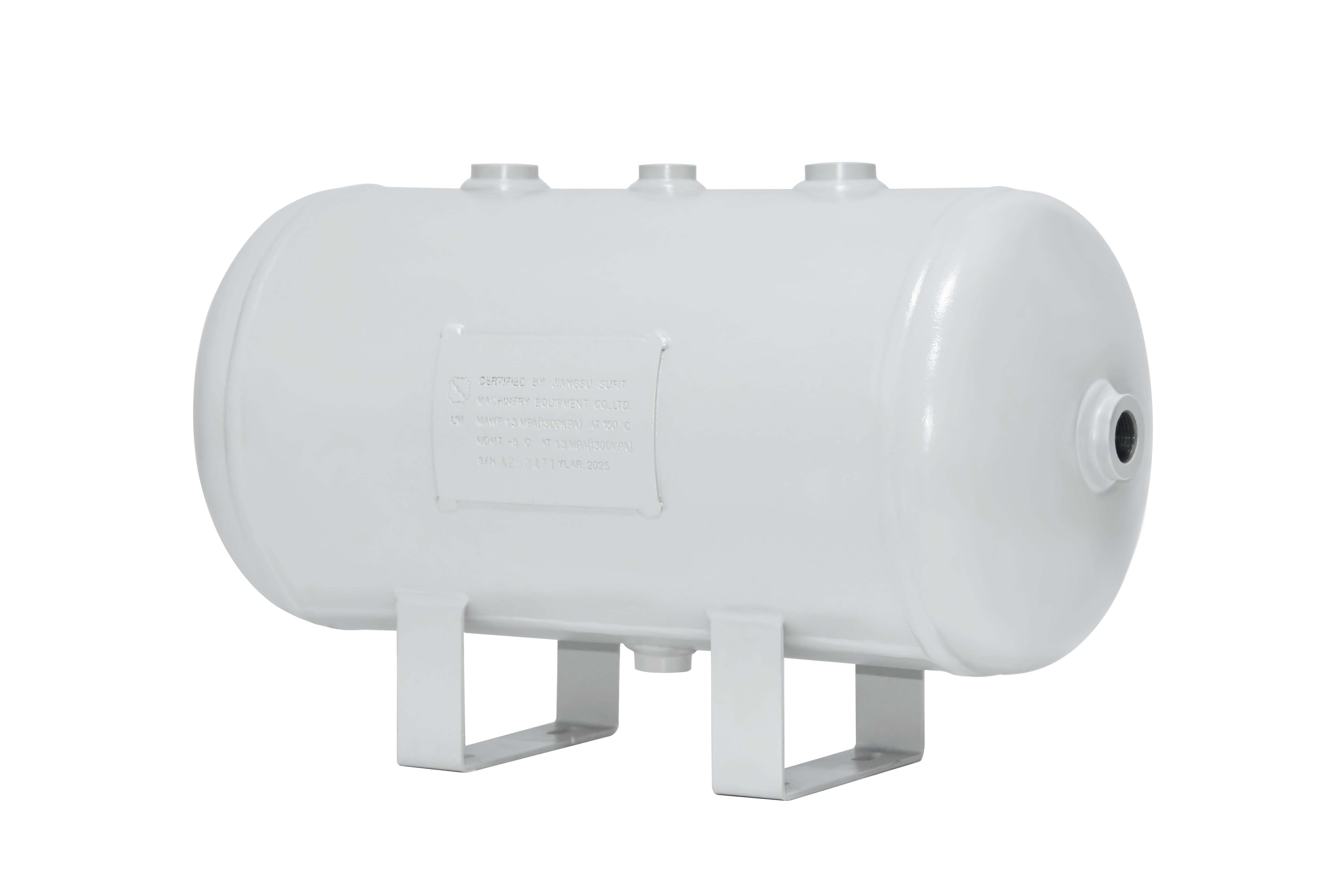

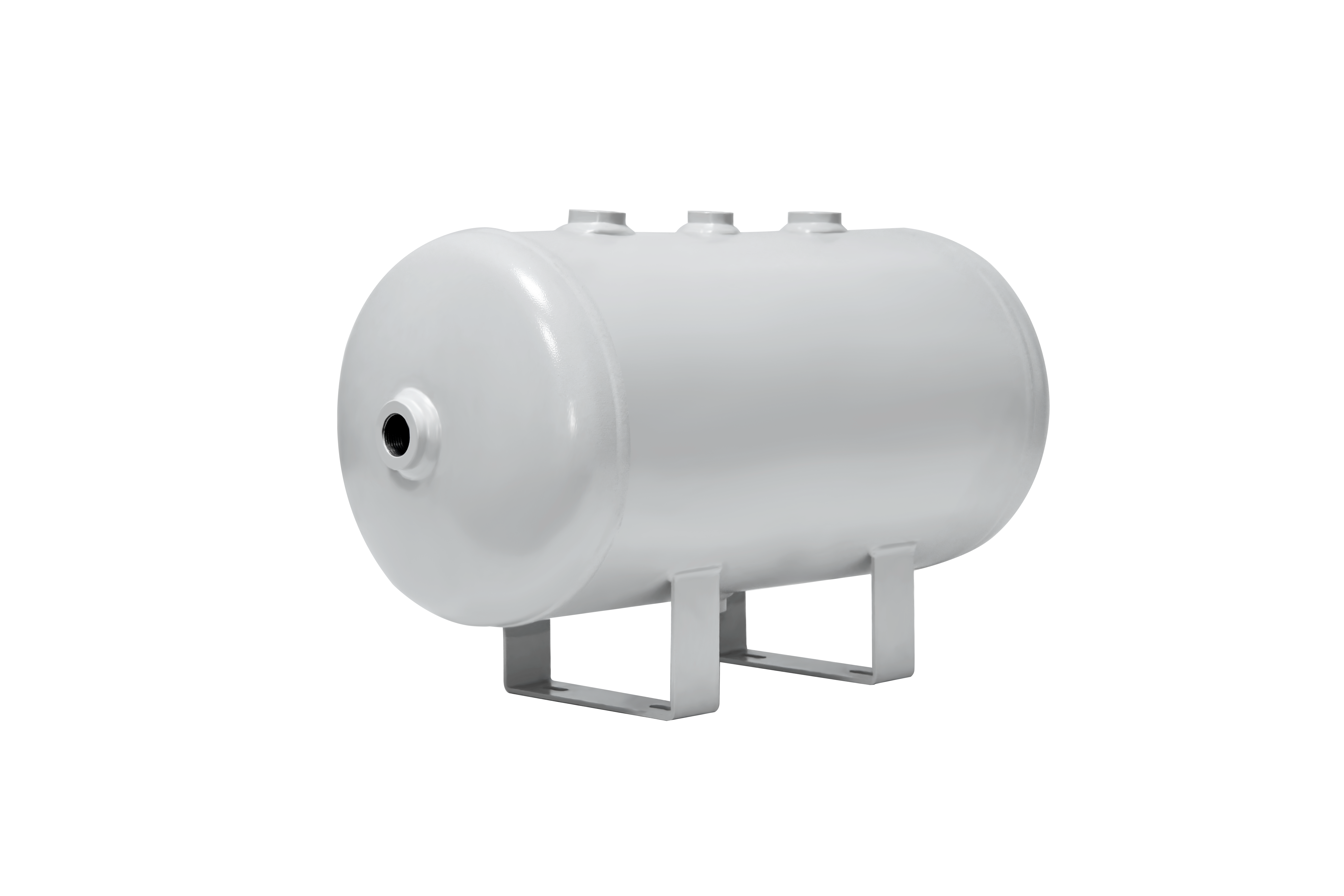

20L ASME vertical air tank for the US market, dimension 240×500mm, 13 bar working pressure, carbon steel construction. Equipped with 2×G1/2, 2×G1/4, 2×G3/4 ports. Meets ASME standards, safe and reliable for small air compressors and pneumatic systems.
Manufactured and stamped to ASME standards, ensuring full legal and safety compliance for the US market, which is essential for insurance, inspections, and operational approval.

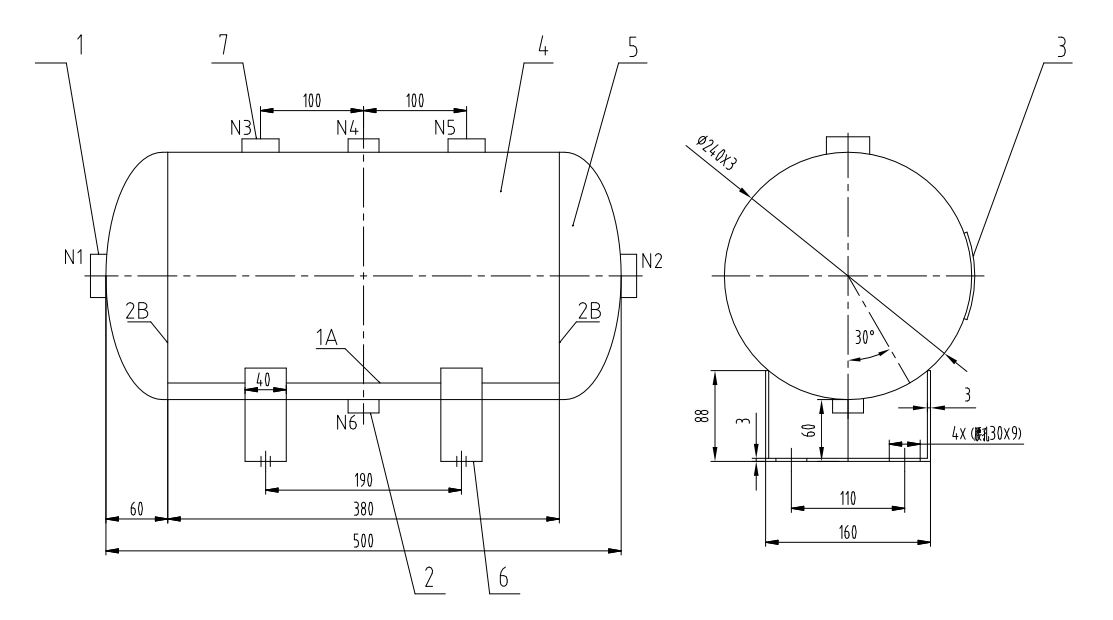

The horizontal design with 240x500mm dimensions provides a low center of gravity for secure placement and an optimized footprint that conserves valuable floor space.
The combination of 2xG1/2, 2xG1/4, and 2xG3/4 ports offers exceptional connection flexibility for mains, tools, drains, gauges, and valves, supporting complex system layouts.
The 13 bar (~190 psi) working pressure is a common US standard, ensuring broad compatibility and dependable air supply for a wide range of industrial tools and equipment.
| P/N | Pressure (bar) | L*D*H(mm) | Thickness（mm) | Package Size（mm） | Net Weight（KG） | Gross Weight（KG） | Ports |
| 5L ASME | 13 | 345*162*209 | 3 | / | 5 | 5.5 | 3:G1/2, 2:G3/4 |
| 10L ASME | 13 | 450*183*235 | 3 | / | 7.9 | 8.4 | 2:G1/2, 1:G1/4,2:G3/4 |

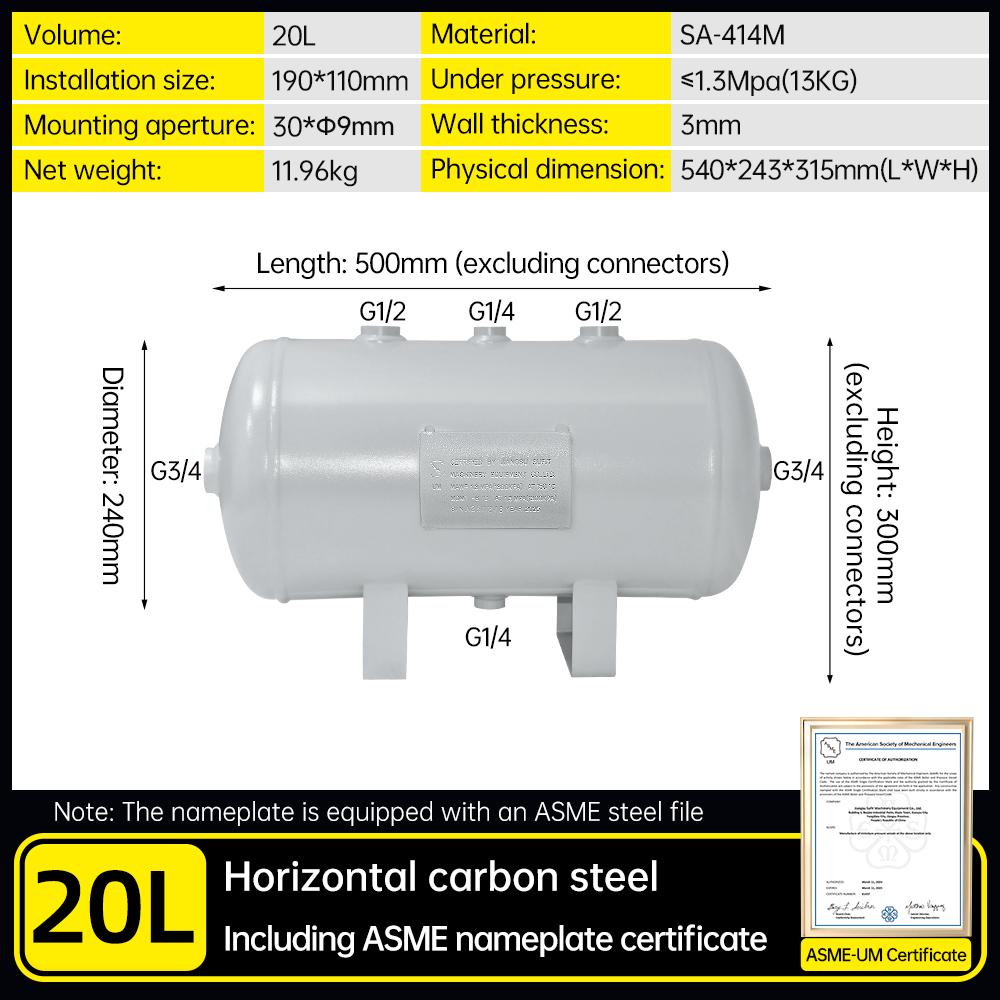

| 20L ASME | 13 | 540*243*315 | 3 | / | 12 | 12.5 | 2:G1/2, 2:G1/4,2:G3/4 |
| 40L ASME | 8 | 686*293*325 | 3 | / | 16 | 17 | 4:G1/2, 1:G1/4, 2: G3/4 |

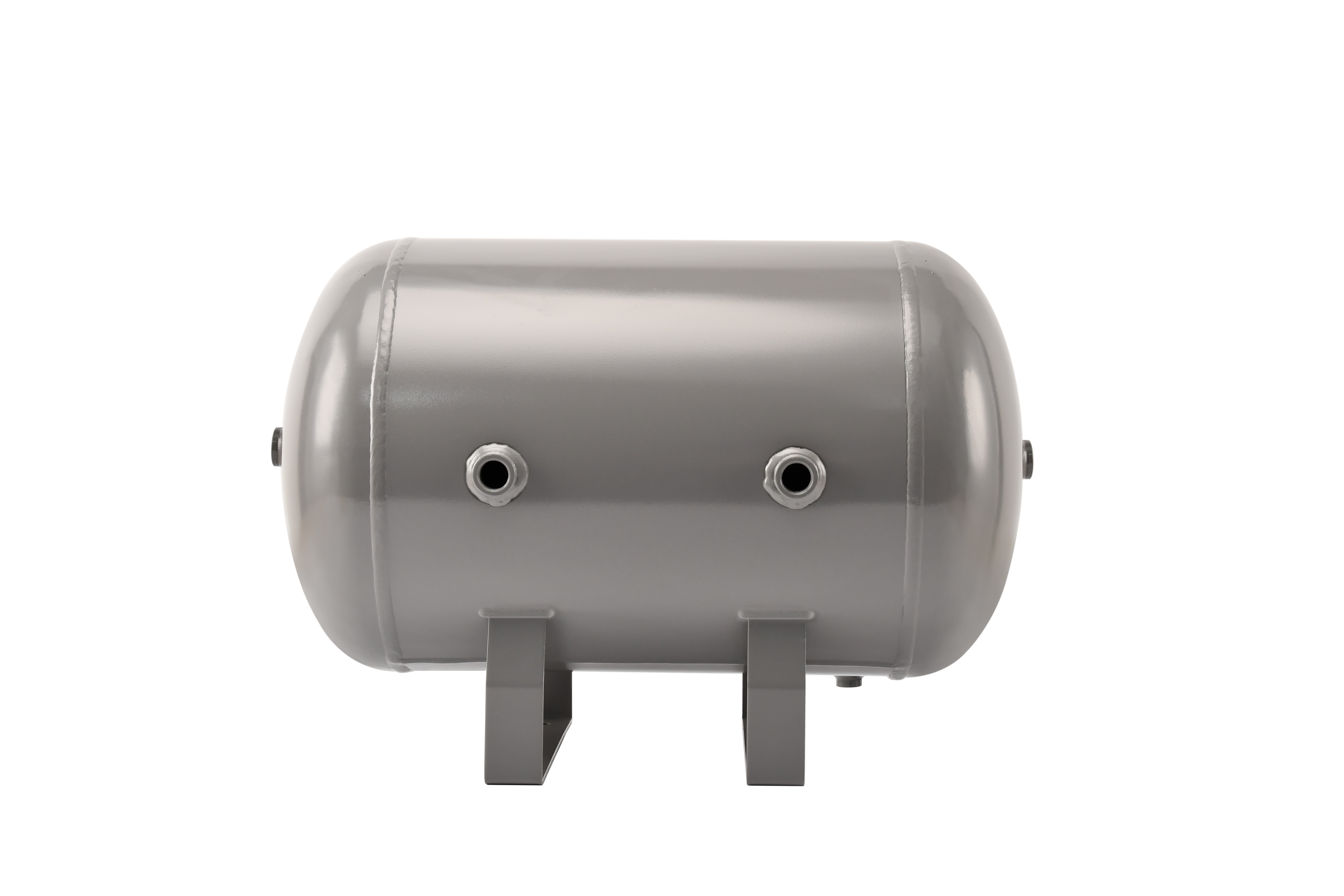

| 50L ASME | 8 | 736*332*392 | 3 | / | 20 | 21 | 3:G1/2, 1:G1/4, 2: G3/4 |
| 60L Vertical ASME | 8 | 337*850*968 | 3 | / | 24 | 25 | 3:G1/2, 2:G3/4, 1: G1 |
| 80L ASME | 8 | 870*370*412 | 3 | / | 27.5 | 28 | 3:G1/2, 1:G1/4, 2:G1-1/2 |
| 100L ASME | 8 | 1075*370*388.5 | 3 | / | 37.5 | 38 | 4:G1/2, 1:G1/4, 2:G1-1/2 |
| 5L ASME | 12.5 | 330*179*227 | 2 | / | 4.2 | 4.2 | 2: G1/2, 1:G1/4， 2:G3/4 |
| 10L ASME | 12.5 | 616*179*252 | 2 | / | 6.3 | 2: G1/2, 1:G1/4， 2:G3/4 | |
| 20L ASME | 12.5 | 634*239*304 | 2 | / | 7.48 | / | 2: G1/2, 1:G1/4， 2:G3/4 |
