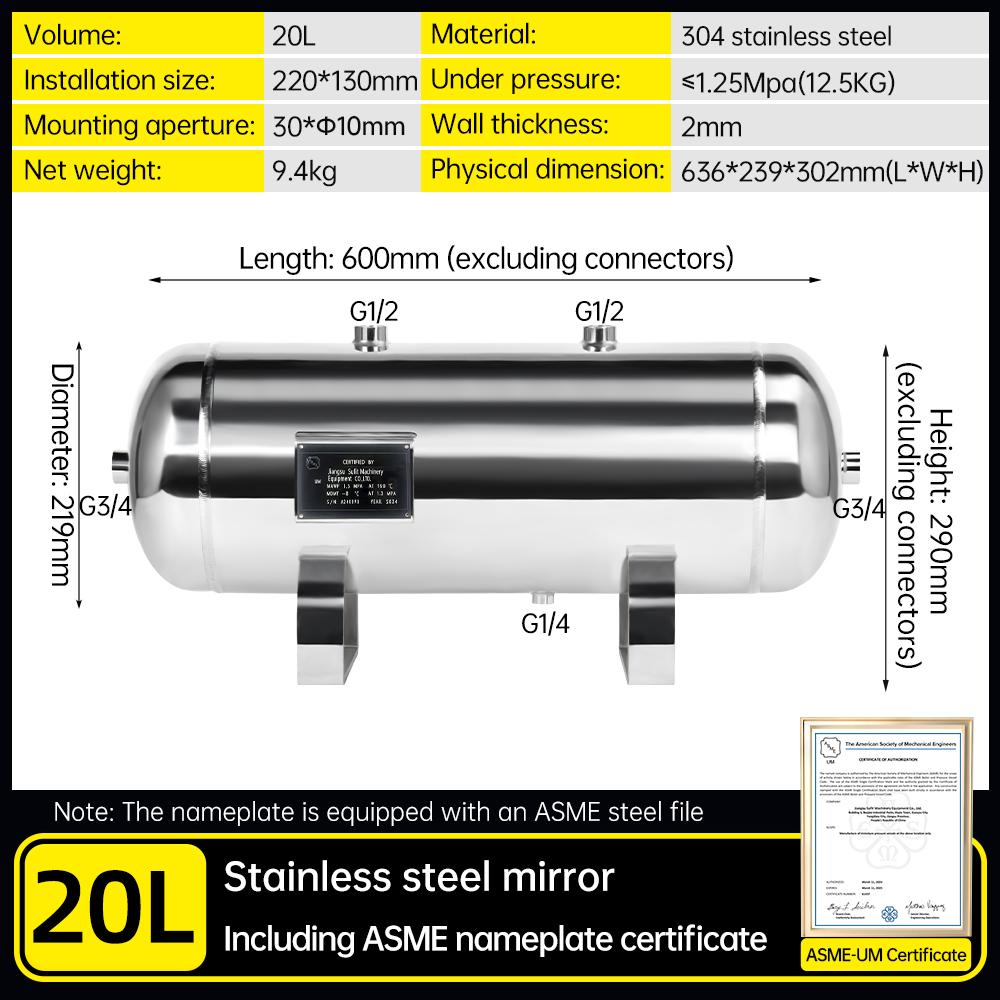

The 20L horizontal air receiver tank is made of 304 stainless steel with a mirror finish, rated for 12.5Bar working pressure, with an ASME-certified nameplate and full certificate, featuring G3/4 side ports and stable mounting legs. The tank is in stock for immediate shipment and supports customization.
Includes a factory-installed ASME-UM nameplate, ensuring international compliance and safety for pressure vessel applications.

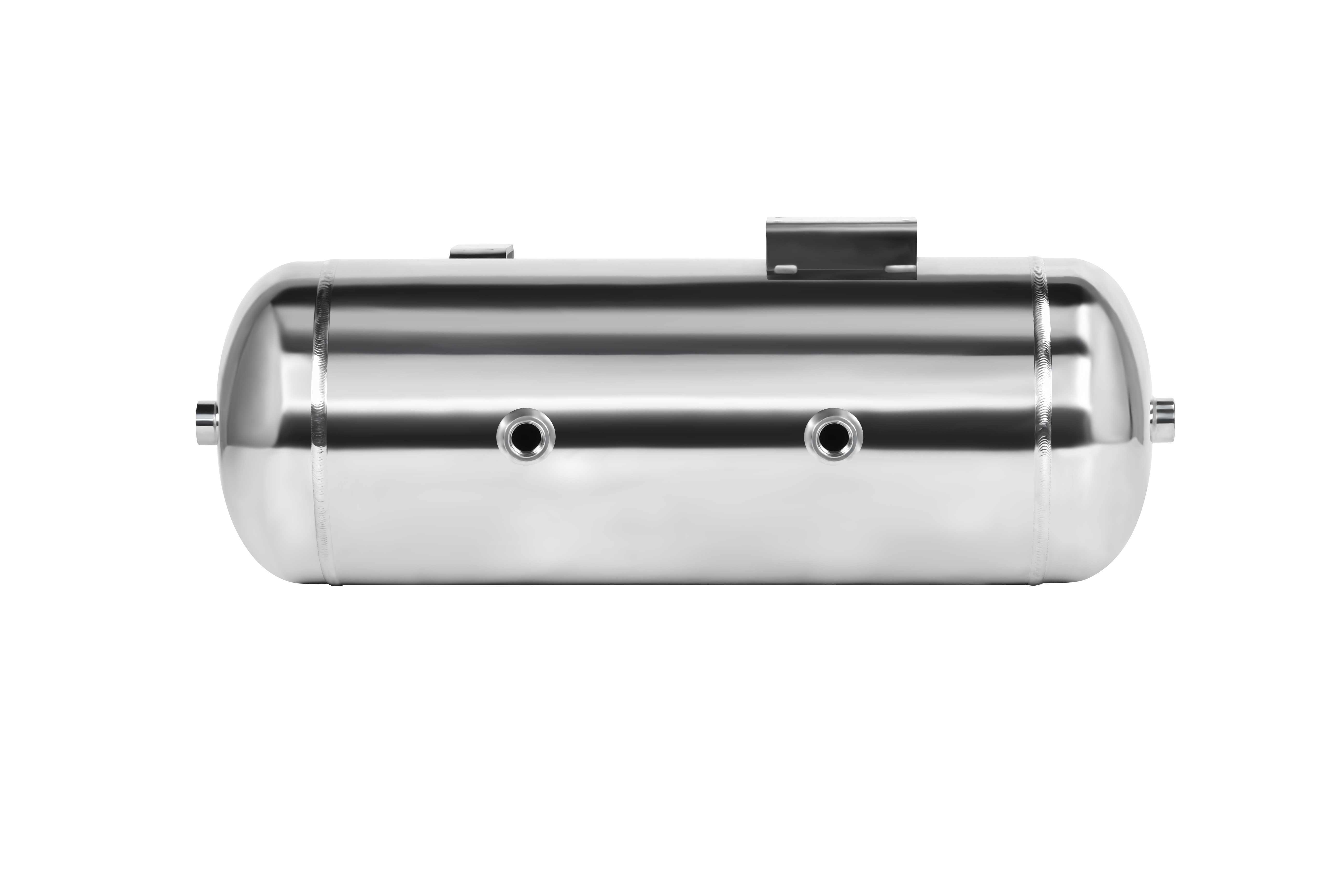

Made of 304 stainless steel with a 2mm wall thickness and a high-quality mirror finish for durability and corrosion resistance.

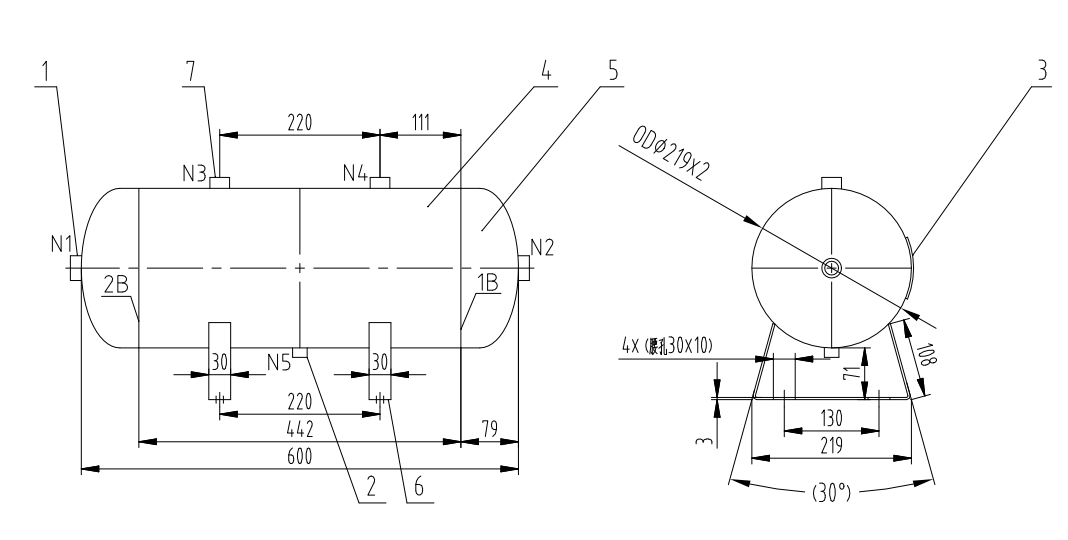

Features clear mounting points (220x130mm pattern, 30xΦ10mm holes) and compact dimensions (636 * 239 * 302mm) for easy integration.
Equipped with multiple G1/2 and G3/4 ports for flexible system piping.
| P/N | Pressure (bar) | L*D*H(mm) | Thickness（mm) | Package Size（mm） | Net Weight（KG） | Gross Weight（KG） | Ports |
| 5L ASME | 13 | 345*162*209 | 3 | / | 5 | 5.5 | 3:G1/2, 2:G3/4 |
| 10L ASME | 13 | 450*183*235 | 3 | / | 7.9 | 8.4 | 2:G1/2, 1:G1/4,2:G3/4 |
| 20L ASME | 13 | 540*243*315 | 3 | / | 12 | 12.5 | 2:G1/2, 2:G1/4,2:G3/4 |
| 40L ASME | 8 | 686*293*325 | 3 | / | 16 | 17 | 4:G1/2, 1:G1/4, 2: G3/4 |
| 50L ASME | 8 | 736*332*392 | 3 | / | 20 | 21 | 3:G1/2, 1:G1/4, 2: G3/4 |
| 60L Vertical ASME | 8 | 337*850*968 | 3 | / | 24 | 25 | 3:G1/2, 2:G3/4, 1: G1 |
| 80L ASME | 8 | 870*370*412 | 3 | / | 27.5 | 28 | 3:G1/2, 1:G1/4, 2:G1-1/2 |
| 100L ASME | 8 | 1075*370*388.5 | 3 | / | 37.5 | 38 | 4:G1/2, 1:G1/4, 2:G1-1/2 |
| 5L ASME | 12.5 | 330*179*227 | 2 | / | 4.2 | 4.2 | 2: G1/2, 1:G1/4， 2:G3/4 |
| 10L ASME | 12.5 | 616*179*252 | 2 | / | 6.3 | 2: G1/2, 1:G1/4， 2:G3/4 | |
| 20L ASME | 12.5 | 634*239*304 | 2 | / | 7.48 | / | 2: G1/2, 1:G1/4， 2:G3/4 |
