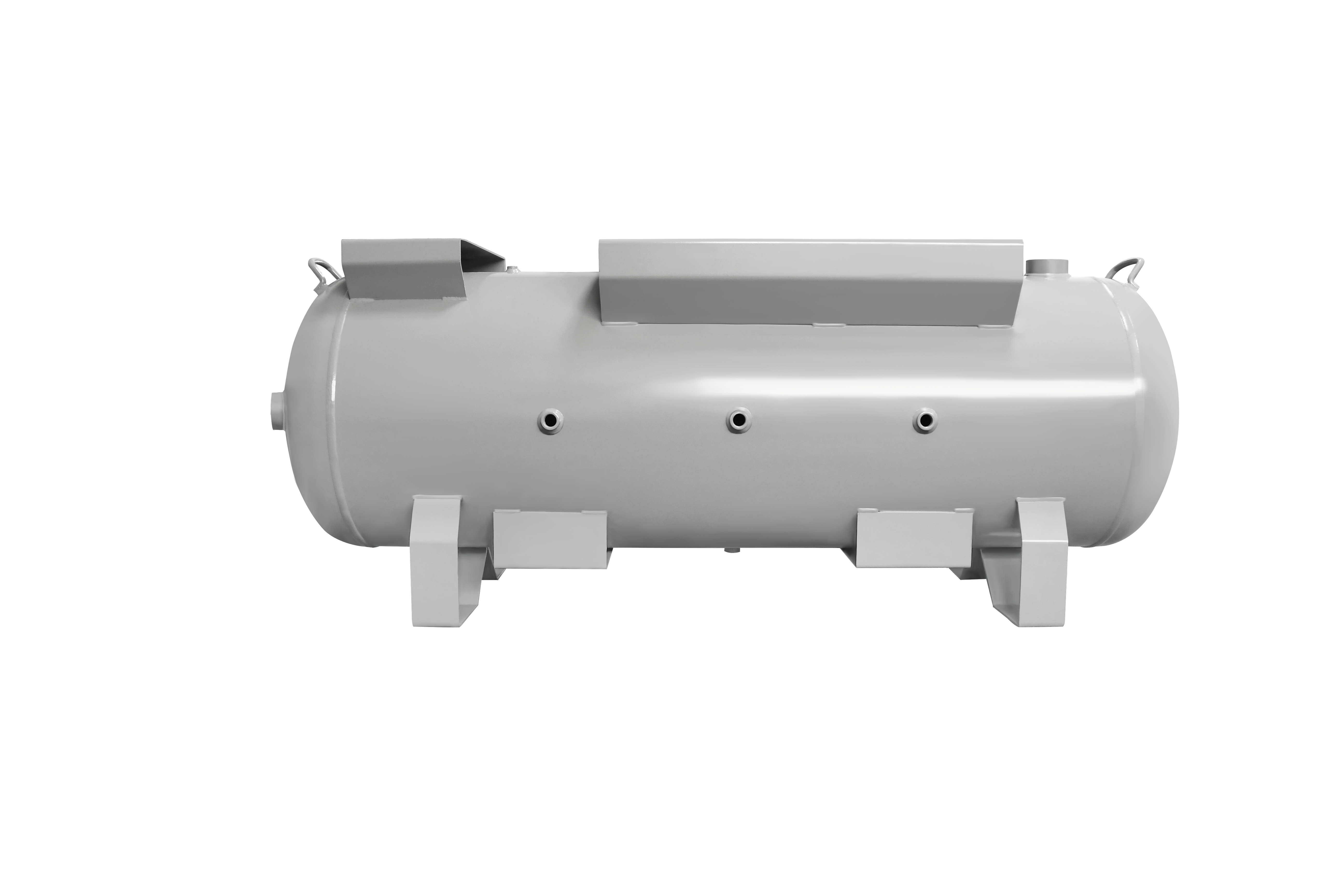

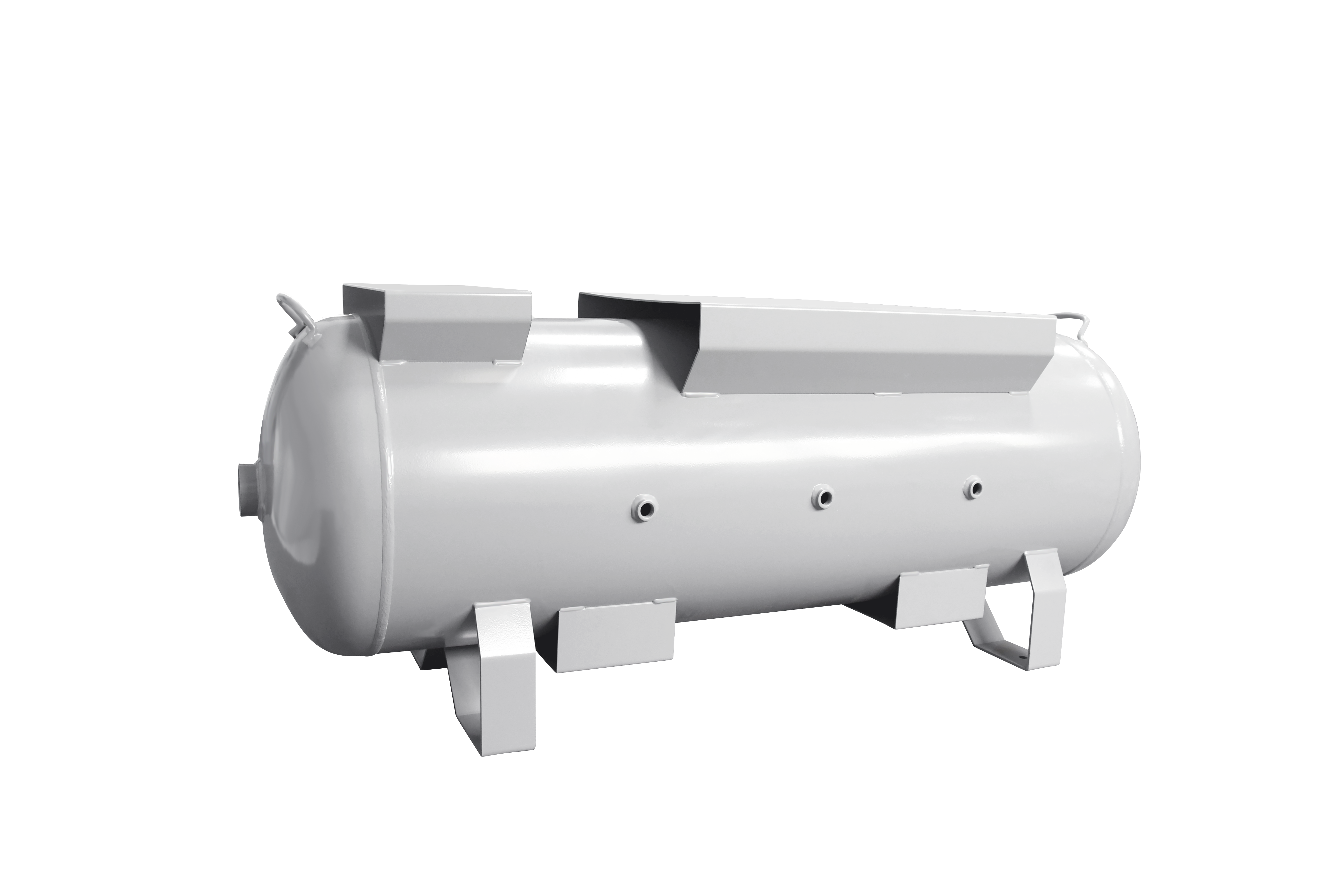

300L horizontal air receiver tank with mounting plate, 12 bar pressure vessel. Made of high-quality carbon steel, stable structure, safe and durable. Suitable for air compressors and industrial pneumatic systems.

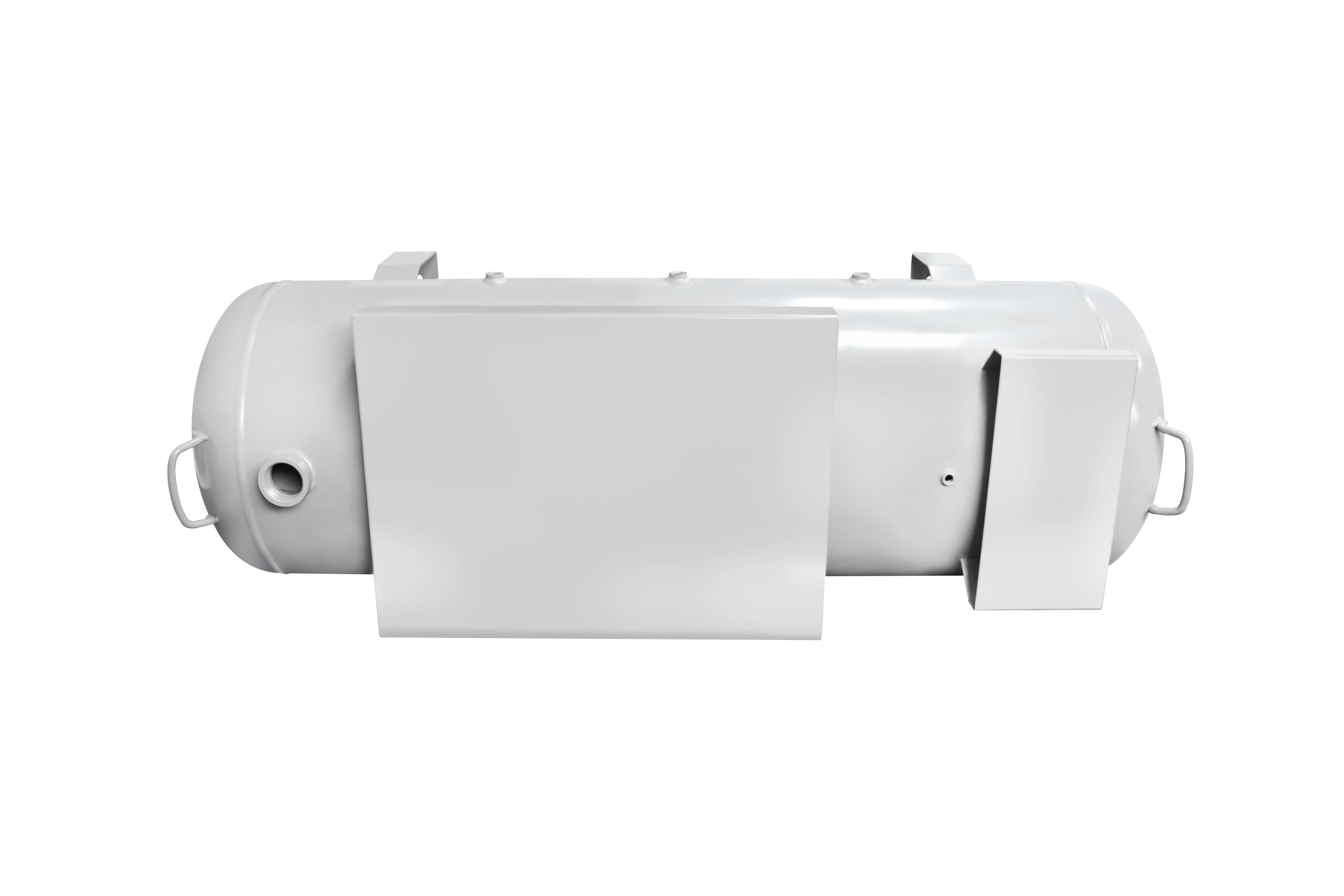

The integrated mounting plate allows for secure horizontal fixing, saving floor space and minimizing vibrations for a safer, more organized workspace setup.
Crafted from carbon steel, this vessel provides exceptional strength and corrosion resistance, ensuring reliable performance and durability under continuous 12 bar pressure.
The 300L volume offers extensive air storage, dramatically reducing compressor cycling to enhance efficiency, lower energy costs, and prevent pressure drops.
Designed for 12 bar operation, it reliably supports high-demand systems, ensuring a consistent and powerful air supply for multiple tools or larger industrial applications.
| P/N | Pressure (bar) | L*D*H(mm) | Thickness（mm) | Package Size（mm） | Net Weight（KG） | Gross Weight（KG） | Ports |
| 1L | 12 | 175*125*108 | 3 | 180*180*240 | 1.3 | 1.6 | 3: G1/4 |
| 2L | 12 | 230*110*130 | 2 | 240*140*140 | 1.8 | 1.9 | 4: G1/4 |
| 3L-A | 12 | 160*160*220 | 2 | 180*180*240 | 1.9 | 2.15 | 4: G1/4 |
| 3L-B | 12 | 160*160*170 | 2 | 180*180*240 | 1.75 | 2.3 | 3: G1/4 |
| 3L-C | 12 | 200*140*180 | 2 | 230*170*195 | 1.95 | 2.15 | 3:G1/4, 1:G1/2 |
| 4L | 12 | 260*160*190 | 2 | 280*170*210 | 2.6 | 2.9 | 5: G1/4 |
| 5L-A | 12 | 300*160*190 | 2 | 320*170*125 | 3.15 | 3.45 | 5: G1/2 |
| 5L-B | 12 | 300*160*190 | 2 | 320*170*220 | 3.05 | 3.35 | 5:G1/4 |
| 5L-C | 12 | 355*140*160 | 2 | 370*150*180 | 3 | 3.35 | 5:G1/2 |
| 5L-D | 12 | 300*160*250 | 2 | 310*170*270 | 3.2 | 3.55 | 4:G1/2, 1:G1/4 |
| 5L-E | 12 | 270*160*190 | 2 | 280*180*200 | 2.6 | 2.9 | 3:G1/4, 2:G1/2 |
| 5L-H | 12 | 300*210*160 | 2 | 335*185*235 | 3.6 | 3.85 | 4:G1/4 |
| 5L high pressure | 50 | 290*159*249 | 5 | 300*180*260 | 6.6 | 7.6 | 3:G1/4, 2:G1/2 |
| 5L vertical | 12 | 300*200*350 | 2 | 300*200*350 | 3.8 | 4 | 6: G1/4 |
| 5L ASME | 13 | 345*162*209 | 3 | / | 5 | 5.5 | 3:G1/2, 2:G3/4 |
| 7L blue | 12 | 300*180*245 | 2 | 310*200*260 | 3.8 | 4.15 | 2:G1/2, 1: G3/8 |
| 7L grey | 12 | 385*180*225 | 2 | 395*190*240 | 4.15 | 4.55 | 3:G1/2, 2:G1/4 |
| 8L-B | 12 | 430*160*210 | 2 | 450*170*215 | 3.95 | 4.4 | 4:G1/2, 1:G1/4 |
| 10L-A | 12 | 470*180*185 | 2 | 490*200*215 | 4.65 | 5.15 | 2:G1/4, 2: G3/8 |
| 10L-B | 12 | 440*180*215 | 2.5 | 450*190*240 | 4.65 | 5.05 | 4:G1/2, 1:G1/4 |
| 10L-D | 12 | 447*180*260 | 2.5 | 467*200*280 | 5.05 | 5.35 | 4: G3/8, 2:G1/8, 1:G1-1/4 |
| 10L-E | 12 | 440*200*260 | 2.5 | 450*210*270 | 5.35 | 5.95 | 4:G1/2, 2:G1/4 |
| 10L-H | 12 | 465*200*275 | 2.5 | 460*200*280 | 6.65 | 7.15 | 3:G1/2, 3:G1/4 |
| 10L high pressure | 50 | 544*159*221 | 5 | 568*250*180 | 9.7 | 11 | 4:G1/2, 1:G1/4 |
| 10L Vertical | 12 | 460*180*520 | 2 | 530*250*255 | 4.45 | 5.1 | 4:G1/2, 1:G1/4 |
| 10L ASME | 13 | 450*183*235 | 3 | / | 7.9 | 8.4 | 2:G1/2, 1:G1/4,2:G3/4 |
| 10L CE | 12 | 562*188*269 | 3 | / | 9 | 9.5 | 3:G1/2, 1:G1/4,2:G1 |
| 12L-A | 12 | 320*236*318 | 2.5 | 330*250*330 | 4.75 | 5.35 | 3:G1/2, 1:G1/4 |
| 15L | 12 | 390*236*290 | 2.5 | 400*250*320 | 5.75 | 6.3 | 4:G1/2, 1:G1/4 |
| 20L-A | 12 | 360*280*335 | 2.5 | 390*300*350 | 8.7 | 9.4 | 4:G1/2, 1:G1/4 |
| 20L-B | 12 | 280*350*400 | 2.5 | 400*370*300 | 9.1 | 9.3 | 2:G1/2, 1:G1/4 |
| 20L-C | 12 | 240*315*440 | 2.5 | 450*315*250 | 8.25 | 8.55 | 2:G1/2, 2:G1/4 |
| 20L high pressure | 50 | 626*289*219 | 5 | 650*230*300 | 21.7 | 24 | 4:G1/2, 1:G1/4 |
| 20L Vertical | 12 | 350*280*462 | 2.5 | 480*330*300 | 9.4 | 10 | 4:G1/2, 1:G1/4 |
| 20L ASME | 13 | 540*243*315 | 3 | / | 12 | 12.5 | 2:G1/2, 2:G1/4,2:G3/4 |
| 20L CE | 12.5 | 714*223*296.5 | 3 | 13.5 | 14 | 3:G1/2, 1:G1/4,2:G1 | |
| 24L-A | 12 | 500*236*305 | 2.5 | 510*250*325 | 7.15 | 7.85 | 3:G1/2, 1:G1/4 |
| 24L-B | 12 | 500*236*261 | 2.5 | 520*250*275 | 7.1 | 7.75 | 7:G1/2, 1:G1/4 |
| 24L-C | 12 | 500*236*261 | 2.5 | 510*250*285 | 7 | 7.65 | 4:G1/2, 1:G1/4 |
| 24L-D | 12 | 500*236*261 | 2.5 | 535*246*310 | 7.15 | 8 | 3:G1/2, 1:G1/4, 1: G1 |
| 30L-A | 12 | 450*320*355 | 2.5 | 490*330*370 | 13.55 | 14.55 | 7:G1/2, 1:G1/4 |
| 30L-B | 12 | 450*320*350 | 2.5 | 490*330*370 | 13.55 | 14.44 | 4:G1/2, 1:G1/4 |
| 30L-C | 12 | 650*236*300 | 2.5 | 670*250*315 | 8.75 | 9.6 | 4:G1/2, 1:G1/4 |
| 30L Vertical | 10 | 500*280*600 | 2.5 | 620*320*290 | 11.5 | 12.3 | 4:G1/2, 1:G1/4 |
| 35L | 8 | 722*236*275 | 2.5 | 740*250*285 | 9.35 | 10.15 | 4:G1/2, 1:G1/4 |
| 40L | 12 | 650*280*330 | 2.5 | 670*290*355 | 14.25 | 15.2 | 5:G1/2, 1:G1/4 |
| 40L Vertical | 10 | 600*300*700 | 3 | 725*330*315 | 14.15 | 15.35 | 4:G1/2, 1:G1/4 |
| 40L with handle | 12 | 660*280*630 | 2.5 | 670*320*350 | 18.14 | 18.6 | 3:G1/2, 1:G1/4, 1: G3/4 |
| 40L ASME | 8 | 686*293*325 | 3 | / | 16 | 17 | 4:G1/2, 1:G1/4, 2: G3/4 |
| 8 | 686*293*325 | 4 | / | 16 | 17 | 4:G1/2, 1:G1/4, 2: G3/4 | |
| 45L | 12 | 530*320*380 | 3 | 580*340*395 | 14.95 | 16 | 4:G1/2, 1:G1/4 |
| 50L-A | 12 | 550*320*380 | 3 | 580*340*395 | 15.45 | 16.5 | 4:G1/2, 1:G1/4 |
| 50L-B | 12 | 712*300*392 | 3 | 720*310*400 | 16.35 | 17.5 | 6:G1/2, 1:G1/4 |
| 50L Vertical | 8 | 700*300*812 | 3 | 825*310*335 | 16.15 | 17.35 | 4:G1/2, 1:G1/4, 1: G1 |
| 50L ASME | 8 | 736*332*392 | 3 | / | 20 | 21 | 3:G1/2, 1:G1/4, 2: G3/4 |
| 50L CE | 8 | 736*332*392 | 3 | / | 20 | 21 | 3:G1/2, 1:G1/4, 2: G3/4 |
| 60L-A | 12 | 860*300*355 | 3 | 880*300*360 | 19.3 | 20.55 | 4:G1/2, 1:G1/4, 1: G1 |
| 60L Vertical | 10 | 850*300*962 | 3 | 972*320*330 | 18.55 | 19.85 | 5:G1/2, 1: G1 |
| 60L Vertical ASME | 8 | 337*850*968 | 3 | / | 24 | 25 | 3:G1/2, 2:G3/4, 1: G1 |
| 60L Vertical CE | 8 | 337*850*968 | 3 | / | 24 | 25 | 3:G1/2, 2:G3/4, 1: G1 |
| 60L CE | 12 | 940*325*362 | 3 | / | 24.5 | 25 | 3:G1/2, 1:G1/4, 2: G1 |
| 80L | 12 | 850*350*420 | 3 | / | 25.8 | 25.8 | 4:G1/2, 1:G1/4, 2: G1 |
| 80L Vertical | 12 | 650*470*482 | 3.5 | / | 25.2 | 25.2 | 5:G1/2, 1: G1 |
| 80L ASME | 8 | 870*370*412 | 3 | / | 27.5 | 28 | 3:G1/2, 1:G1/4, 2:G1-1/2 |
| 80L CE | 8 | 870*370*412 | 3 | / | 27.5 | 28 | 3:G1/2, 1:G1/4, 2:G1-1/2 |
| 100L-A | 12 | 1040*350*420 | 3 | / | 40.6 | 40.6 | 4:G1/2, 1:G1/4, 2:G1-1/4 |
| 100L-B | 8.4 | 1040*350*355 | 3 | / | 31.8 | 31.8 | 4:G1/2, 1:G1/4, 2: G1 |
| 100L ASME | 8 | 1075*370*388.5 | 3 | / | 37.5 | 38 | 4:G1/2, 1:G1/4, 2:G1-1/2 |
| 100L CE | 8 | 1075*370*388.5 | 3 | / | 37.5 | 38 | 4:G1/2, 1:G1/4, 2:G1-1/2 |
| 125L | 12 | 1000*400*450 | 3 | / | 36.5 | 36.5 | 5:G1/2, 1:G1/4, 2: G1 |
| 130L | 12 | 1050*400*456 | 3 | / | 38.1 | 38.1 | 2:G1-1/2 , 1:G1/4 |
| 150L | 8 | 1340*400*495 | 3.5 | / | 45 | 45 | 4:G1/2, 2:G1/4, 2:G1-1/4 |
| 180L with plate | 12 | 1400*400*485 | 3 | / | 60 | 60 | 2: G1-1/4, 1:G1/4, 6:G1/2 |

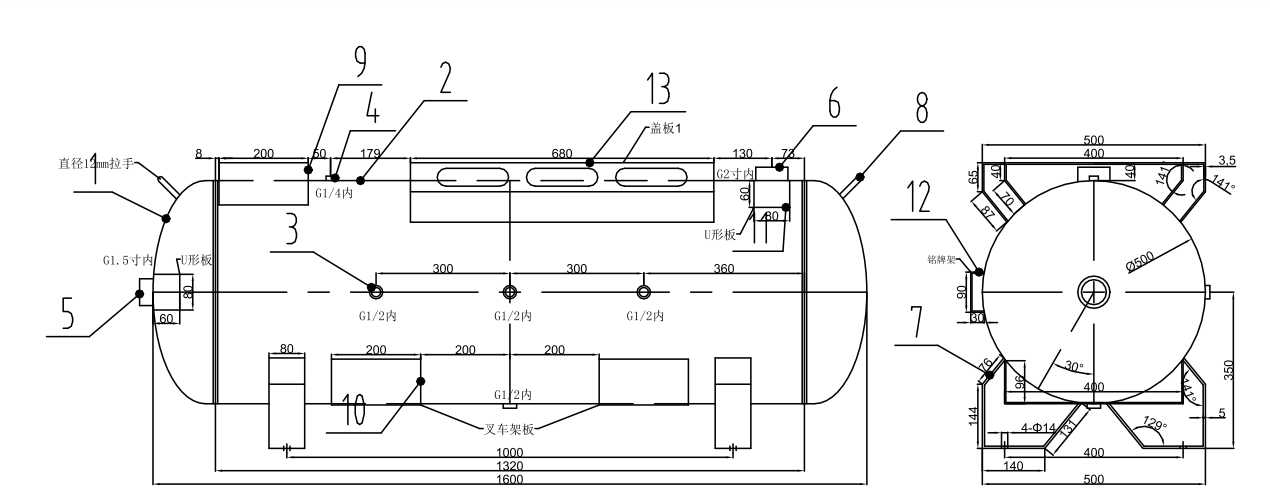

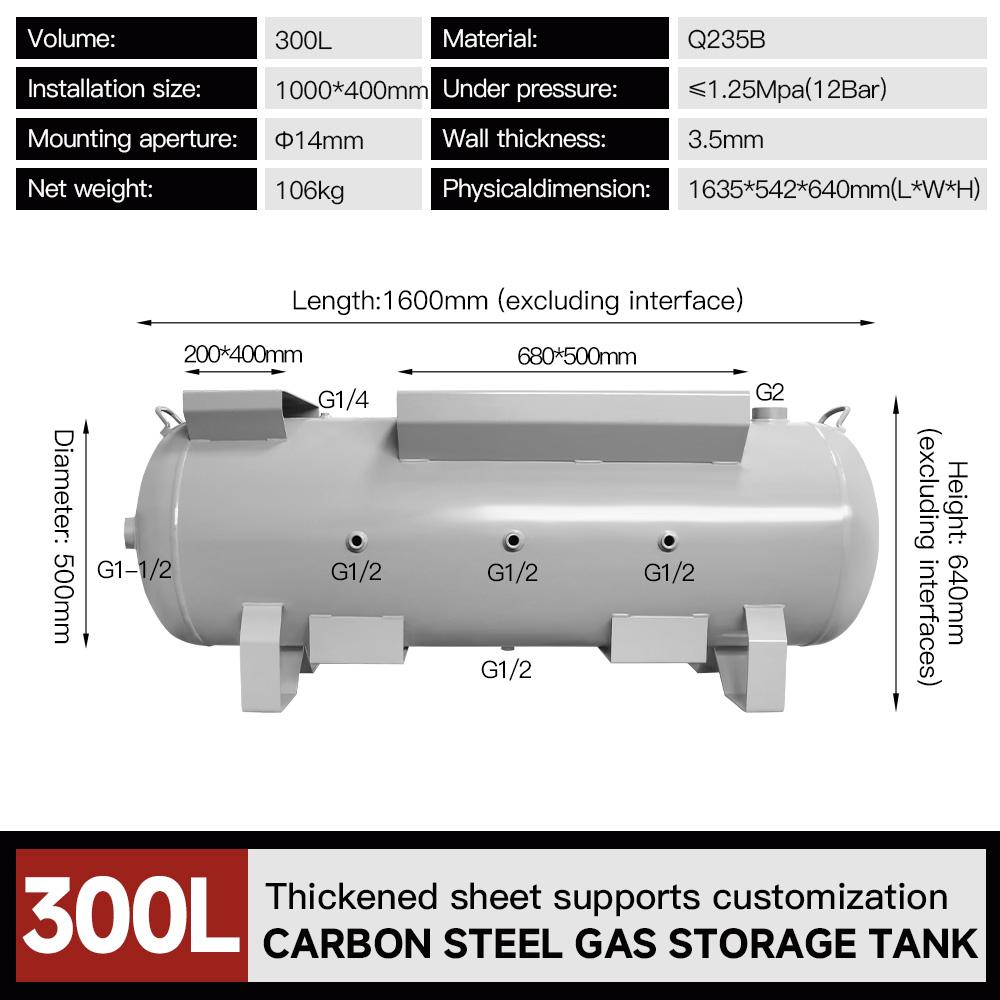

| 300L with plate | 12 | 1600*500*600 | 3 | / | 106 | 106 | 2: G2, 1:G1/4, 4:G1/4 |
| 500L with plate | 12 | 1700*600*760 | 3 | 1740*630*745 | 130 | 140 | 2: G2, 6:G1/2 |
| 100L-A Vertical | 10 | 1240*350*1400 | 3 | / | 38 | 38 | 2:G1/4, 1:G3/4, 2: G1 |
| 100L-B Vertical | 12 | 800*400*932 | 3 | / | 30 | 30 | 5:G1/2, 1:G1/4 |
| 300L-8 bar Vertical | 8 | φ550*1525 | 3 | / | 73 | 73 | DN25 |
| 300L-10bar Vertical | 10 | φ550*1525 | 3 | / | 82 | 82 | DN25 |
| 300L-13bar Vertical | 13 | φ550*1525 | 3.5 | / | 82 | 82 | DN25 |
| 300L-16bar Vertical | 16 | φ550*1525 | 4.5 | / | 105 | 105 | DN25 |
| 300L-30bar Vertical | 30 | φ550*1525 | 8 | / | 201 | 201 | DN40 |
| 300L-40bar Vertical | 40 | φ550*1525 | 10 | / | 230 | 230 | DN40 |
| 600L-8 bar Vertical | 8 | φ650*2050 | 3 | / | 112 | 112 | DN65 |
| 600L-10 bar Vertical | 10 | φ650*2050 | 3 | / | 118 | 118 | DN65 |
| 600L-13 bar Vertical | 13 | φ650*2050 | 3.5 | / | 132 | 132 | DN40 |
| 600L-16 bar Vertical | 16 | φ650*2050 | 4.5 | / | 170 | 170 | DN40 |
| 600L-30 bar Vertical | 30 | φ650*2050 | 8 | / | 310 | 310 | DN40 |
| 600L-40 bar Vertical | 40 | φ650*2050 | 10 | / | 420 | 420 | DN40 |
| 1m³-8 bar Vertical | 8 | φ800*2140 | 3.5 | / | 170 | 170 | DN80 |
| 1m³-10 bar Vertical | 10 | φ780*2080 | 3.5 | / | 156 | 156 | DN40 |
| 1m³-13 bar Vertical | 13 | φ780*2080 | 4.5 | / | 200 | 200 | DN40 |
| 1m³-16 bar Vertical | 16 | φ780*2080 | 5.5 | / | 286 | 286 | DN40 |
| 1m³-20 bar Vertical | 20 | φ800*2140 | 8 | / | 390 | 390 | DN40 |
| 1m³-30 bar Vertical | 30 | φ800*2140 | 10 | / | 472 | 472 | DN40 |
| 1m³-40 bar Vertical | 40 | φ800*2140 | 12 | / | 590 | 590 | DN40 |
| 1m³-60 bar Vertical | 60 | φ800*2322 | 20 | 1000 | 1000 | DN40,DN100 | |
| 1.5m³-8 bar Vertical | 8 | φ980*2180 | 4 | / | 240 | 240 | DN80 |
| 1.5m³-10 bar Vertical | 10 | φ980*2180 | 4.5 | / | 270 | 270 | DN80 |
| 1.5m³-13 bar Vertical | 13 | φ1000*2268 | 5.5 | / | 365 | 365 | DN50 |
| 1.5m³-30 bar Vertical | 30 | φ1000*2268 | 12 | / | 750 | 750 | DN80 |
| 2m³-8 bar Vertical | 8 | φ980*2680 | 4 | / | 295 | 295 | DN80 |
| 2m³-10 bar Vertical | 10 | φ980*2680 | 4.5 | / | 325 | 325 | DN50 |
| 2m³-13 bar Vertical | 13 | φ1000*2750 | 5.5 | / | 432 | 432 | DN80 |
| 2m³-16 bar Vertical | 16 | φ1000*2750 | 7 | / | 552 | 552 | DN80 |
| 2m³-20 bar Vertical | 20 | φ1000*2750 | 8 | / | 615 | 615 | DN50 |
| 2m³-25 bar Vertical | 25 | φ1000*2750 | 10 | 765 | 765 | DN50 | |
| 2m³-30 bar Vertical | 30 | φ1000*2750 | 12 | / | 905 | 905 | DN50 |
| 2m³-40 bar Vertical | 40 | φ1000*2750 | 16 | / | 1250 | 1250 | DN50 |
| 3m³-8 bar Vertical | 8 | φ1200*2800 | 4.5 | / | 430 | 430 | DN80 |
| 3m³-10 bar Vertical | 10 | φ1200*2800 | 5.5 | / | 545 | 545 | DN80 |
| 3m³-13 bar Vertical | 13 | φ1200*2870 | 7 | / | 625 | 625 | DN80 |
| 3m³-16 bar Vertical | 16 | φ1200*2870 | 8 | / | 740 | 740 | DN80 |
| 3m³-25 bar Vertical | 25 | φ1200*2870 | 12 | / | 1130 | 1130 | DN80 |
| 3m³-30 bar Vertical | 30 | φ1200*2800 | 14 | / | 1300 | 1300 | DN80 |
| 4m³-8 bar Vertical | 8 | φ1400*2870 | 5 | / | 680 | 680 | DN100 |
| 4m³-10 bar Vertical | 10 | φ1400*2870 | 6 | / | 780 | 780 | DN100 |
| 4m³-13 bar Vertical | 13 | φ1400*2950 | 8 | / | 920 | 920 | DN100 |
| 5m³-8 bar Vertical | 8 | φ1400*3450 | 5 | / | 790 | 790 | DN100 |
| 5m³-10 bar Vertical | 10 | φ1400*3470 | 6 | / | 860 | 860 | DN100 |
| 5m³-13 bar Vertical | 13 | φ1400*3550 | 8 | / | 1065 | 1065 | DN100 |
| 6m³-8 bar Vertical | 8 | φ1400*4100 | 5 | / | 816 | 816 | DN100 |
| 6m³-10 bar Vertical | 10 | φ1400*4100 | 6 | / | 1030 | 1030 | DN100 |
| 8m³-8 bar Vertical | 8 | φ1600*4100 | 5.5 | / | 1140 | 1140 | DN125 |
| 8m³-10 bar Vertical | 10 | φ1600*4100 | 6.5 | / | 1350 | 1350 | DN125 |
| 8m³-16 bar Vertical | 16 | φ1600*4070 | 10 | / | 1820 | 1820 | DN125 |
| 8m³-20 bar Vertical | 20 | φ1600*4070 | 12 | / | 2490 | 2490 | DN125/DN400 |
| 10m³-8 bar Vertical | 8 | φ1800*4162 | 6 | / | 1380 | 1380 | DN150 |
| 10m³-10 bar Vertical | 10 | φ1800*4166 | 7.5 | / | 1640 | 1640 | DN250 |
| 10m³-13bar Vertical | 13 | φ1800*4166 | 10 | / | 2080 | 2080 | DN150 |
| 10m³-16bar Vertical | 16 | φ1800*4166 | 12 | / | 2615 | 2615 | DN150 |
| 15m³-10bar Vertical | 10 | φ2000*5100 | 8 | / | 2280 | 2280 | DN150 |
| 20m³-8 bar Vertical | 8 | φ2100*6150 | 7 | / | 2580 | 2580 | DN200 |
| 20m³-10 bar Vertical | 10 | φ2100*6150 | 8.5 | / | 3090 | 3090 | DN200 |
| 20m³-16 bar Vertical | 16 | φ2100*6150 | 12 | 4570 | 4570 | DN200 | |
| 25m³-8 bar Vertical | 8 | φ2400*6080 | 9 | / | 3810 | 3810 | DN200 |
