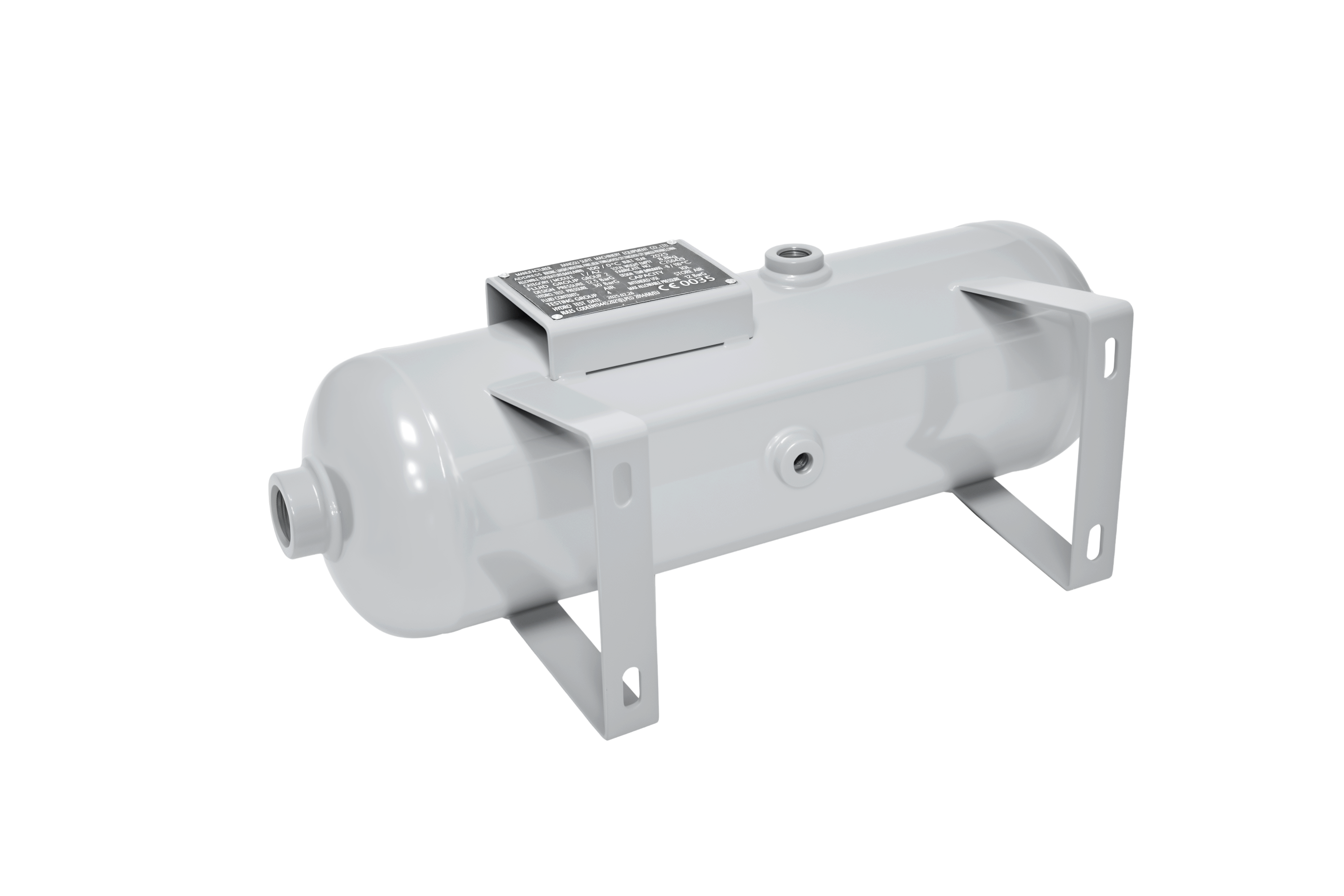

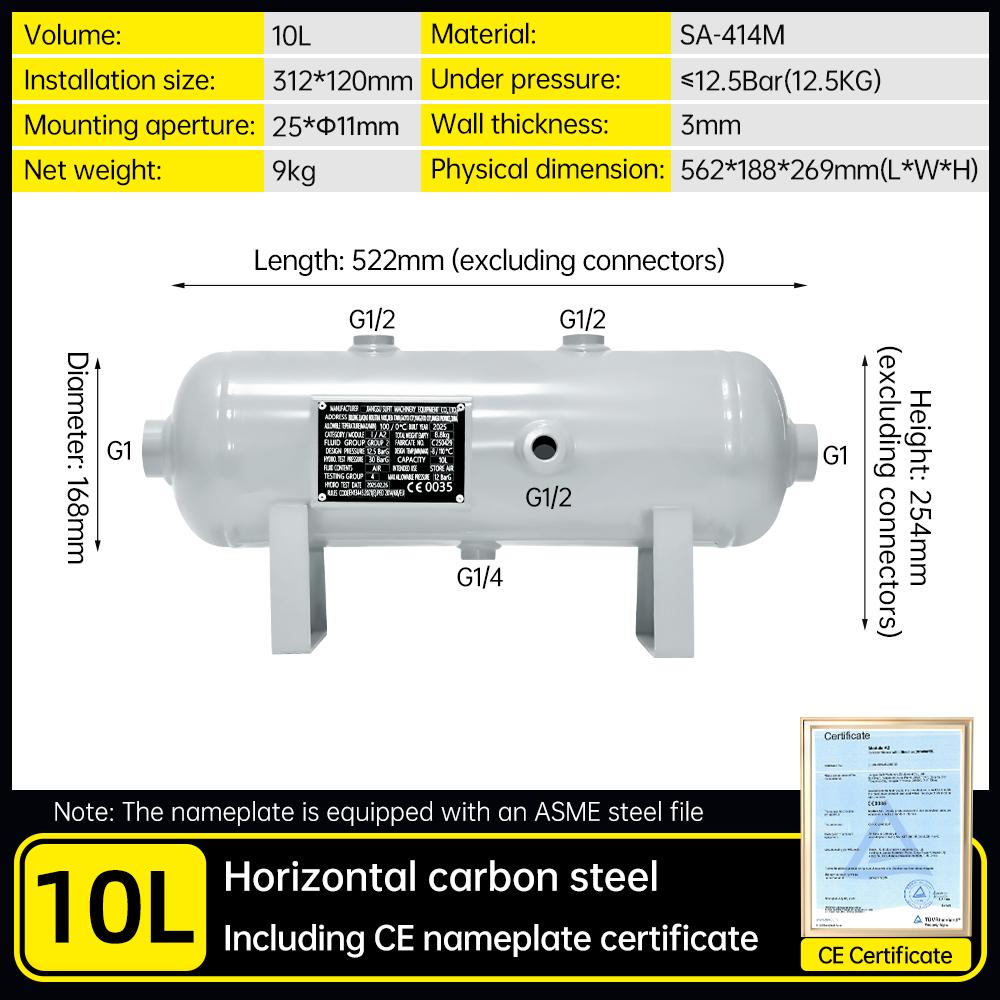

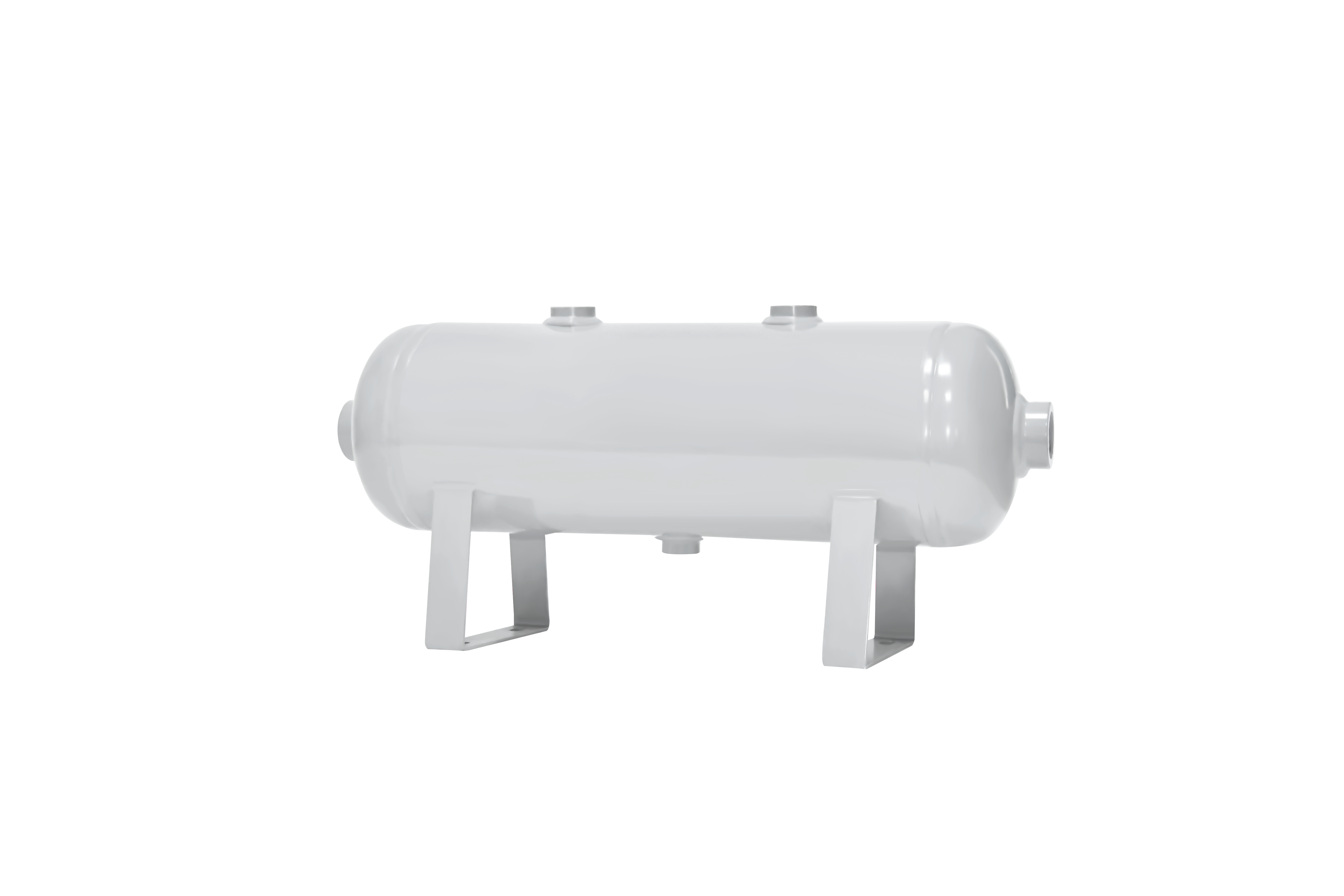

This 10L CE/PED certified air tank (168mm diameter) meets all European pressure equipment directives (CE0035). Its compact, horizontal design provides a stable air reservoir to buffer and cool compressed air, ensuring safe, efficient, and compliant operation for tools and systems across the EU market.
With a 168mm diameter, this horizontal air tank offers a low-profile, stable footprint that is easy to install in confined spaces.
The CE/PED certification with notified body number CE0035 guarantees the air tank meets all essential safety requirements of the Pressure Equipment Directive, allowing for legal sale and operation within the European Economic Area.
The 10L capacity provides an effective buffer to smooth out compressor cycles, reduce wear, and help separate moisture from the air due to cooling within the tank, delivering drier, more stable air to your tools.
As a PED-category certified vessel manufactured by experienced air compressor tank manufacturers, its production involves strict material controls, documented welding procedures, and final inspection by a notified body, ensuring high build quality, safety, and full technical documentation for the user.
| P/N | Pressure (bar) | L*D*H(mm) | Thickness（mm) | Package Size（mm） | Net Weight（KG） | Gross Weight（KG） | Ports |
| 10L CE | 12 | 562*188*269 | 3 | / | 9 | 9.5 | 3:G1/2, 1:G1/4,2:G1 |
| 20L CE | 12.5 | 714*223*296.5 | 3 | 13.5 | 14 | 3:G1/2, 1:G1/4,2:G1 | |
| 40L CE | 8 | 686*293*325 | 4 | / | 16 | 17 | 4:G1/2, 1:G1/4, 2: G3/4 |
| 50L CE | 8 | 736*332*392 | 3 | / | 20 | 21 | 3:G1/2, 1:G1/4, 2: G3/4 |
| 60L Vertical CE | 8 | 337*850*968 | 3 | / | 24 | 25 | 3:G1/2, 2:G3/4, 1: G1 |
| 60L CE | 12 | 940*325*362 | 3 | / | 24.5 | 25 | 3:G1/2, 1:G1/4, 2: G1 |
| 80L CE | 8 | 870*370*412 | 3 | / | 27.5 | 28 | 3:G1/2, 1:G1/4, 2:G1-1/2 |
| 100L CE | 8 | 1075*370*388.5 | 3 | / | 37.5 | 38 | 4:G1/2, 1:G1/4, 2:G1-1/2 |
