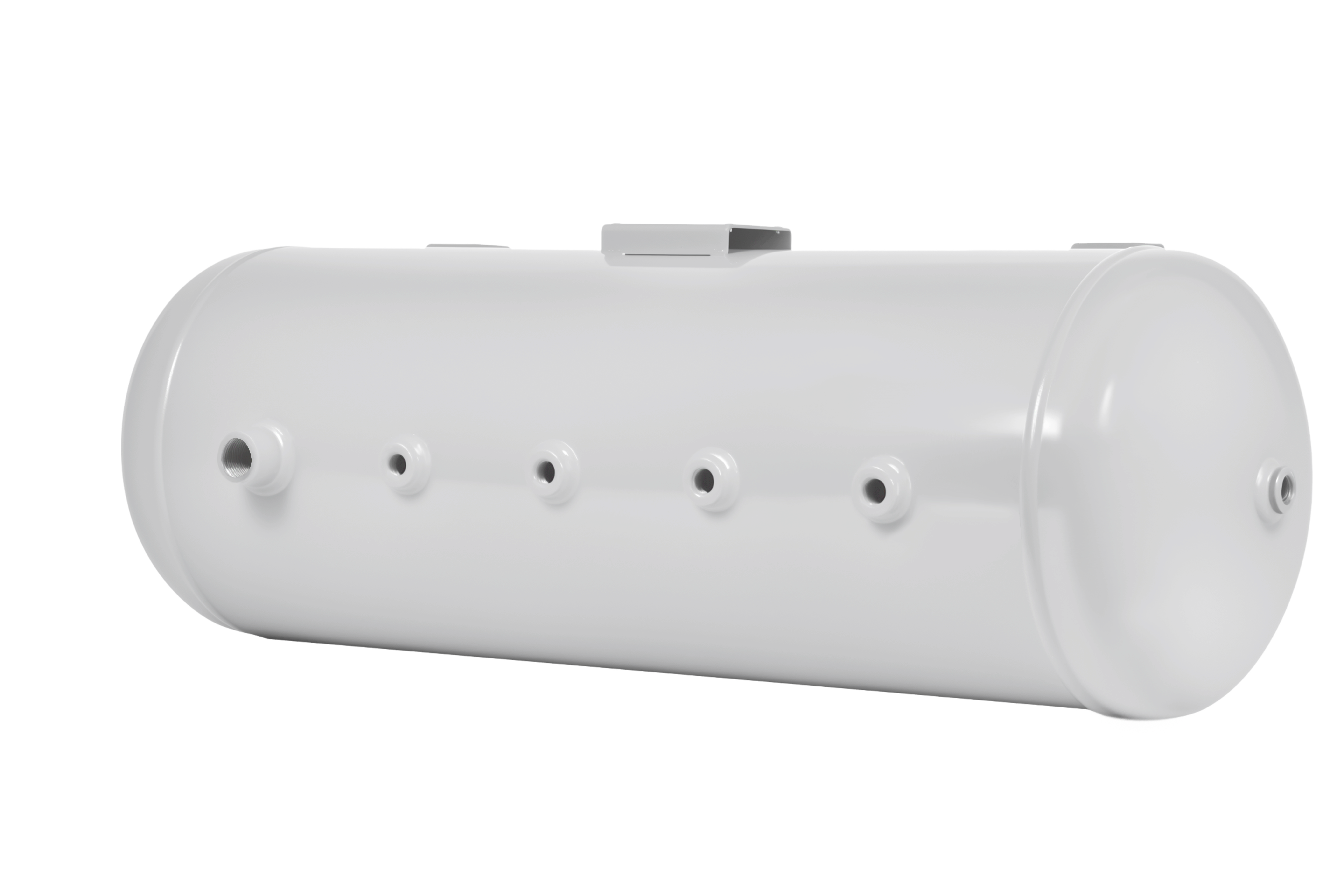

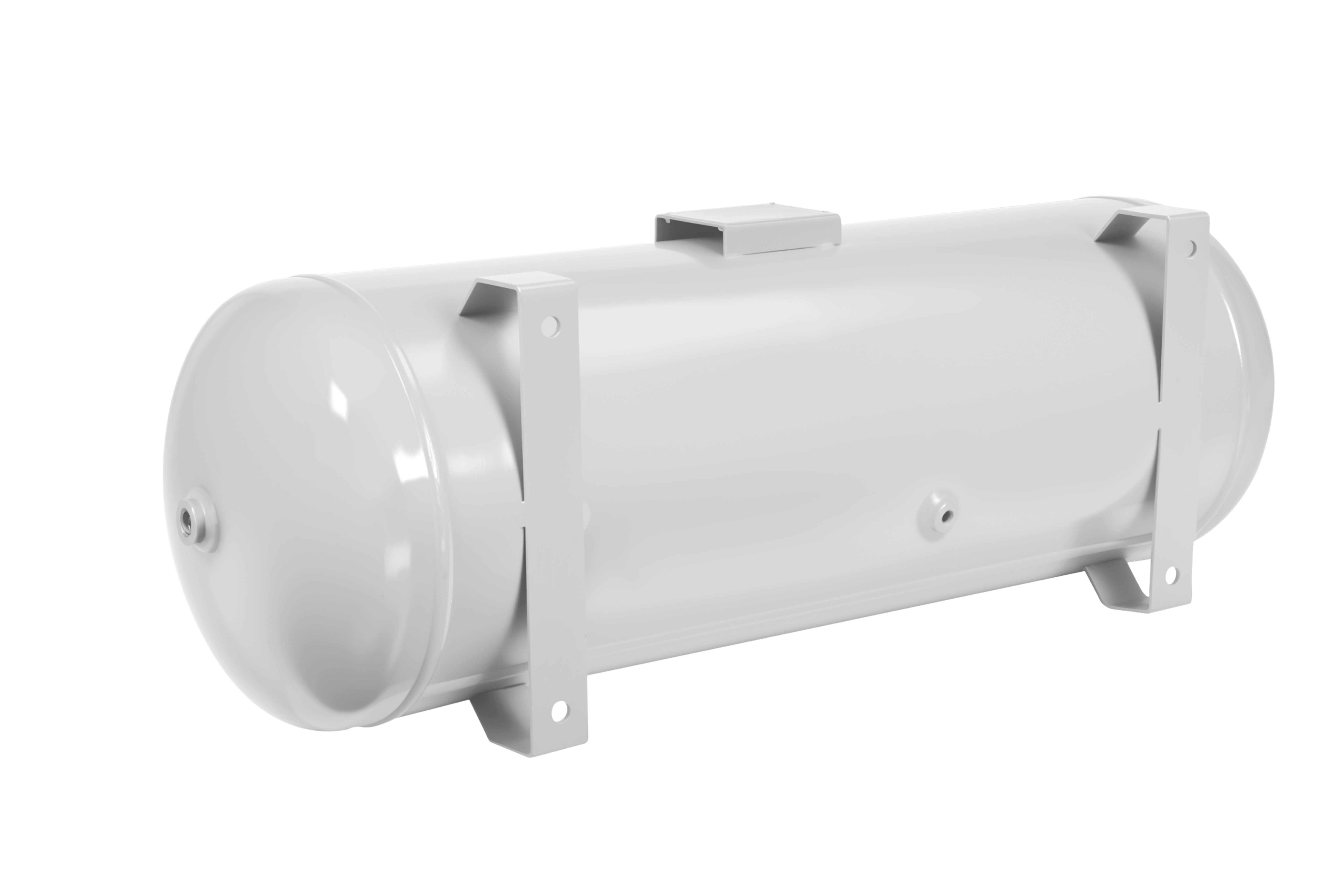

100L PED air tank with CE0035 nameplate, 8 bar working pressure. Made of carbon steel, safe and reliable for EU market. Fully certified, in stock for fast delivery.
The tank is manufactured in accordance with the Pressure Equipment Directive (PED) and bears the CE0035 identification number, confirming its full compliance for the European market.
The 100L volume at 8 bar provides a substantial air reservoir to stabilize system pressure, reduce compressor cycles, and support extended operation of pneumatic equipment.
This configuration is a common standard for medium-pressure industrial air systems, ensuring broad compatibility and reliable performance.
In-stock status allows for rapid deployment, eliminating manufacturing lead times and enabling you to commission your compressed air system right away.
| P/N | Pressure (bar) | L*D*H(mm) | Thickness（mm) | Package Size（mm） | Net Weight（KG） | Gross Weight（KG） | Ports |
| 10L CE | 12 | 562*188*269 | 3 | / | 9 | 9.5 | 3:G1/2, 1:G1/4,2:G1 |
| 20L CE | 12.5 | 714*223*296.5 | 3 | 13.5 | 14 | 3:G1/2, 1:G1/4,2:G1 | |
| 40L CE | 8 | 686*293*325 | 4 | / | 16 | 17 | 4:G1/2, 1:G1/4, 2: G3/4 |
| 50L CE | 8 | 736*332*392 | 3 | / | 20 | 21 | 3:G1/2, 1:G1/4, 2: G3/4 |
| 60L Vertical CE | 8 | 337*850*968 | 3 | / | 24 | 25 | 3:G1/2, 2:G3/4, 1: G1 |
| 60L CE | 12 | 940*325*362 | 3 | / | 24.5 | 25 | 3:G1/2, 1:G1/4, 2: G1 |
| 80L CE | 8 | 870*370*412 | 3 | / | 27.5 | 28 | 3:G1/2, 1:G1/4, 2:G1-1/2 |

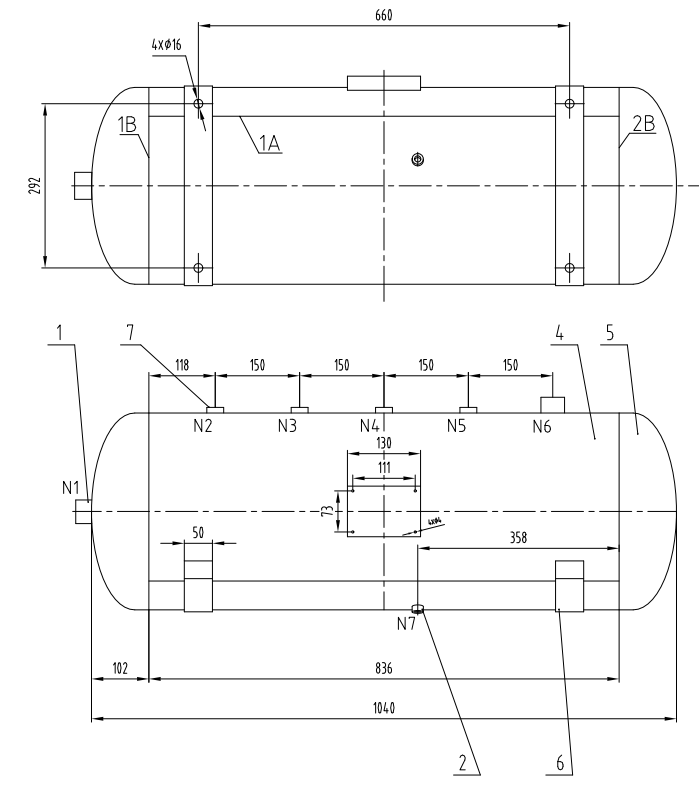

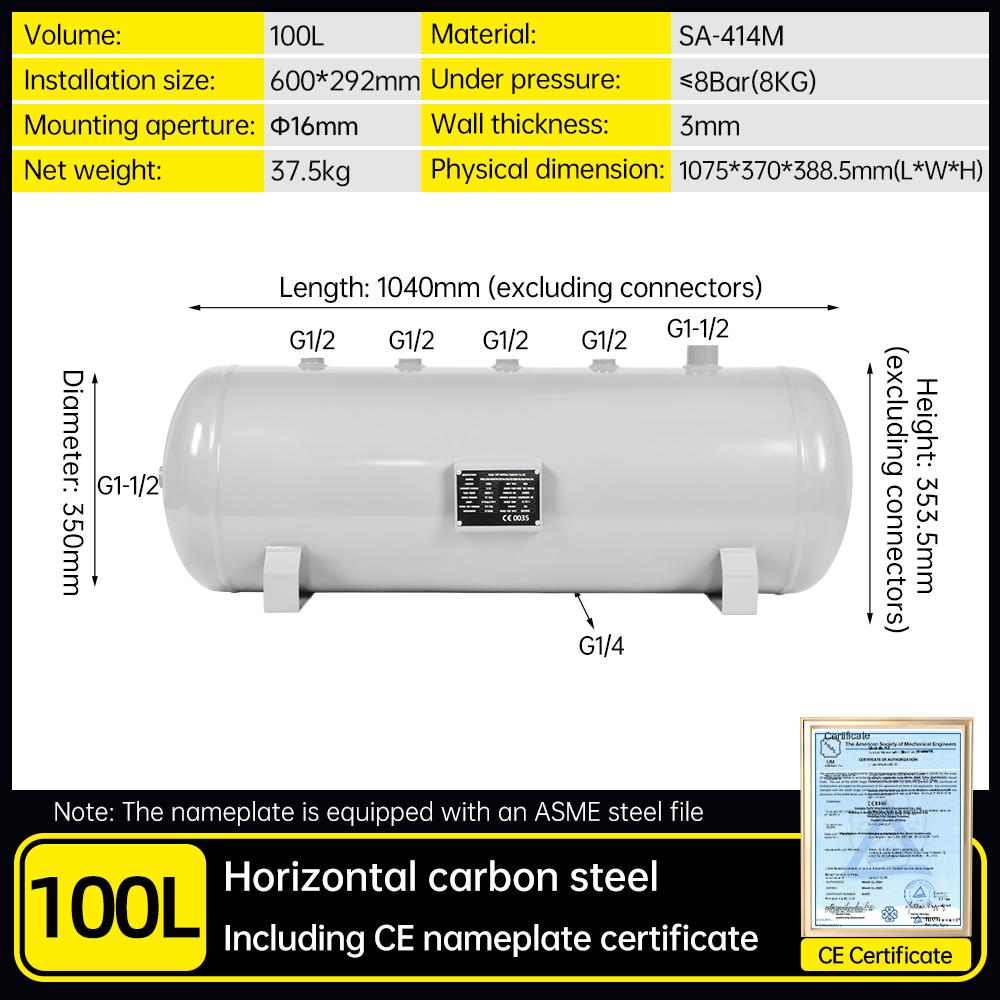

| 100L CE | 8 | 1075*370*388.5 | 3 | / | 37.5 | 38 | 4:G1/2, 1:G1/4, 2:G1-1/2 |
