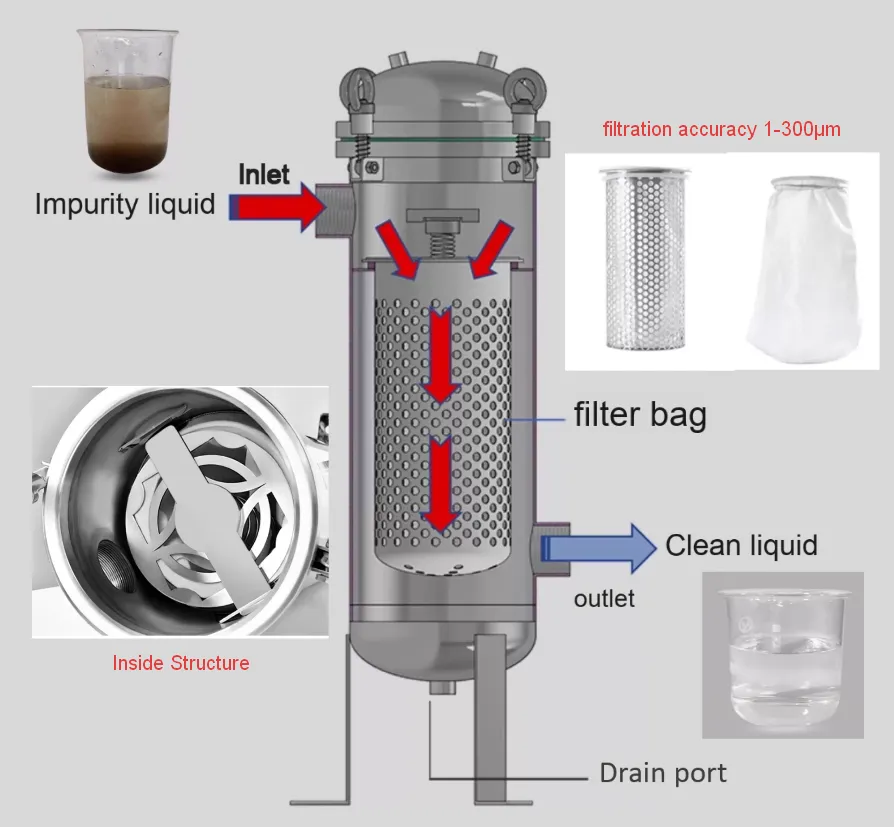

YCZX stainless steel filter tank is a side-in, side-out single-bag liquid filtration system that operates on a mechanical barrier separation principle:
Inlet Feed: Impure, turbid liquid (Impurity liquid) enters the sealed stainless steel housing under pressure from the left inlet.
Filtration Process: The liquid flows downward through the disposable filter bag (supported by a perforated stainless steel basket). Solid particles, debris, and contaminants larger than the filter bag's rated pore size (1–300μm, customizable) are trapped inside the bag, while clean liquid penetrates the filter medium.
Outlet Discharge: The clarified, filtered liquid (Clean liquid) exits the housing from the right outlet for downstream use.
Maintenance & Drainage: Trapped contaminants accumulate in the filter bag over time. The bottom drain port allows for emptying the housing, and the top quick-open clamp design enables fast, tool-free replacement of the filter bag to restore filtration efficiency.
Advantages:
High Filtration Efficiency & Flexibility Filtration accuracy ranges from 1μm to 300μm, supporting both fine and coarse filtration for diverse liquid types and impurity loads.
Low Operating Cost Disposable filter bags eliminate the need for complex cleaning or backwashing systems, reducing labor and maintenance costs.
Large Filtration Area & High Flow Rate The cylindrical filter bag provides a large effective filtration area, enabling high flow rates with minimal pressure drop, ideal for continuous industrial production.
Compact & Easy Maintenance The small footprint and quick-open top design allow for fast filter bag replacement, minimizing equipment downtime.
Corrosion Resistance & Durability The housing is typically constructed from food-grade 304/316L stainless steel, making it suitable for corrosive liquids, high-temperature environments, and hygienic applications.
No Bypass Risk The internal sealing mechanism ensures 100% of the liquid passes through the filter bag, eliminating unfiltered bypass and guaranteeing consistent purification quality.
Water Treatment: Pre-filtration for reverse osmosis (RO) systems, well water purification, wastewater treatment, and swimming pool water filtration.
Food & Beverage: Filtration of edible oils, wine, beer, fruit juice, syrup, and dairy products to remove sediment, yeast, and suspended solids while meeting food safety standards.
Chemical & Petrochemical: Filtration of acids, alkalis, solvents, paints, inks, resins, and lubricants to remove impurities and ensure product consistency.
Pharmaceutical & Cosmetics: Sterile pre-filtration of injectable solutions, cosmetic ingredients, and personal care products to comply with GMP hygiene requirements.
Pulp & Paper: Filtration of process water, coating solutions, and pulp slurries to remove contaminants and improve product quality.
Oil & Gas: Filtration of produced water, drilling mud, and fuel oils to remove solids and protect downstream equipment.
Automotive & Metalworking: Filtration of cutting fluids, lubricants, and coolant systems to extend fluid service life and prevent equipment wear.
