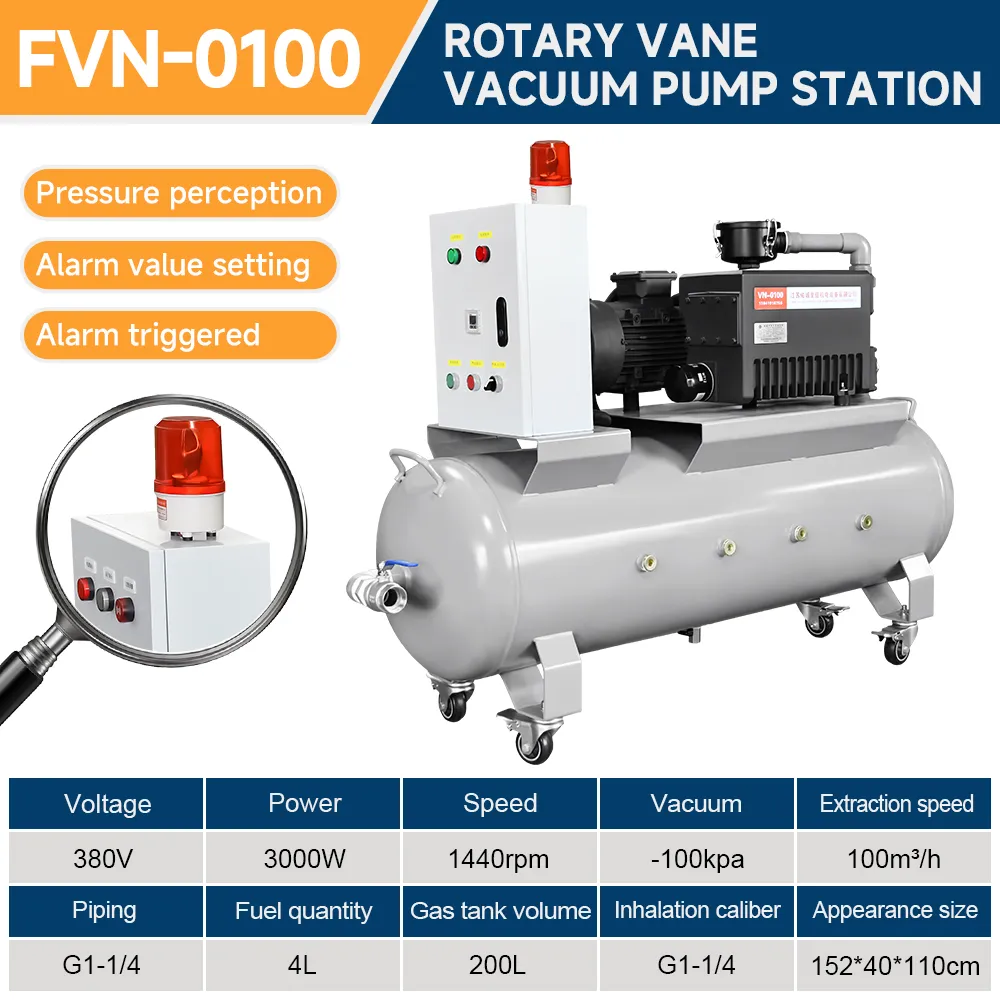

Air Receiver Tank With Vacuum Pumps

When used together with a vacuum pump, the air receiver tank offers key benefits including stable vacuum level, vacuum pump protection, energy conservation, and improved air efficiency. These advantages are highly pronounced in applications such as vacuum adsorption, vacuum pressure holding, and vacuum degassing.

I. Key Advantages

1. Stable Vacuum Level & Pressure Fluctuation Prevention

• The receiver tank buffers pressure fluctuations caused by the vacuum pump's start/stop cycles or load changes.

• It ensures consistent vacuum for equipment including suction cups, fixtures, and vacuum chambers, eliminating inconsistent suction force.

2. Reduced Pump Cycling & Extended Service Life

• Once the set vacuum is achieved, the pump can stop or run intermittently while the tank maintains pressure.

• This greatly reduces wear on the motor, pump oil, and bearings, lowering breakdowns and maintenance.

3. Better Adaptation to Short‑Term High Flow Demand

• During sudden high-volume pumping or air leakage, the tank quickly supplements vacuum to prevent sudden pressure drops.

• Ideal for high‑cycle automated production lines, suction cup handling, and packaging machines.

4. Energy Saving

• The vacuum pump does not need to run continuously at full load 24/7; it can standby once target vacuum is reached.

• Especially suitable for applications with long pressure‑holding periods and discontinuous pumping demand.

5. Moisture & Contaminant Filtration for Pump Protection

• The tank separates and collects condensate, dust, and oil mist, reducing contamination inside the pump.

• Performance is further improved when paired with a moisture separator.

6. Faster System Response

• Vacuum is instantly available from the tank when required, eliminating the wait for the pump to build vacuum from zero.

II. Typical Applications

1. Vacuum suction cup loading and robotic handling

2. Vacuum packaging and vacuum sealing machines

3. Vacuum degassing, vacuum impregnation, and vacuum drying

4. Vacuum fixtures and CNC vacuum suction tables

5. Hospital negative pressure systems and laboratory vacuum systems

III. Basic Matching Principles

• Tank volume is selected based on the vacuum pump's pumping speed and load fluctuations. Generally, higher flow and greater fluctuation require a larger tank.

• Recommended configuration: vacuum gauge + pressure switch + solenoid valve + drain valve for automatic start/stop and automatic drainage.
