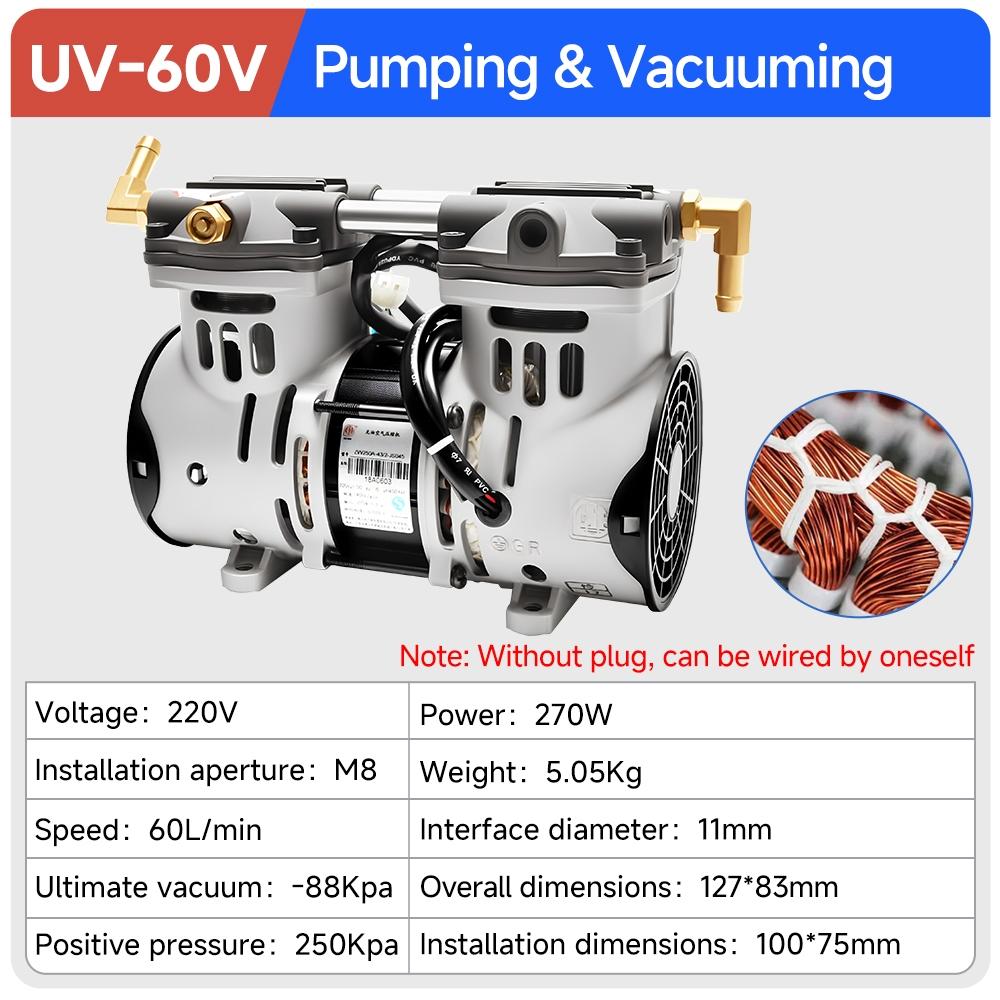

UV-60V 60L/min Dual-Function Oil-free Pump (Pumping & Vacuuming)

This 220V dual-function pump provides 250kPa pressure and -88kPa vacuum at 60L/min flow. With 270W power, 11mm interface, and compact design, it's built for robust performance. Note: Requires user wiring as no plug is included.

Get a Quote

$\oil-free-vacuum-pumps\uv-60v\uv-60v-60l-min-dual-function-oil-free-pump-pumping-and-vacuuming$

Specification of UV-60V 60L/min Dual-Function Oil-free Pump (Pumping & Vacuuming)

$\oil-free-vacuum-pumps\uv-60v\uv-60v-60l-min-dual-function-oil-free-pump-pumping-and-vacuuming-specification$

YCZX Existing Oil Free Vacuum Pumps

P/N	Voltage (V)	Speed (L/min)	Power (W)	Negative (Kpa)	Positive (Kpa)	Interface ID (mm)	Mounting size (mm)	Outline Dimension (mm)	Weight (kg)
VN-18	110/220	15	60	-80	300	7.5	6-M4/52.8	11511589	1.35
VN-18-2	220	5	13	-55	350	8		12690120	0.95
VN-20	220	8.5	60	-80	400	8	656560	13512090	1.5
VN-30V-1	220	28	90	-80		7		14585127	2.08
VN-40	220	36	130	-88		G1/4	110*70	17695143	3.5
VN-50	220	53	230	-88		G1/4	110*95	205100145	4.45
VN-60	220	60	260	-91		G1/4	147*83	230150155	5.5
VN-120V	220	100	370	-91		G1/4	203*89	255130200	8
VN-120H	220	80	370	-99		G1/4	203*89	255130200	8
VN-180V	220	160	600	-91		G1/4	203*89	255130215	10
VN-180H	220	120	600	-99		G1/4	203*89	255130215	10
VN-200H	220	150	1000	-99		G1/2	243*127	315156288	17
VN-200V	220	200	1000	-91		G1/2	243*127	315156288	17
VN-300H	220	200	1500	-99		G1/2	243*127	315210310	17
VN-300V	110/220	300	1500	-91		G1/2	243*127	315168314	17
VN-500-1	110/220	480	800	8.3		G1/2		394158294	19.5
UV-30V	220	30	90	-80		8	100*75	14585140
UV-60V	220	60	270	-88		11	100*75	127*83	5.05
UV-120V	220	100	370	-91		G1/4	203*89	250175180	8
UV-180V	220	160	600	-91		G1/4	223*89	270130203	10.5
UV-180H	220	120	600	-99		G1/4	223*89	270130203	10.5
VN26235	220	5.5	50		250			11482130	0.9
VN-26333	220	6	60		250	6		11392119	0.9
VN-35300	220	8	13	-60	250			12391115	1.5
TJ500W	220	120	550	-90		G1/4	210*185	200160190	8
TJ800W	220	180	800	-94		G1/4	223*90	266172200	8.9
TJ1600W	220	320	1600	-95		G1/2	243*123	320220280	16.5
