This 380V, 3000W series delivers 100m³/h extraction speed and -100kPa vacuum, with 180L/200L gas tank, G1-1/4 ports, and optional pressure perception/alarm functions, ideal for industrial vacuum applications requiring stable, mobile vacuum supply.
| P/N | Pump Speed (m3/h) | Voltage (V) | Power (W) | Motor Speed (r/min) | Tank Volume (L) | Interface OD | Refueling (L) | Max Pressure (kpa) | Outline Dimension (mm) |
| FVN-0020 | 20 | 220/380 | 900 | 2800 | 40 | G1/2 | 0.5 | -100 | 68*33*71 |
| FVN-0025 | 25 | 220/380 | 750 | 2800 | 40 | G1/2 | 0.5 | -100 | 58.5*37*75 |
| FVN-0040 | 40 | 380 | 1500 | 1440 | 100 | G1-1/4 | 1.5 | -100 | 133*34*85 |
| FVN-0063-A | 63 | 380 | 1500 | 1440 | 100 | G1-1/4 | 1.5 | -100 | 133*34*89 |
| FVN-0063-B | 70 | 380 | 2200 | 1440 | 180 | G1-1/4 | 2.5 | -100 | 152*40*100 |
| FVN-0100 | 100 | 380 | 3000 | 1440 | 180 | G1-1/4 | 2.5 | -100 | 152*40*100 |

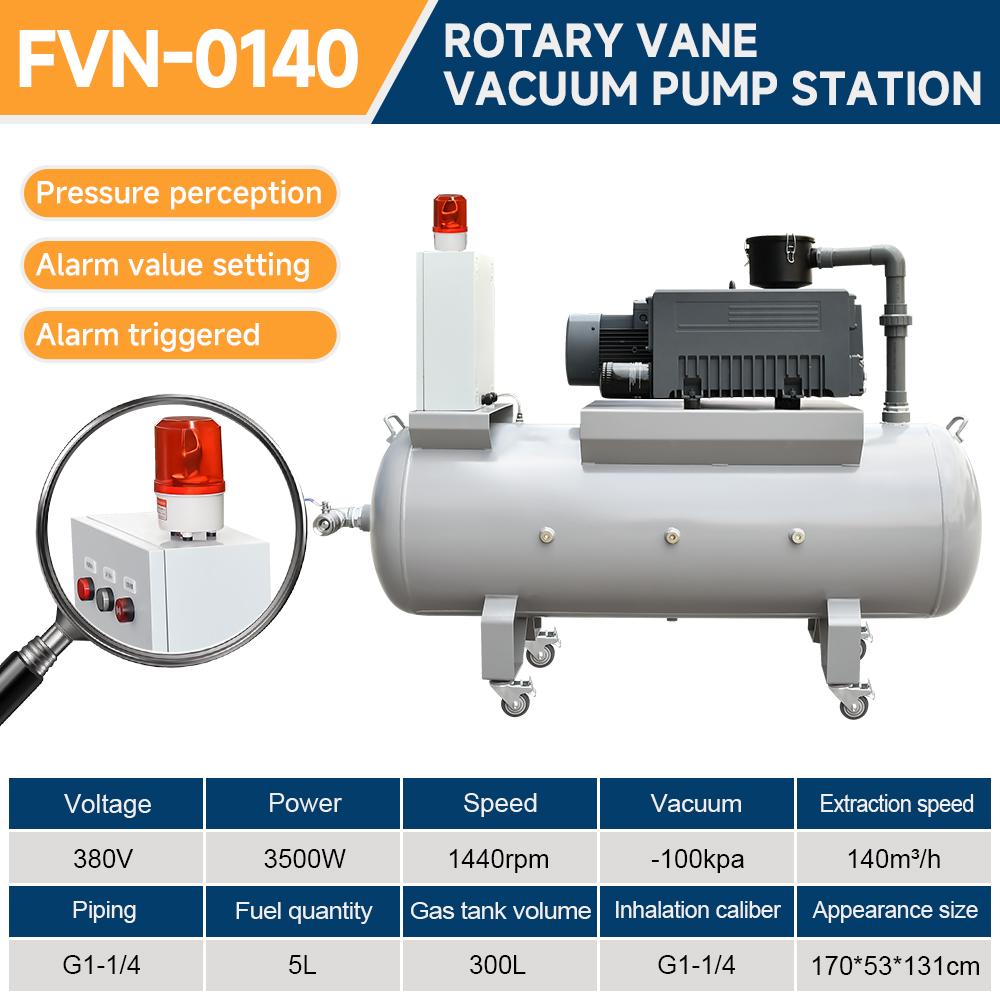

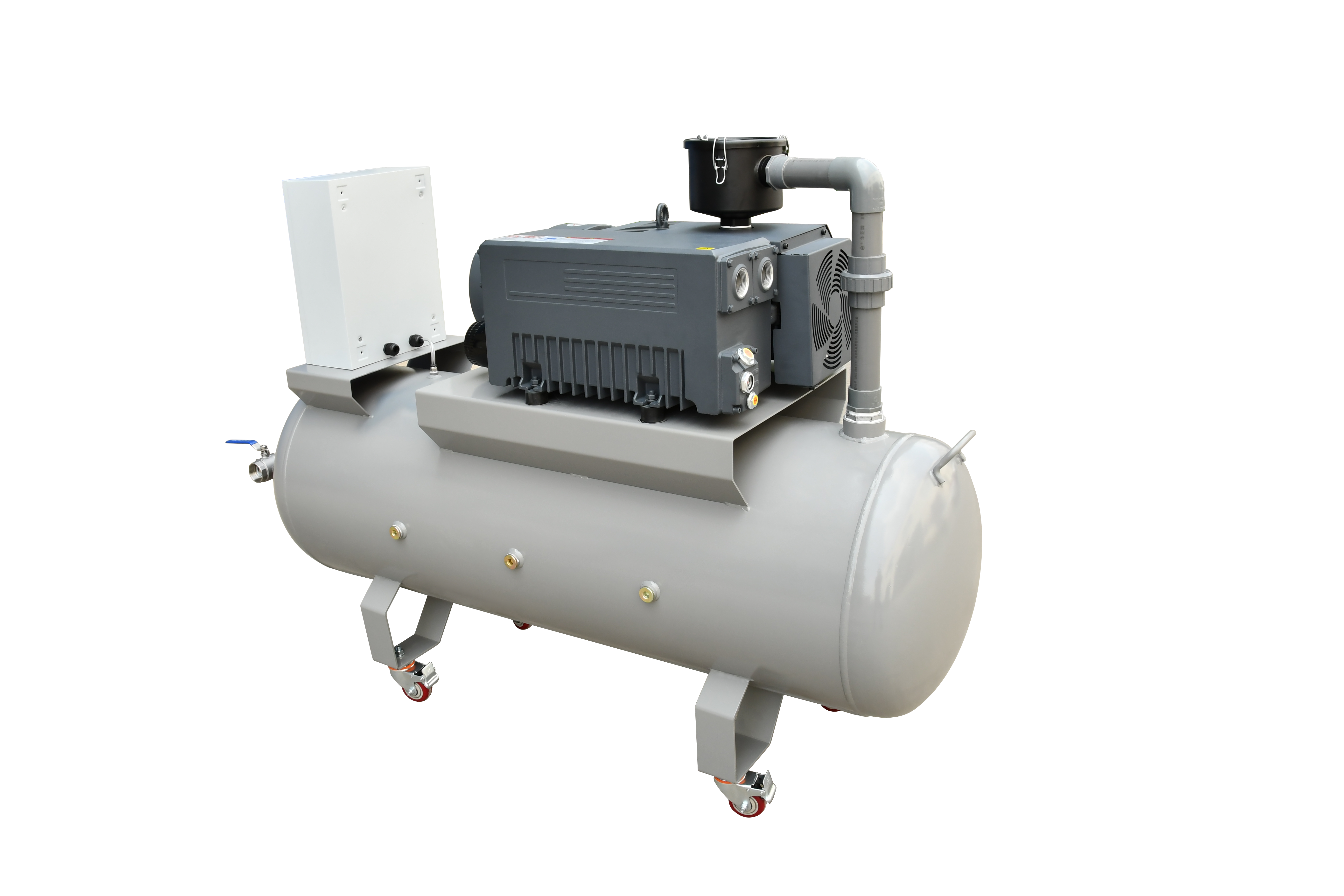

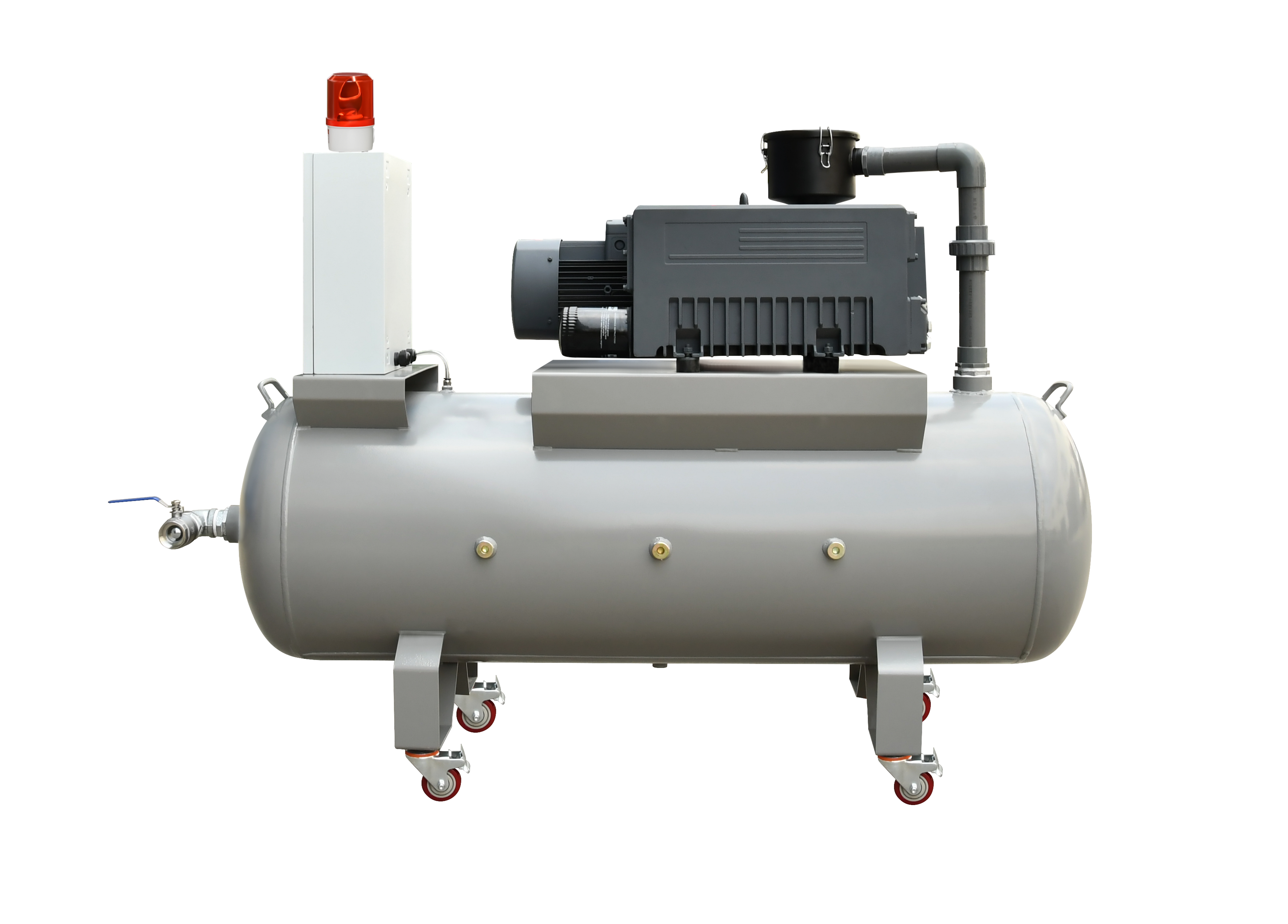

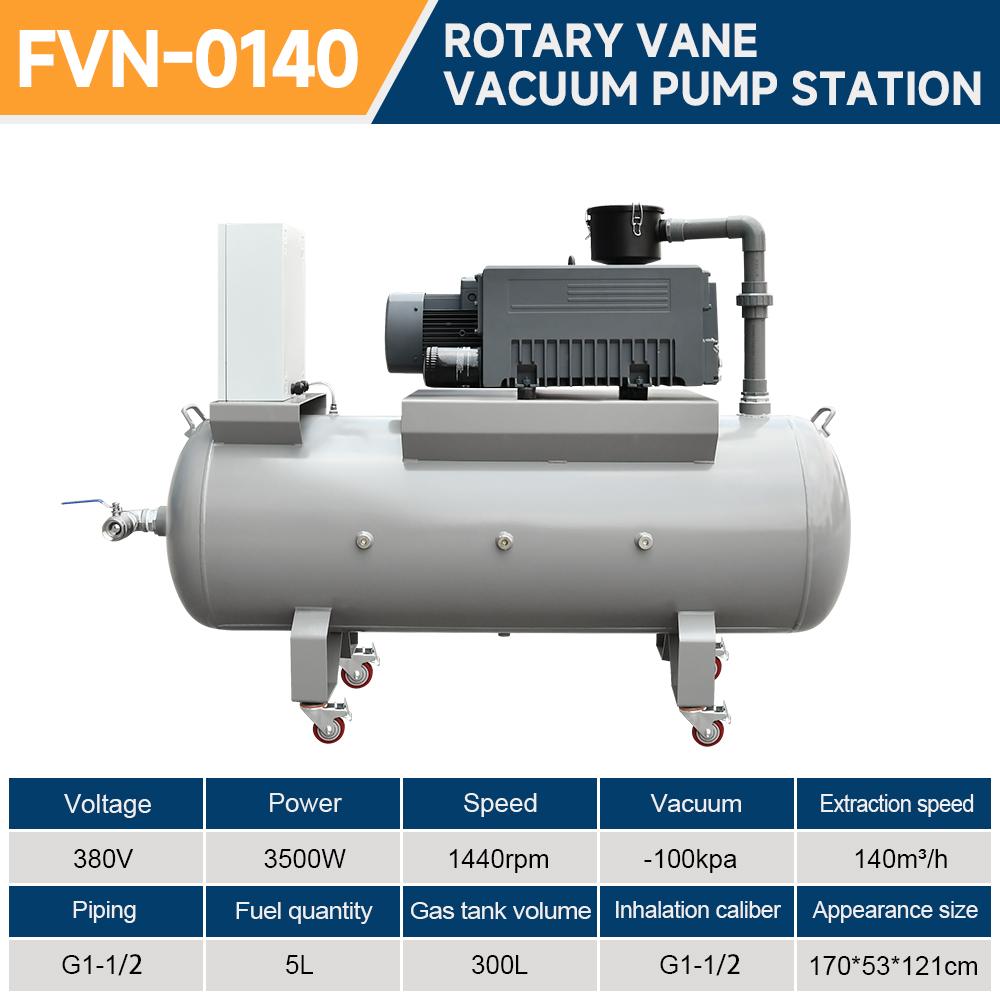

| FVN-0140 | 140 | 380 | 3500 | 1440 | 300 | G2-1/2 | 5 | -100 | 170*53*121 |
| FVN-0202 | 202 | 380 | 4500 | 1440 | 300 | G2 | 6 | -100 | 170*53*143 |
| FVN-0302 | 302 | 380 | 7500 | 1440 | 300 | G2 | 8 | -100 | 170*53*143 |
