The ASME stamp ensures the tank meets rigorous US safety standards, providing certified reliability and legal acceptance for professional and industrial installations.

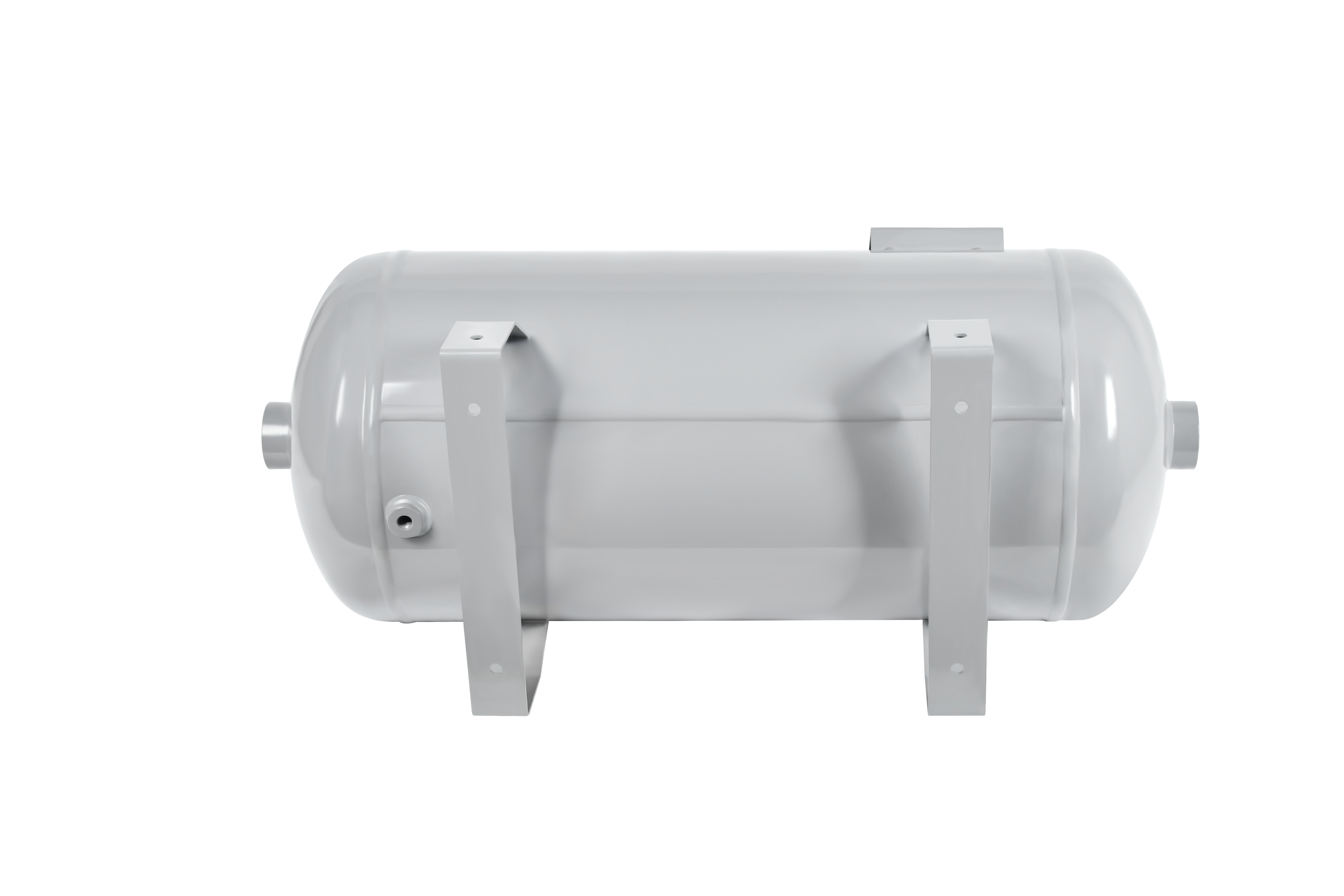

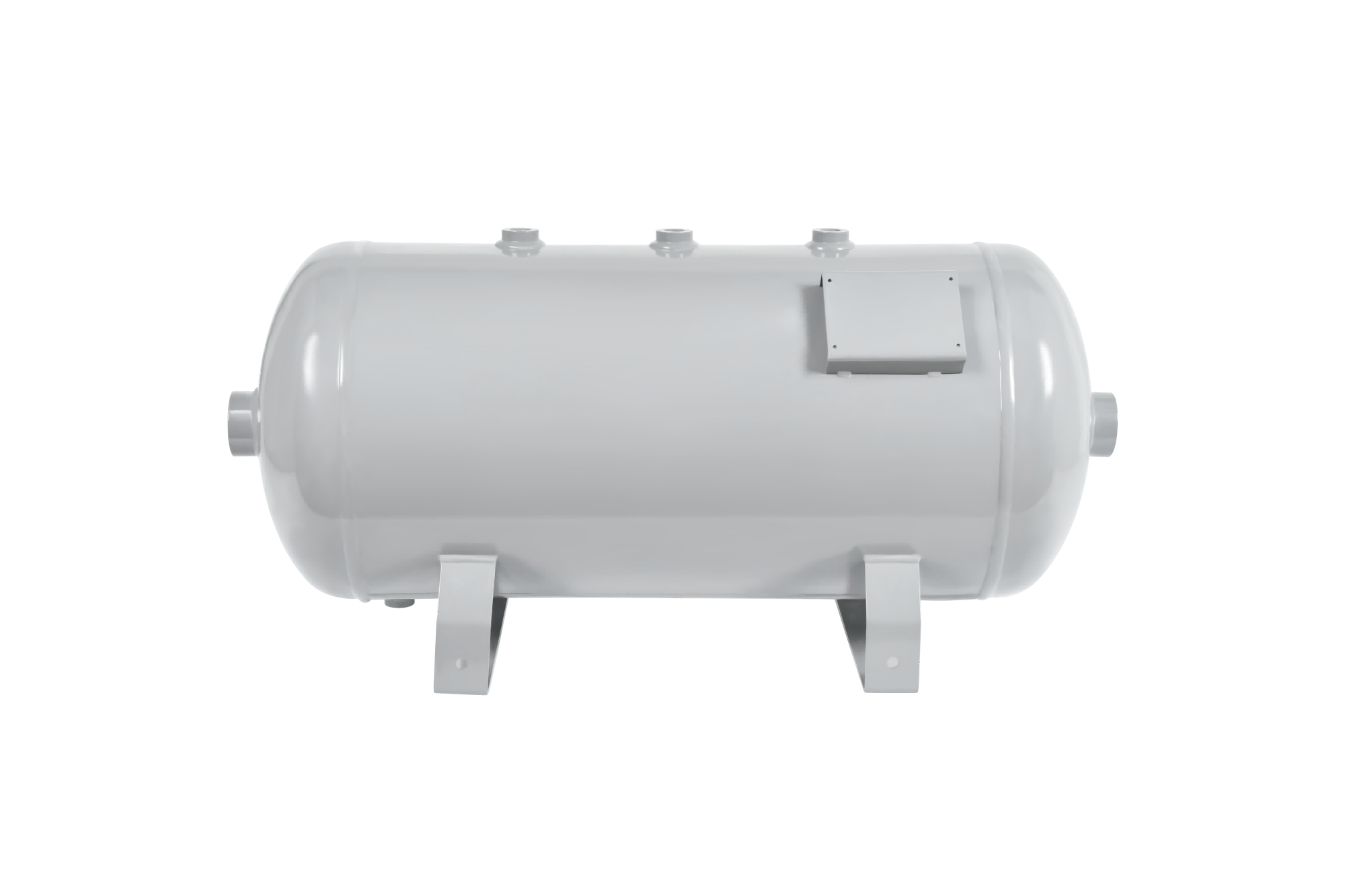

80L horizontal ASME certified air receiver tank, carbon steel construction, 8 bar working pressure. Safe, stable, and compliant with North American standards, suitable for air compressors and pneumatic systems.
The ASME stamp ensures the tank meets rigorous US safety standards, providing certified reliability and legal acceptance for professional and industrial installations.
Made from robust carbon steel, it offers long-lasting strength for safe pressure containment, representing a cost-effective and reliable solution.
The horizontal layout provides a low center of gravity for secure placement and a footprint that optimizes floor space in the workshop.
The 80L capacity at 8 bar acts as a substantial air buffer, stabilizing system pressure and reducing compressor cycles for tools operating at standard pressures.
| P/N | Pressure (bar) | L*D*H(mm) | Thickness(mm) | Package Size(mm) | Net Weight(KG) | Gross Weight(KG) | Ports |
| 5L ASME | 13 | 345*162*209 | 3 | / | 5 | 5.5 | 3:G1/2, 2:G3/4 |
| 10L ASME | 13 | 450*183*235 | 3 | / | 7.9 | 8.4 | 2:G1/2, 1:G1/4,2:G3/4 |
| 20L ASME | 13 | 540*243*315 | 3 | / | 12 | 12.5 | 2:G1/2, 2:G1/4,2:G3/4 |
| 40L ASME | 8 | 686*293*325 | 3 | / | 16 | 17 | 4:G1/2, 1:G1/4, 2: G3/4 |
| 50L ASME | 8 | 736*332*392 | 3 | / | 20 | 21 | 3:G1/2, 1:G1/4, 2: G3/4 |
| 60L Vertical ASME | 8 | 337*850*968 | 3 | / | 24 | 25 | 3:G1/2, 2:G3/4, 1: G1 |

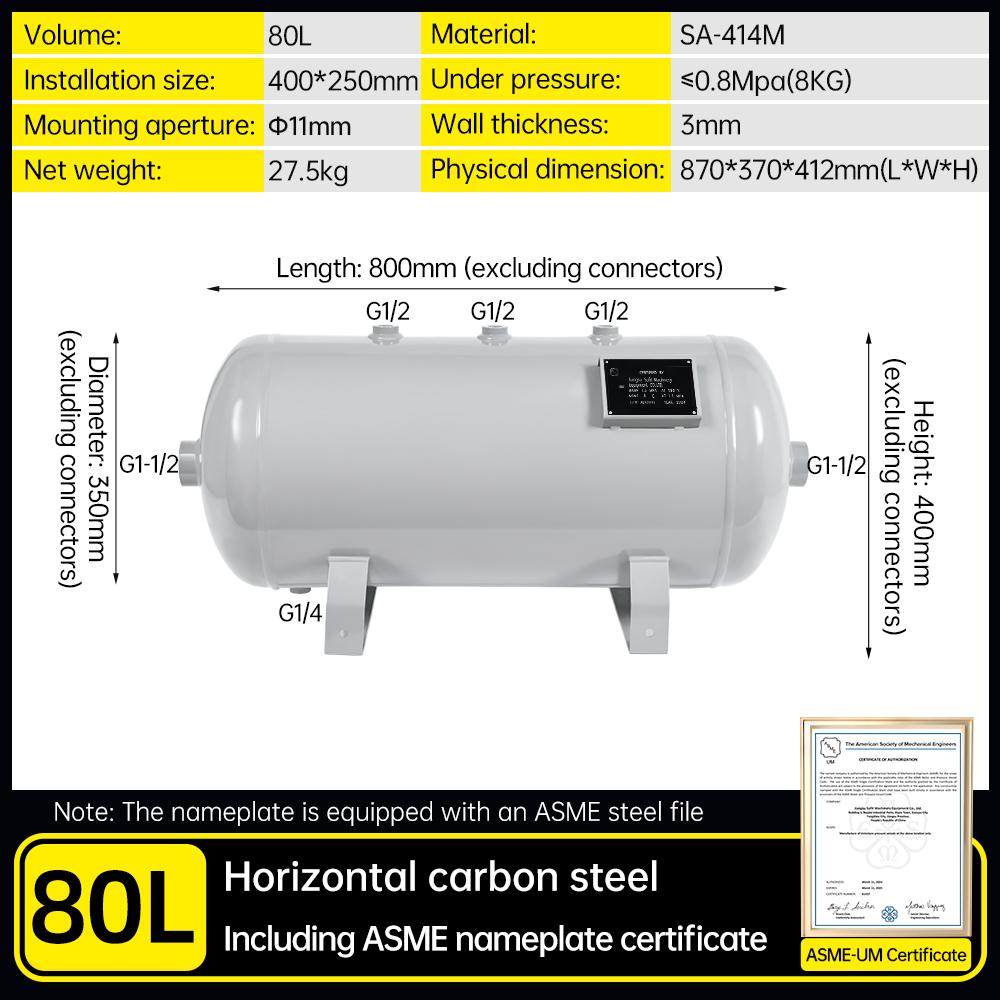

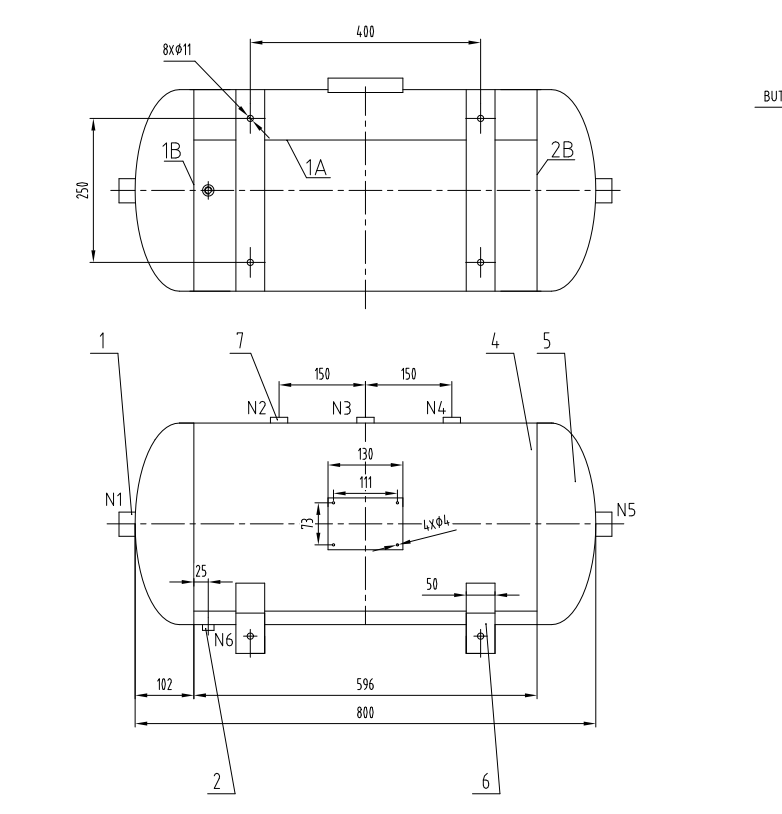

| 80L ASME | 8 | 870*370*412 | 3 | / | 27.5 | 28 | 3:G1/2, 1:G1/4, 2:G1-1/2 |
| 100L ASME | 8 | 1075*370*388.5 | 3 | / | 37.5 | 38 | 4:G1/2, 1:G1/4, 2:G1-1/2 |
| 5L ASME | 12.5 | 330*179*227 | 2 | / | 4.2 | 4.2 | 2: G1/2, 1:G1/4, 2:G3/4 |
| 10L ASME | 12.5 | 616*179*252 | 2 | / | 6.3 | 2: G1/2, 1:G1/4, 2:G3/4 | |
| 20L ASME | 12.5 | 634*239*304 | 2 | / | 7.48 | / | 2: G1/2, 1:G1/4, 2:G3/4 |
