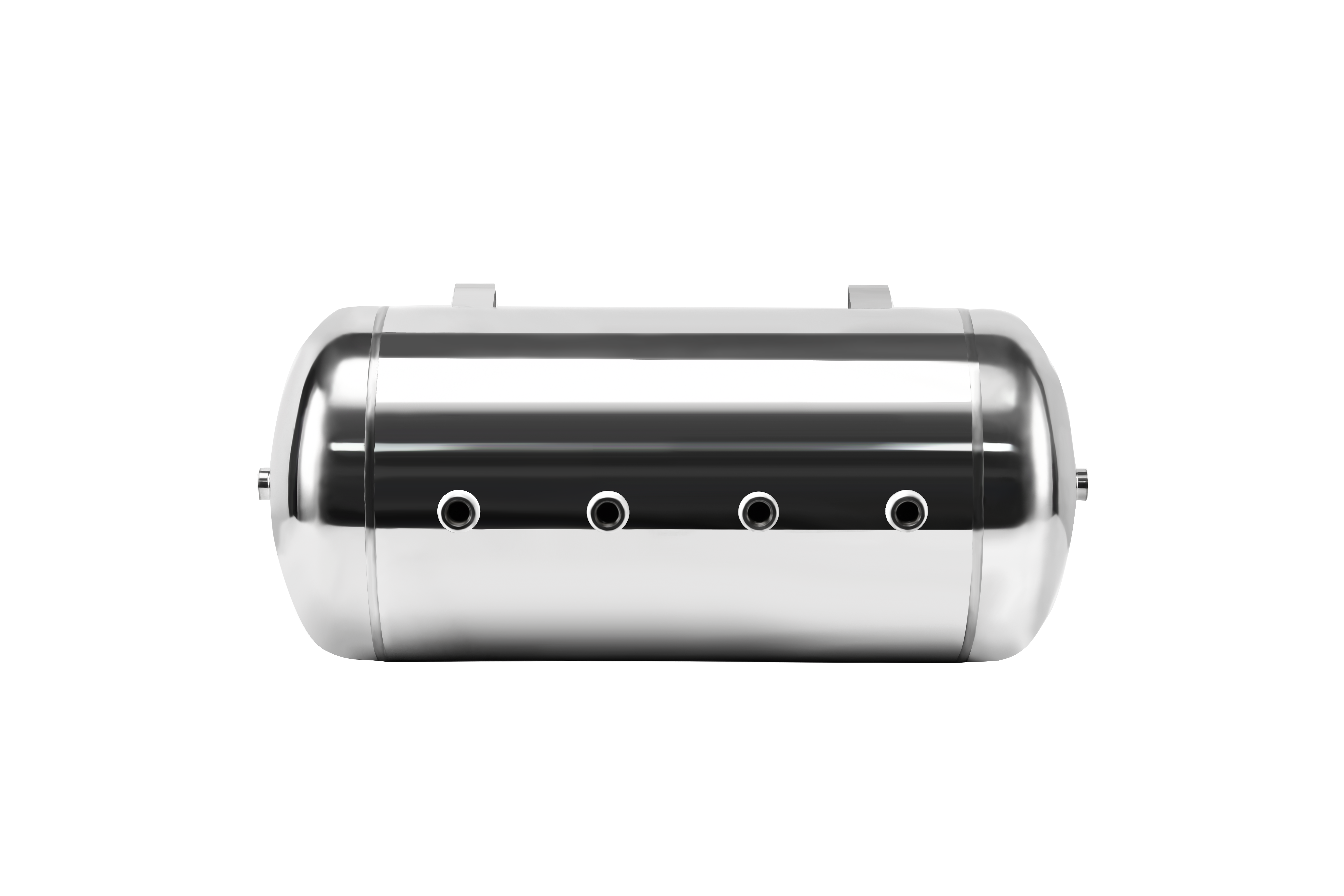

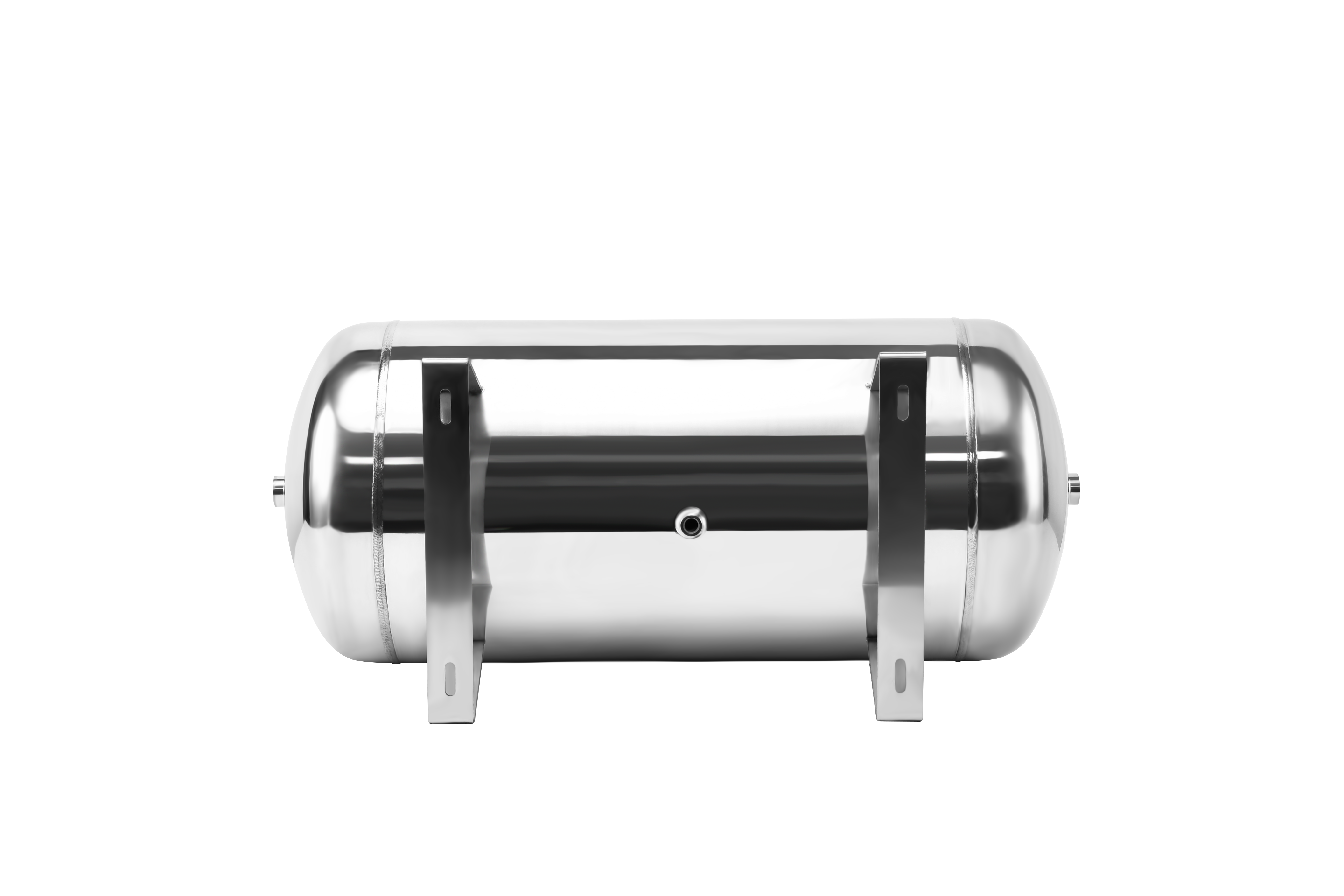

60L 304 Stainless Steel Air Receiver Tank,1.25Mpa,Mirror Finish, In Stock

This 60L, 304 stainless steel air receiver tank delivers higher pressure capacity at 1.25Mpa with a premium mirror finish.  it offers maximum installation flexibility for demanding compressed air applications.

Get a Quote
60l-304-stainless-steel-air-receiver-tank-1.25mpa-mirror-finish-in-stock
60l-304-stainless-steel-air-receiver-tank-1.25mpa-mirror-finish-in-stock
60l-304-stainless-steel-air-receiver-tank-1.25mpa-mirror-finish-in-stock-2
60l-304-stainless-steel-air-receiver-tank-1.25mpa-mirror-finish-in-stock-2
60l-304-stainless-steel-air-receiver-tank-1.25mpa-mirror-finish-in-stock-3
60l-304-stainless-steel-air-receiver-tank-1.25mpa-mirror-finish-in-stock-3
60l-304-stainless-steel-air-receiver-tank-1.25mpa-mirror-finish-in-stock
60l-304-stainless-steel-air-receiver-tank-1.25mpa-mirror-finish-in-stock-2
60l-304-stainless-steel-air-receiver-tank-1.25mpa-mirror-finish-in-stock-3

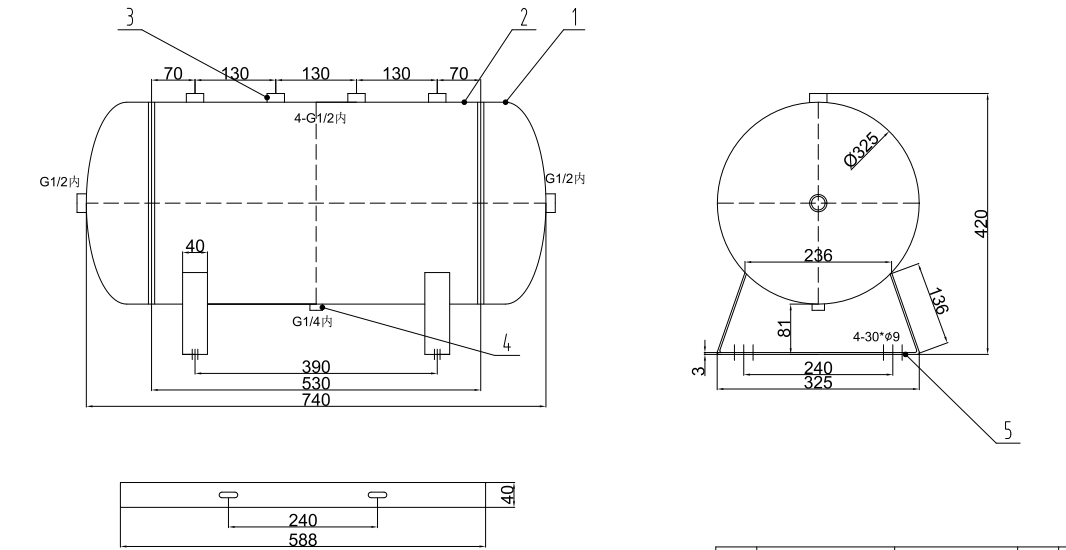

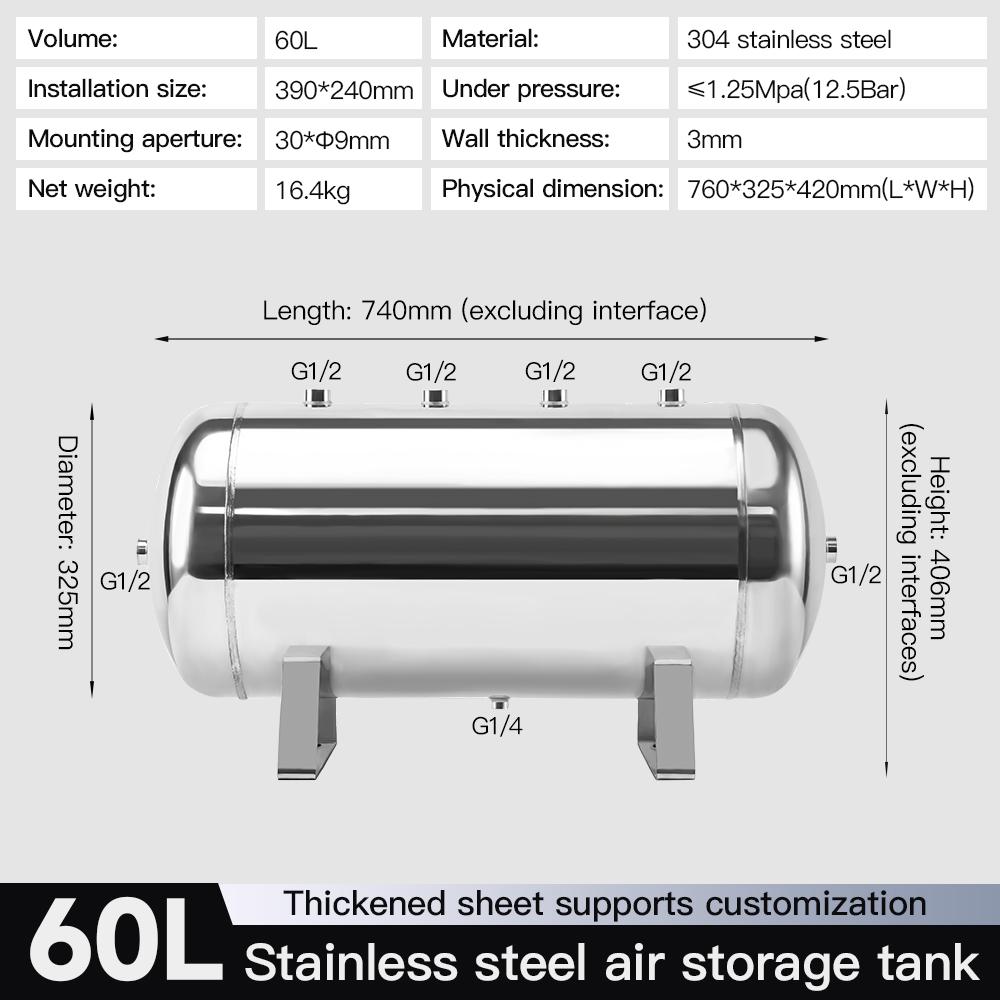

Specification of 60L 304 Stainless Steel Air Receiver Tank,1.25Mpa,Mirror Finish, In Stock

60l-304-stainless-steel-air-receiver-tank-1.25mpa-mirror-finish-in-stock-specification-2
60l-304-stainless-steel-air-receiver-tank-1.25mpa-mirror-finish-in-stock-specification-1

Reasons to Buy 60L 304 Stainless Steel Air Receiver Tank,1.25Mpa,Mirror Finish, In Stock

01
Higher Pressure Capacity

Rated for 1.25Mpa (12.5Bar), this tank exceeds standard pressure specifications, providing extra safety margin and compatibility with higher-pressure compressed air systems.c

02
Premium Mirror Finish & Availability

Features a high-polish mirror finish for enhanced corrosion resistance and professional aesthetics. Currently in stock and ready for immediate shipment.


03
Multi-Port Versatility

Equipped with multiple G1/2 and G1/4 threaded connections, offering exceptional flexibility for multiple accessory installations and simplified system integration.


04
Robust Construction & Customization

Built with 3mm thickened 304 stainless steel for long-lasting durability. The robust design supports customization to meet specific project requirements.

YCZX Existing Stainless Steel Air Receiver Tanks

P/NPressure (bar)L*D*H(mm)Thickness（mm)Package Size（mm）Net Weight（KG）Gross Weight（KG）Ports
0.1L12.5140*38*382150*50*500.220.52: G1/4
0.2L12.5150*83*542200*60*600.350.62: G1/4
0.3L12.5160*57*702180*90*1100.460.722: G1/4
0.4L12.5135*762160*92*900.50.752: G1/4
0.5L G1/412.5168*88*792180*90*1100.640.722: G1/4
0.5L G1/812.5170*80*932160*160*1100.721.12: G1/8
0.8L G1/812.5224*76*912240*110*1101.21.452: G1/8
1L12.5174*102*1052190*122*1260.91.62: G1/4
2L12.5254*108*1262250*128*1501.4834: G1/4
2L -G1/212.5260*108*1262280*110*1301.4834: G1/2
3L12.5254*133*1482260*153*1562.534: G1/4
3LA frosted12.5234*140*1552250*180*1801.7524: G1/4
3LB frosted12.5240*140*1922260*250*25022.52: G1/2,  3:G1/4
4L12.5240*159*2352250*170*2452.352.53: G1/2,  1:G1/4
5L12.5318*159*2302370*210*2053.43.82: G1/2,  3:G1/4
5LA frosted12.5310*160*2152320*170*2403.053.352: G1/2,  1:G1/4
5LB frosted12.5310*160*2302320*170*2403.13.42: G1/2,  3:G1/4
5L high pressure30290*159*2493320*180*2604.85.52: G1/2,  3:G1/4
5L vertical12.5300*174*3752380*205*2002.853.23: G1/2,  1:G1/4
5L vertical frosted12.5290*175*3552380*205*2002.853.22: G1/2,  1:G1/4
5L ASME12.5330*179*2272/4.24.22: G1/2,  1:G1/4， 2:G3/4
10L12.5510*159*2552500*185*2605.55.84: G1/2,  1:G1/4
10LA frosted12.5454*180*2352190*240*4604.75.152: G1/2,  1:G1/4
10LB frosted12.5460*180*2502460*260*2004.955.44: G1/2,  1:G1/4
10L high pressure30530*159*2493570*170*2808.1102: G1/2,  3:G1/4
10L vertical12.5345*234*4203430*239*36566.54: G1/2,  1:G1/4
10L ASME12.5616*179*2522/6.3
2: G1/2,  1:G1/4， 2:G3/4
12L frosted12.5215*270*4002420*290*2205.455.953: G1/2
15L12.5450*219*2932460*230*3206.57.25: G1/2,1:G1/4
20L12.5500*290*2192.5530*300*2507.257.854: G1/2,1:G1/4
20LA frosted12.5500*296*2362.5510*250*3157.27.93: G4/2
20LB frosted12.5500*306*2362.5510*250*3157.27.94: G1/2, 1:G1/4
20L high pressure30626*219*2895660*260*31014.715.24: G1/2, 1:G1/4
20L vertical12.5430*260*5453450*280*5659.410.65: G1/2, 1:G1/4
20L ASME12.5634*239*3042/7.48/2: G1/2,  1:G1/4， 2:G3/4
25L frosted12.5580*306*2362.5590*250*3157.98.64: G1/2, 1:G1/4
30L12.5530*273*3502.5550*293*37013.1513.55: G1/2, 1:G1/4
30L frosted12.5460*365*3202.5490*375*33012.213.554: G1/2, 1:G1/4
40L12.5690*273*3503720*300*37015.215.55: G1/2, 1:G1/4
50L12.5760*325*4002780*345*42019.716.84: G1/2, 1:G1/4
60L12.5760*325*4003780*345*42016.420.56: G1/2, 1:G1/4
300L-8 bar Vertical8φ550*1612




300L-10 bar Vertical10φ550*1612
/


300L-13 bar Vertical13φ550*1614




300L-16 bar Vertical16φ550*1614




600L-8 bar Vertical8φ650*2134
/


600L-10 bar Vertical10φ650*2135
/


600L-13 bar Vertical13φ650*2136




600L-16 bar Vertical16φ650*2136




1m³-8 bar Vertical8φ800*2258
/


1m³-10 bar Vertical10φ800*2260
/


1m³-13 bar Vertical13φ800*2260
/


1m³-16 bar Vertical16φ800*2260
/


1.5m³-13 bar Vertical13φ1000*2291




1.5m³-16 bar Vertical16φ1000*2291




2m³-8 bar Vertical8φ1000*2838
/


2m³-10 bar Vertical10φ1000*2838
/


2m³-13 bar Vertical13φ1000*2810




2m³-16 bar Vertical16φ1000*2810
/


3m³-8 bar Vertical8φ1200*2952




3m³-10 bar Vertical10φ1200*2954




3m³-13 bar Vertical13φ1200*2958




3m³-16 bar Vertical16φ1200*2958
/


4m³-8 bar Vertical8φ1400*3074




4m³-10 bar Vertical10φ1400*3078




4m³-13 bar Vertical13φ1400*3078




4m³-16 bar Vertical16φ1400*3078




5m³-8 bar Vertical8φ1400*3752




5m³-10 bar Vertical10φ1400*3754
/


5m³-13 bar Vertical13φ1400*3754




5m³-16 bar Vertical16φ1400*3754




6m³-8 bar Vertical8φ1400*4362




6m³-10 bar Vertical10φ1400*4364




6m³-13 bar Vertical13φ1400*4364




6m³-16 bar Vertical16φ1400*4364




8m³-13 bar Vertical13φ1600*4464




8m³-16 bar Vertical16φ1600*4466
