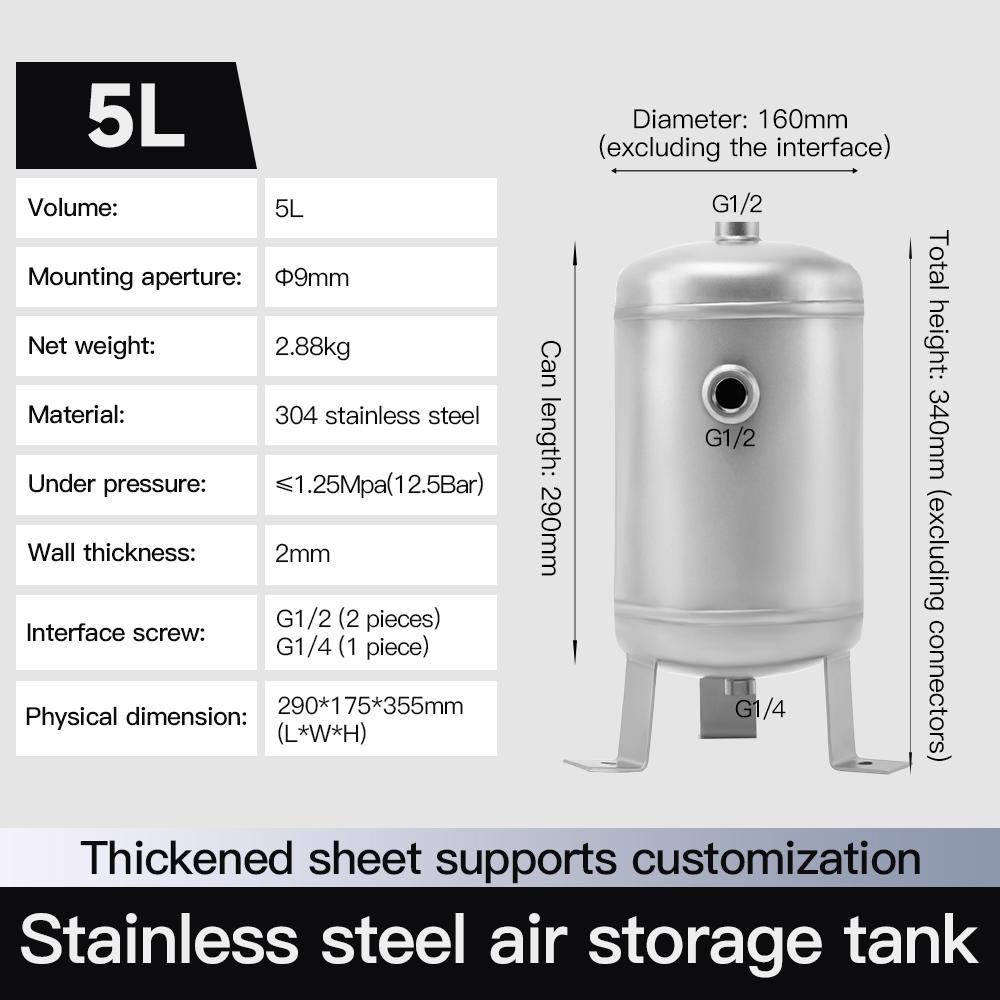

This 5L vertical air storage tank is made of 304 stainless steel with a frosted finish, rated for 12.5Bar pressure. It features two G1/2 ports and one G1/4 drain port, with stable two-leg mounting. Ideal for compact clean air systems, and supports customization.
The frosted (matte) 304 stainless steel surface resists fingerprints and minor scratches while providing a clean, professional look, ideal for applications where appearance matters.

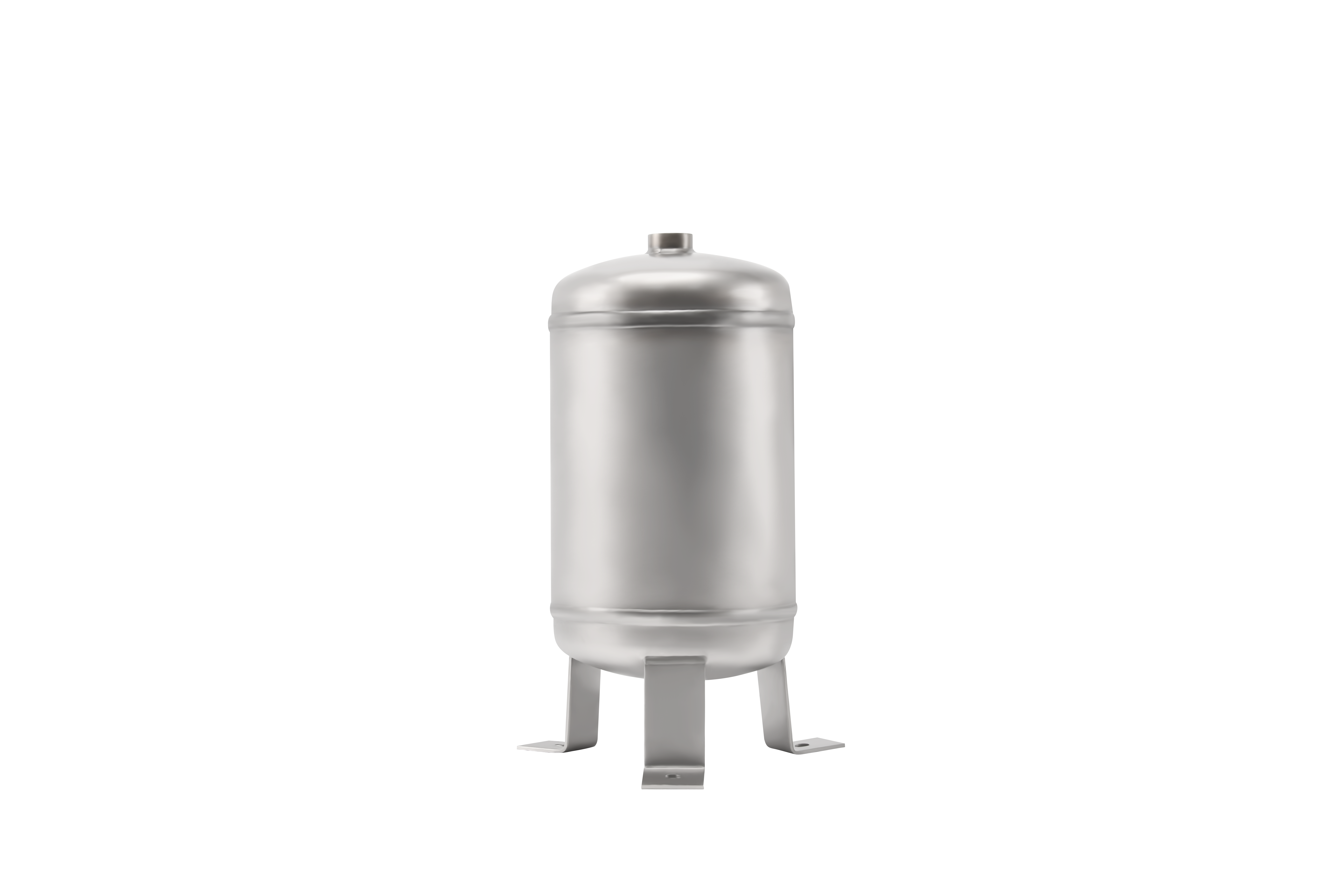

With three integrated support feet and a total height of 340mm, it offers excellent stability and a minimal footprint, perfect for secure mounting in equipment racks or tight spaces.
Includes two G1/2" and one G1/4" ports, offering flexible connections for air inlet, outlet, pressure gauges, safety valves, and drains in compact pneumatic systems.
Made from 2mm thick 304 stainless steel and supporting customization (e.g., thicker walls, additional ports), it ensures corrosion resistance, long-term durability, and adaptability to specific needs.
| P/N | Pressure (bar) | L*D*H(mm) | Thickness（mm) | Package Size（mm） | Net Weight（KG） | Gross Weight（KG） | Ports |
| 5L vertical | 12 | 300*200*350 | 2 | 300*200*350 | 3.8 | 4 | 6: G1/4 |
| 10L Vertical | 12 | 460*180*520 | 2 | 530*250*255 | 4.45 | 5.1 | 4:G1/2, 1:G1/4 |
| 20L Vertical | 12 | 350*280*462 | 2.5 | 480*330*300 | 9.4 | 10 | 4:G1/2, 1:G1/4 |
| 30L Vertical | 10 | 500*280*600 | 2.5 | 620*320*290 | 11.5 | 12.3 | 4:G1/2, 1:G1/4 |
| 40L Vertical | 10 | 600*300*700 | 3 | 725*330*315 | 14.15 | 15.35 | 4:G1/2, 1:G1/4 |
| 50L Vertical | 8 | 700*300*812 | 3 | 825*310*335 | 16.15 | 17.35 | 4:G1/2, 1:G1/4, 1: G1 |
| 60L Vertical | 10 | 850*300*962 | 3 | 972*320*330 | 18.55 | 19.85 | 5:G1/2, 1: G1 |
| 60L Vertical ASME | 8 | 337*850*968 | 3 | / | 24 | 25 | 3:G1/2, 2:G3/4, 1: G1 |
| 60L Vertical CE | 8 | 337*850*968 | 3 | / | 24 | 25 | 3:G1/2, 2:G3/4, 1: G1 |
| 80L Vertical | 12 | 650*470*482 | 3.5 | / | 25.2 | 25.2 | 5:G1/2, 1: G1 |
| 100L-A Vertical | 10 | 1240*350*1400 | 3 | / | 38 | 38 | 2:G1/4, 1:G3/4, 2: G1 |
| 100L-B Vertical | 12 | 800*400*932 | 3 | / | 30 | 30 | 5:G1/2, 1:G1/4 |
| 300L-8 bar Vertical | 8 | φ550*1525 | 3 | / | 73 | 73 | DN25 |
| 300L-10bar Vertical | 10 | φ550*1525 | 3 | / | 82 | 82 | DN25 |
| 300L-13bar Vertical | 13 | φ550*1525 | 3.5 | / | 82 | 82 | DN25 |
| 300L-16bar Vertical | 16 | φ550*1525 | 4.5 | / | 105 | 105 | DN25 |
| 300L-30bar Vertical | 30 | φ550*1525 | 8 | / | 201 | 201 | DN40 |
| 300L-40bar Vertical | 40 | φ550*1525 | 10 | / | 230 | 230 | DN40 |
| 600L-8 bar Vertical | 8 | φ650*2050 | 3 | / | 112 | 112 | DN65 |
| 600L-10 bar Vertical | 10 | φ650*2050 | 3 | / | 118 | 118 | DN65 |
| 600L-13 bar Vertical | 13 | φ650*2050 | 3.5 | / | 132 | 132 | DN40 |
| 600L-16 bar Vertical | 16 | φ650*2050 | 4.5 | / | 170 | 170 | DN40 |
| 600L-30 bar Vertical | 30 | φ650*2050 | 8 | / | 310 | 310 | DN40 |
| 600L-40 bar Vertical | 40 | φ650*2050 | 10 | / | 420 | 420 | DN40 |
| 1m³-8 bar Vertical | 8 | φ800*2140 | 3.5 | / | 170 | 170 | DN80 |
| 1m³-10 bar Vertical | 10 | φ780*2080 | 3.5 | / | 156 | 156 | DN40 |
| 1m³-13 bar Vertical | 13 | φ780*2080 | 4.5 | / | 200 | 200 | DN40 |
| 1m³-16 bar Vertical | 16 | φ780*2080 | 5.5 | / | 286 | 286 | DN40 |
| 1m³-20 bar Vertical | 20 | φ800*2140 | 8 | / | 390 | 390 | DN40 |
| 1m³-30 bar Vertical | 30 | φ800*2140 | 10 | / | 472 | 472 | DN40 |
| 1m³-40 bar Vertical | 40 | φ800*2140 | 12 | / | 590 | 590 | DN40 |
| 1m³-60 bar Vertical | 60 | φ800*2322 | 20 | 1000 | 1000 | DN40,DN100 | |
| 1.5m³-8 bar Vertical | 8 | φ980*2180 | 4 | / | 240 | 240 | DN80 |
| 1.5m³-10 bar Vertical | 10 | φ980*2180 | 4.5 | / | 270 | 270 | DN80 |
| 1.5m³-13 bar Vertical | 13 | φ1000*2268 | 5.5 | / | 365 | 365 | DN50 |
| 1.5m³-30 bar Vertical | 30 | φ1000*2268 | 12 | / | 750 | 750 | DN80 |
| 2m³-8 bar Vertical | 8 | φ980*2680 | 4 | / | 295 | 295 | DN80 |
| 2m³-10 bar Vertical | 10 | φ980*2680 | 4.5 | / | 325 | 325 | DN50 |
| 2m³-13 bar Vertical | 13 | φ1000*2750 | 5.5 | / | 432 | 432 | DN80 |
| 2m³-16 bar Vertical | 16 | φ1000*2750 | 7 | / | 552 | 552 | DN80 |
| 2m³-20 bar Vertical | 20 | φ1000*2750 | 8 | / | 615 | 615 | DN50 |
| 2m³-25 bar Vertical | 25 | φ1000*2750 | 10 | 765 | 765 | DN50 | |
| 2m³-30 bar Vertical | 30 | φ1000*2750 | 12 | / | 905 | 905 | DN50 |
| 2m³-40 bar Vertical | 40 | φ1000*2750 | 16 | / | 1250 | 1250 | DN50 |
| 3m³-8 bar Vertical | 8 | φ1200*2800 | 4.5 | / | 430 | 430 | DN80 |
| 3m³-10 bar Vertical | 10 | φ1200*2800 | 5.5 | / | 545 | 545 | DN80 |
| 3m³-13 bar Vertical | 13 | φ1200*2870 | 7 | / | 625 | 625 | DN80 |
| 3m³-16 bar Vertical | 16 | φ1200*2870 | 8 | / | 740 | 740 | DN80 |
| 3m³-25 bar Vertical | 25 | φ1200*2870 | 12 | / | 1130 | 1130 | DN80 |
| 3m³-30 bar Vertical | 30 | φ1200*2800 | 14 | / | 1300 | 1300 | DN80 |
| 4m³-8 bar Vertical | 8 | φ1400*2870 | 5 | / | 680 | 680 | DN100 |
| 4m³-10 bar Vertical | 10 | φ1400*2870 | 6 | / | 780 | 780 | DN100 |
| 4m³-13 bar Vertical | 13 | φ1400*2950 | 8 | / | 920 | 920 | DN100 |
| 5m³-8 bar Vertical | 8 | φ1400*3450 | 5 | / | 790 | 790 | DN100 |
| 5m³-10 bar Vertical | 10 | φ1400*3470 | 6 | / | 860 | 860 | DN100 |
| 5m³-13 bar Vertical | 13 | φ1400*3550 | 8 | / | 1065 | 1065 | DN100 |
| 6m³-8 bar Vertical | 8 | φ1400*4100 | 5 | / | 816 | 816 | DN100 |
| 6m³-10 bar Vertical | 10 | φ1400*4100 | 6 | / | 1030 | 1030 | DN100 |
| 8m³-8 bar Vertical | 8 | φ1600*4100 | 5.5 | / | 1140 | 1140 | DN125 |
| 8m³-10 bar Vertical | 10 | φ1600*4100 | 6.5 | / | 1350 | 1350 | DN125 |
| 8m³-16 bar Vertical | 16 | φ1600*4070 | 10 | / | 1820 | 1820 | DN125 |
| 8m³-20 bar Vertical | 20 | φ1600*4070 | 12 | / | 2490 | 2490 | DN125/DN400 |
| 10m³-8 bar Vertical | 8 | φ1800*4162 | 6 | / | 1380 | 1380 | DN150 |
| 10m³-10 bar Vertical | 10 | φ1800*4166 | 7.5 | / | 1640 | 1640 | DN250 |
| 10m³-13bar Vertical | 13 | φ1800*4166 | 10 | / | 2080 | 2080 | DN150 |
| 10m³-16bar Vertical | 16 | φ1800*4166 | 12 | / | 2615 | 2615 | DN150 |
| 15m³-10bar Vertical | 10 | φ2000*5100 | 8 | / | 2280 | 2280 | DN150 |
| 20m³-8 bar Vertical | 8 | φ2100*6150 | 7 | / | 2580 | 2580 | DN200 |
| 20m³-10 bar Vertical | 10 | φ2100*6150 | 8.5 | / | 3090 | 3090 | DN200 |
| 20m³-16 bar Vertical | 16 | φ2100*6150 | 12 | 4570 | 4570 | DN200 | |
| 25m³-8 bar Vertical | 8 | φ2400*6080 | 9 | / | 3810 | 3810 | DN200 |
| 5L vertical | 12.5 | 300*174*375 | 2 | 380*205*200 | 2.85 | 3.2 | 3: G1/2, 1:G1/4 |

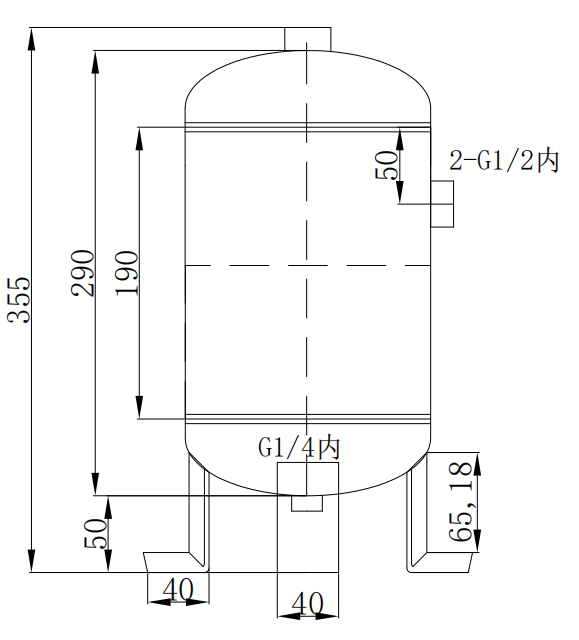

| 5L vertical frosted | 12.5 | 290*175*355 | 2 | 380*205*200 | 2.85 | 3.2 | 2: G1/2, 1:G1/4 |
| 10L vertical | 12.5 | 345*234*420 | 3 | 430*239*365 | 6 | 6.5 | 4: G1/2, 1:G1/4 |
| 20L vertical | 12.5 | 430*260*545 | 3 | 450*280*565 | 9.4 | 10.6 | 5: G1/2, 1:G1/4 |
| 300L-8 bar Vertical | 8 | φ550*1612 | |||||
| 300L-10 bar Vertical | 10 | φ550*1612 | / | ||||
| 300L-13 bar Vertical | 13 | φ550*1614 | |||||
| 300L-16 bar Vertical | 16 | φ550*1614 | |||||
| 600L-8 bar Vertical | 8 | φ650*2134 | / | ||||
| 600L-10 bar Vertical | 10 | φ650*2135 | / | ||||
| 600L-13 bar Vertical | 13 | φ650*2136 | |||||
| 600L-16 bar Vertical | 16 | φ650*2136 | |||||
| 1m³-8 bar Vertical | 8 | φ800*2258 | / | ||||
| 1m³-10 bar Vertical | 10 | φ800*2260 | / | ||||
| 1m³-13 bar Vertical | 13 | φ800*2260 | / | ||||
| 1m³-16 bar Vertical | 16 | φ800*2260 | / | ||||
| 1.5m³-13 bar Vertical | 13 | φ1000*2291 | |||||
| 1.5m³-16 bar Vertical | 16 | φ1000*2291 | |||||
| 2m³-8 bar Vertical | 8 | φ1000*2838 | / | ||||
| 2m³-10 bar Vertical | 10 | φ1000*2838 | / | ||||
| 2m³-13 bar Vertical | 13 | φ1000*2810 | |||||
| 2m³-16 bar Vertical | 16 | φ1000*2810 | / | ||||
| 3m³-8 bar Vertical | 8 | φ1200*2952 | |||||
| 3m³-10 bar Vertical | 10 | φ1200*2954 | |||||
| 3m³-13 bar Vertical | 13 | φ1200*2958 | |||||
| 3m³-16 bar Vertical | 16 | φ1200*2958 | / | ||||
| 4m³-8 bar Vertical | 8 | φ1400*3074 | |||||
| 4m³-10 bar Vertical | 10 | φ1400*3078 | |||||
| 4m³-13 bar Vertical | 13 | φ1400*3078 | |||||
| 4m³-16 bar Vertical | 16 | φ1400*3078 | |||||
| 5m³-8 bar Vertical | 8 | φ1400*3752 | |||||
| 5m³-10 bar Vertical | 10 | φ1400*3754 | / | ||||
| 5m³-13 bar Vertical | 13 | φ1400*3754 | |||||
| 5m³-16 bar Vertical | 16 | φ1400*3754 | |||||
| 6m³-8 bar Vertical | 8 | φ1400*4362 | |||||
| 6m³-10 bar Vertical | 10 | φ1400*4364 | |||||
| 6m³-13 bar Vertical | 13 | φ1400*4364 | |||||
| 6m³-16 bar Vertical | 16 | φ1400*4364 | |||||
| 8m³-13 bar Vertical | 13 | φ1600*4464 | |||||
| 8m³-16 bar Vertical | 16 | φ1600*4466 |
