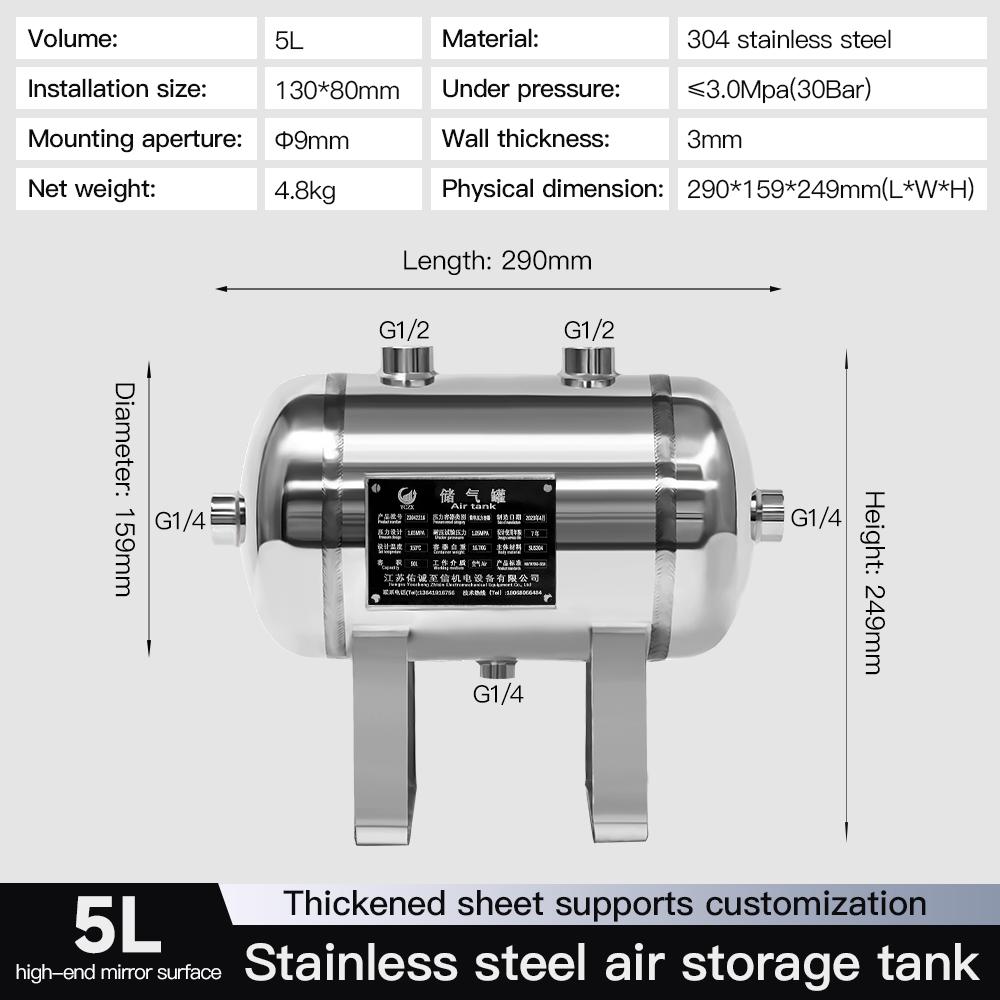

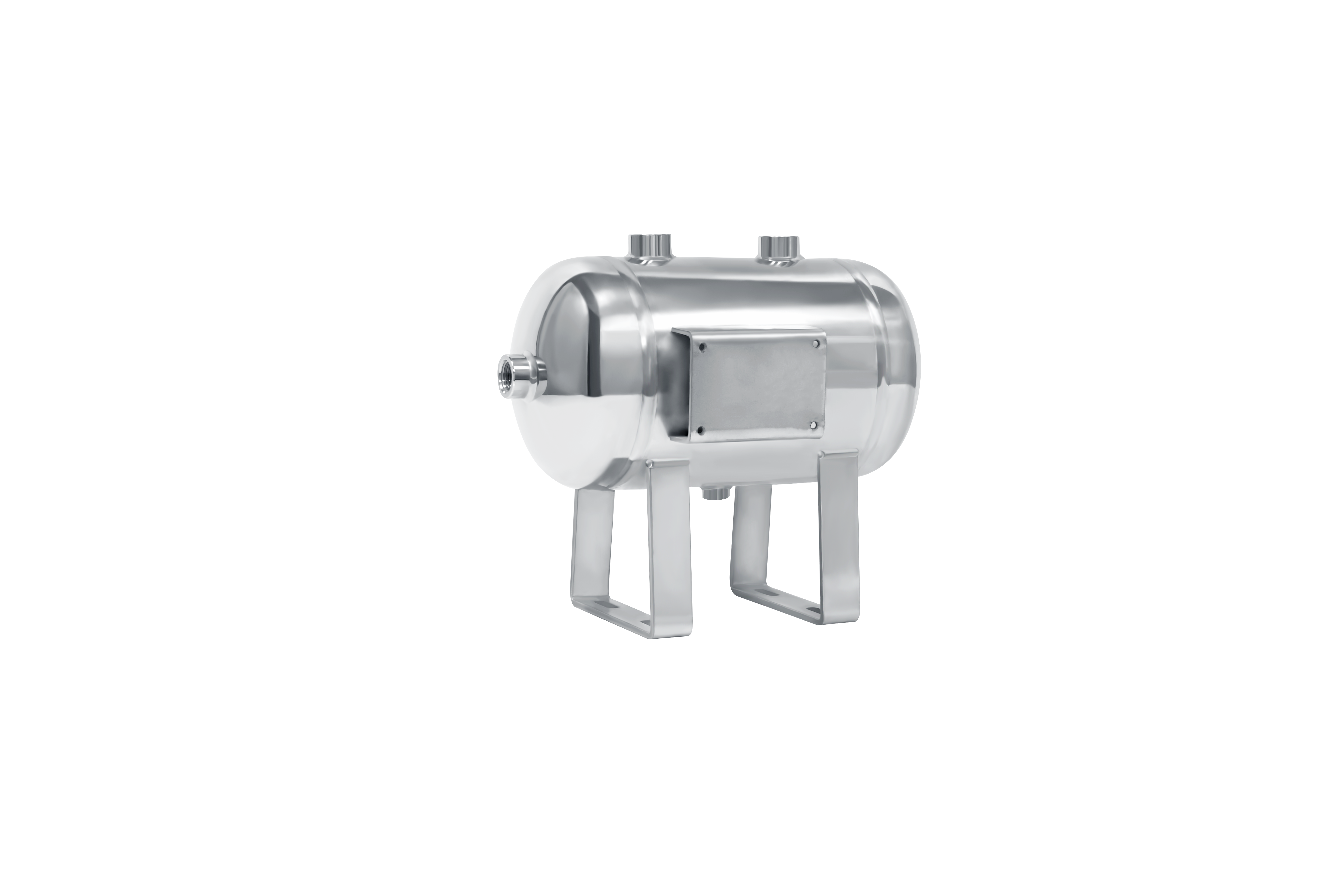

This 5L horizontal air storage tank is made of 304 stainless steel with a high-end mirror surface and 3mm thickened wall, rated for 30Bar working pressure. It features multiple G1/2 and G1/4 ports, stable support legs, and supports customization. Ideal for high-pressure clean air systems in labs, food, and medical industries.
Rated for 30 bar (3.0 MPa) with a thickened 3mm 304 stainless steel wall, this tank offers exceptional strength and safety for demanding high-pressure pneumatic and instrumentation systems.
Equipped with multiple ports (G1/2" and G1/4"), it provides flexible connectivity for gauges, valves, and air lines, making it ideal for complex setups in compact spaces.
The high-end mirror-polished 304 stainless steel ensures superior corrosion resistance, hygiene, and long-term durability in harsh or sensitive environments with minimal maintenance.

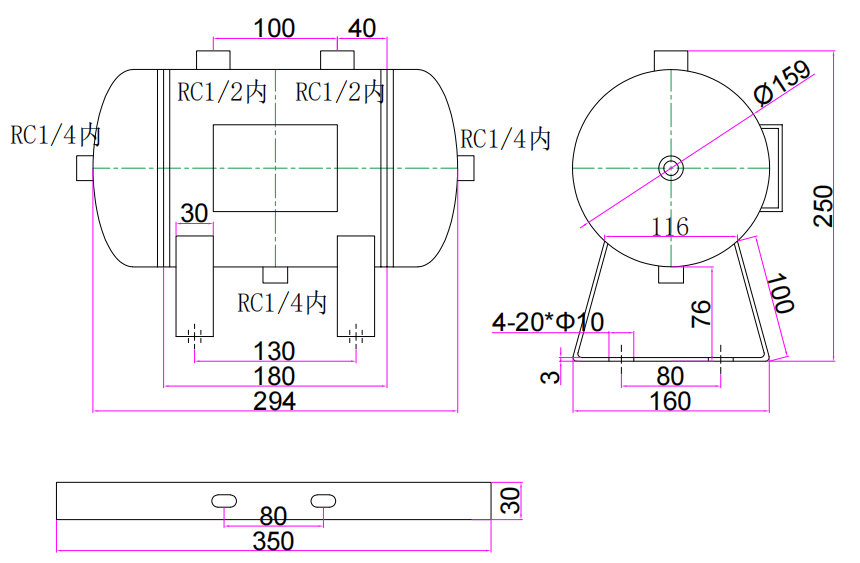

Its compact dimensions (290mm long) and in-stock status allow for quick integration and deployment into limited spaces for immediate system upgrades or repairs.
| P/N | Pressure (bar) | L*D*H(mm) | Thickness（mm) | Package Size（mm） | Net Weight（KG） | Gross Weight（KG） | Ports |
| 5L high pressure | 50 | 290*159*249 | 5 | 300*180*260 | 6.6 | 7.6 | 3:G1/4, 2:G1/2 |
| 10L high pressure | 50 | 544*159*221 | 5 | 568*250*180 | 9.7 | 11 | 4:G1/2, 1:G1/4 |
| 20L high pressure | 50 | 626*289*219 | 5 | 650*230*300 | 21.7 | 24 | 4:G1/2, 1:G1/4 |
| 5L high pressure | 30 | 290*159*249 | 3 | 320*180*260 | 4.8 | 5.5 | 2: G1/2, 3:G1/4 |
| 10L high pressure | 30 | 530*159*249 | 3 | 570*170*280 | 8.1 | 10 | 2: G1/2, 3:G1/4 |
| 20L high pressure | 30 | 626*219*289 | 5 | 660*260*310 | 14.7 | 15.2 | 4: G1/2, 1:G1/4 |
