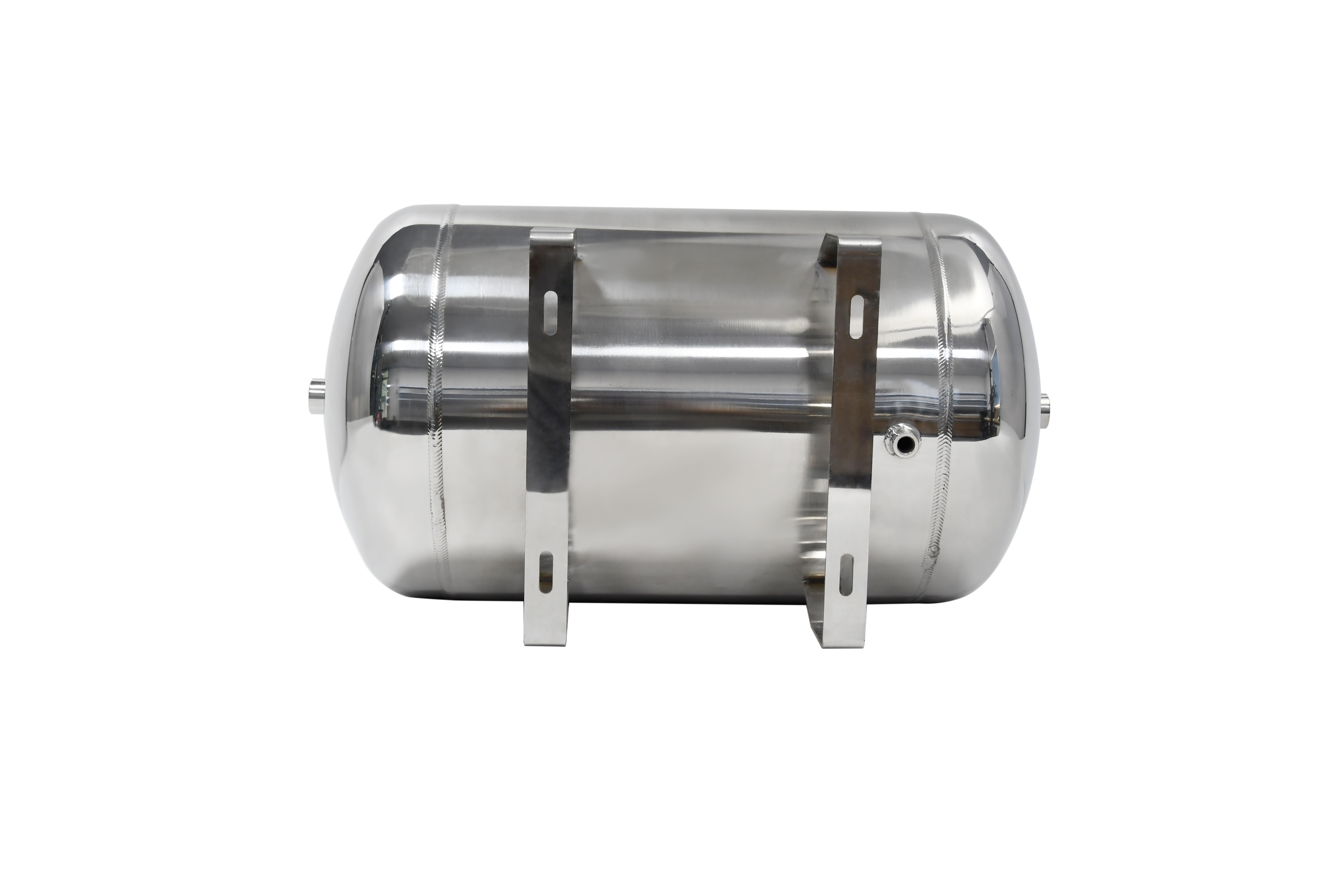

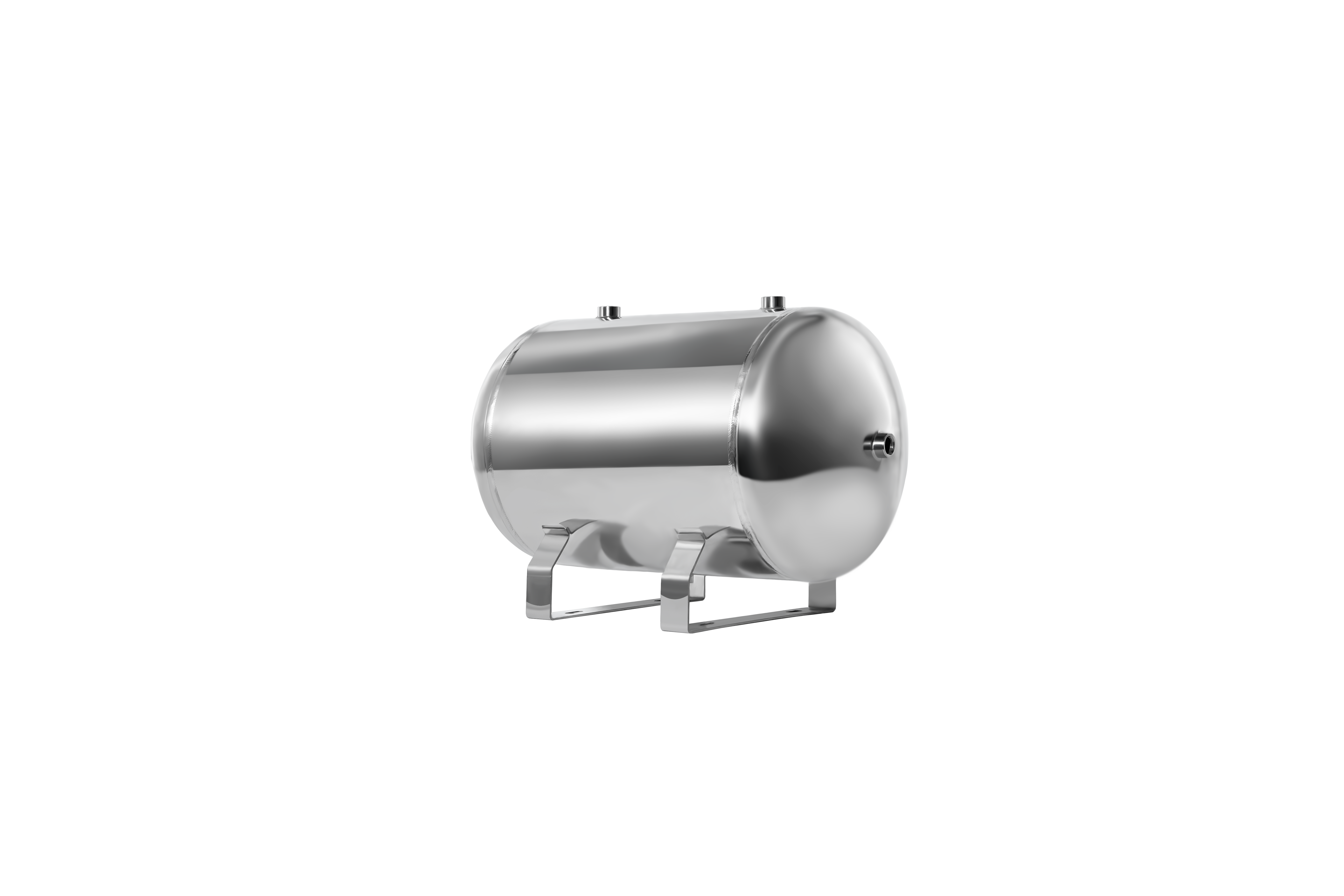

This is a 40L horizontal air receiver tank made from 304 stainless steel with a thickened 3mm wall, max working pressure 1.0 MPa (10 Bar). Designed for reliable performance in industrial compressed air systems.
Features a high-polish mirror surface finish that enhances corrosion resistance and provides a professional, clean appearance ideal for facilities where aesthetics and hygiene are priorities.
Engineered to safely handle pressures up to 1.0Mpa (10Bar) and comes complete with an inspection certificate and nameplate, ensuring regulatory compliance and operational peace of mind.
Equipped with G1/2 and G1/4 ports, offering versatile installation options for various accessories and simplifying integration into existing compressed air systems.
In stock and available for immediate dispatch. For specialized requirements, the thickened 3mm sheet construction supports customization to meet unique project specifications.
| P/N | Pressure (bar) | L*D*H(mm) | Thickness（mm) | Package Size（mm） | Net Weight（KG） | Gross Weight（KG） | Ports |
| 0.1L | 12.5 | 140*38*38 | 2 | 150*50*50 | 0.22 | 0.5 | 2: G1/4 |
| 0.2L | 12.5 | 150*83*54 | 2 | 200*60*60 | 0.35 | 0.6 | 2: G1/4 |
| 0.3L | 12.5 | 160*57*70 | 2 | 180*90*110 | 0.46 | 0.72 | 2: G1/4 |
| 0.4L | 12.5 | 135*76 | 2 | 160*92*90 | 0.5 | 0.75 | 2: G1/4 |
| 0.5L G1/4 | 12.5 | 168*88*79 | 2 | 180*90*110 | 0.64 | 0.72 | 2: G1/4 |
| 0.5L G1/8 | 12.5 | 170*80*93 | 2 | 160*160*110 | 0.72 | 1.1 | 2: G1/8 |
| 0.8L G1/8 | 12.5 | 224*76*91 | 2 | 240*110*110 | 1.2 | 1.45 | 2: G1/8 |
| 1L | 12.5 | 174*102*105 | 2 | 190*122*126 | 0.9 | 1.6 | 2: G1/4 |
| 2L | 12.5 | 254*108*126 | 2 | 250*128*150 | 1.48 | 3 | 4: G1/4 |
| 2L -G1/2 | 12.5 | 260*108*126 | 2 | 280*110*130 | 1.48 | 3 | 4: G1/2 |
| 3L | 12.5 | 254*133*148 | 2 | 260*153*156 | 2.5 | 3 | 4: G1/4 |
| 3LA frosted | 12.5 | 234*140*155 | 2 | 250*180*180 | 1.75 | 2 | 4: G1/4 |
| 3LB frosted | 12.5 | 240*140*192 | 2 | 260*250*250 | 2 | 2.5 | 2: G1/2, 3:G1/4 |
| 4L | 12.5 | 240*159*235 | 2 | 250*170*245 | 2.35 | 2.5 | 3: G1/2, 1:G1/4 |
| 5L | 12.5 | 318*159*230 | 2 | 370*210*205 | 3.4 | 3.8 | 2: G1/2, 3:G1/4 |
| 5LA frosted | 12.5 | 310*160*215 | 2 | 320*170*240 | 3.05 | 3.35 | 2: G1/2, 1:G1/4 |
| 5LB frosted | 12.5 | 310*160*230 | 2 | 320*170*240 | 3.1 | 3.4 | 2: G1/2, 3:G1/4 |
| 5L high pressure | 30 | 290*159*249 | 3 | 320*180*260 | 4.8 | 5.5 | 2: G1/2, 3:G1/4 |
| 5L vertical | 12.5 | 300*174*375 | 2 | 380*205*200 | 2.85 | 3.2 | 3: G1/2, 1:G1/4 |
| 5L vertical frosted | 12.5 | 290*175*355 | 2 | 380*205*200 | 2.85 | 3.2 | 2: G1/2, 1:G1/4 |
| 5L ASME | 12.5 | 330*179*227 | 2 | / | 4.2 | 4.2 | 2: G1/2, 1:G1/4， 2:G3/4 |
| 10L | 12.5 | 510*159*255 | 2 | 500*185*260 | 5.5 | 5.8 | 4: G1/2, 1:G1/4 |
| 10LA frosted | 12.5 | 454*180*235 | 2 | 190*240*460 | 4.7 | 5.15 | 2: G1/2, 1:G1/4 |
| 10LB frosted | 12.5 | 460*180*250 | 2 | 460*260*200 | 4.95 | 5.4 | 4: G1/2, 1:G1/4 |
| 10L high pressure | 30 | 530*159*249 | 3 | 570*170*280 | 8.1 | 10 | 2: G1/2, 3:G1/4 |
| 10L vertical | 12.5 | 345*234*420 | 3 | 430*239*365 | 6 | 6.5 | 4: G1/2, 1:G1/4 |
| 10L ASME | 12.5 | 616*179*252 | 2 | / | 6.3 | 2: G1/2, 1:G1/4， 2:G3/4 | |
| 12L frosted | 12.5 | 215*270*400 | 2 | 420*290*220 | 5.45 | 5.95 | 3: G1/2 |
| 15L | 12.5 | 450*219*293 | 2 | 460*230*320 | 6.5 | 7.2 | 5: G1/2,1:G1/4 |
| 20L | 12.5 | 500*290*219 | 2.5 | 530*300*250 | 7.25 | 7.85 | 4: G1/2,1:G1/4 |
| 20LA frosted | 12.5 | 500*296*236 | 2.5 | 510*250*315 | 7.2 | 7.9 | 3: G4/2 |
| 20LB frosted | 12.5 | 500*306*236 | 2.5 | 510*250*315 | 7.2 | 7.9 | 4: G1/2, 1:G1/4 |
| 20L high pressure | 30 | 626*219*289 | 5 | 660*260*310 | 14.7 | 15.2 | 4: G1/2, 1:G1/4 |
| 20L vertical | 12.5 | 430*260*545 | 3 | 450*280*565 | 9.4 | 10.6 | 5: G1/2, 1:G1/4 |
| 20L ASME | 12.5 | 634*239*304 | 2 | / | 7.48 | / | 2: G1/2, 1:G1/4， 2:G3/4 |
| 25L frosted | 12.5 | 580*306*236 | 2.5 | 590*250*315 | 7.9 | 8.6 | 4: G1/2, 1:G1/4 |
| 30L | 12.5 | 530*273*350 | 2.5 | 550*293*370 | 13.15 | 13.5 | 5: G1/2, 1:G1/4 |
| 30L frosted | 12.5 | 460*365*320 | 2.5 | 490*375*330 | 12.2 | 13.55 | 4: G1/2, 1:G1/4 |
| 40L | 12.5 | 690*273*350 | 3 | 720*300*370 | 15.2 | 15.5 | 5: G1/2, 1:G1/4 |
| 50L | 12.5 | 760*325*400 | 2 | 780*345*420 | 19.7 | 16.8 | 4: G1/2, 1:G1/4 |
| 60L | 12.5 | 760*325*400 | 3 | 780*345*420 | 16.4 | 20.5 | 6: G1/2, 1:G1/4 |
| 300L-8 bar Vertical | 8 | φ550*1612 | |||||
| 300L-10 bar Vertical | 10 | φ550*1612 | / | ||||
| 300L-13 bar Vertical | 13 | φ550*1614 | |||||
| 300L-16 bar Vertical | 16 | φ550*1614 | |||||
| 600L-8 bar Vertical | 8 | φ650*2134 | / | ||||
| 600L-10 bar Vertical | 10 | φ650*2135 | / | ||||
| 600L-13 bar Vertical | 13 | φ650*2136 | |||||
| 600L-16 bar Vertical | 16 | φ650*2136 | |||||
| 1m³-8 bar Vertical | 8 | φ800*2258 | / | ||||
| 1m³-10 bar Vertical | 10 | φ800*2260 | / | ||||
| 1m³-13 bar Vertical | 13 | φ800*2260 | / | ||||
| 1m³-16 bar Vertical | 16 | φ800*2260 | / | ||||
| 1.5m³-13 bar Vertical | 13 | φ1000*2291 | |||||
| 1.5m³-16 bar Vertical | 16 | φ1000*2291 | |||||
| 2m³-8 bar Vertical | 8 | φ1000*2838 | / | ||||
| 2m³-10 bar Vertical | 10 | φ1000*2838 | / | ||||
| 2m³-13 bar Vertical | 13 | φ1000*2810 | |||||
| 2m³-16 bar Vertical | 16 | φ1000*2810 | / | ||||
| 3m³-8 bar Vertical | 8 | φ1200*2952 | |||||
| 3m³-10 bar Vertical | 10 | φ1200*2954 | |||||
| 3m³-13 bar Vertical | 13 | φ1200*2958 | |||||
| 3m³-16 bar Vertical | 16 | φ1200*2958 | / | ||||
| 4m³-8 bar Vertical | 8 | φ1400*3074 | |||||
| 4m³-10 bar Vertical | 10 | φ1400*3078 | |||||
| 4m³-13 bar Vertical | 13 | φ1400*3078 | |||||
| 4m³-16 bar Vertical | 16 | φ1400*3078 | |||||
| 5m³-8 bar Vertical | 8 | φ1400*3752 | |||||
| 5m³-10 bar Vertical | 10 | φ1400*3754 | / | ||||
| 5m³-13 bar Vertical | 13 | φ1400*3754 | |||||
| 5m³-16 bar Vertical | 16 | φ1400*3754 | |||||
| 6m³-8 bar Vertical | 8 | φ1400*4362 | |||||
| 6m³-10 bar Vertical | 10 | φ1400*4364 | |||||
| 6m³-13 bar Vertical | 13 | φ1400*4364 | |||||
| 6m³-16 bar Vertical | 16 | φ1400*4364 | |||||
| 8m³-13 bar Vertical | 13 | φ1600*4464 | |||||
| 8m³-16 bar Vertical | 16 | φ1600*4466 |
