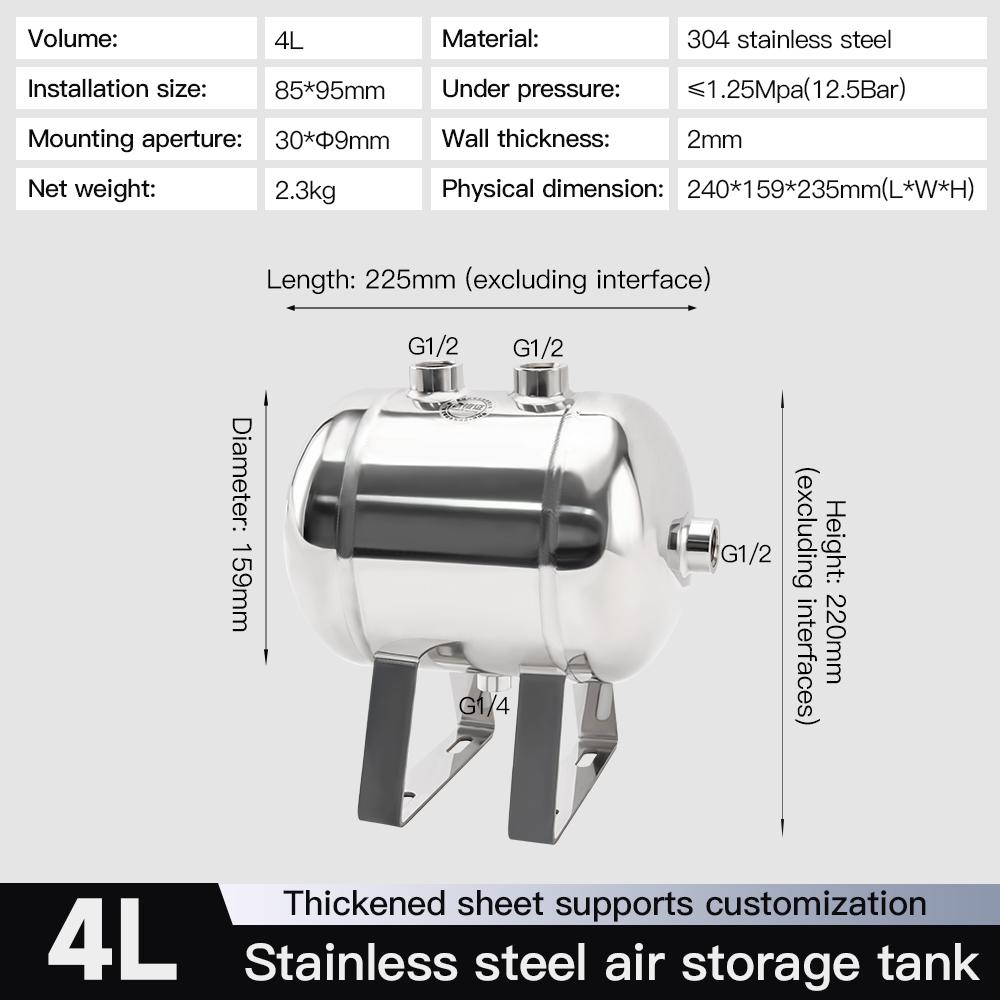

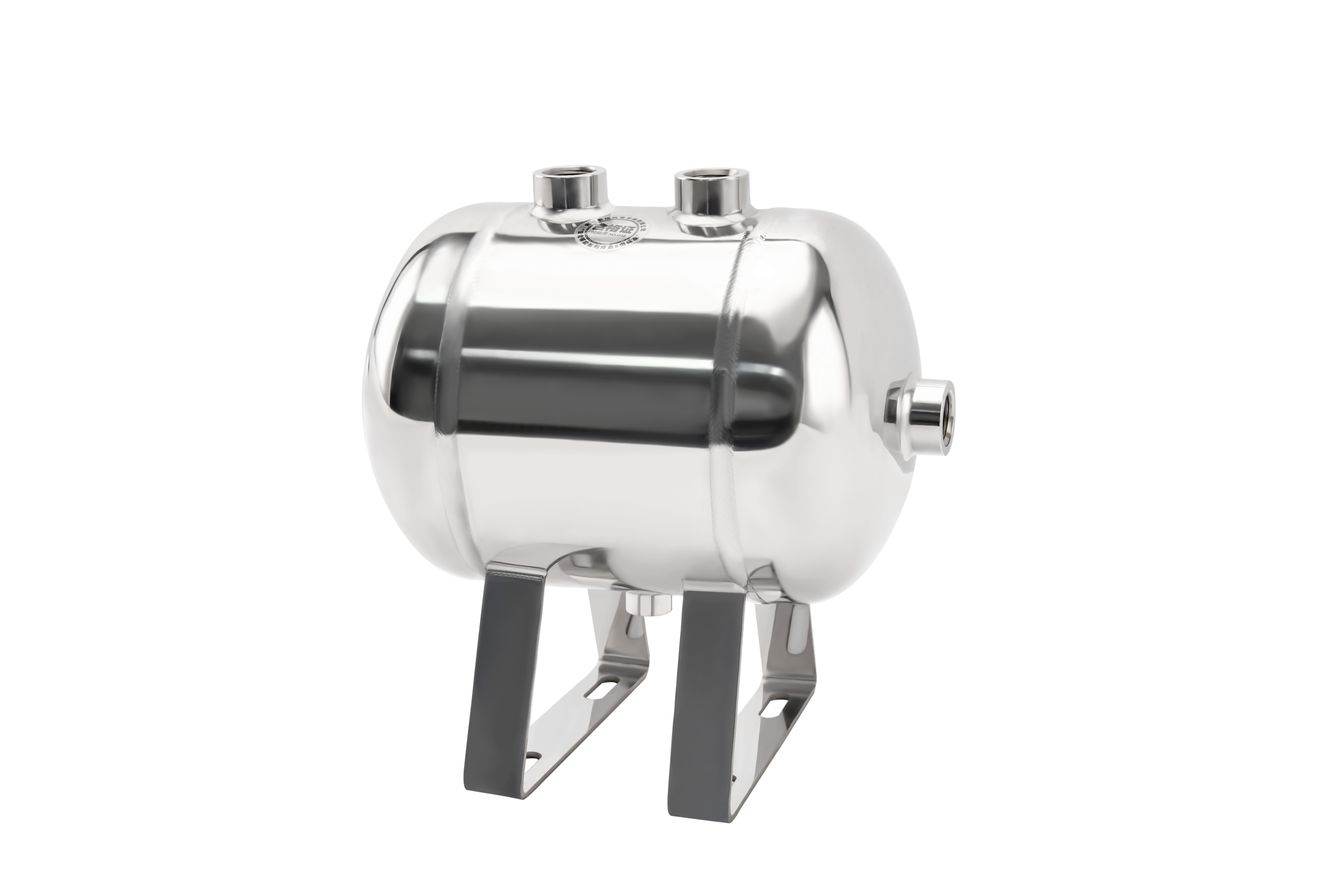

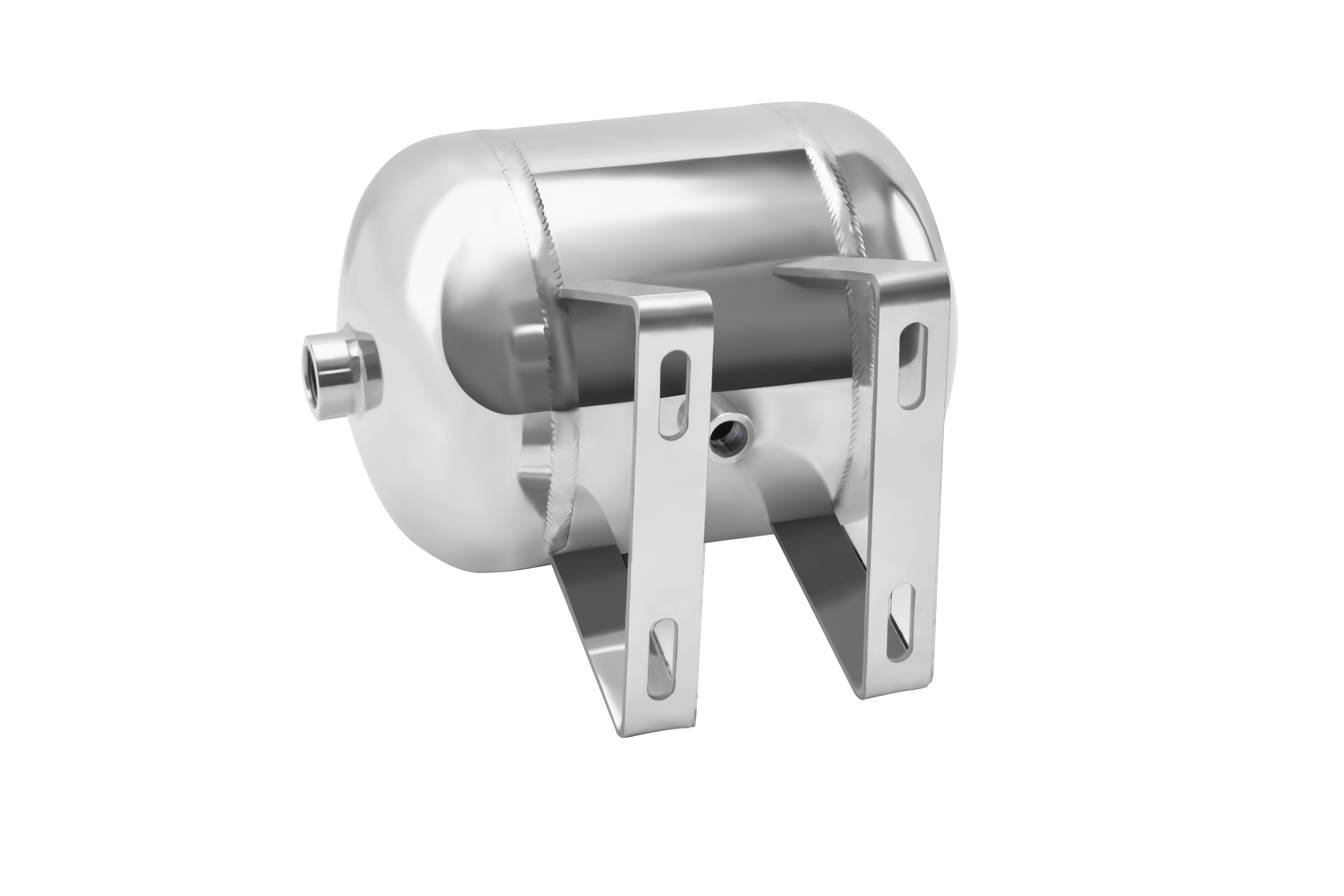

4L glossy stainless steel air tank with high bracket, 12 bar working pressure. Stable, durable, corrosion-resistant, easy installation, ideal for air storage and pressure buffering in pneumatic systems.
The glossy stainless steel finish provides a sleek, professional appearance and a very smooth surface for effortless cleaning and maintenance.
The high bracket design ensures stable installation in vehicles or on walls, keeping the tank secure and saving ground space.
The 4L volume supplies ample compressed air for prolonged operation of pneumatic tools or inflation tasks without frequent refills.
Built with stainless steel for 12 bar working pressure, ensuring reliable, corrosion-resistant service as a robust air receiver.
| P/N | Pressure (bar) | L*D*H(mm) | Thickness（mm) | Package Size（mm） | Net Weight（KG） | Gross Weight（KG） | Ports |
| 0.1L | 12.5 | 140*38*38 | 2 | 150*50*50 | 0.22 | 0.5 | 2: G1/4 |
| 0.2L | 12.5 | 150*83*54 | 2 | 200*60*60 | 0.35 | 0.6 | 2: G1/4 |
| 0.3L | 12.5 | 160*57*70 | 2 | 180*90*110 | 0.46 | 0.72 | 2: G1/4 |
| 0.4L | 12.5 | 135*76 | 2 | 160*92*90 | 0.5 | 0.75 | 2: G1/4 |
| 0.5L G1/4 | 12.5 | 168*88*79 | 2 | 180*90*110 | 0.64 | 0.72 | 2: G1/4 |
| 0.5L G1/8 | 12.5 | 170*80*93 | 2 | 160*160*110 | 0.72 | 1.1 | 2: G1/8 |
| 0.8L G1/8 | 12.5 | 224*76*91 | 2 | 240*110*110 | 1.2 | 1.45 | 2: G1/8 |
| 1L | 12.5 | 174*102*105 | 2 | 190*122*126 | 0.9 | 1.6 | 2: G1/4 |
| 2L | 12.5 | 254*108*126 | 2 | 250*128*150 | 1.48 | 3 | 4: G1/4 |
| 2L -G1/2 | 12.5 | 260*108*126 | 2 | 280*110*130 | 1.48 | 3 | 4: G1/2 |
| 3L | 12.5 | 254*133*148 | 2 | 260*153*156 | 2.5 | 3 | 4: G1/4 |
| 3LA frosted | 12.5 | 234*140*155 | 2 | 250*180*180 | 1.75 | 2 | 4: G1/4 |
| 3LB frosted | 12.5 | 240*140*192 | 2 | 260*250*250 | 2 | 2.5 | 2: G1/2, 3:G1/4 |
| 4L | 12.5 | 240*159*235 | 2 | 250*170*245 | 2.35 | 2.5 | 3: G1/2, 1:G1/4 |
| 5L | 12.5 | 318*159*230 | 2 | 370*210*205 | 3.4 | 3.8 | 2: G1/2, 3:G1/4 |
| 5LA frosted | 12.5 | 310*160*215 | 2 | 320*170*240 | 3.05 | 3.35 | 2: G1/2, 1:G1/4 |
| 5LB frosted | 12.5 | 310*160*230 | 2 | 320*170*240 | 3.1 | 3.4 | 2: G1/2, 3:G1/4 |
| 5L high pressure | 30 | 290*159*249 | 3 | 320*180*260 | 4.8 | 5.5 | 2: G1/2, 3:G1/4 |
| 5L vertical | 12.5 | 300*174*375 | 2 | 380*205*200 | 2.85 | 3.2 | 3: G1/2, 1:G1/4 |
| 5L vertical frosted | 12.5 | 290*175*355 | 2 | 380*205*200 | 2.85 | 3.2 | 2: G1/2, 1:G1/4 |
| 5L ASME | 12.5 | 330*179*227 | 2 | / | 4.2 | 4.2 | 2: G1/2, 1:G1/4， 2:G3/4 |
| 10L | 12.5 | 510*159*255 | 2 | 500*185*260 | 5.5 | 5.8 | 4: G1/2, 1:G1/4 |
| 10LA frosted | 12.5 | 454*180*235 | 2 | 190*240*460 | 4.7 | 5.15 | 2: G1/2, 1:G1/4 |
| 10LB frosted | 12.5 | 460*180*250 | 2 | 460*260*200 | 4.95 | 5.4 | 4: G1/2, 1:G1/4 |
| 10L high pressure | 30 | 530*159*249 | 3 | 570*170*280 | 8.1 | 10 | 2: G1/2, 3:G1/4 |
| 10L vertical | 12.5 | 345*234*420 | 3 | 430*239*365 | 6 | 6.5 | 4: G1/2, 1:G1/4 |
| 10L ASME | 12.5 | 616*179*252 | 2 | / | 6.3 | 2: G1/2, 1:G1/4， 2:G3/4 | |
| 12L frosted | 12.5 | 215*270*400 | 2 | 420*290*220 | 5.45 | 5.95 | 3: G1/2 |
| 15L | 12.5 | 450*219*293 | 2 | 460*230*320 | 6.5 | 7.2 | 5: G1/2,1:G1/4 |
| 20L | 12.5 | 500*290*219 | 2.5 | 530*300*250 | 7.25 | 7.85 | 4: G1/2,1:G1/4 |
| 20LA frosted | 12.5 | 500*296*236 | 2.5 | 510*250*315 | 7.2 | 7.9 | 3: G4/2 |
| 20LB frosted | 12.5 | 500*306*236 | 2.5 | 510*250*315 | 7.2 | 7.9 | 4: G1/2, 1:G1/4 |
| 20L high pressure | 30 | 626*219*289 | 5 | 660*260*310 | 14.7 | 15.2 | 4: G1/2, 1:G1/4 |
| 20L vertical | 12.5 | 430*260*545 | 3 | 450*280*565 | 9.4 | 10.6 | 5: G1/2, 1:G1/4 |
| 20L ASME | 12.5 | 634*239*304 | 2 | / | 7.48 | / | 2: G1/2, 1:G1/4， 2:G3/4 |
| 25L frosted | 12.5 | 580*306*236 | 2.5 | 590*250*315 | 7.9 | 8.6 | 4: G1/2, 1:G1/4 |
| 30L | 12.5 | 530*273*350 | 2.5 | 550*293*370 | 13.15 | 13.5 | 5: G1/2, 1:G1/4 |
| 30L frosted | 12.5 | 460*365*320 | 2.5 | 490*375*330 | 12.2 | 13.55 | 4: G1/2, 1:G1/4 |
| 40L | 12.5 | 690*273*350 | 3 | 720*300*370 | 15.2 | 15.5 | 5: G1/2, 1:G1/4 |
| 50L | 12.5 | 760*325*400 | 2 | 780*345*420 | 19.7 | 16.8 | 4: G1/2, 1:G1/4 |
| 60L | 12.5 | 760*325*400 | 3 | 780*345*420 | 16.4 | 20.5 | 6: G1/2, 1:G1/4 |
| 300L-8 bar Vertical | 8 | φ550*1612 | |||||
| 300L-10 bar Vertical | 10 | φ550*1612 | / | ||||
| 300L-13 bar Vertical | 13 | φ550*1614 | |||||
| 300L-16 bar Vertical | 16 | φ550*1614 | |||||
| 600L-8 bar Vertical | 8 | φ650*2134 | / | ||||
| 600L-10 bar Vertical | 10 | φ650*2135 | / | ||||
| 600L-13 bar Vertical | 13 | φ650*2136 | |||||
| 600L-16 bar Vertical | 16 | φ650*2136 | |||||
| 1m³-8 bar Vertical | 8 | φ800*2258 | / | ||||
| 1m³-10 bar Vertical | 10 | φ800*2260 | / | ||||
| 1m³-13 bar Vertical | 13 | φ800*2260 | / | ||||
| 1m³-16 bar Vertical | 16 | φ800*2260 | / | ||||
| 1.5m³-13 bar Vertical | 13 | φ1000*2291 | |||||
| 1.5m³-16 bar Vertical | 16 | φ1000*2291 | |||||
| 2m³-8 bar Vertical | 8 | φ1000*2838 | / | ||||
| 2m³-10 bar Vertical | 10 | φ1000*2838 | / | ||||
| 2m³-13 bar Vertical | 13 | φ1000*2810 | |||||
| 2m³-16 bar Vertical | 16 | φ1000*2810 | / | ||||
| 3m³-8 bar Vertical | 8 | φ1200*2952 | |||||
| 3m³-10 bar Vertical | 10 | φ1200*2954 | |||||
| 3m³-13 bar Vertical | 13 | φ1200*2958 | |||||
| 3m³-16 bar Vertical | 16 | φ1200*2958 | / | ||||
| 4m³-8 bar Vertical | 8 | φ1400*3074 | |||||
| 4m³-10 bar Vertical | 10 | φ1400*3078 | |||||
| 4m³-13 bar Vertical | 13 | φ1400*3078 | |||||
| 4m³-16 bar Vertical | 16 | φ1400*3078 | |||||
| 5m³-8 bar Vertical | 8 | φ1400*3752 | |||||
| 5m³-10 bar Vertical | 10 | φ1400*3754 | / | ||||
| 5m³-13 bar Vertical | 13 | φ1400*3754 | |||||
| 5m³-16 bar Vertical | 16 | φ1400*3754 | |||||
| 6m³-8 bar Vertical | 8 | φ1400*4362 | |||||
| 6m³-10 bar Vertical | 10 | φ1400*4364 | |||||
| 6m³-13 bar Vertical | 13 | φ1400*4364 | |||||
| 6m³-16 bar Vertical | 16 | φ1400*4364 | |||||
| 8m³-13 bar Vertical | 13 | φ1600*4464 | |||||
| 8m³-16 bar Vertical | 16 | φ1600*4466 |
