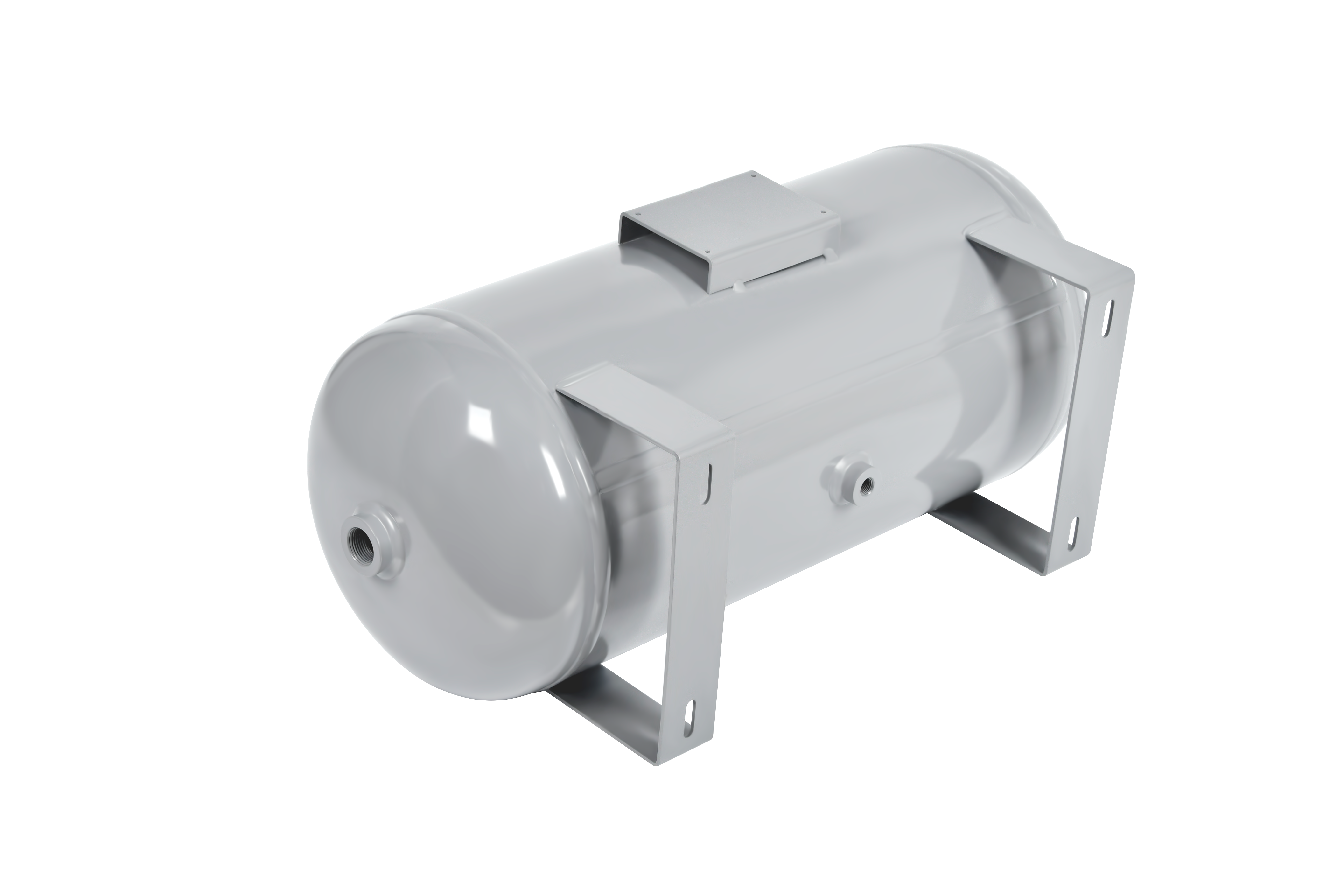

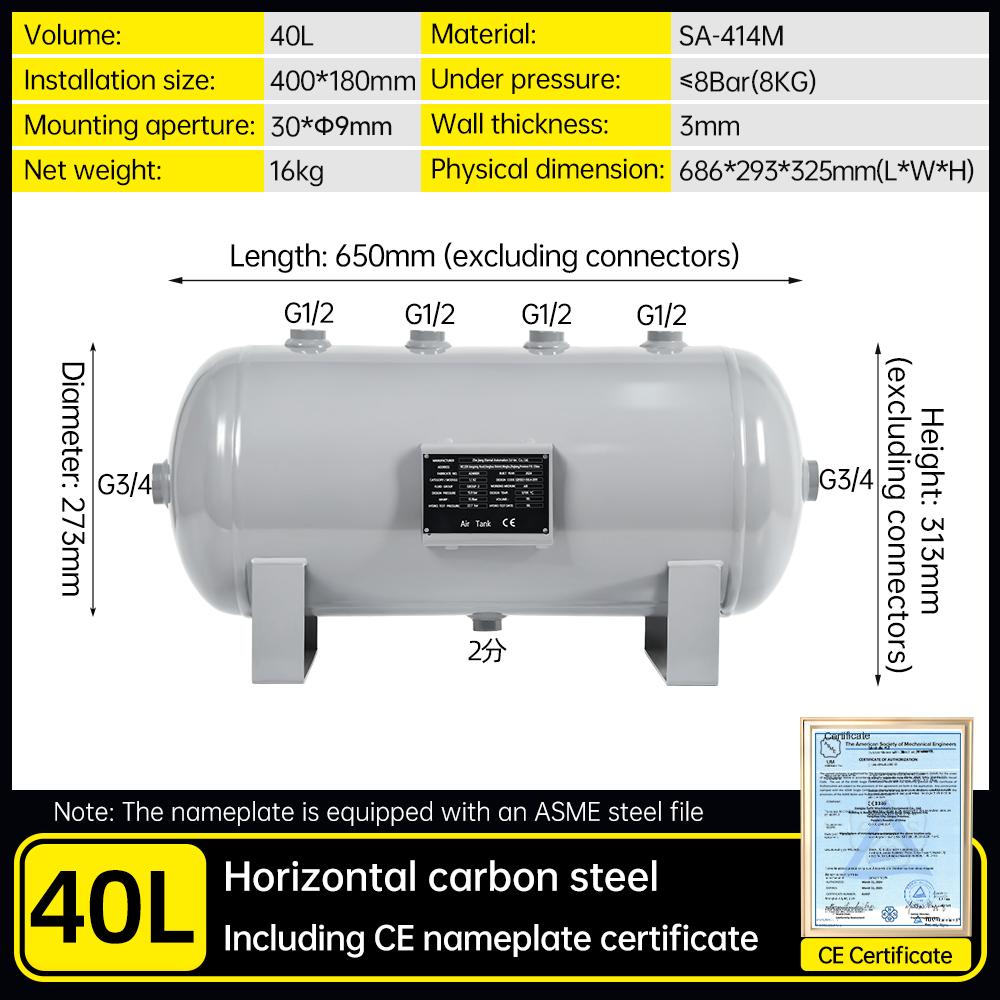

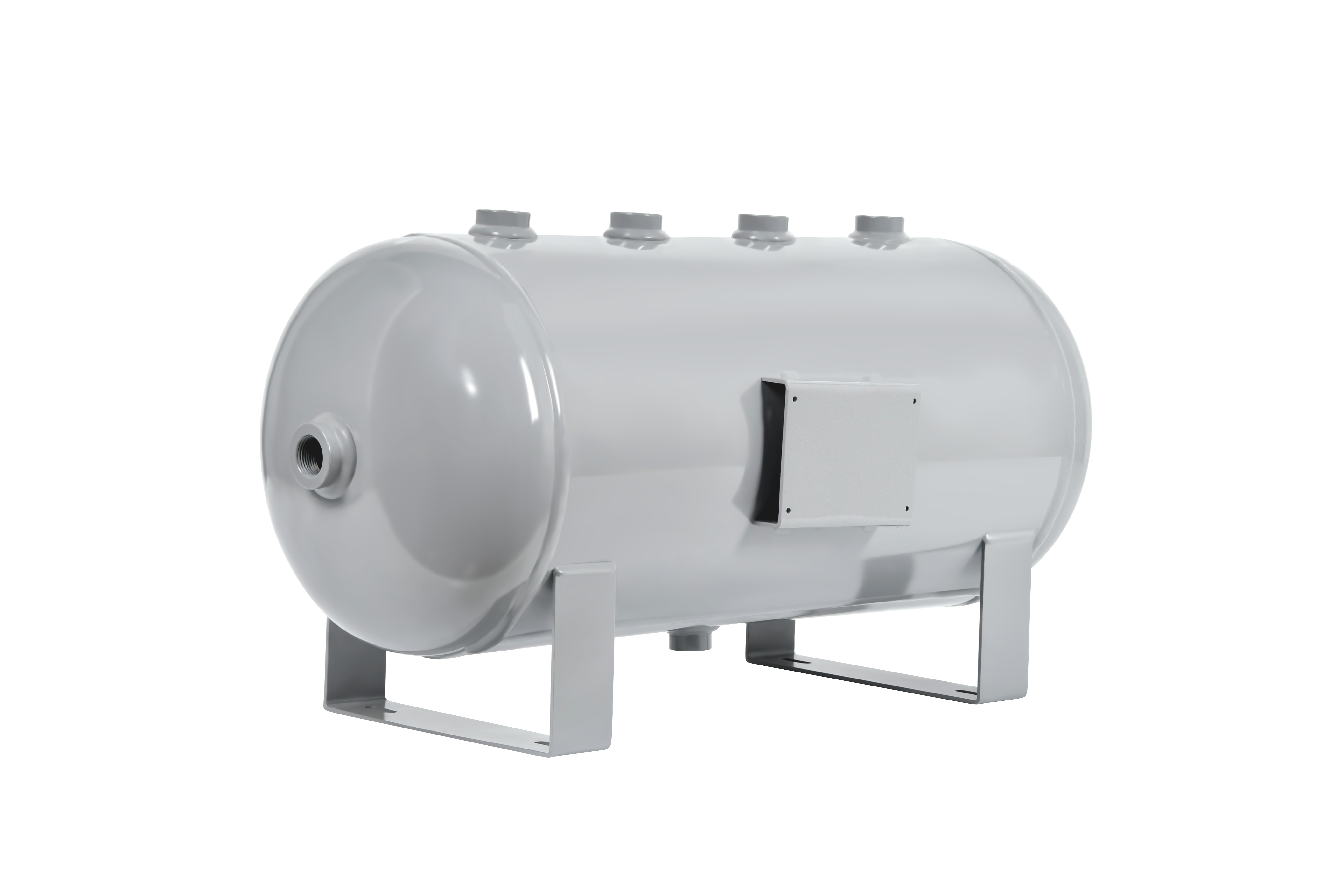

40L CE horizontal air receiver tank for EU market, PED certified pressure vessel, dimension Φ273×650mm, carbon steel structure, safe and reliable, ready for immediate shipment.
CE-marked and manufactured to the Pressure Equipment Directive (PED), ensuring legal and safe sale and operation within the European Union, guaranteeing adherence to strict safety standards.
The 273x650mm horizontal carbon steel construction offers a robust, space-saving footprint with a low center of gravity for secure and stable integration into compressed air systems.
The 40L volume provides a significant air reservoir to effectively minimize compressor cycling, stabilize system pressure, and ensure a reliable air supply for tools and equipment.
The "ready for shipment" ensures fast delivery and installation
| P/N | Pressure (bar) | L*D*H(mm) | Thickness（mm) | Package Size（mm） | Net Weight（KG） | Gross Weight（KG） | Ports |
| 10L CE | 12 | 562*188*269 | 3 | / | 9 | 9.5 | 3:G1/2, 1:G1/4,2:G1 |
| 20L CE | 12.5 | 714*223*296.5 | 3 | 13.5 | 14 | 3:G1/2, 1:G1/4,2:G1 | |
| 40L CE | 8 | 686*293*325 | 4 | / | 16 | 17 | 4:G1/2, 1:G1/4, 2: G3/4 |
| 50L CE | 8 | 736*332*392 | 3 | / | 20 | 21 | 3:G1/2, 1:G1/4, 2: G3/4 |
| 60L Vertical CE | 8 | 337*850*968 | 3 | / | 24 | 25 | 3:G1/2, 2:G3/4, 1: G1 |
| 60L CE | 12 | 940*325*362 | 3 | / | 24.5 | 25 | 3:G1/2, 1:G1/4, 2: G1 |
| 80L CE | 8 | 870*370*412 | 3 | / | 27.5 | 28 | 3:G1/2, 1:G1/4, 2:G1-1/2 |
| 100L CE | 8 | 1075*370*388.5 | 3 | / | 37.5 | 38 | 4:G1/2, 1:G1/4, 2:G1-1/2 |
