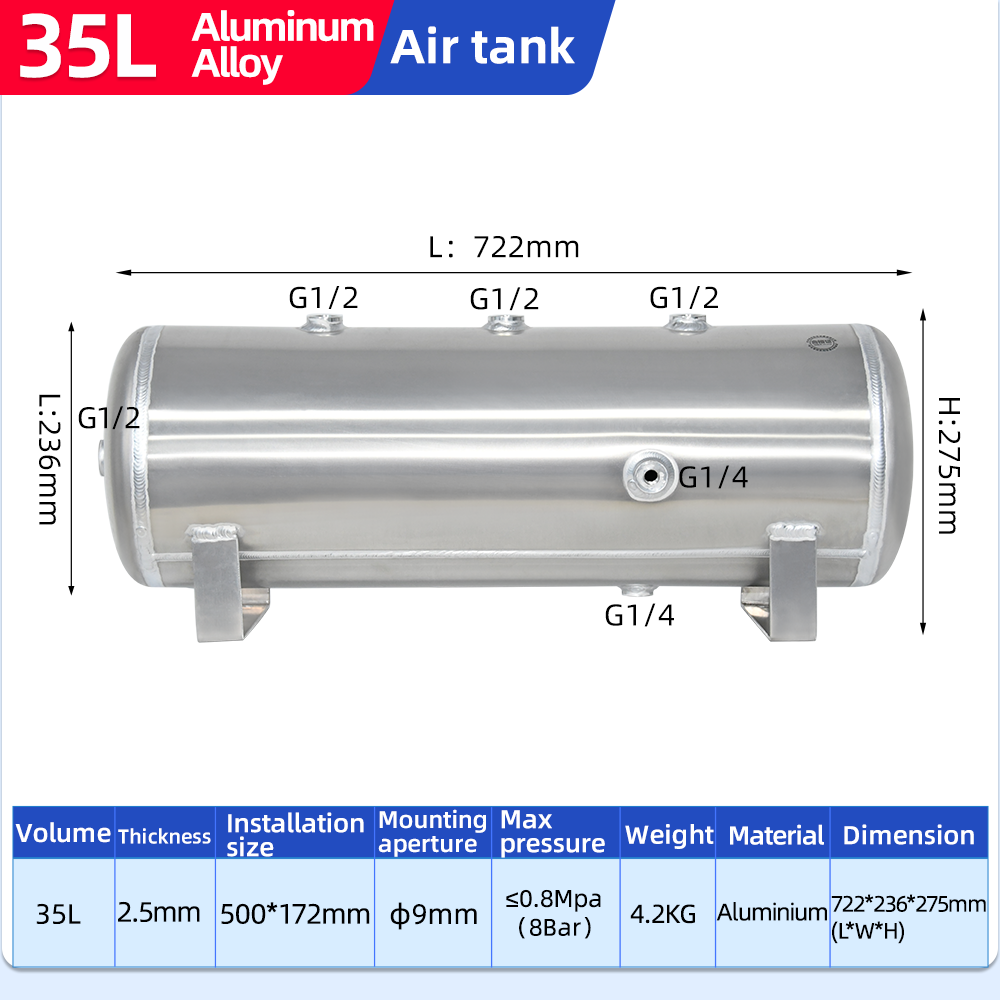

This 35-liter horizontal air receiver tank is made of high-strength aluminum alloy, designed to safely store compressed air at a maximum working pressure of 8 bar (≤0.8Mpa). Ideal for industrial pneumatic systems, large air compressor setups, and mobile equipment, it provides reliable pressure stabilization and excellent corrosion resistance.
Provides substantial 35L air storage, reducing compressor cycling and ensuring consistent air supply for extended operations.
Made from corrosion-resistant aluminum alloy with a 2.5mm wall thickness, offering an optimal balance of strength and portability at only 4.2 kg.
Includes four G1/2" and two G1/4" threaded ports, allowing flexible piping configurations and easy integration into existing systems.
Features standardized mounting holes (Φ9mm) and a clear 500×172mm installation footprint, coupled with a safe working pressure of 8 Bar for dependable performance.
| P/N | Pressure (bar) | L*D*H(mm) | Thickness（mm) | Net Weight（KG） |
| 5L aluminum | 8 | 260*160*190 | 2 | 1.1 |
| 10L aluminum | 10 | 445*180*275 | 3 | 2.6 |
| 12L aluminum | 8 | 320*236*318m | 2.5 | 2.25 |
| 15L aluminum | 10 | 370*236*313 | 3 | 2.9 |
| 18L aluminum | 8 | 390*236*292 | 2.5 | 2.6 |
| 24L aluminum | 8 | 500*240*280 | 2.5 | 3.25 |
| 35L aluminum | 8 | 722*236*275 | 2.5 | 4.2 |
