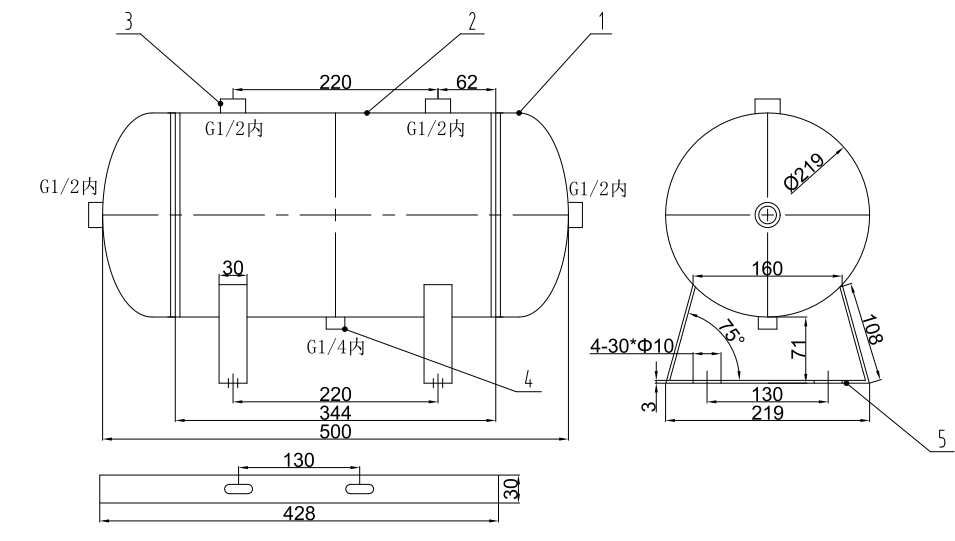

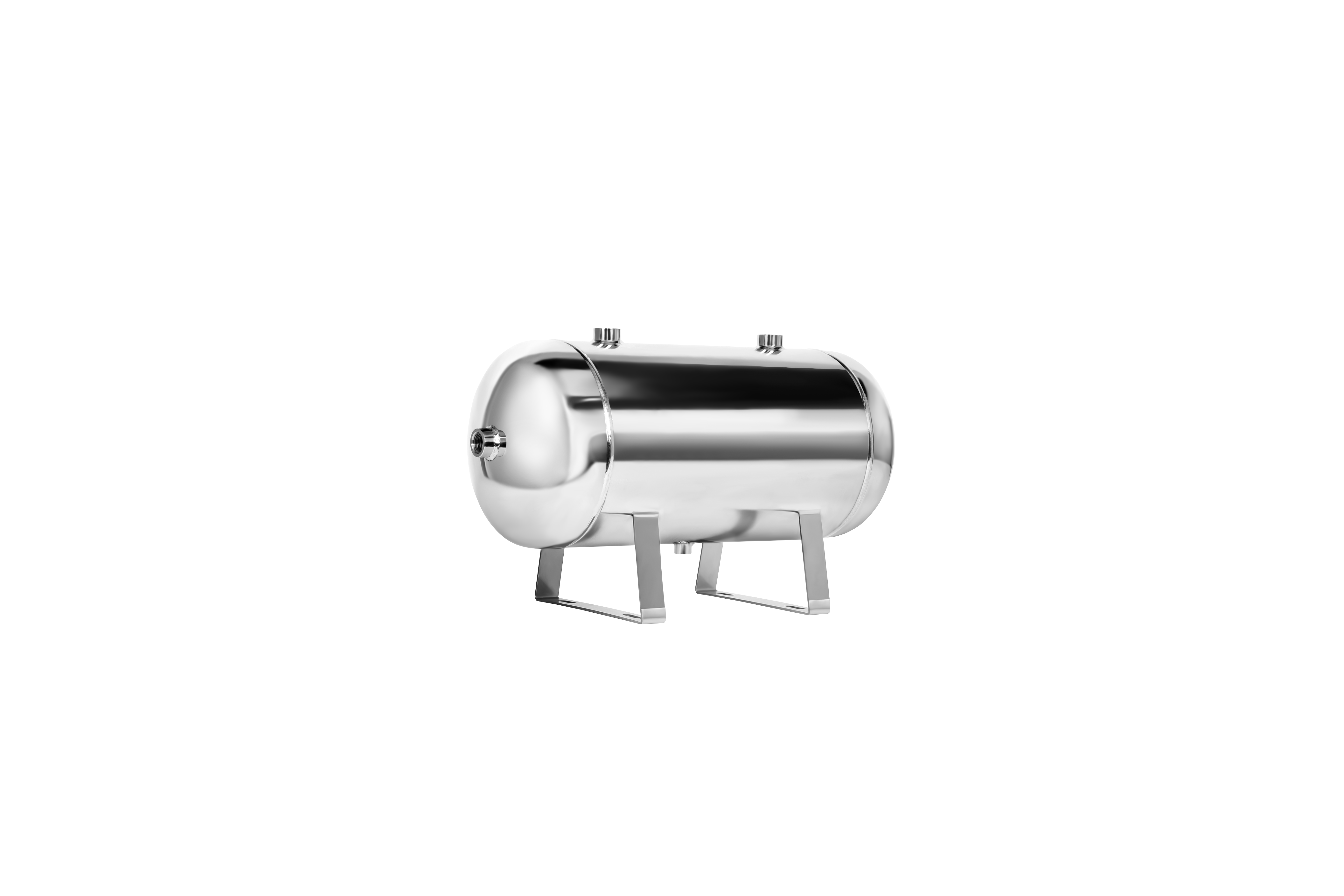

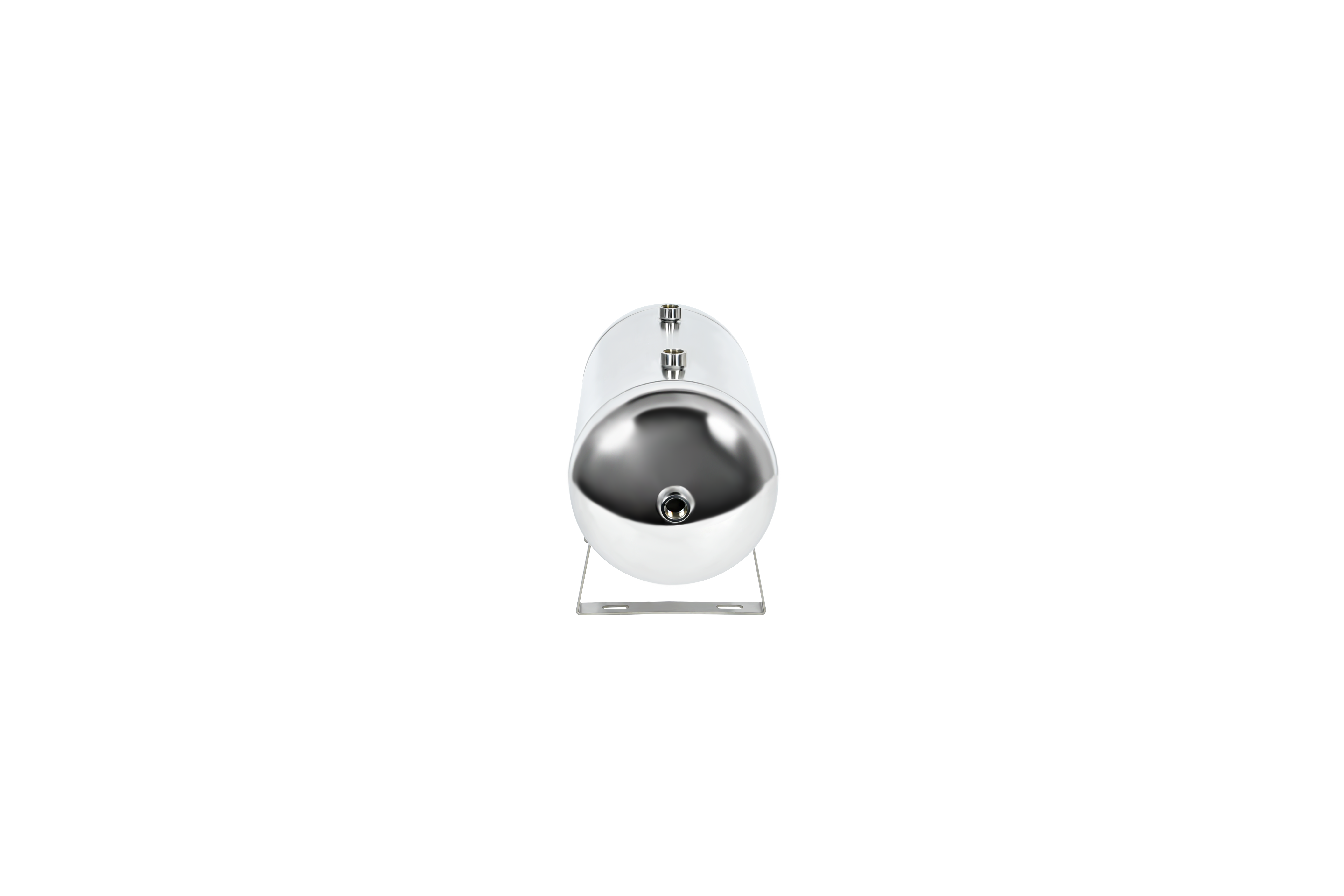

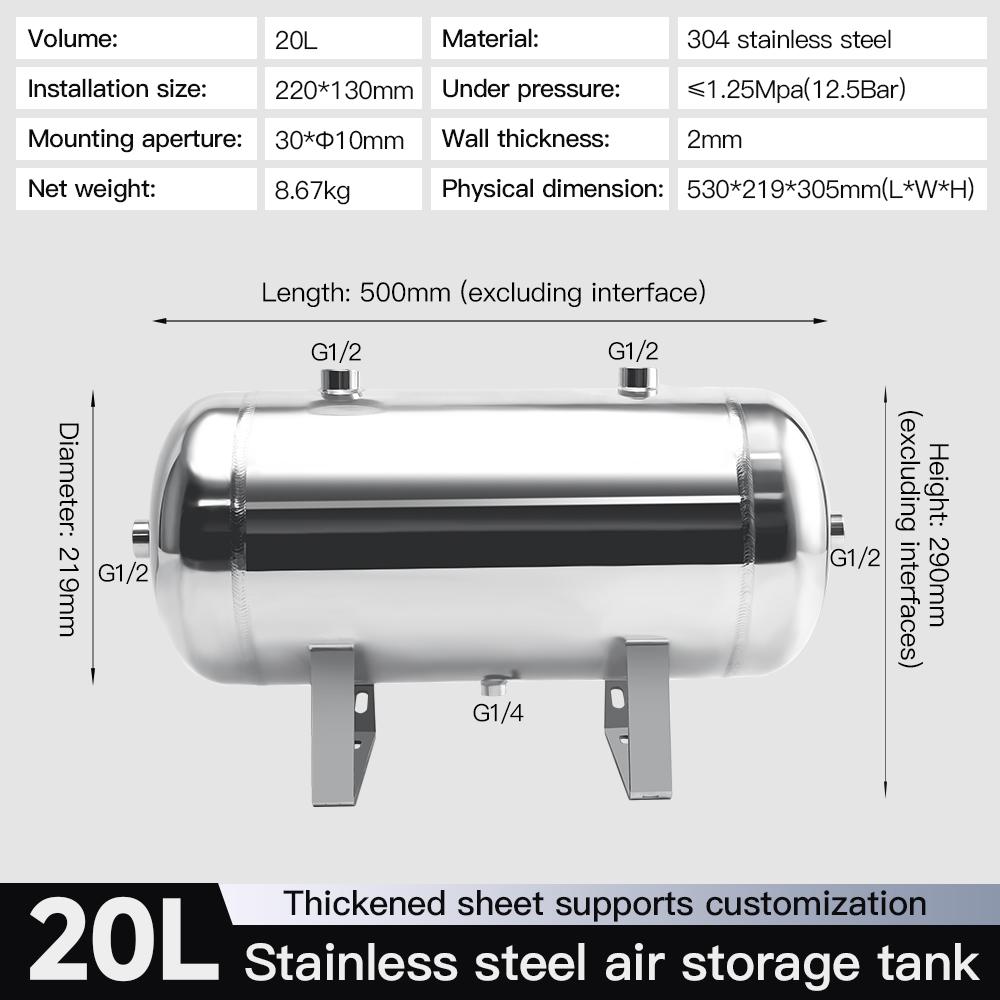

The 20L horizontal air receiver tank isfabricated from 304 stainless steel with a high-end mirror finish, rated for 12.5Bar working pressure. It features multiple G1/2 ports and a G1/4 drain port, and is available for immediate shipment to meet urgent project needs.
Ready for immediate shipment, eliminating lead times and minimizing project delays for urgent installations or replacements.
Constructed from stainless steel with a polished mirror finish, offering excellent resistance to rust, easy cleaning, and long service life in humid or demanding environments.
The low‑profile horizontal layout allows for easy mounting in tight or restricted spaces, optimizing floor or frame‑based installation.
The 20L capacity provides effective air storage and pulsation damping, while the horizontal orientation promotes condensate collection at the bottom for easier drainage.
| P/N | Pressure (bar) | L*D*H(mm) | Thickness（mm) | Package Size（mm） | Net Weight（KG） | Gross Weight（KG） | Ports |
| 0.1L | 12.5 | 140*38*38 | 2 | 150*50*50 | 0.22 | 0.5 | 2: G1/4 |
| 0.2L | 12.5 | 150*83*54 | 2 | 200*60*60 | 0.35 | 0.6 | 2: G1/4 |
| 0.3L | 12.5 | 160*57*70 | 2 | 180*90*110 | 0.46 | 0.72 | 2: G1/4 |
| 0.4L | 12.5 | 135*76 | 2 | 160*92*90 | 0.5 | 0.75 | 2: G1/4 |
| 0.5L G1/4 | 12.5 | 168*88*79 | 2 | 180*90*110 | 0.64 | 0.72 | 2: G1/4 |
| 0.5L G1/8 | 12.5 | 170*80*93 | 2 | 160*160*110 | 0.72 | 1.1 | 2: G1/8 |
| 0.8L G1/8 | 12.5 | 224*76*91 | 2 | 240*110*110 | 1.2 | 1.45 | 2: G1/8 |
| 1L | 12.5 | 174*102*105 | 2 | 190*122*126 | 0.9 | 1.6 | 2: G1/4 |
| 2L | 12.5 | 254*108*126 | 2 | 250*128*150 | 1.48 | 3 | 4: G1/4 |
| 2L -G1/2 | 12.5 | 260*108*126 | 2 | 280*110*130 | 1.48 | 3 | 4: G1/2 |
| 3L | 12.5 | 254*133*148 | 2 | 260*153*156 | 2.5 | 3 | 4: G1/4 |
| 3LA frosted | 12.5 | 234*140*155 | 2 | 250*180*180 | 1.75 | 2 | 4: G1/4 |
| 3LB frosted | 12.5 | 240*140*192 | 2 | 260*250*250 | 2 | 2.5 | 2: G1/2, 3:G1/4 |
| 4L | 12.5 | 240*159*235 | 2 | 250*170*245 | 2.35 | 2.5 | 3: G1/2, 1:G1/4 |
| 5L | 12.5 | 318*159*230 | 2 | 370*210*205 | 3.4 | 3.8 | 2: G1/2, 3:G1/4 |
| 5LA frosted | 12.5 | 310*160*215 | 2 | 320*170*240 | 3.05 | 3.35 | 2: G1/2, 1:G1/4 |
| 5LB frosted | 12.5 | 310*160*230 | 2 | 320*170*240 | 3.1 | 3.4 | 2: G1/2, 3:G1/4 |
| 5L high pressure | 30 | 290*159*249 | 3 | 320*180*260 | 4.8 | 5.5 | 2: G1/2, 3:G1/4 |
| 5L vertical | 12.5 | 300*174*375 | 2 | 380*205*200 | 2.85 | 3.2 | 3: G1/2, 1:G1/4 |
| 5L vertical frosted | 12.5 | 290*175*355 | 2 | 380*205*200 | 2.85 | 3.2 | 2: G1/2, 1:G1/4 |
| 5L ASME | 12.5 | 330*179*227 | 2 | / | 4.2 | 4.2 | 2: G1/2, 1:G1/4， 2:G3/4 |
| 10L | 12.5 | 510*159*255 | 2 | 500*185*260 | 5.5 | 5.8 | 4: G1/2, 1:G1/4 |
| 10LA frosted | 12.5 | 454*180*235 | 2 | 190*240*460 | 4.7 | 5.15 | 2: G1/2, 1:G1/4 |
| 10LB frosted | 12.5 | 460*180*250 | 2 | 460*260*200 | 4.95 | 5.4 | 4: G1/2, 1:G1/4 |
| 10L high pressure | 30 | 530*159*249 | 3 | 570*170*280 | 8.1 | 10 | 2: G1/2, 3:G1/4 |
| 10L vertical | 12.5 | 345*234*420 | 3 | 430*239*365 | 6 | 6.5 | 4: G1/2, 1:G1/4 |
| 10L ASME | 12.5 | 616*179*252 | 2 | / | 6.3 | 2: G1/2, 1:G1/4， 2:G3/4 | |
| 12L frosted | 12.5 | 215*270*400 | 2 | 420*290*220 | 5.45 | 5.95 | 3: G1/2 |
| 15L | 12.5 | 450*219*293 | 2 | 460*230*320 | 6.5 | 7.2 | 5: G1/2,1:G1/4 |
| 20L | 12.5 | 500*290*219 | 2.5 | 530*300*250 | 7.25 | 7.85 | 4: G1/2,1:G1/4 |
| 20LA frosted | 12.5 | 500*296*236 | 2.5 | 510*250*315 | 7.2 | 7.9 | 3: G4/2 |
| 20LB frosted | 12.5 | 500*306*236 | 2.5 | 510*250*315 | 7.2 | 7.9 | 4: G1/2, 1:G1/4 |
| 20L high pressure | 30 | 626*219*289 | 5 | 660*260*310 | 14.7 | 15.2 | 4: G1/2, 1:G1/4 |
| 20L vertical | 12.5 | 430*260*545 | 3 | 450*280*565 | 9.4 | 10.6 | 5: G1/2, 1:G1/4 |
| 20L ASME | 12.5 | 634*239*304 | 2 | / | 7.48 | / | 2: G1/2, 1:G1/4， 2:G3/4 |
| 25L frosted | 12.5 | 580*306*236 | 2.5 | 590*250*315 | 7.9 | 8.6 | 4: G1/2, 1:G1/4 |
| 30L | 12.5 | 530*273*350 | 2.5 | 550*293*370 | 13.15 | 13.5 | 5: G1/2, 1:G1/4 |
| 30L frosted | 12.5 | 460*365*320 | 2.5 | 490*375*330 | 12.2 | 13.55 | 4: G1/2, 1:G1/4 |
| 40L | 12.5 | 690*273*350 | 3 | 720*300*370 | 15.2 | 15.5 | 5: G1/2, 1:G1/4 |
| 50L | 12.5 | 760*325*400 | 2 | 780*345*420 | 19.7 | 16.8 | 4: G1/2, 1:G1/4 |
| 60L | 12.5 | 760*325*400 | 3 | 780*345*420 | 16.4 | 20.5 | 6: G1/2, 1:G1/4 |
| 300L-8 bar Vertical | 8 | φ550*1612 | |||||
| 300L-10 bar Vertical | 10 | φ550*1612 | / | ||||
| 300L-13 bar Vertical | 13 | φ550*1614 | |||||
| 300L-16 bar Vertical | 16 | φ550*1614 | |||||
| 600L-8 bar Vertical | 8 | φ650*2134 | / | ||||
| 600L-10 bar Vertical | 10 | φ650*2135 | / | ||||
| 600L-13 bar Vertical | 13 | φ650*2136 | |||||
| 600L-16 bar Vertical | 16 | φ650*2136 | |||||
| 1m³-8 bar Vertical | 8 | φ800*2258 | / | ||||
| 1m³-10 bar Vertical | 10 | φ800*2260 | / | ||||
| 1m³-13 bar Vertical | 13 | φ800*2260 | / | ||||
| 1m³-16 bar Vertical | 16 | φ800*2260 | / | ||||
| 1.5m³-13 bar Vertical | 13 | φ1000*2291 | |||||
| 1.5m³-16 bar Vertical | 16 | φ1000*2291 | |||||
| 2m³-8 bar Vertical | 8 | φ1000*2838 | / | ||||
| 2m³-10 bar Vertical | 10 | φ1000*2838 | / | ||||
| 2m³-13 bar Vertical | 13 | φ1000*2810 | |||||
| 2m³-16 bar Vertical | 16 | φ1000*2810 | / | ||||
| 3m³-8 bar Vertical | 8 | φ1200*2952 | |||||
| 3m³-10 bar Vertical | 10 | φ1200*2954 | |||||
| 3m³-13 bar Vertical | 13 | φ1200*2958 | |||||
| 3m³-16 bar Vertical | 16 | φ1200*2958 | / | ||||
| 4m³-8 bar Vertical | 8 | φ1400*3074 | |||||
| 4m³-10 bar Vertical | 10 | φ1400*3078 | |||||
| 4m³-13 bar Vertical | 13 | φ1400*3078 | |||||
| 4m³-16 bar Vertical | 16 | φ1400*3078 | |||||
| 5m³-8 bar Vertical | 8 | φ1400*3752 | |||||
| 5m³-10 bar Vertical | 10 | φ1400*3754 | / | ||||
| 5m³-13 bar Vertical | 13 | φ1400*3754 | |||||
| 5m³-16 bar Vertical | 16 | φ1400*3754 | |||||
| 6m³-8 bar Vertical | 8 | φ1400*4362 | |||||
| 6m³-10 bar Vertical | 10 | φ1400*4364 | |||||
| 6m³-13 bar Vertical | 13 | φ1400*4364 | |||||
| 6m³-16 bar Vertical | 16 | φ1400*4364 | |||||
| 8m³-13 bar Vertical | 13 | φ1600*4464 | |||||
| 8m³-16 bar Vertical | 16 | φ1600*4466 |
