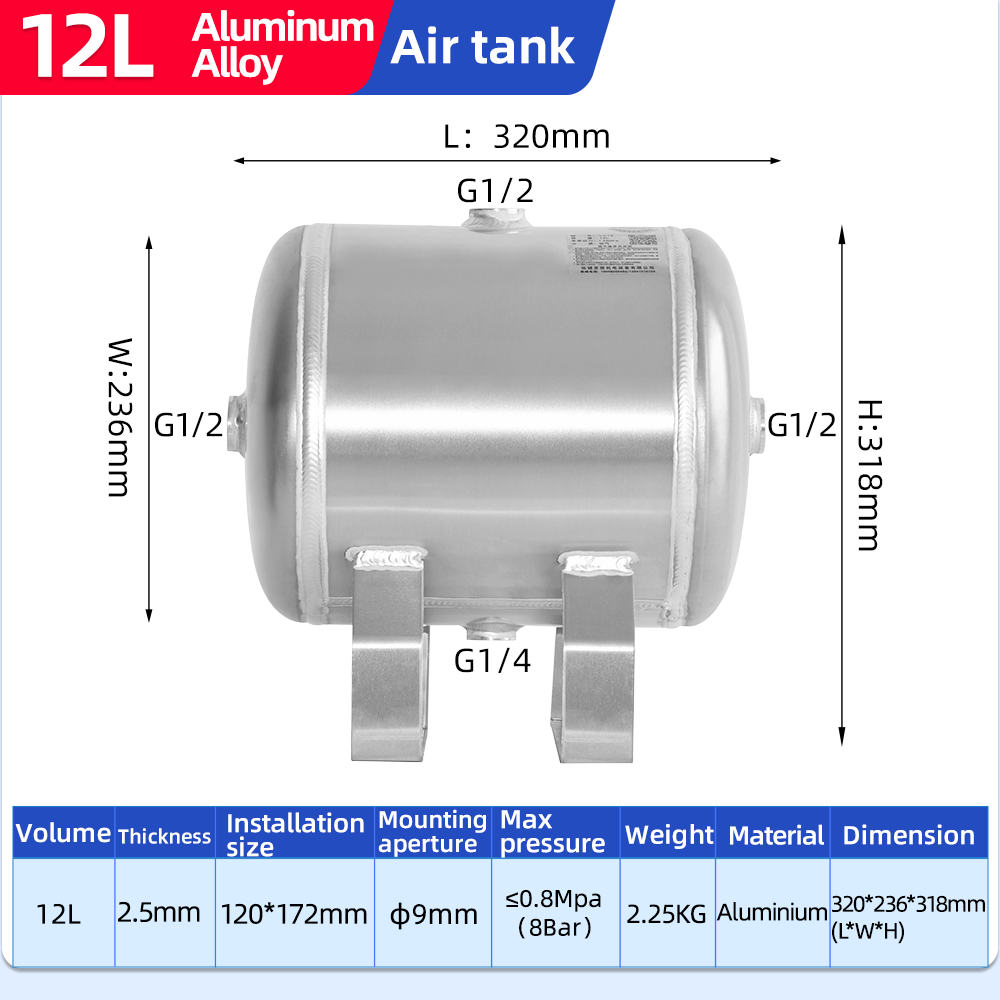

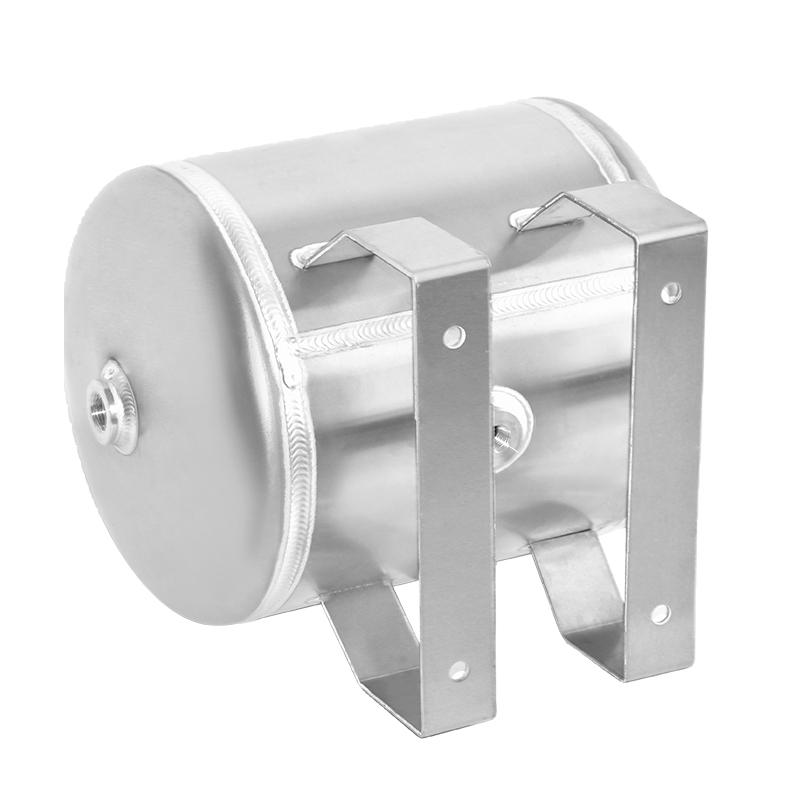

This 12-liter horizontal air receiver tank is precision-engineered from high-strength aluminum alloy, built to safely store compressed air at a maximum working pressure of 8 bar. It features multiple threaded ports (G1/2 & G1/4) for flexible system integration, a corrosion-resistant finish, and a compact footprint ideal for industrial pneumatic systems, mobile air setups, and small-scale machinery.
Made of high-grade aluminum alloy with a wall thickness of 2.5mm, ensuring durability, lightweight performance (only 2.25-2.5 kg), and long-term resistance to rust.
Reliably handles pressures up to 8 bar (0.8 MPa), making it suitable for a wide range of industrial and commercial pneumatic applications.
Includes pre-mounted brackets with standardized mounting holes (Φ9mm) and multiple ports (G1/2" and G1/4") for straightforward setup and system connectivity.
Space-efficient shape combined with clearly labeled dimensions and technical parameters allows for simple planning, installation, and maintenance.
| P/N | Pressure (bar) | L*D*H(mm) | Thickness（mm) | Net Weight（KG） |
| 5L aluminum | 8 | 260*160*190 | 2 | 1.1 |
| 10L aluminum | 10 | 445*180*275 | 3 | 2.6 |
| 12L aluminum | 8 | 320*236*318m | 2.5 | 2.25 |
| 15L aluminum | 10 | 370*236*313 | 3 | 2.9 |
| 18L aluminum | 8 | 390*236*292 | 2.5 | 2.6 |
| 24L aluminum | 8 | 500*240*280 | 2.5 | 3.25 |
| 35L aluminum | 8 | 722*236*275 | 2.5 | 4.2 |
