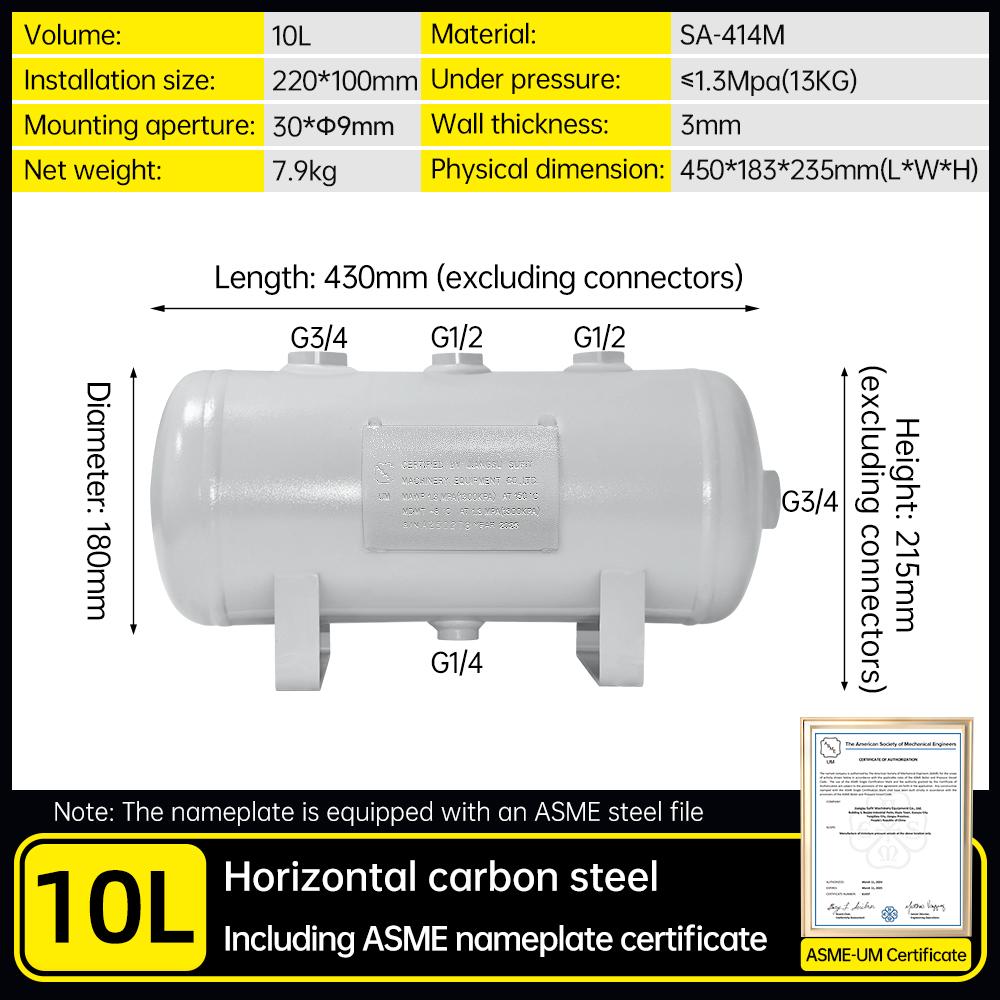

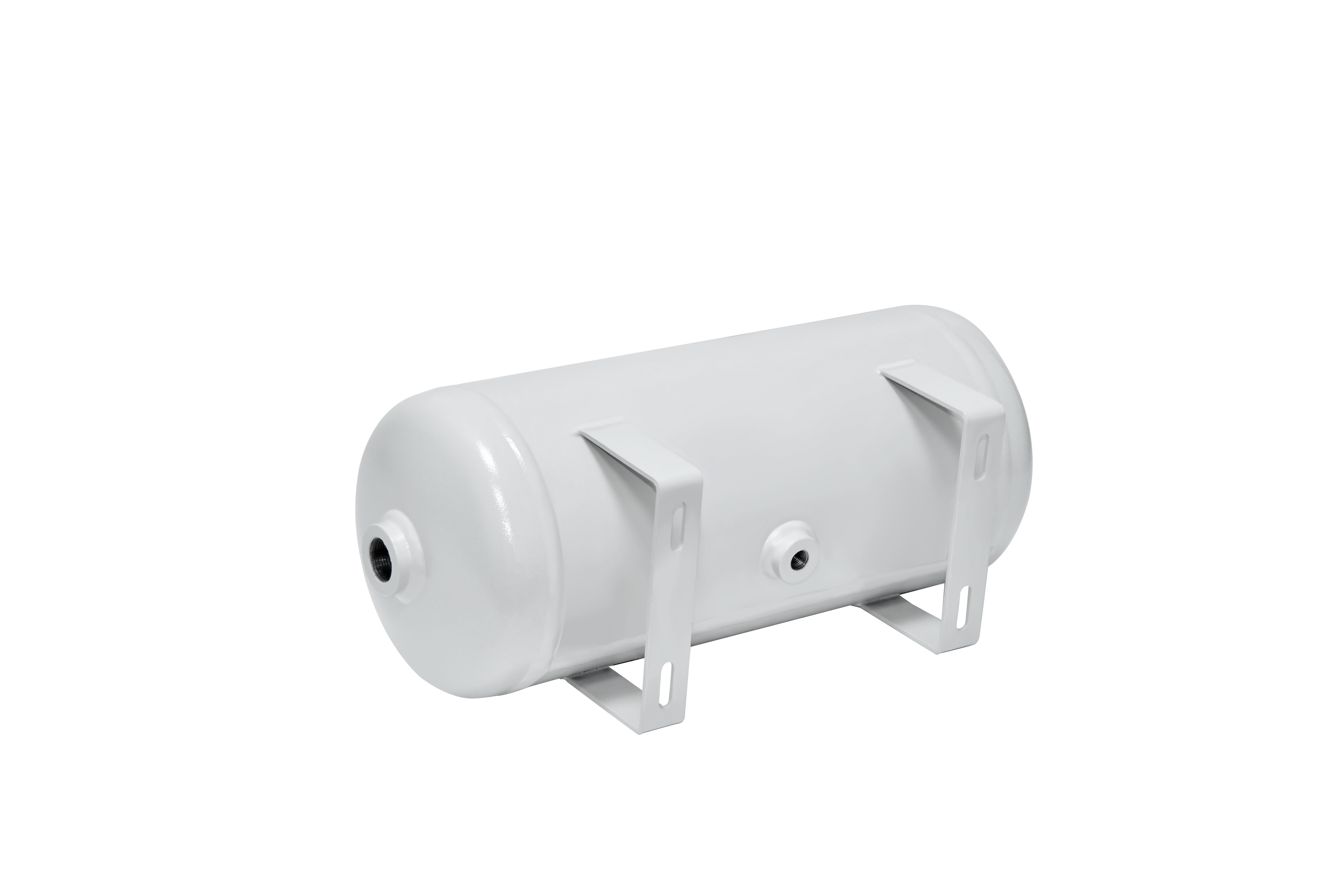

10L ASME air receiver tank for the US market, carbon steel, diameter 180mm, horizontal structure, 13 bar working pressure. Built to ASME standards, safe and reliable. Used for small air compressors, pneumatic systems, and industrial equipment.
The ASME stamp ensures the tank is manufactured to the rigorous safety standards required for sale and operation in the USA, providing legal compliance, insurance acceptability, and proven safety.

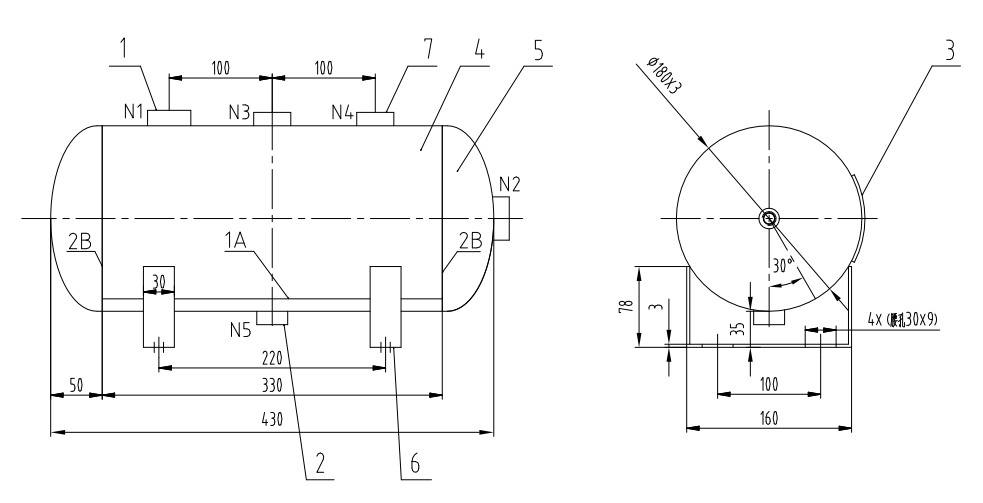

The 180cm diameter (for a 10L volume) creates a wide, shallow profile. This design promotes excellent air cooling and efficient moisture condensation, leading to drier air output and a stable, low center of gravity.
The 13 bar (~190 psi) working pressure is a common and versatile standard, ensuring broad compatibility with a wide range of American pneumatic tools, equipment, and industrial systems.
The 10L volume at this pressure provides a sufficient air reservoir to buffer demand spikes, reduce compressor cycling, and help maintain consistent system pressure, improving overall efficiency for small to medium applications.
| P/N | Pressure (bar) | L*D*H(mm) | Thickness（mm) | Package Size（mm） | Net Weight（KG） | Gross Weight（KG） | Ports |
| 5L ASME | 13 | 345*162*209 | 3 | / | 5 | 5.5 | 3:G1/2, 2:G3/4 |
| 10L ASME | 13 | 450*183*235 | 3 | / | 7.9 | 8.4 | 2:G1/2, 1:G1/4,2:G3/4 |
| 20L ASME | 13 | 540*243*315 | 3 | / | 12 | 12.5 | 2:G1/2, 2:G1/4,2:G3/4 |
| 40L ASME | 8 | 686*293*325 | 3 | / | 16 | 17 | 4:G1/2, 1:G1/4, 2: G3/4 |
| 50L ASME | 8 | 736*332*392 | 3 | / | 20 | 21 | 3:G1/2, 1:G1/4, 2: G3/4 |
| 60L Vertical ASME | 8 | 337*850*968 | 3 | / | 24 | 25 | 3:G1/2, 2:G3/4, 1: G1 |
| 80L ASME | 8 | 870*370*412 | 3 | / | 27.5 | 28 | 3:G1/2, 1:G1/4, 2:G1-1/2 |
| 100L ASME | 8 | 1075*370*388.5 | 3 | / | 37.5 | 38 | 4:G1/2, 1:G1/4, 2:G1-1/2 |
| 5L ASME | 12.5 | 330*179*227 | 2 | / | 4.2 | 4.2 | 2: G1/2, 1:G1/4， 2:G3/4 |
| 10L ASME | 12.5 | 616*179*252 | 2 | / | 6.3 | 2: G1/2, 1:G1/4， 2:G3/4 | |
| 20L ASME | 12.5 | 634*239*304 | 2 | / | 7.48 | / | 2: G1/2, 1:G1/4， 2:G3/4 |
