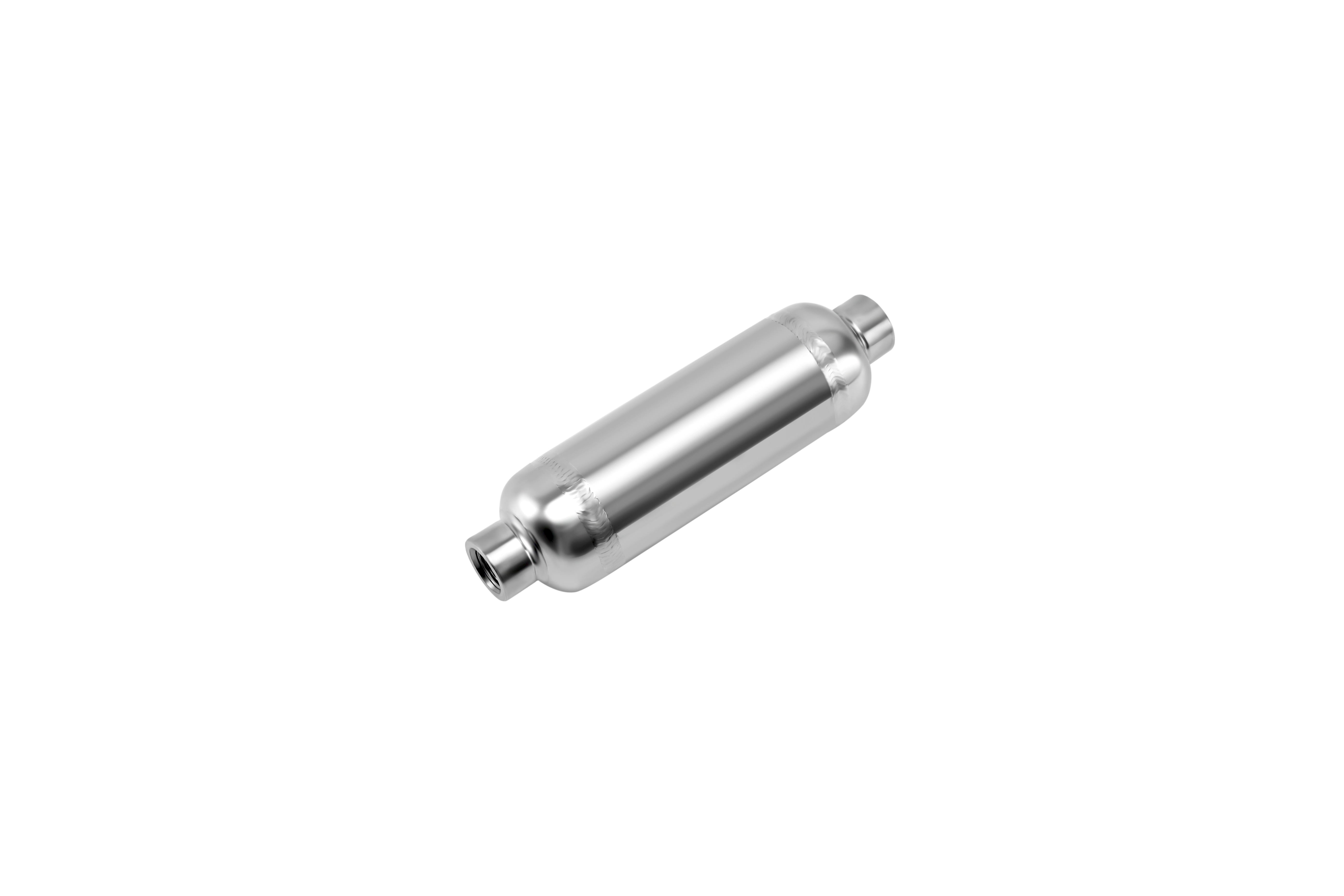

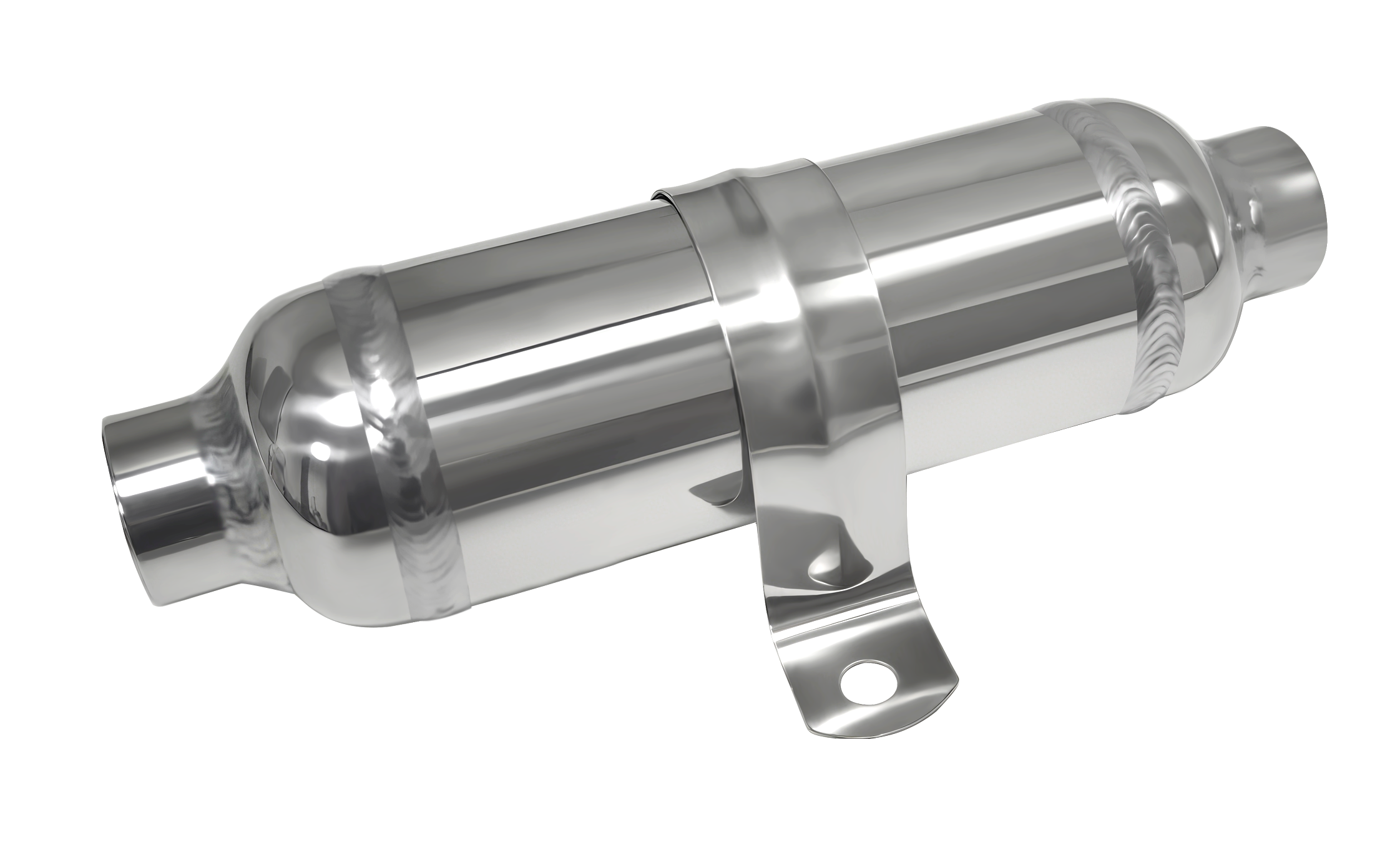

0.1L stainless steel portable pressure vessel. Rated for 12 bar (174 PSI) working pressure. Compact, durable, designed for air storage and transfer in mobile, workshop
High-quality stainless steel construction, corrosion-resistant, durable, and safe for long-term use in various working environments.
Compact 0.1L portable design, lightweight and easy to install, carry and integrate into small pneumatic systems.
Stable 12 bar pressure rating, reliable air storage and pressure stabilization, ensuring smooth system operation.
Wide compatibility with small pneumatic tools, testing equipment and control systems, strong practicality and versatility.
| P/N | Pressure (bar) | L*D*H(mm) | Thickness（mm) | Package Size（mm） | Net Weight（KG） | Gross Weight（KG） | Ports |

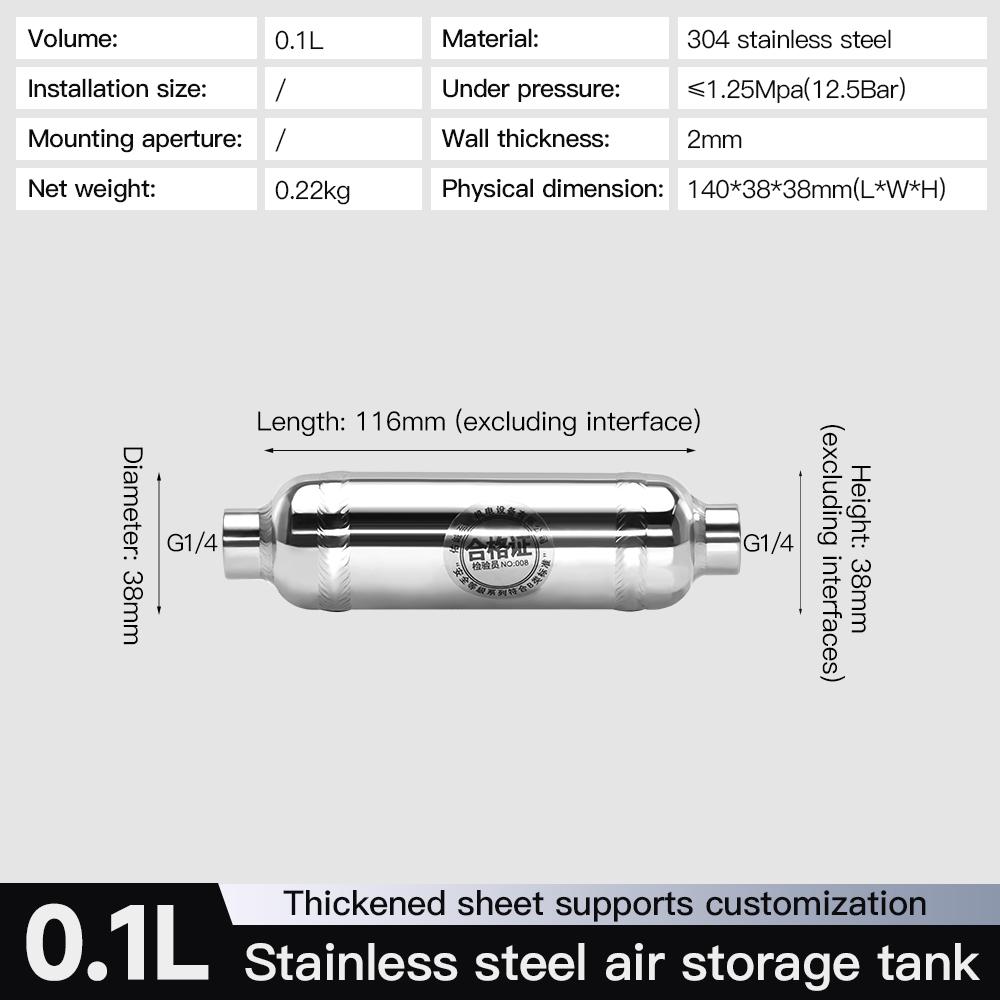

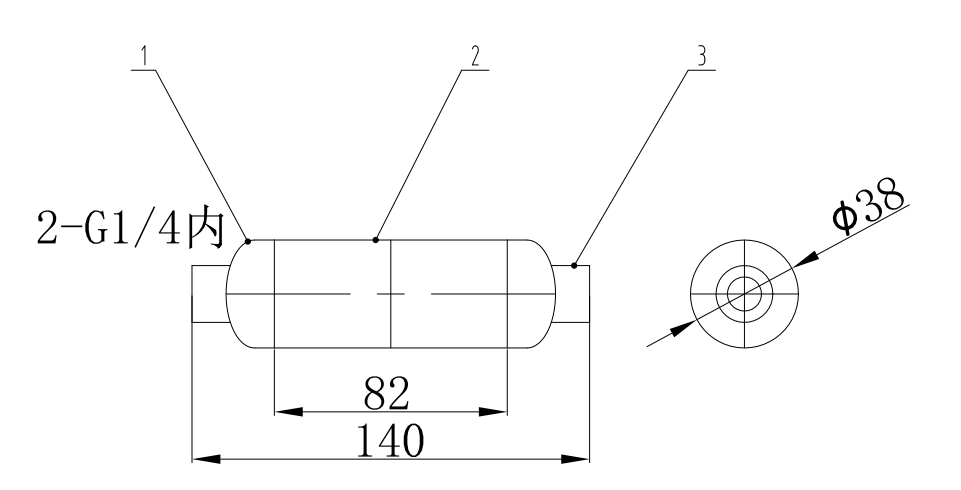

| 0.1L | 12.5 | 140*38*38 | 2 | 150*50*50 | 0.22 | 0.5 | 2: G1/4 |
| 0.2L | 12.5 | 150*83*54 | 2 | 200*60*60 | 0.35 | 0.6 | 2: G1/4 |
| 0.3L | 12.5 | 160*57*70 | 2 | 180*90*110 | 0.46 | 0.72 | 2: G1/4 |
| 0.4L | 12.5 | 135*76 | 2 | 160*92*90 | 0.5 | 0.75 | 2: G1/4 |
| 0.5L G1/4 | 12.5 | 168*88*79 | 2 | 180*90*110 | 0.64 | 0.72 | 2: G1/4 |
| 0.5L G1/8 | 12.5 | 170*80*93 | 2 | 160*160*110 | 0.72 | 1.1 | 2: G1/8 |
| 0.8L G1/8 | 12.5 | 224*76*91 | 2 | 240*110*110 | 1.2 | 1.45 | 2: G1/8 |
| 1L | 12.5 | 174*102*105 | 2 | 190*122*126 | 0.9 | 1.6 | 2: G1/4 |
| 2L | 12.5 | 254*108*126 | 2 | 250*128*150 | 1.48 | 3 | 4: G1/4 |
| 2L -G1/2 | 12.5 | 260*108*126 | 2 | 280*110*130 | 1.48 | 3 | 4: G1/2 |
| 3L | 12.5 | 254*133*148 | 2 | 260*153*156 | 2.5 | 3 | 4: G1/4 |
| 3LA frosted | 12.5 | 234*140*155 | 2 | 250*180*180 | 1.75 | 2 | 4: G1/4 |
| 3LB frosted | 12.5 | 240*140*192 | 2 | 260*250*250 | 2 | 2.5 | 2: G1/2, 3:G1/4 |
| 4L | 12.5 | 240*159*235 | 2 | 250*170*245 | 2.35 | 2.5 | 3: G1/2, 1:G1/4 |
| 5L | 12.5 | 318*159*230 | 2 | 370*210*205 | 3.4 | 3.8 | 2: G1/2, 3:G1/4 |
| 5LA frosted | 12.5 | 310*160*215 | 2 | 320*170*240 | 3.05 | 3.35 | 2: G1/2, 1:G1/4 |
| 5LB frosted | 12.5 | 310*160*230 | 2 | 320*170*240 | 3.1 | 3.4 | 2: G1/2, 3:G1/4 |
| 5L high pressure | 30 | 290*159*249 | 3 | 320*180*260 | 4.8 | 5.5 | 2: G1/2, 3:G1/4 |
| 5L vertical | 12.5 | 300*174*375 | 2 | 380*205*200 | 2.85 | 3.2 | 3: G1/2, 1:G1/4 |
| 5L vertical frosted | 12.5 | 290*175*355 | 2 | 380*205*200 | 2.85 | 3.2 | 2: G1/2, 1:G1/4 |
| 5L ASME | 12.5 | 330*179*227 | 2 | / | 4.2 | 4.2 | 2: G1/2, 1:G1/4， 2:G3/4 |
| 10L | 12.5 | 510*159*255 | 2 | 500*185*260 | 5.5 | 5.8 | 4: G1/2, 1:G1/4 |
| 10LA frosted | 12.5 | 454*180*235 | 2 | 190*240*460 | 4.7 | 5.15 | 2: G1/2, 1:G1/4 |
| 10LB frosted | 12.5 | 460*180*250 | 2 | 460*260*200 | 4.95 | 5.4 | 4: G1/2, 1:G1/4 |
| 10L high pressure | 30 | 530*159*249 | 3 | 570*170*280 | 8.1 | 10 | 2: G1/2, 3:G1/4 |
| 10L vertical | 12.5 | 345*234*420 | 3 | 430*239*365 | 6 | 6.5 | 4: G1/2, 1:G1/4 |
| 10L ASME | 12.5 | 616*179*252 | 2 | / | 6.3 | 2: G1/2, 1:G1/4， 2:G3/4 | |
| 12L frosted | 12.5 | 215*270*400 | 2 | 420*290*220 | 5.45 | 5.95 | 3: G1/2 |
| 15L | 12.5 | 450*219*293 | 2 | 460*230*320 | 6.5 | 7.2 | 5: G1/2,1:G1/4 |
| 20L | 12.5 | 500*290*219 | 2.5 | 530*300*250 | 7.25 | 7.85 | 4: G1/2,1:G1/4 |
| 20LA frosted | 12.5 | 500*296*236 | 2.5 | 510*250*315 | 7.2 | 7.9 | 3: G4/2 |
| 20LB frosted | 12.5 | 500*306*236 | 2.5 | 510*250*315 | 7.2 | 7.9 | 4: G1/2, 1:G1/4 |
| 20L high pressure | 30 | 626*219*289 | 5 | 660*260*310 | 14.7 | 15.2 | 4: G1/2, 1:G1/4 |
| 20L vertical | 12.5 | 430*260*545 | 3 | 450*280*565 | 9.4 | 10.6 | 5: G1/2, 1:G1/4 |
| 20L ASME | 12.5 | 634*239*304 | 2 | / | 7.48 | / | 2: G1/2, 1:G1/4， 2:G3/4 |
| 25L frosted | 12.5 | 580*306*236 | 2.5 | 590*250*315 | 7.9 | 8.6 | 4: G1/2, 1:G1/4 |
| 30L | 12.5 | 530*273*350 | 2.5 | 550*293*370 | 13.15 | 13.5 | 5: G1/2, 1:G1/4 |
| 30L frosted | 12.5 | 460*365*320 | 2.5 | 490*375*330 | 12.2 | 13.55 | 4: G1/2, 1:G1/4 |
| 40L | 12.5 | 690*273*350 | 3 | 720*300*370 | 15.2 | 15.5 | 5: G1/2, 1:G1/4 |
| 50L | 12.5 | 760*325*400 | 2 | 780*345*420 | 19.7 | 16.8 | 4: G1/2, 1:G1/4 |
| 60L | 12.5 | 760*325*400 | 3 | 780*345*420 | 16.4 | 20.5 | 6: G1/2, 1:G1/4 |
| 300L-8 bar Vertical | 8 | φ550*1612 | |||||
| 300L-10 bar Vertical | 10 | φ550*1612 | / | ||||
| 300L-13 bar Vertical | 13 | φ550*1614 | |||||
| 300L-16 bar Vertical | 16 | φ550*1614 | |||||
| 600L-8 bar Vertical | 8 | φ650*2134 | / | ||||
| 600L-10 bar Vertical | 10 | φ650*2135 | / | ||||
| 600L-13 bar Vertical | 13 | φ650*2136 | |||||
| 600L-16 bar Vertical | 16 | φ650*2136 | |||||
| 1m³-8 bar Vertical | 8 | φ800*2258 | / | ||||
| 1m³-10 bar Vertical | 10 | φ800*2260 | / | ||||
| 1m³-13 bar Vertical | 13 | φ800*2260 | / | ||||
| 1m³-16 bar Vertical | 16 | φ800*2260 | / | ||||
| 1.5m³-13 bar Vertical | 13 | φ1000*2291 | |||||
| 1.5m³-16 bar Vertical | 16 | φ1000*2291 | |||||
| 2m³-8 bar Vertical | 8 | φ1000*2838 | / | ||||
| 2m³-10 bar Vertical | 10 | φ1000*2838 | / | ||||
| 2m³-13 bar Vertical | 13 | φ1000*2810 | |||||
| 2m³-16 bar Vertical | 16 | φ1000*2810 | / | ||||
| 3m³-8 bar Vertical | 8 | φ1200*2952 | |||||
| 3m³-10 bar Vertical | 10 | φ1200*2954 | |||||
| 3m³-13 bar Vertical | 13 | φ1200*2958 | |||||
| 3m³-16 bar Vertical | 16 | φ1200*2958 | / | ||||
| 4m³-8 bar Vertical | 8 | φ1400*3074 | |||||
| 4m³-10 bar Vertical | 10 | φ1400*3078 | |||||
| 4m³-13 bar Vertical | 13 | φ1400*3078 | |||||
| 4m³-16 bar Vertical | 16 | φ1400*3078 | |||||
| 5m³-8 bar Vertical | 8 | φ1400*3752 | |||||
| 5m³-10 bar Vertical | 10 | φ1400*3754 | / | ||||
| 5m³-13 bar Vertical | 13 | φ1400*3754 | |||||
| 5m³-16 bar Vertical | 16 | φ1400*3754 | |||||
| 6m³-8 bar Vertical | 8 | φ1400*4362 | |||||
| 6m³-10 bar Vertical | 10 | φ1400*4364 | |||||
| 6m³-13 bar Vertical | 13 | φ1400*4364 | |||||
| 6m³-16 bar Vertical | 16 | φ1400*4364 | |||||
| 8m³-13 bar Vertical | 13 | φ1600*4464 | |||||
| 8m³-16 bar Vertical | 16 | φ1600*4466 |
